/Products/Electric Motor Parts/Shaft Seals/VA-035 Dichtomatik 35MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-035

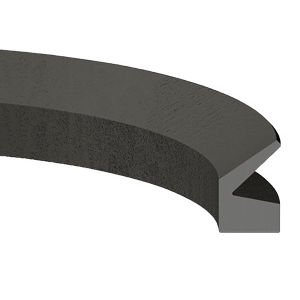

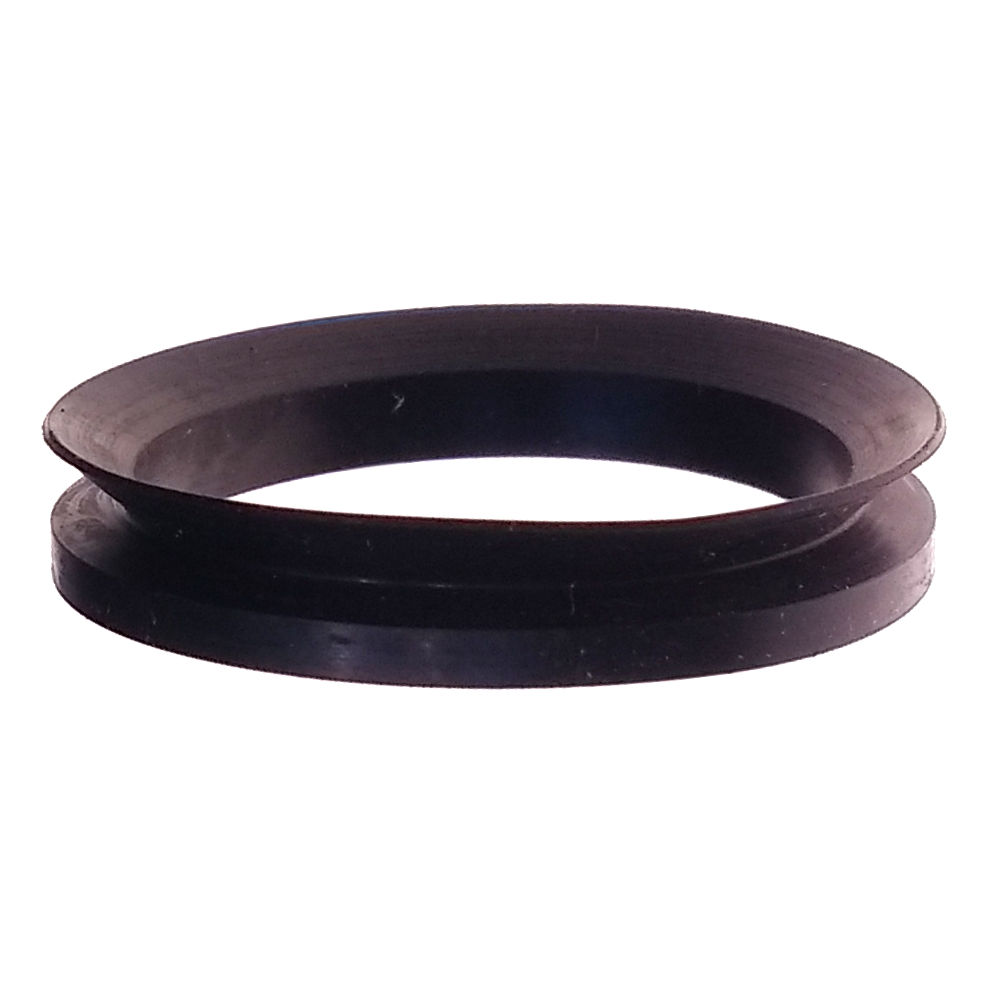

VA-035 Dichtomatik 35MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-035

Available Stock: 19
Selected accessories will also be added to cart
$8.40 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-035

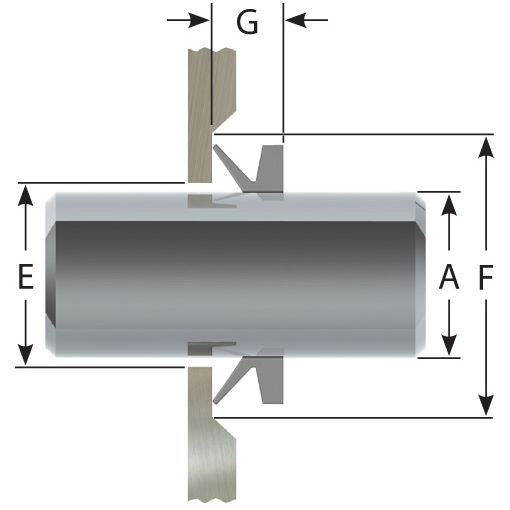

Shaft Diameter 33.00 - 36.00 mm
Seal Inside Diameter “B” 31.00 mm
Seal Outside Diameter “C” 39.00 mm
Seal Height “D” 7.50 mm
Housing Inside Diameter “E” "A" + 3.00 mm
Housing Outside Diameter “F” "A" + 12.00 mm
Housing Width “G” 6.00 mm ± 0.80
UPC
Weight 0.02 lbs
Country of Origin Taiwan
