Products
/
Electric Motors
/
Single Phase
/
Century
/
Farm Duty
/
V308M2 Century 5.5HP OEM Replacement Electric Motor, 1200RPM
Click Image to Expand
Previous
Next
Product ID: V308M2

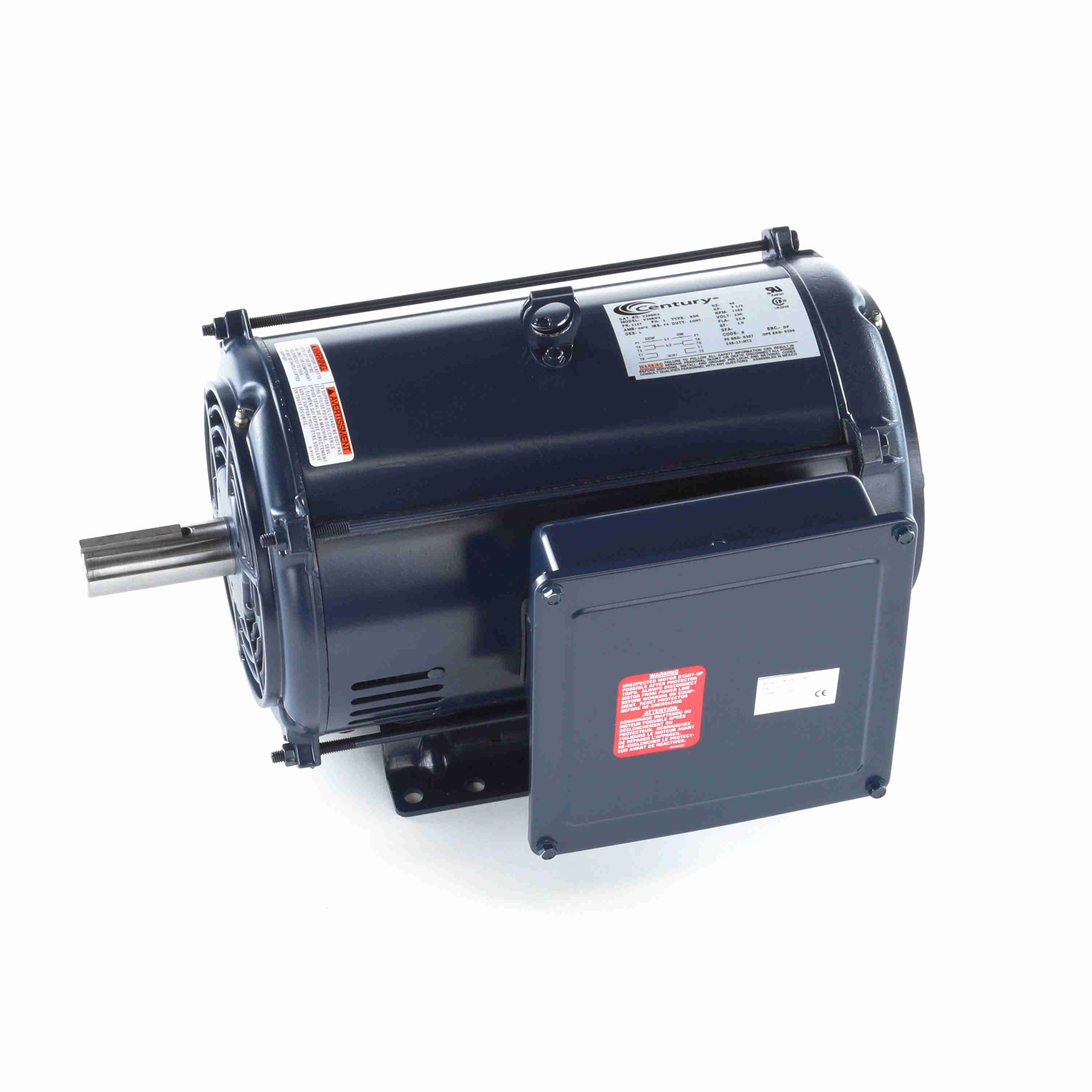

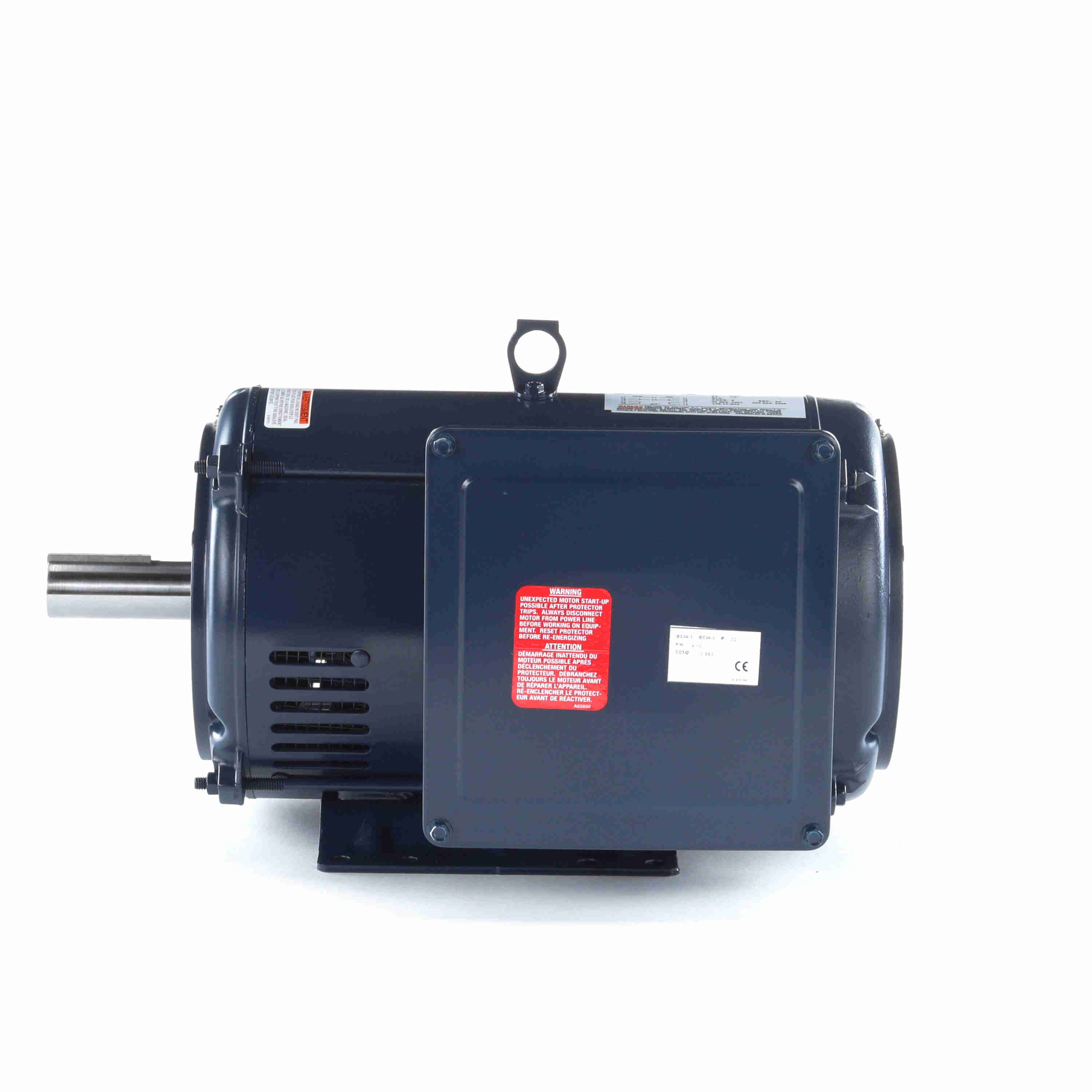

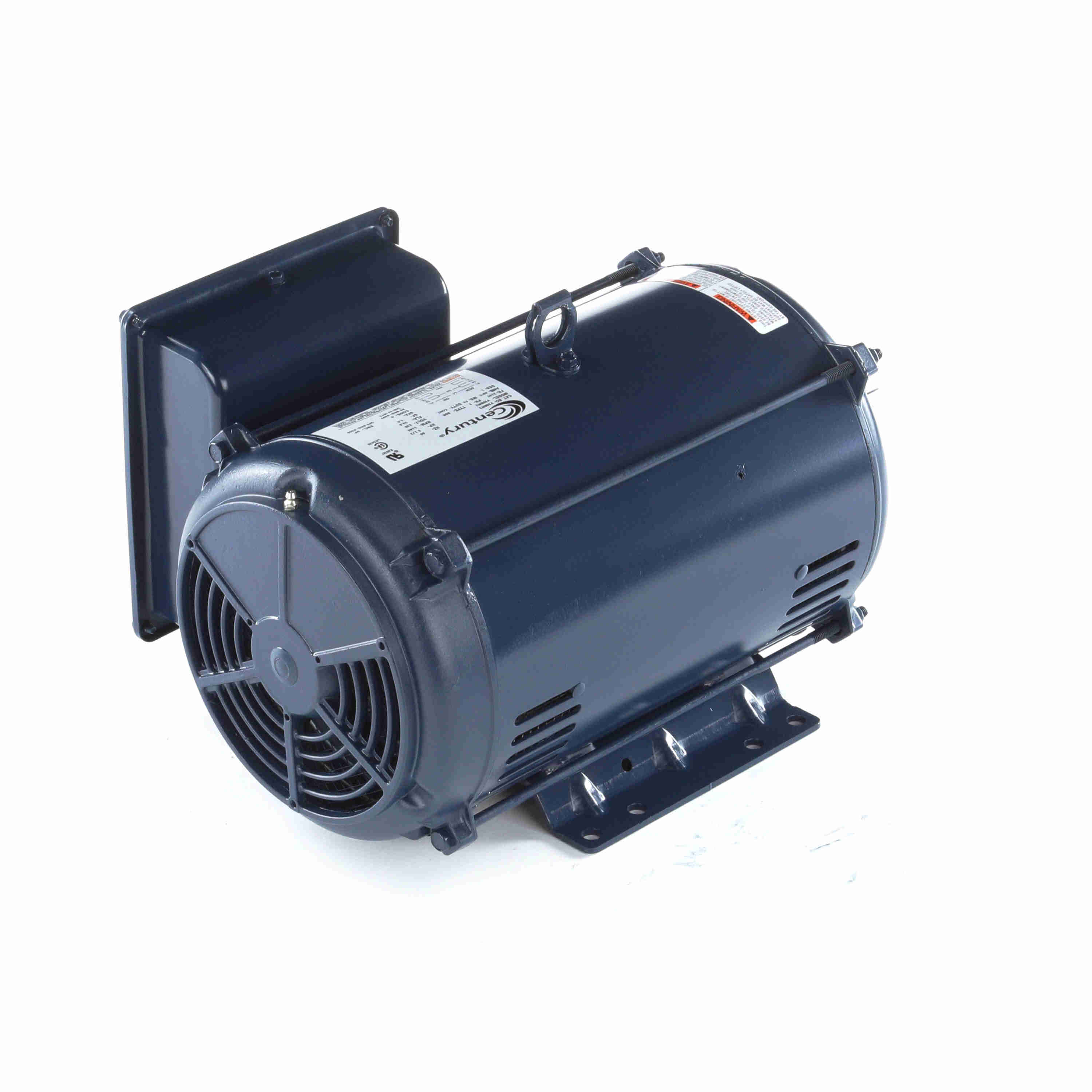

V308M2 Century 5.5HP OEM Replacement Electric Motor, 1200RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: V308M2
Selected accessories will also be added to cart
$1,600.97 / Each
Quantity:
ODP, 215T Frame, 230VAC Single Phase 60Hz, Rolled Steel, Rigid Base, 1-3/8" Keyed Shaft
Details
Features
Double sealed ball bearings
Manual overload protector
General Specifications
UPC:
786674069399
Weight:
136.00 LB
Packaged Length:
22.19 IN
Packaged Width:
16.5 IN
Packaged Height:
14 IN

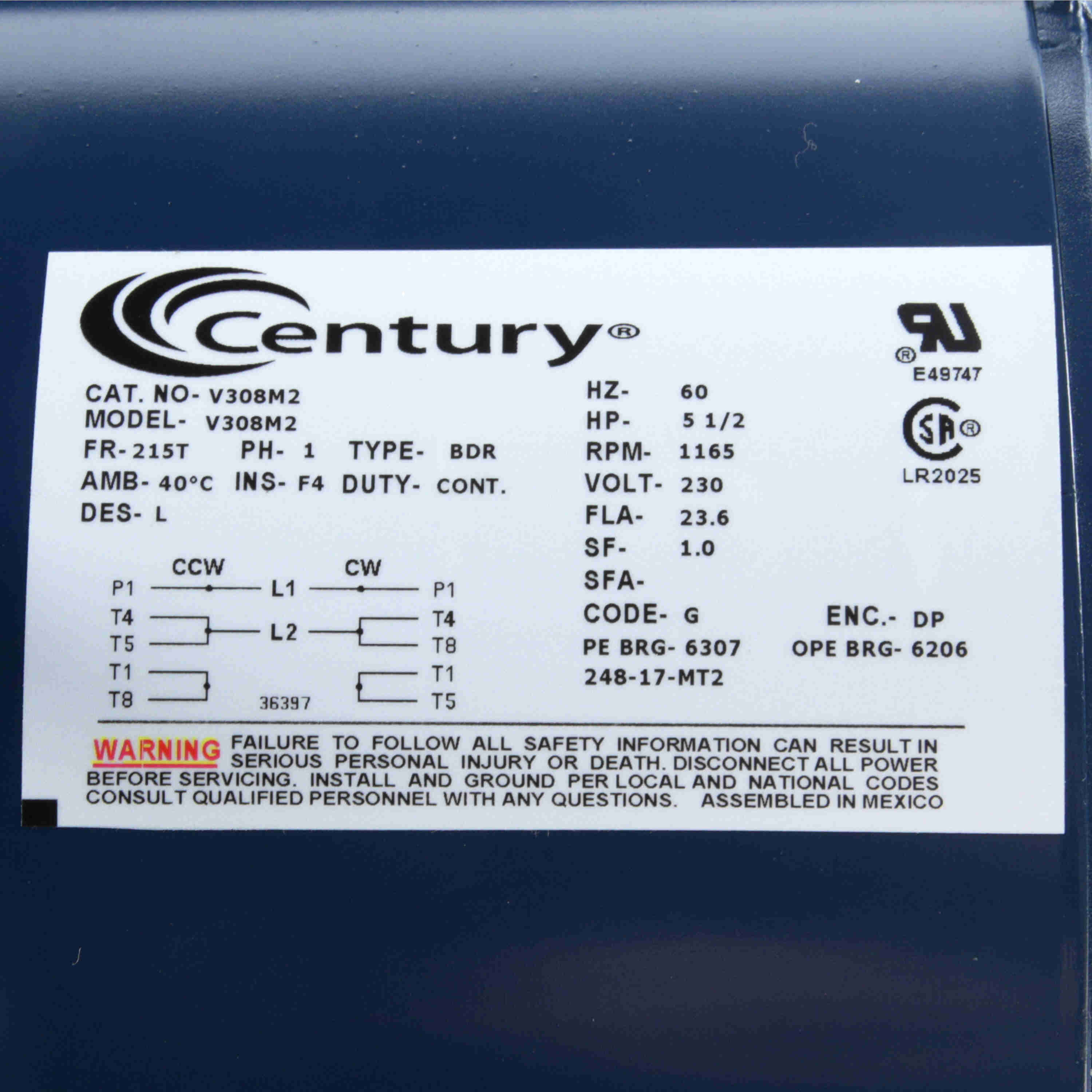

Nameplate Specifications
Output HP:
5.5 Hp
Output KW:
4.1 kW
Frequency:
60 Hz
Voltage:
230 V
Current:
22 A
Speed:
1165 rpm
Service Factor:
1
Phase:
1
Duty:
Continuous
Insulation Class:
F
Frame:
215T
Enclosure:
Drip Proof
Thermal Protection:
Manual
Ambient Temperature:
40 °C
UL:
Recognized
CSA:
Y
CE:
N
Technical Specifications
Electrical Type:
Capacitor Start Capacitor Run
Starting Method:
Across The Line
Poles:
6
Rotation:
Selective Counterclockwise
Mounting:
Rigid base
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
Keyed
Overall Length:
19.31 in
Frame Length:
12.40 in
Shaft Diameter:
1.375 in
Shaft Extension:
3.47 in
Speed & Load Characteristics
