/Products/Electric Motors/Single Phase/Century/Air Compressor/V208M2 Century 5HP Air Compressor Electric Motor, 1750RPM
Click Image to Expand

Product ID: V208M2

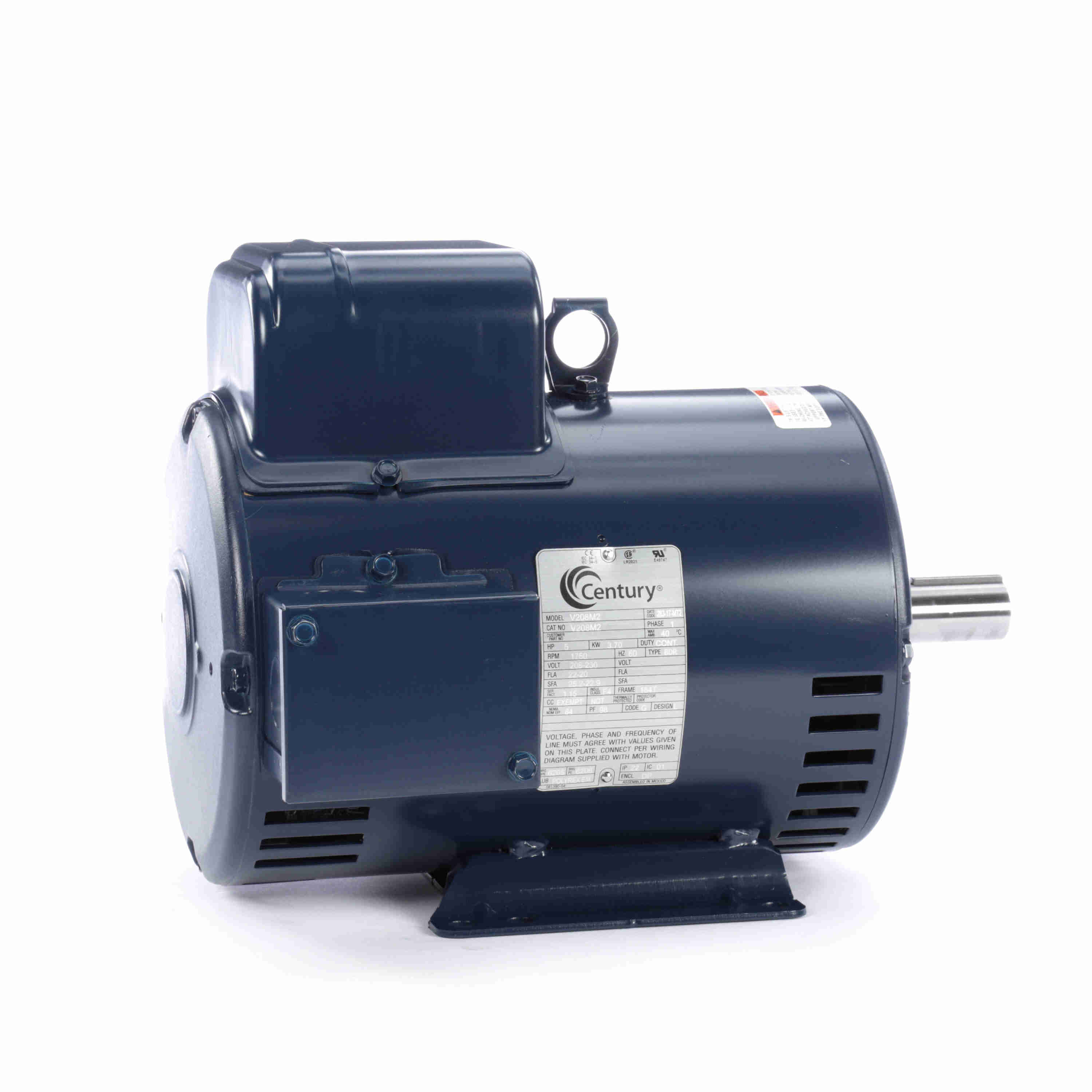

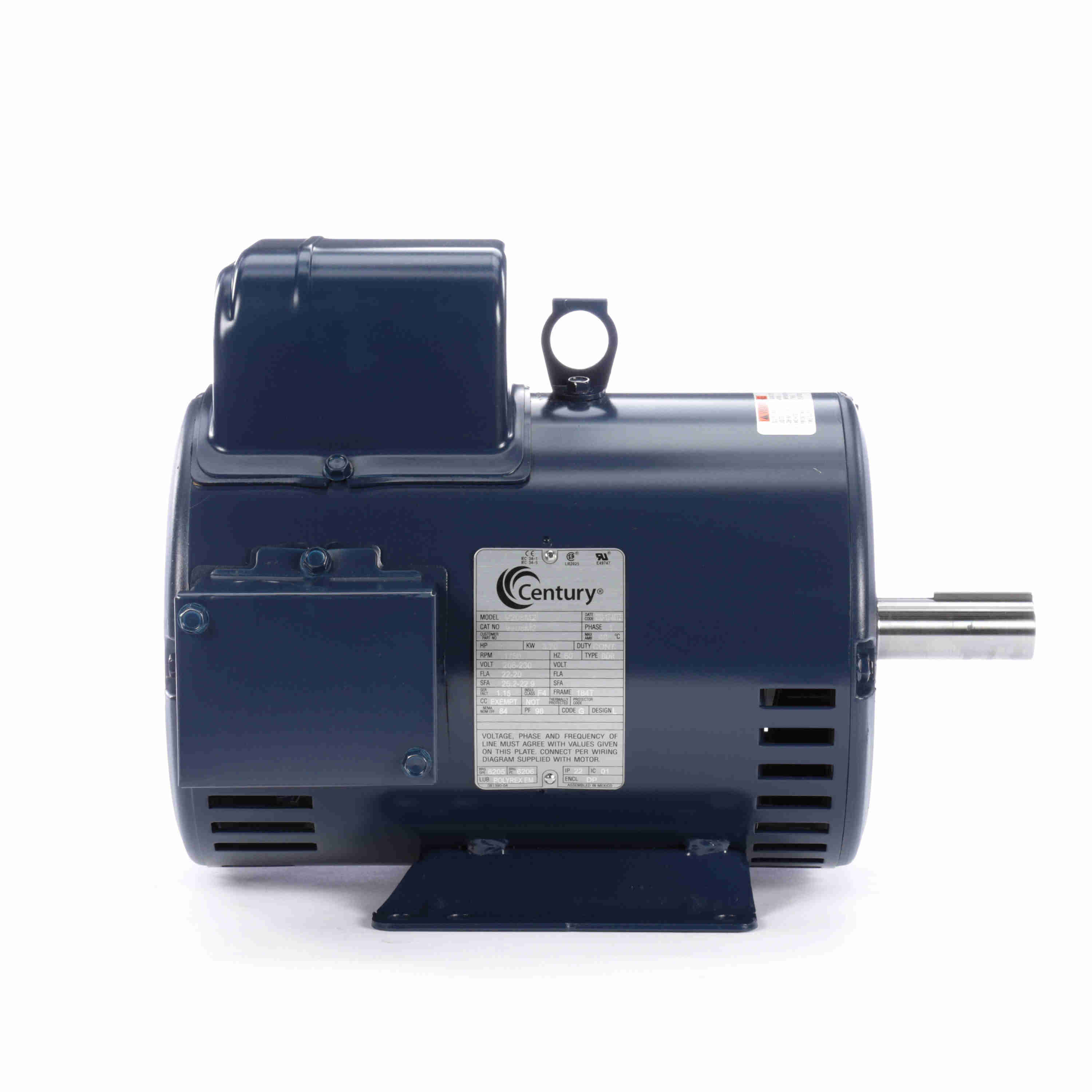

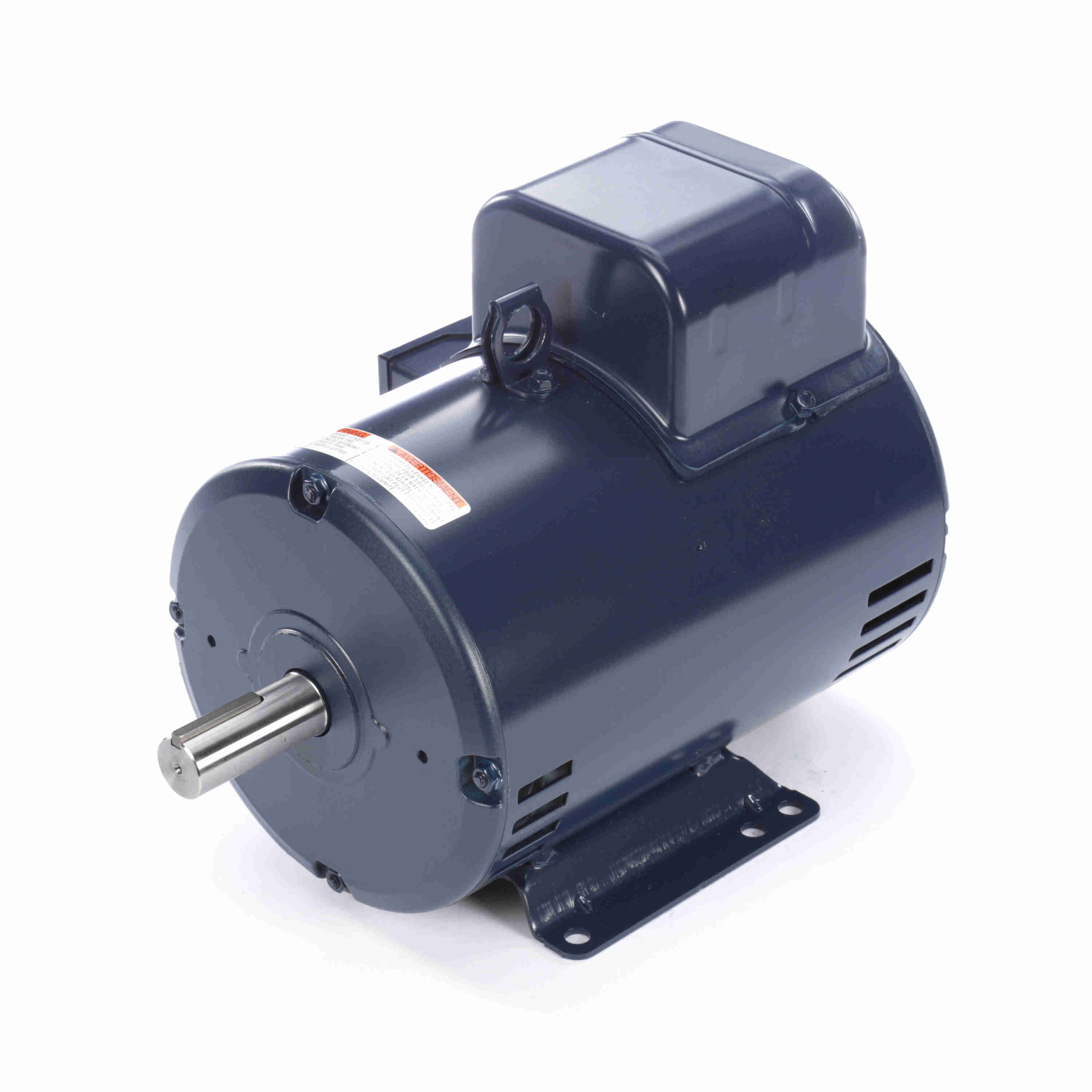

V208M2 Century 5HP Air Compressor Electric Motor, 1750RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: V208M2

Temporarily out of stock
Selected accessories will also be added to cart
$931.97 / Each
Drip Proof, 184T Frame, 208-230V Single Phase 60Hz, Rigid Base

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No :V208M2
Part Description :5,1750,DP,184T,1/60/208-230 Category :Air Compressor
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :5 Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :208-230 V
Current :22-20 A Speed :1750 rpm
Service Factor :1.15 Phase :1
Duty :Continuous Insulation Class :F
Frame :184T Enclosure :Drip Proof
Overload Protector :No Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :Y

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Counterclockwise
Mounting :Rigid base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :16.19 in
Frame Length :11.00 in Shaft Diameter :1.125 in
Shaft Extension :2.81 in UPC :786674066978
Weight :89.00 LB

Speed & Load Characteristics
