UST1102 Century 1HP Pool Pump Electric Motor, 3450 RPM
Click Image to Expand
Previous Image
Next Image
Previous
Next
Previous
Next
Product ID: UST1102

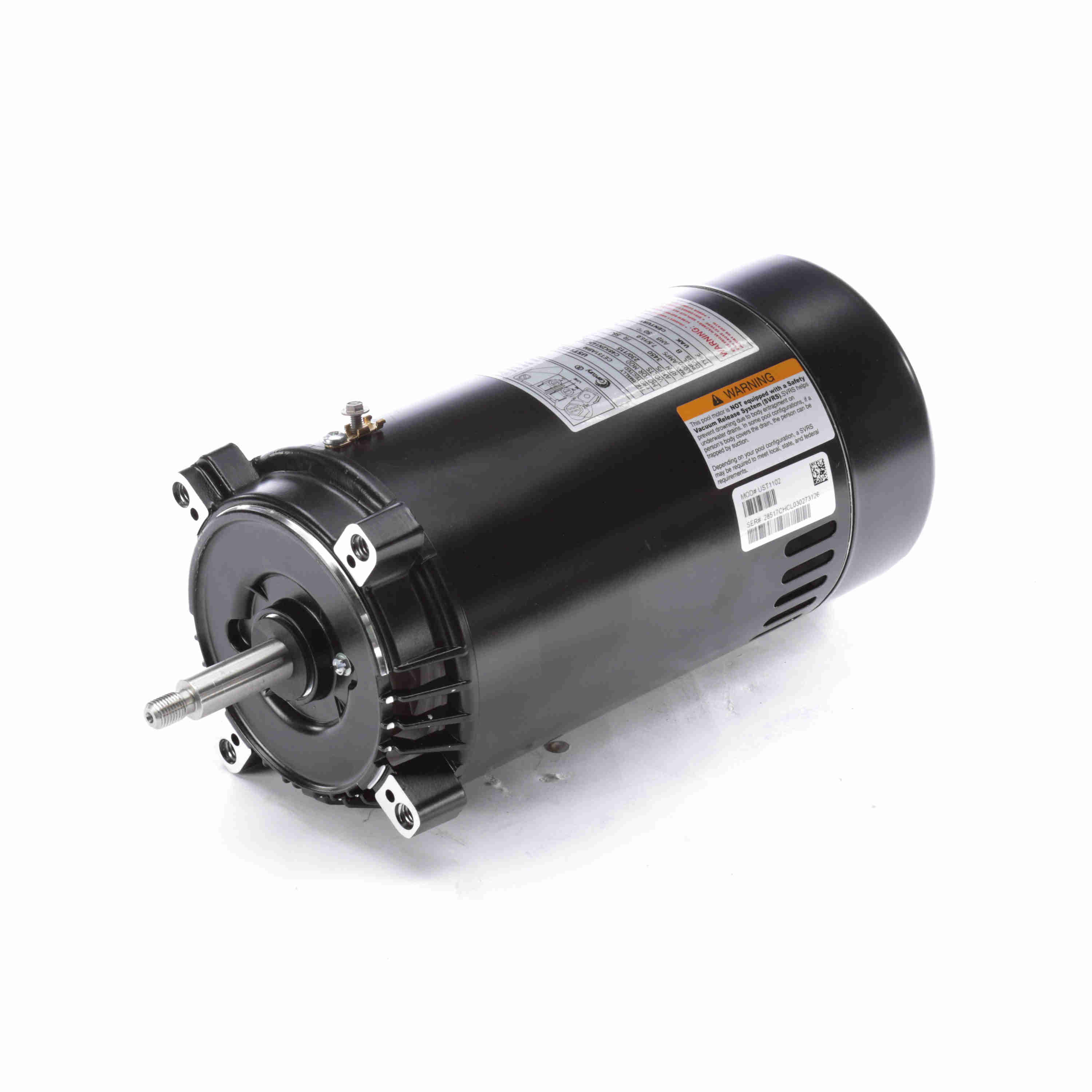

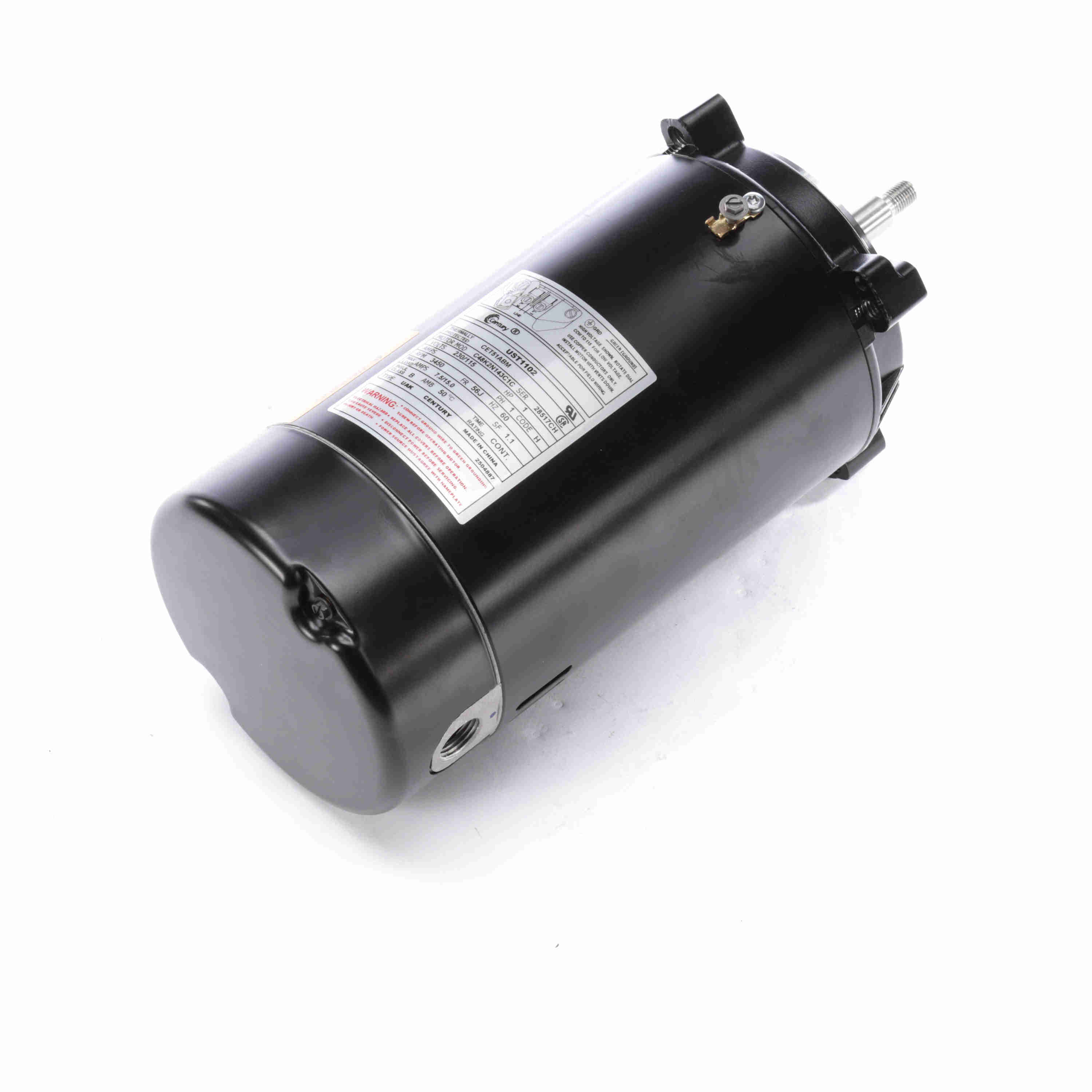

UST1102 Century 1HP Pool Pump Electric Motor, 3450 RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UST1102
Selected accessories will also be added to cart
$315.97 / Each
Quantity:
Open Drip Proof, 56J Frame, 115/230V Single Phase 60Hz
Details
Features
Features
Sealed Switch Design
UL 1081 Design
50°C Ambient
304 Bearing Shaft End
303 Stainless Steel Shaft
Threaded Shaft
Capacitor Start-Capacitor Run
General Specifications
General Specifications
Model :
UST1102
Catalog No :
UST1102
Part Description :
1 HP 3450 115/230 ODP 56J THD SHAFT
Category :
Induction Motors
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
1 Hp
Output KW :
0.75 kW
Frequency :
60 Hz
Voltage :
230/115 V
Current :
7.5/15.0 A
Speed :
3450 rpm
Service Factor :
1.1
Phase :
1
Duty :
Continuous
Insulation Class :
B
Frame :
56J
Enclosure :
Open Drip Proof
Overload Protector :
Automatic
Ambient Temperature :
50 °C
UL :
Recognized
CSA :
Y
Technical Specifications
Technical Specifications
Electrical Type :
Cap Start Motor
Poles :
2
Rotation :
Counterclockwise Pump End
Mounting :
Round
Motor Orientation :
Horizontal
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Rolled Steel
Shaft Type :
Threaded
Overall Length :
13.53 in
Frame Length :
7.75 in
Shaft Diameter :
0.625 in
Shaft Extension :
2.56 in
UPC :
786674033338
Weight :
22.00 LB
