/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/UST1072 Century 3/4HP Pool Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: UST1072

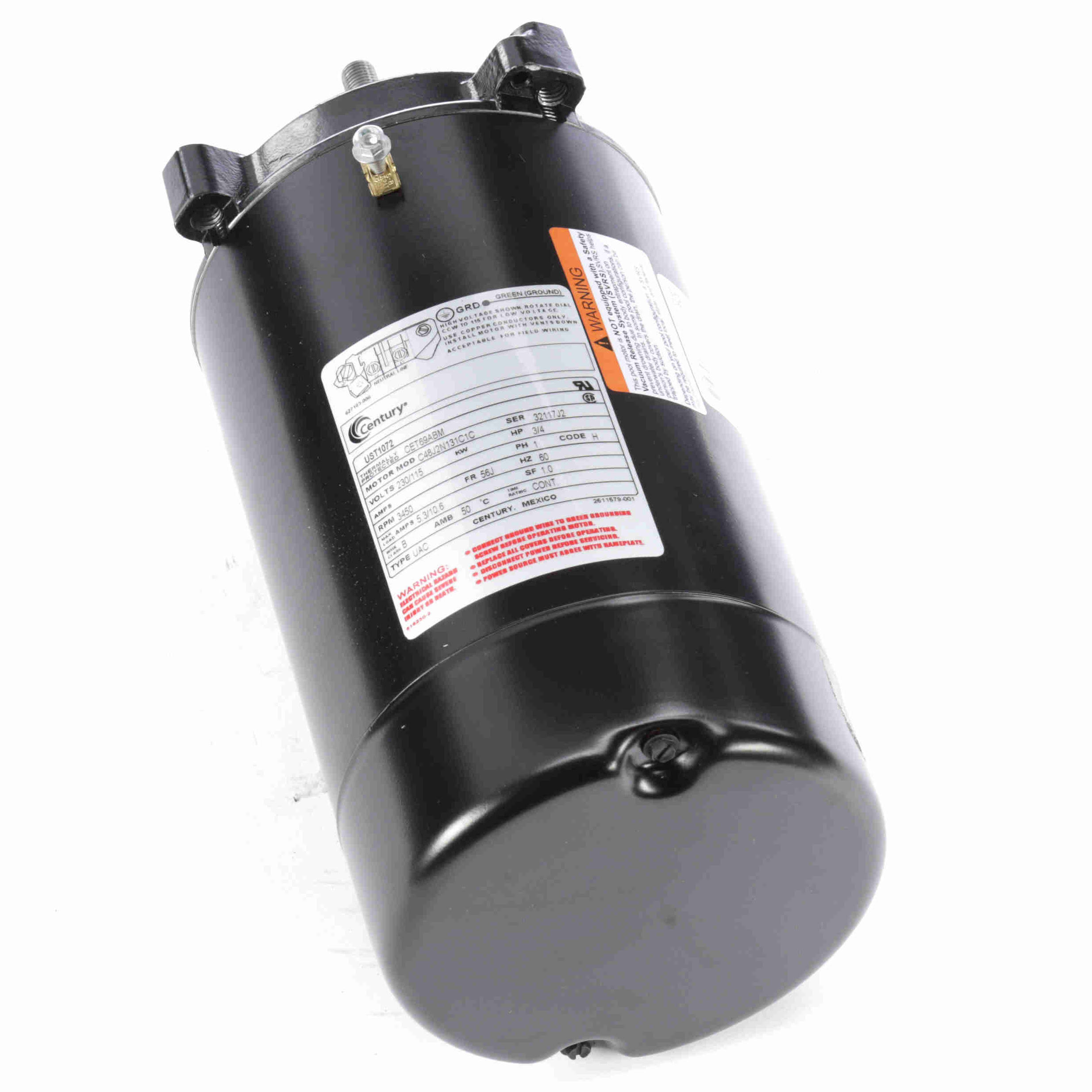

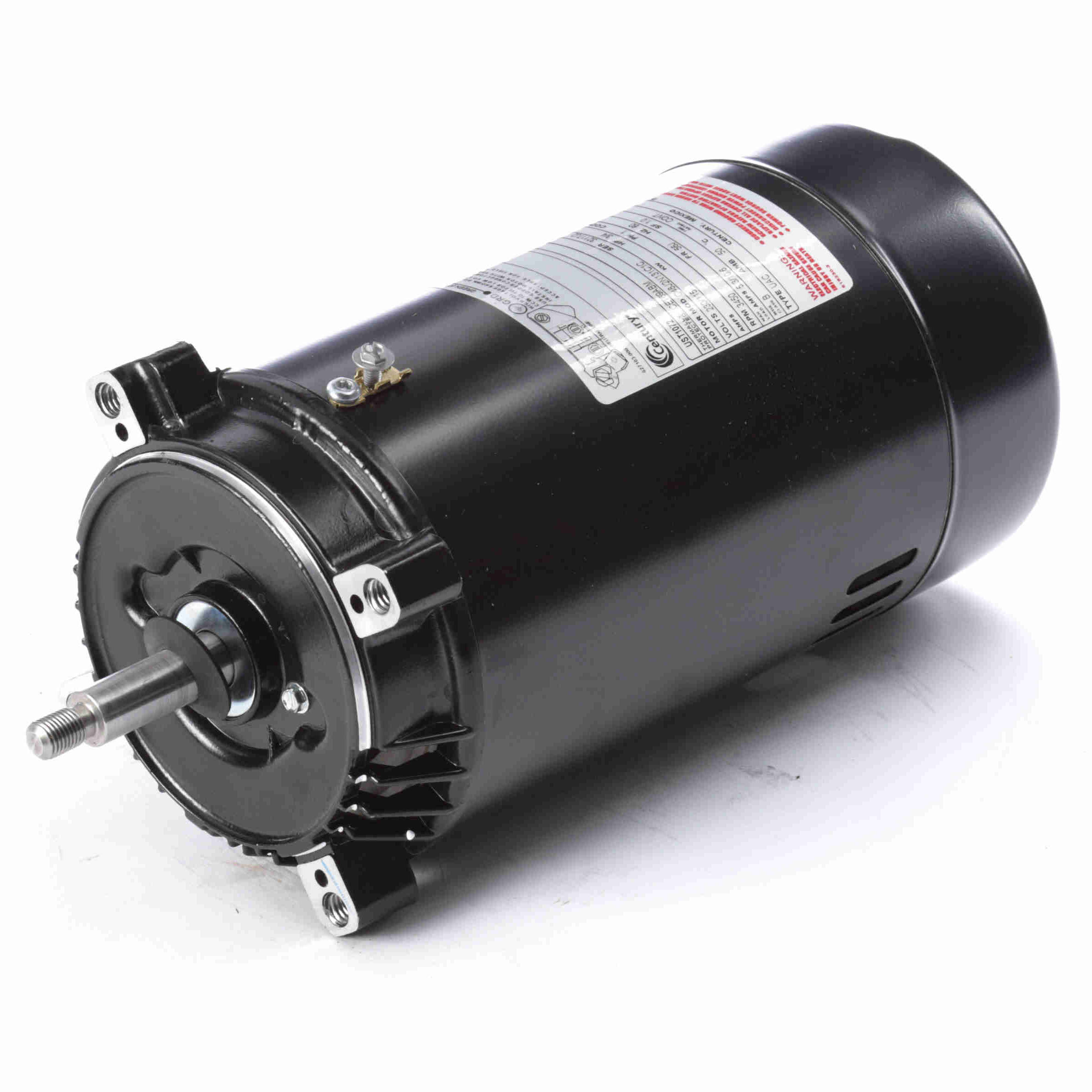

UST1072 Century 3/4HP Pool Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UST1072

Selected accessories will also be added to cart
$255.97 / Each
Quantity:
ODP, 56J Frame, 115/230V Single Phase 60Hz

Features

Features
  • Sealed Switch Design
  • UL 1081 Design
  • 50°C Ambient
  • 304 Bearing Shaft End
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Capacitor Start-Capacitor Run

General Specifications

General Specifications
Model :UST1072 Catalog No :UST1072
Part Description :3/4 HP 3450 115/230 ODP 56J THD SHAFT Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :3/4 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :230/115 V
Current :5.5/11.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :56J Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Cap Start Motor Poles :2
Rotation :Counterclockwise Pump End Mounting :Round
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :13.20 in
Frame Length :7.38 in Shaft Diameter :0.625 in
Shaft Extension :2.56 in UPC :786674033321
Weight :20.00 LB
