/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/USQ1052 Century 1/2HP Pool / Spa Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: USQ1052

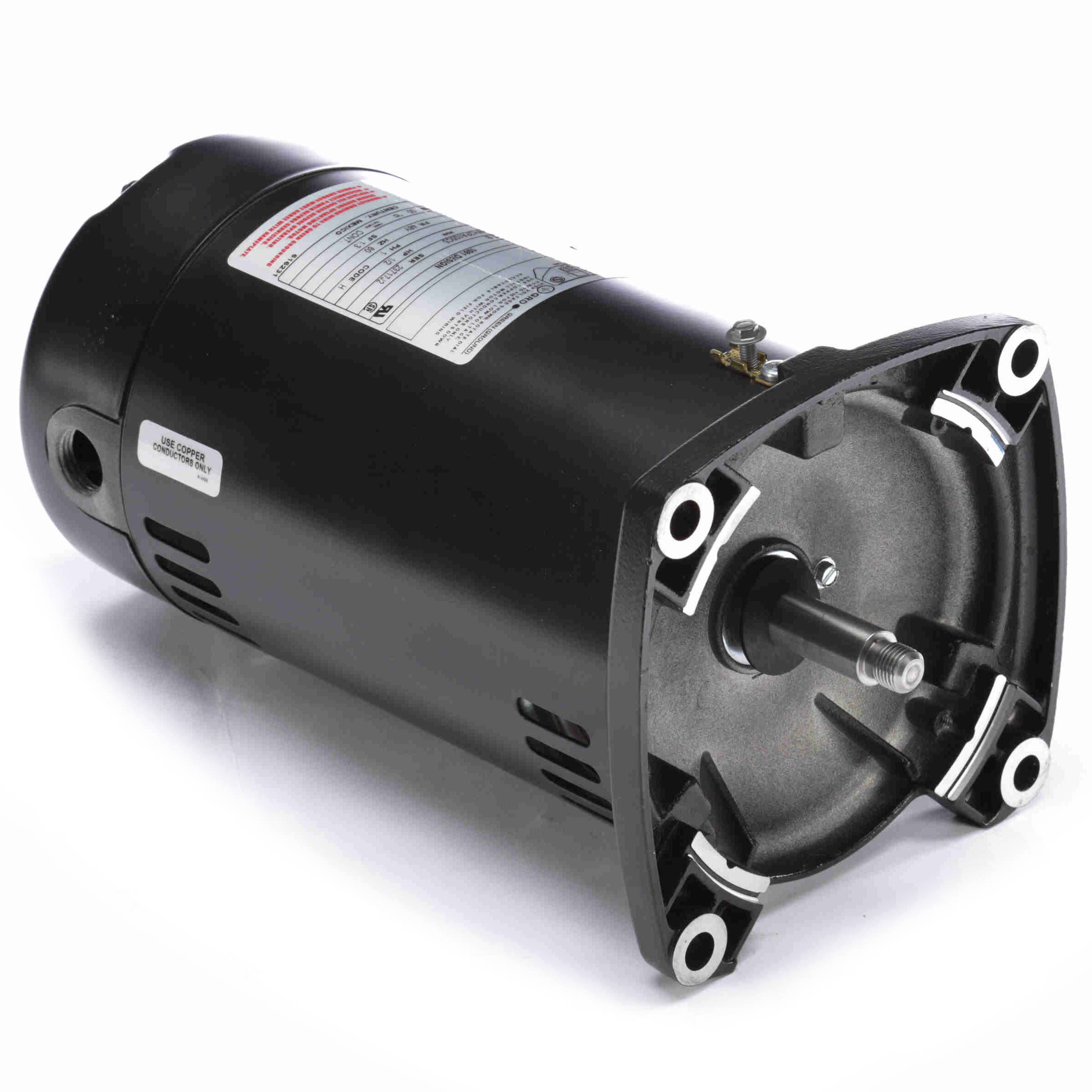

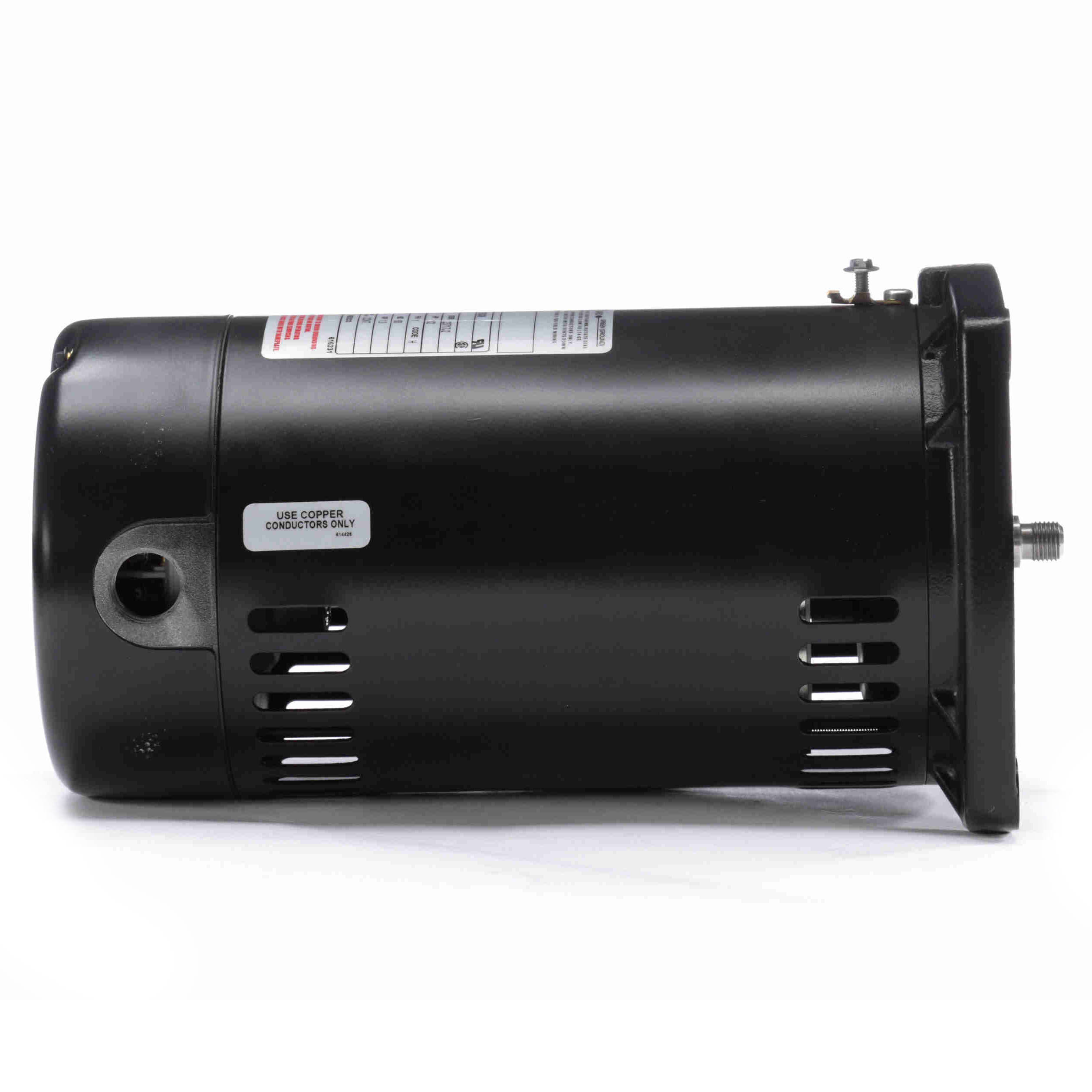

USQ1052 Century 1/2HP Pool / Spa Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: USQ1052

Selected accessories will also be added to cart
$254.97 / Each
Quantity:
ODP, 48Y Frame, 115/230VAC Single Phase 60Hz

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start
  • Open Dripproof
  • 303 Stainless Steel Shaft
  • 50°C Ambient
  • UL 1081 Design

General Specifications

General Specifications
USQ1052 USQ1052
1/2 HP 3450 115/230 ODP 48Y THD SHAFT Induction Motors
Yes

Nameplate Specifications

Nameplate Specifications
1/2 HP 0.37 kW
60 Hz 230/115 V
5.0/9.9 A 3450 RPM
1.3 1
Continuous B
48Y Open Drip Proof
Automatic 50 °C
Recognized Y

Technical Specifications

Technical Specifications
Cap Start Motor 2
Counterclockwise Pump End Round
Horizontal BALL
BALL Rolled Steel
Threaded 11.82 in
8.06 in 0.625 in
0.906 in 786674033222
17.00 LB
