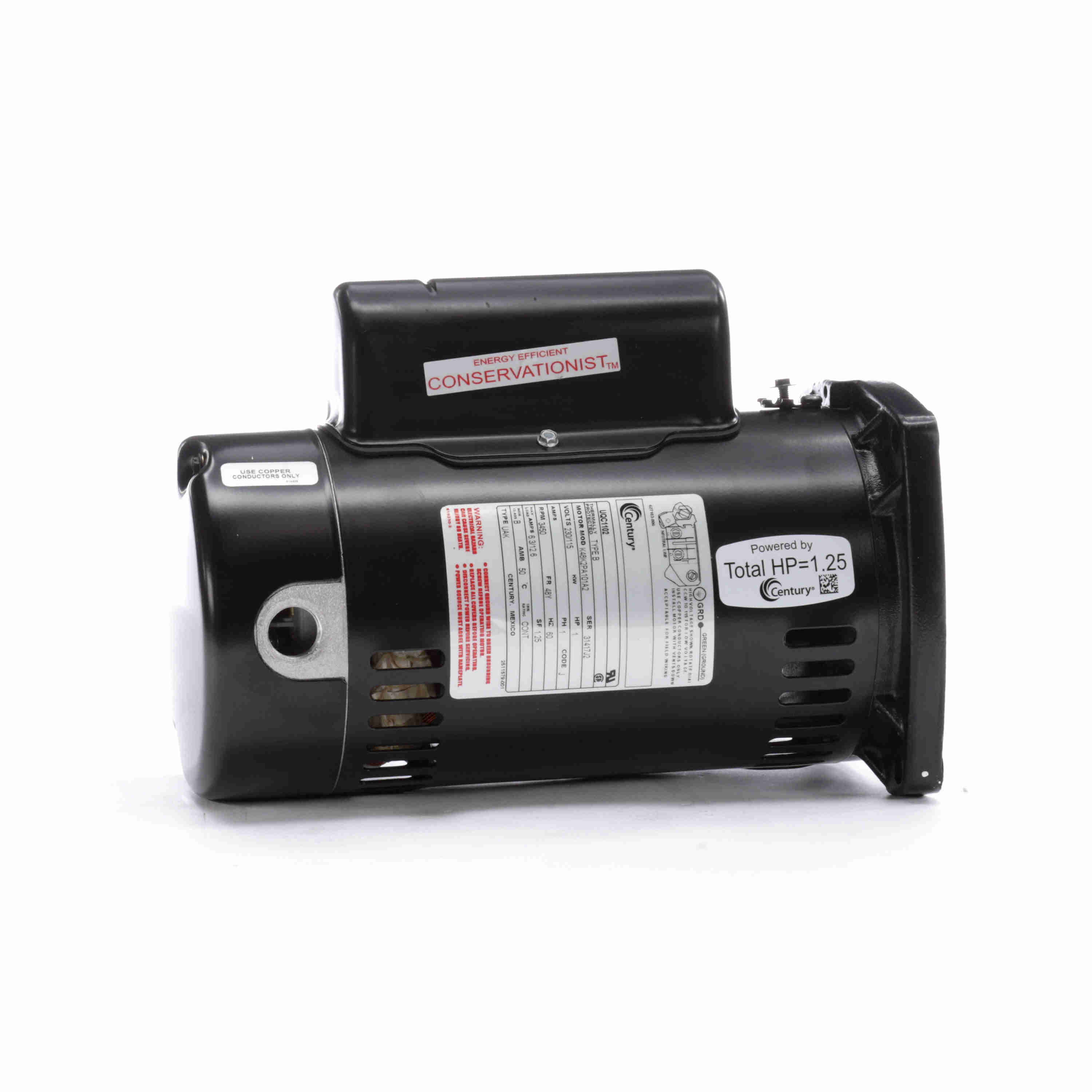

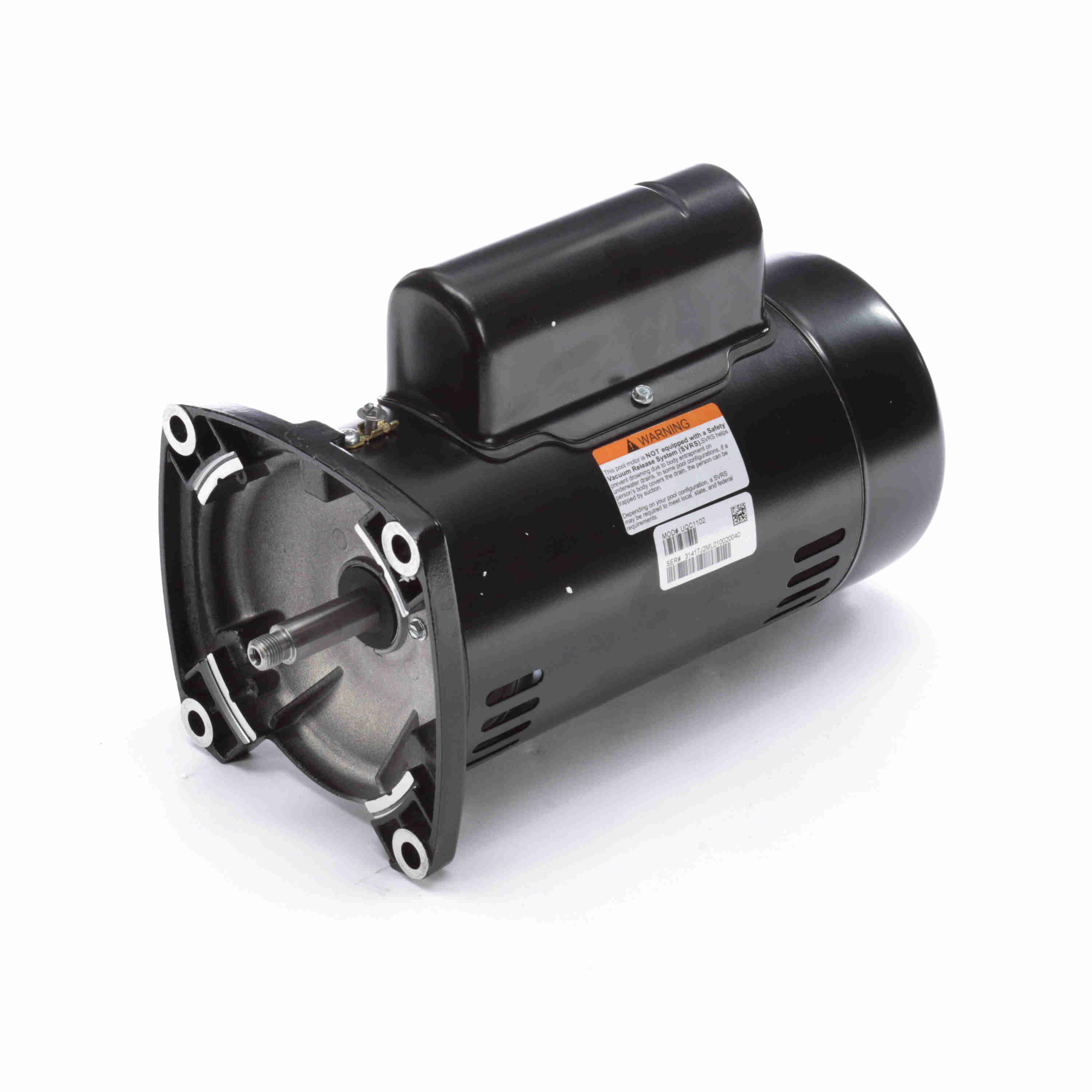

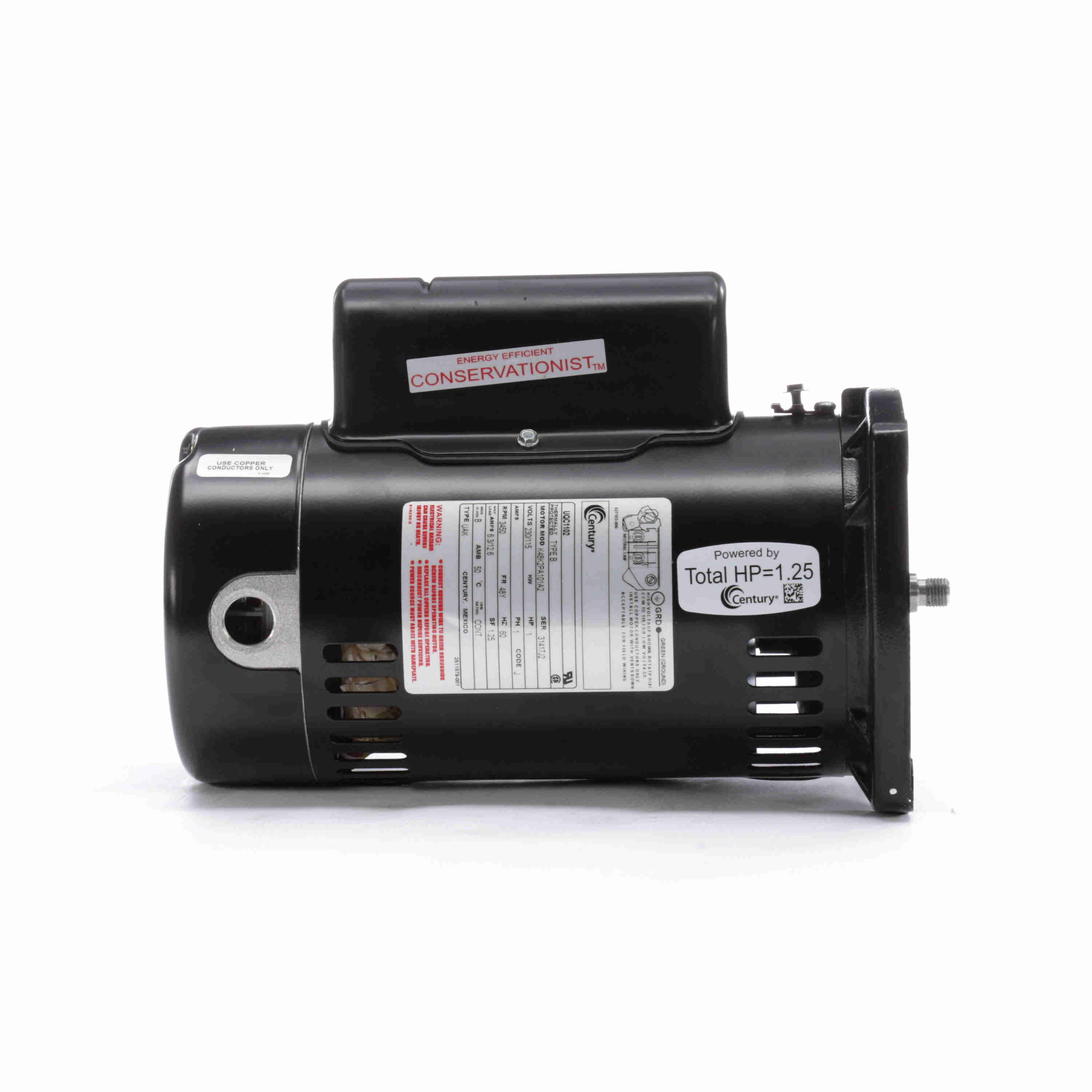

UQC1102 Century 1HP Pool Pump Electric Motor, 3600RPM
Product ID: UQC1102
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UQC1102
Selected accessories will also be added to cart
$389.97 / Each
Quantity:
ODP, 48Y Frame, 115/230VAC Single Phase 60Hz, 5/8" Threaded Stainless Steel Shaft
Details
Features
Sealed Ball Bearings
Capacitor Start
Open Dripproof
303 Stainless Steel Shaft
50°C Ambient
Energy Efficient
UL 1081 Design
General Specifications
UPC:
786674033062
Weight:
25.00 LB
Packaged Length:
16 IN
Packaged Width:
9.5 IN
Packaged Height:
11 IN
Nameplate Specifications
Output HP:
1 Hp
Output KW:
0.75 kW
Frequency:
60 Hz
Voltage:
230/115 V
Current:
6.3/12.6 A
Speed:
3450 rpm
Service Factor:
1.25
Phase:
1
Duty:
Continuous
Insulation Class:
B
Frame:
48Y
Enclosure:
Open Drip Proof
Thermal Protection:
Automatic
Ambient Temperature:
50 °C
UL:
Recognized
CSA:
Y
Technical Specifications
Electrical Type:
Capacitor Start Capacitor Run
Poles:
2
Rotation:
Counterclockwise Pump End
Mounting:
Square Flange
Motor Orientation:
Horizontal
Drive End Bearing:
BALL
Opp Drive End Bearing:
BALL
Frame Material:
Rolled Steel
Shaft Type:
Threaded
Overall Length:
11.94 in
Frame Length:
8.06 in
Shaft Diameter:
0.625 in
Shaft Extension:
0.906 in
Speed & Load Characteristics
