/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/UCT1102 Century 1HP Pool Pump Filter Electric Motor, 3450RPM
Click Image to Expand

Product ID: UCT1102

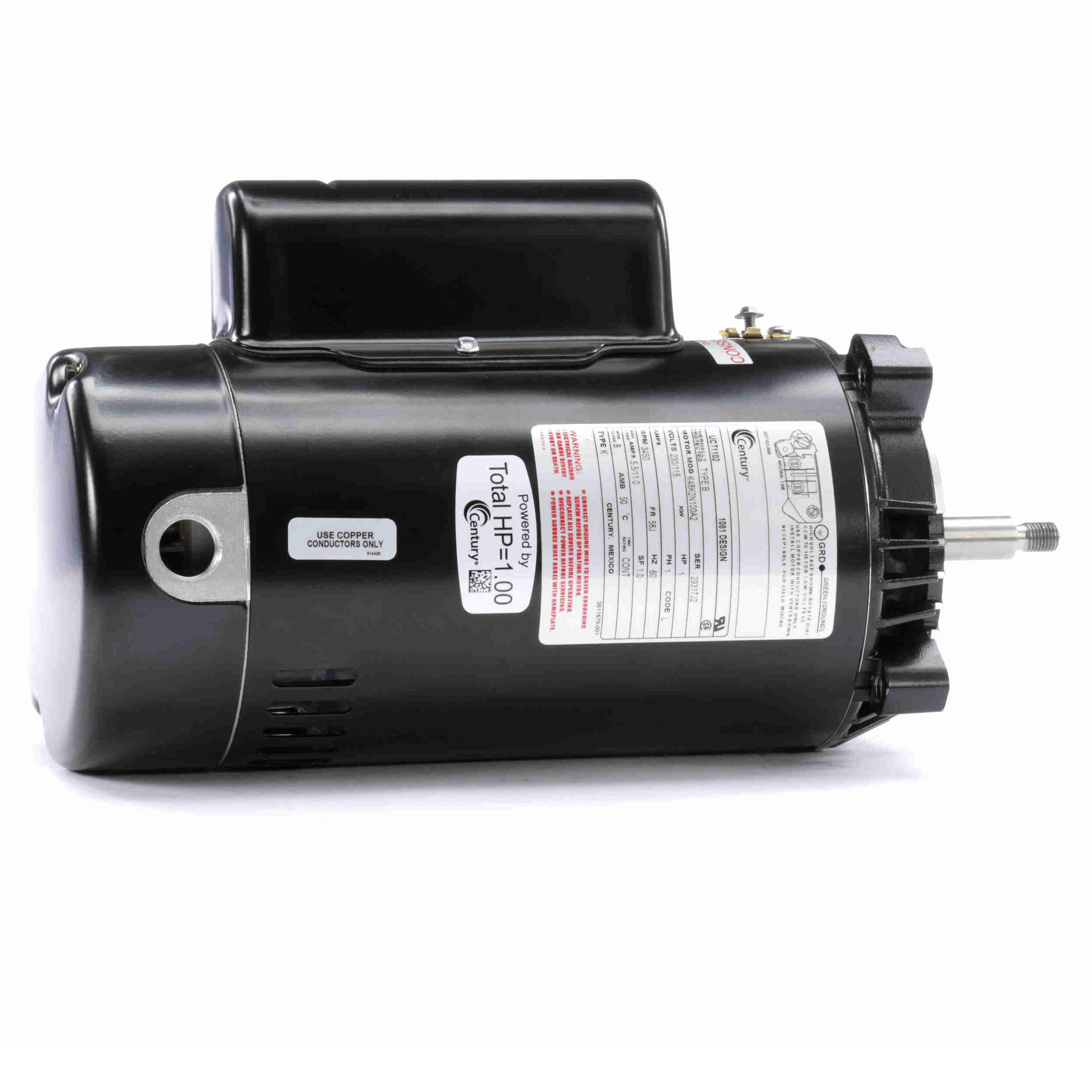

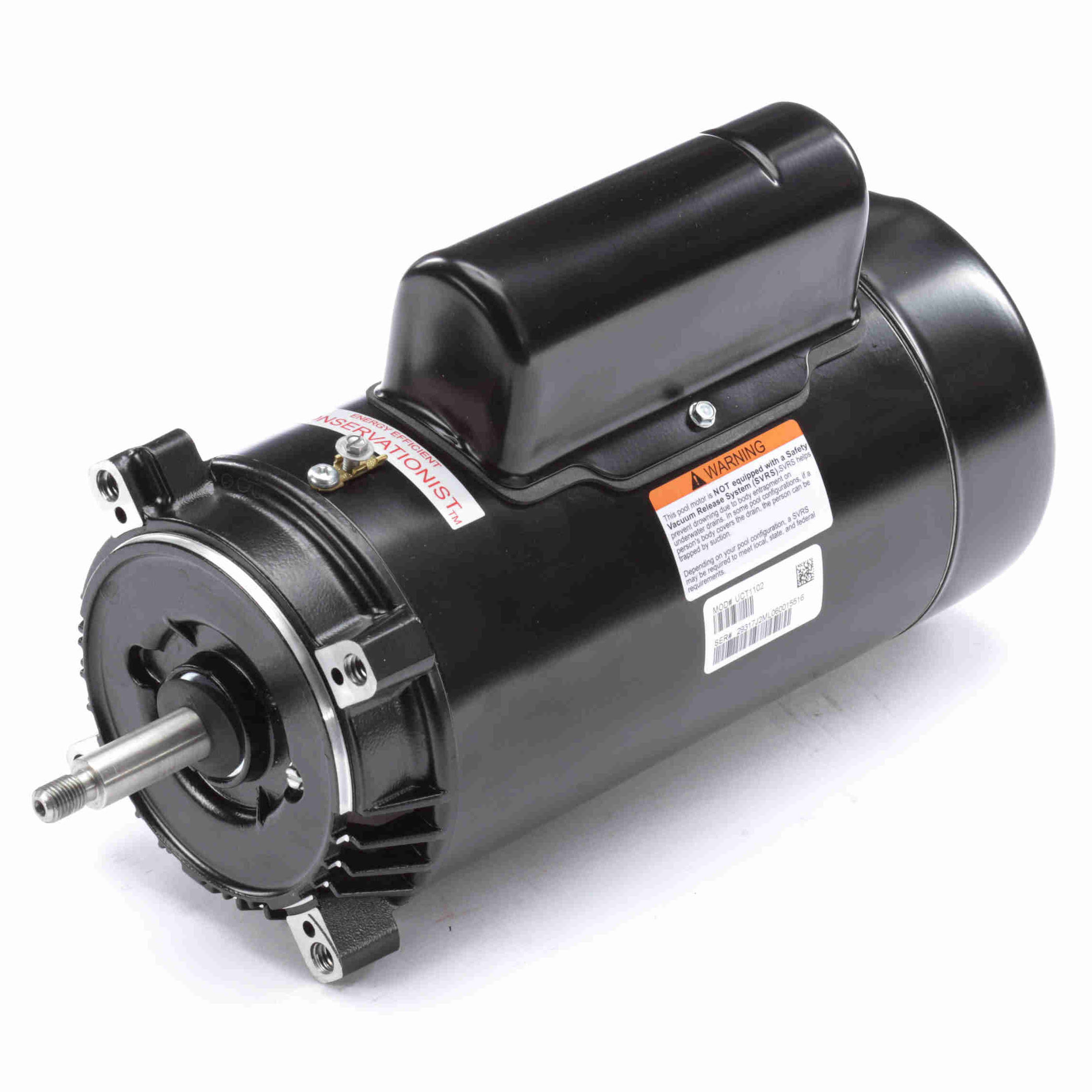

UCT1102 Century 1HP Pool Pump Filter Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UCT1102

Selected accessories will also be added to cart
$339.97 / Each
Quantity:
ODP, 56J Frame, 115/230VAC Single Phase 60Hz

Features

Features
  • Sealed Switch Design
  • UL 1081 Design
  • 50°C Ambient
  • 304 Bearing Shaft End
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Capacitor Start-Capacitor Run
  • Energy Efficient

General Specifications

General Specifications
UCT1102 UCT1102
1 HP 3450 115/230 ODP 56J THD SHAFT Induction Motors
Yes

Nameplate Specifications

Nameplate Specifications
1 HP 0.75 kW
60 Hz 230/115 V
5.5/11.0 A 3450 RPM
1 1
Continuous B
56J Open Drip Proof
Automatic 50 °C
Recognized Y

Technical Specifications

Technical Specifications
Capacitor Start Capacitor Run 2
Counterclockwise Pump End Round
Horizontal BALL
BALL Rolled Steel
Threaded 14.26 in
8.32 in 0.625 in
2.565 in 786674032904
25.00 LB

Speed & Load Characteristics
