/Refrigeration/UB597 Fasco 9w Refrigeration Electric Motor, 1550RPM
Click Image to Expand

Product ID: UB597

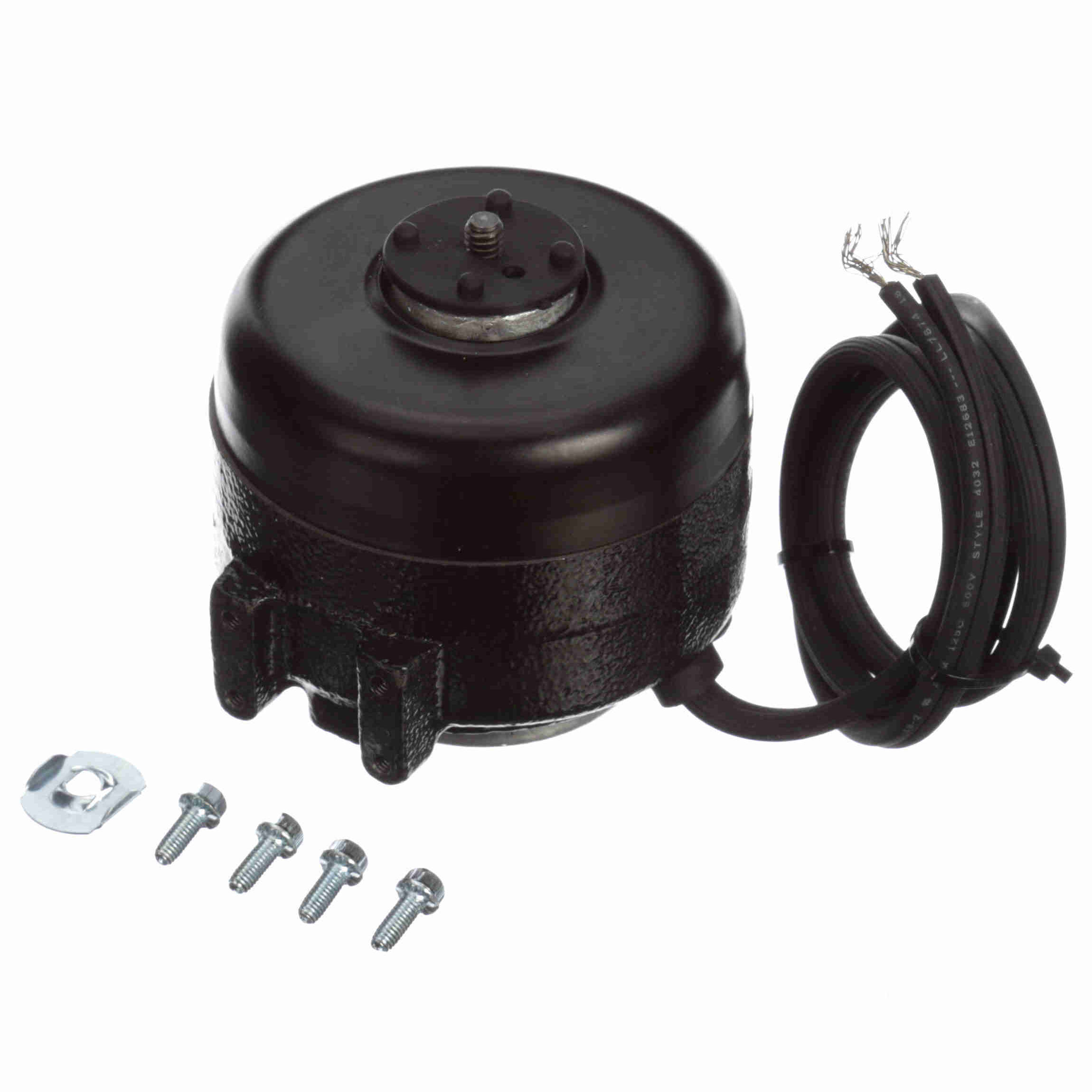

UB597 Fasco 9w Refrigeration Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: UB597

Selected accessories will also be added to cart
$37.97 / Each
Quantity:
TEAO, Unit Bearing, 115VAC 60Hz Single Phase, Cast Iron Frame, 1/4"-20 Threaded Shaft, CW Opposite Shaft End

Features

  • Refrigeration Motor
  • Unit Bearing
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Bearing - Unit
  • 1/4 x 20 Threaded Shaft
  • 28"  Leads with .05" Strip
  • 2 Mounting Feet, 3 Rear Mounting Holes

General Specifications

UPC: 786674070197 Weight: 3.00 LB
Packaged Length: 3.75 IN Packaged Width: 4.25 IN
Packaged Height: 4.25 IN

Nameplate Specifications

Output Watts: 9 W Frequency: 60 Hz
Voltage: 115 V Current: 0.53 A
Speed: 1550 rpm Service Factor: 1
Phase: 1 Duty: Continuous
Insulation Class: B Frame: UNIT BEARING
Enclosure: Totally Enclosed Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Opposite Shaft End
Mounting: 2 BOSS/OSE 3 HOLES Drive End Bearing: Unit
Opp Drive End Bearing: Unit Frame Material: Cast Iron
Shaft Type: Threaded Frame Length: 3.12 in
Shaft Diameter: 1/4x20 in Shaft Extension: .415 in
