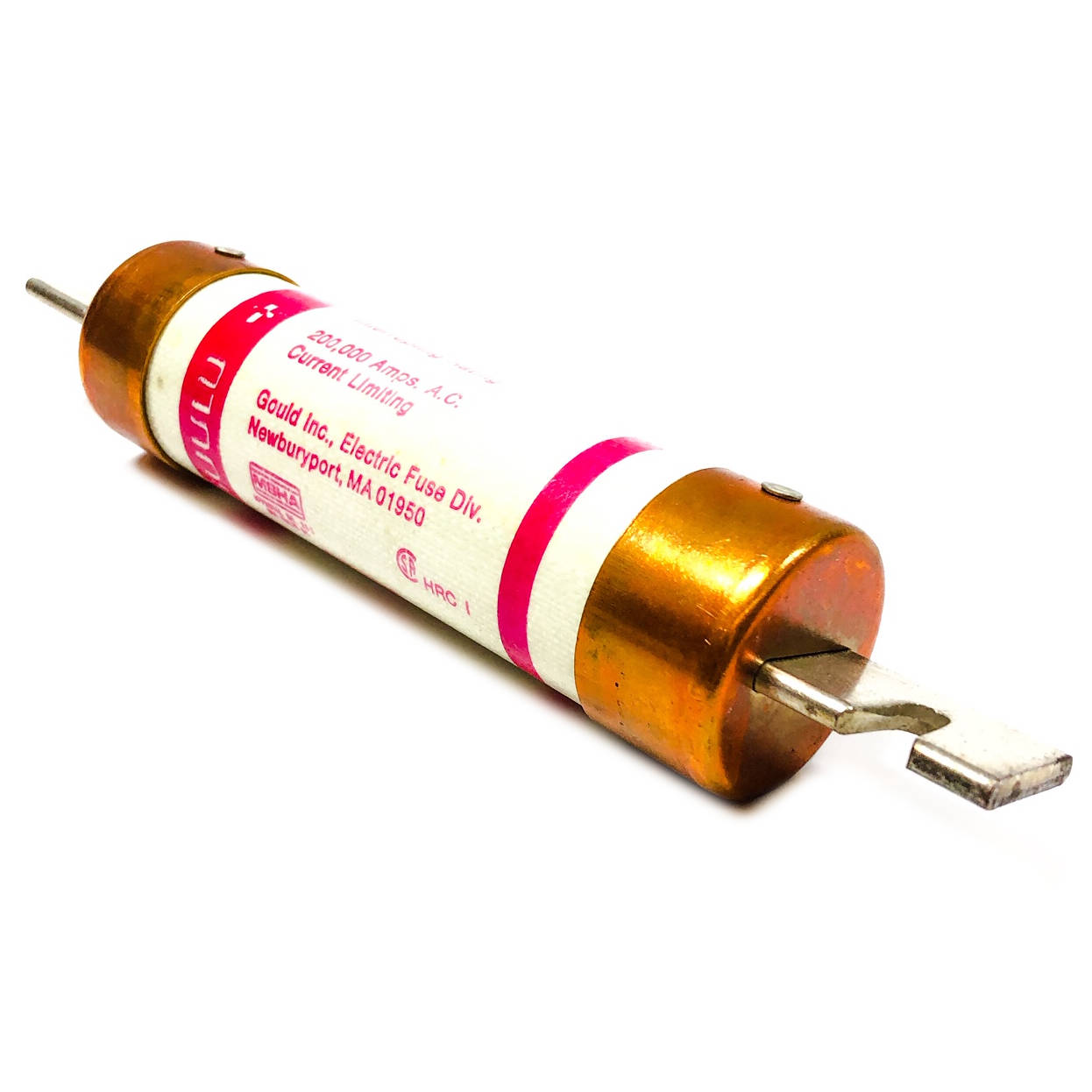

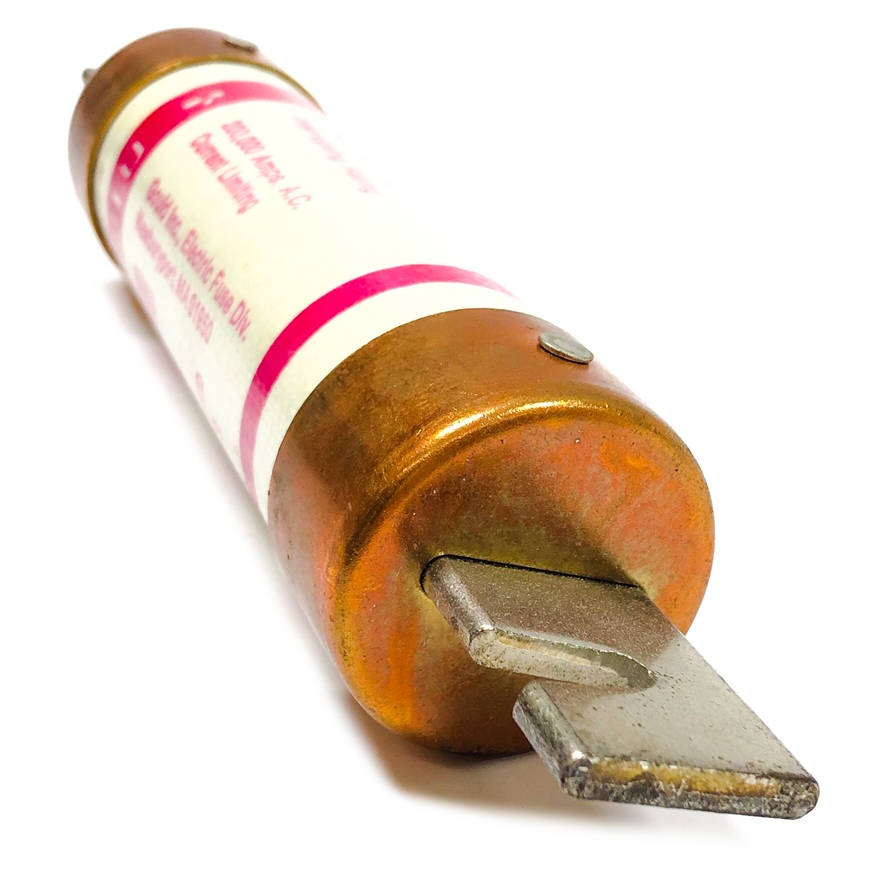

Description:
110 Amps, 600 Volts AC
UL Class RK5
Dual Element
Time Delay
Physical Size: 1 13/16" x 9 5/8"
Current Limiting
AC and DC Rated
Rejection Style Design Prevents Replacement Errors
AC Voltage Rating: 600
DC Voltage Rating: 600
Interrupting Rating: 200,000 AIC @ 600VAC
DC Interrupting Rating: 100,000 AIC
Related Products:
Fuse Blocks
Box Side Clip (Al/Cu 350kcmil-#6)
1 Pole: 62001R 3 Pole: 62003R
Box Side Clip (Cu 350kcmil-#6)
3 Pole: 62053R
Fuse Reducers
400 Amp to 200 Amp: R422
600 Amp to 200 Amp: R622
