/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM
Click Image to Expand

Product ID: T1152

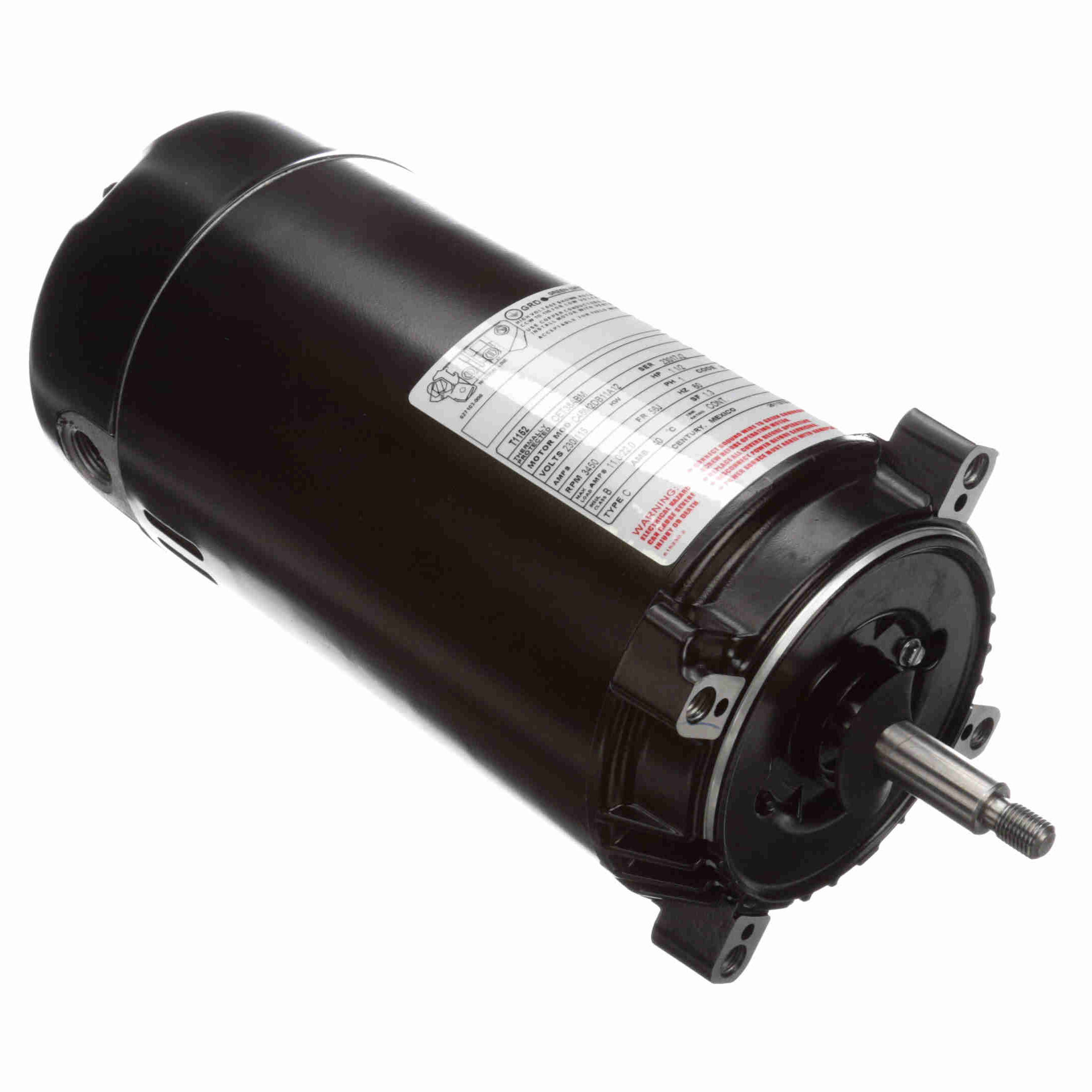

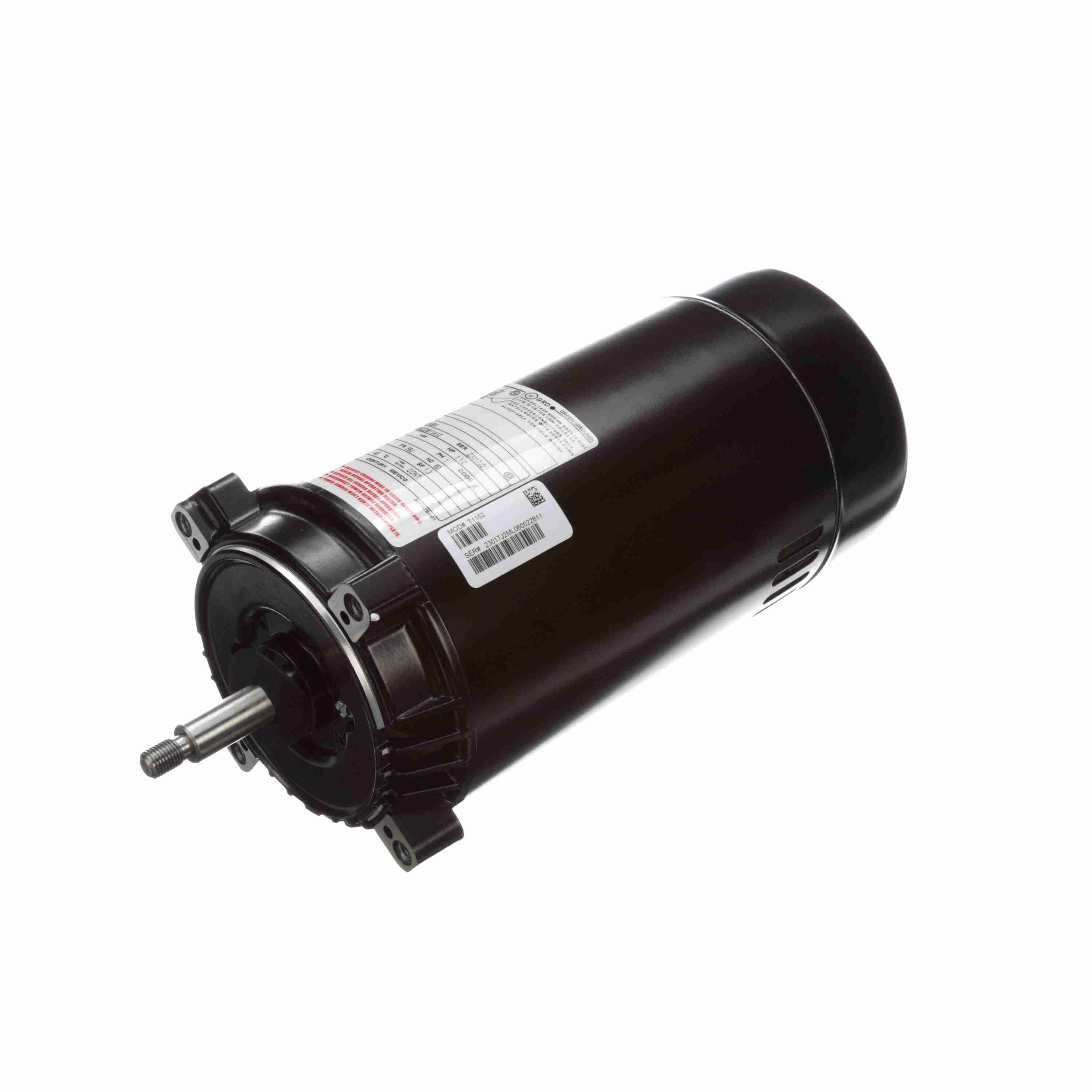

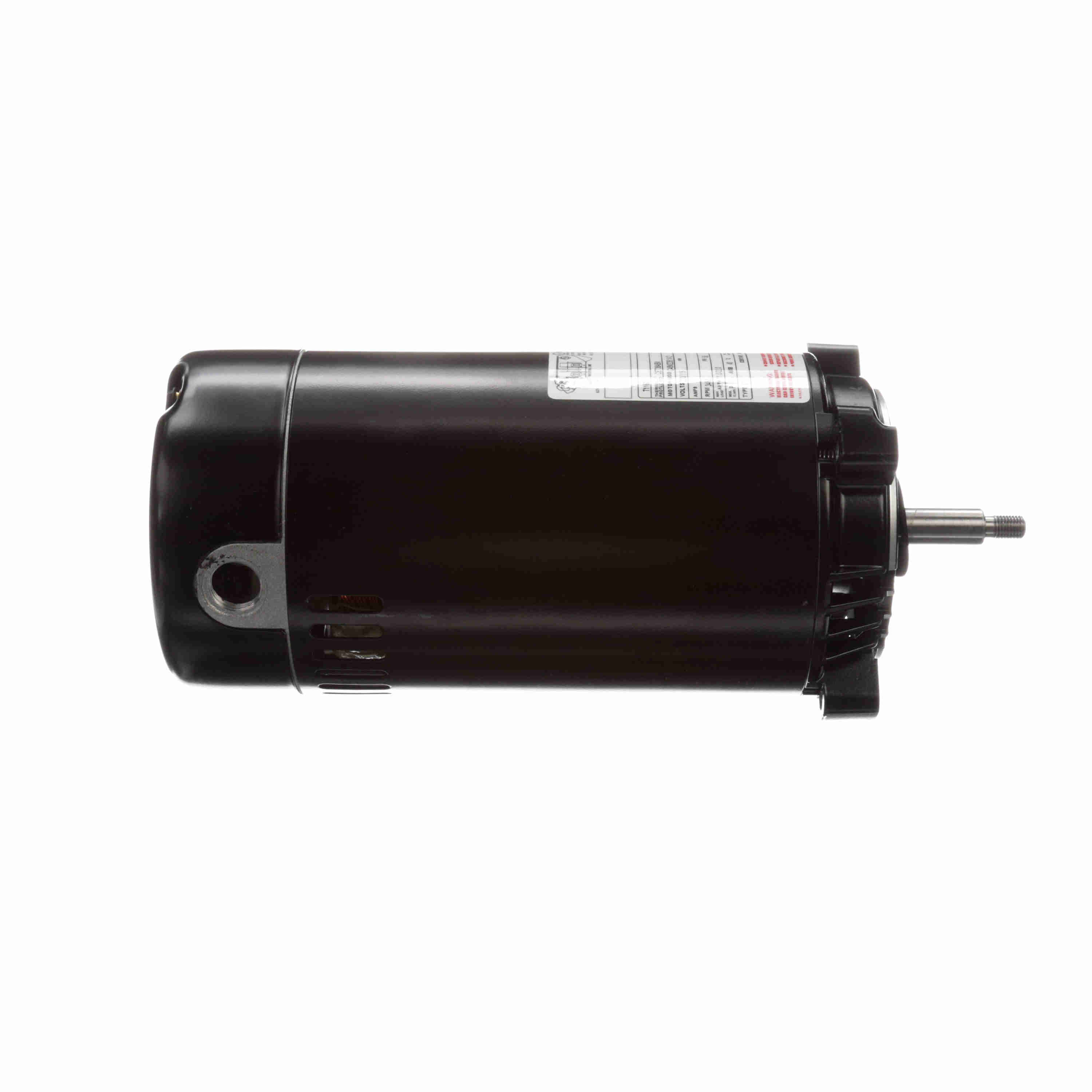

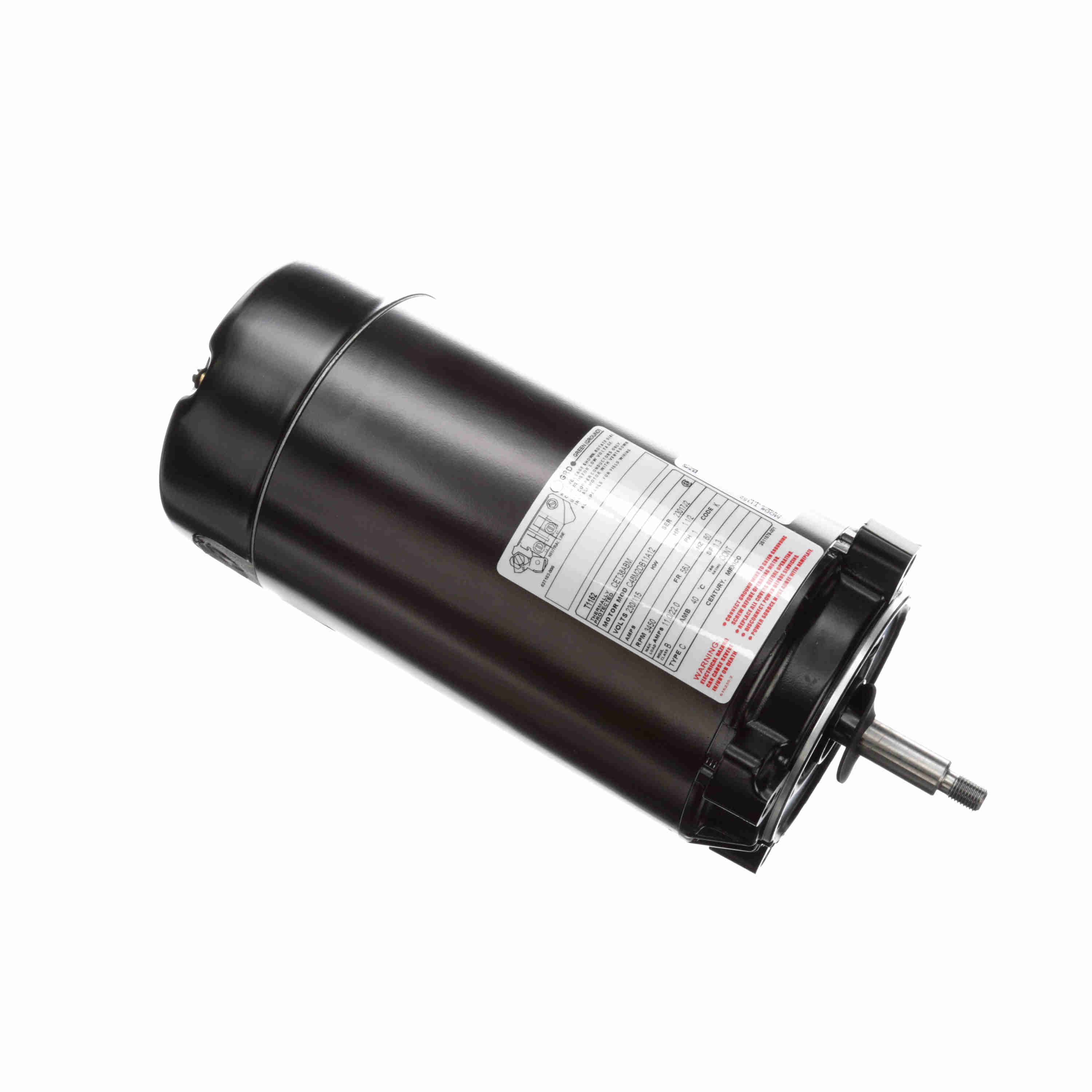

T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: T1152

Selected accessories will also be added to cart
$372.97 / Each
Quantity:
ODP, 56J Frame, 115/230VAC 60Hz Single Phase

Features

Features
  • Internally mounted capacitor
  • Sealed switch design
  • Threaded shaft

General Specifications

General Specifications
Model : Catalog No :T1152
Part Description :1.5,3450,ODP,56J,1/60/230/115 Category :Jet Pump
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1 1/2 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :230/115 V
Current :11.0/22.0 A Speed :3450 rpm
Service Factor :1.3 Phase :1
Duty :Continuous Insulation Class :B
Frame :56J Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :40 °C
UL :No CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Counterclockwise Pump End
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :13.87 in
Frame Length :8.06 in Shaft Diameter :0.625 in
Shaft Extension :2.433 in UPC :786674032072
Weight :27.00 LB
