/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/T1052 Century 1/2HP Jet Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: T1052

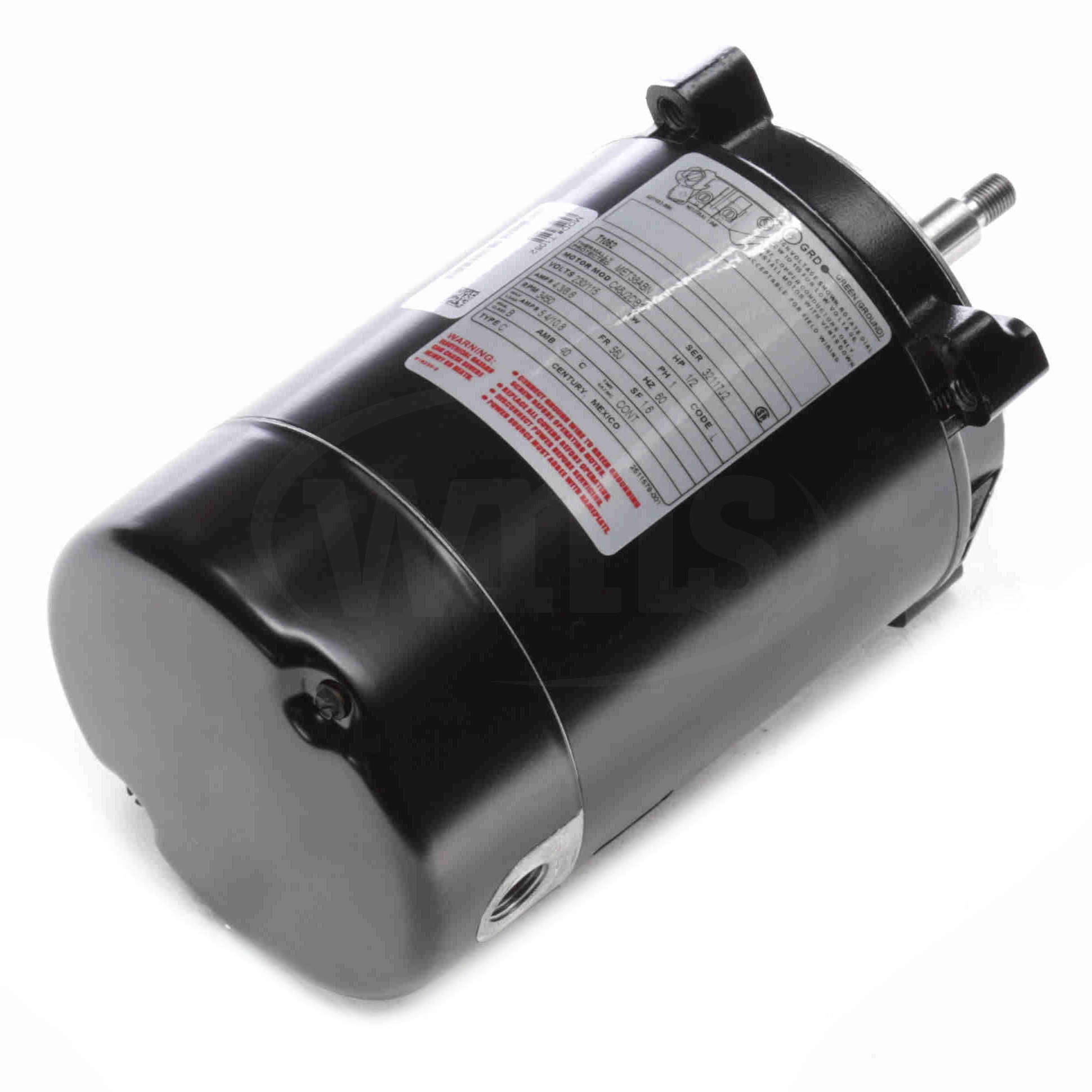

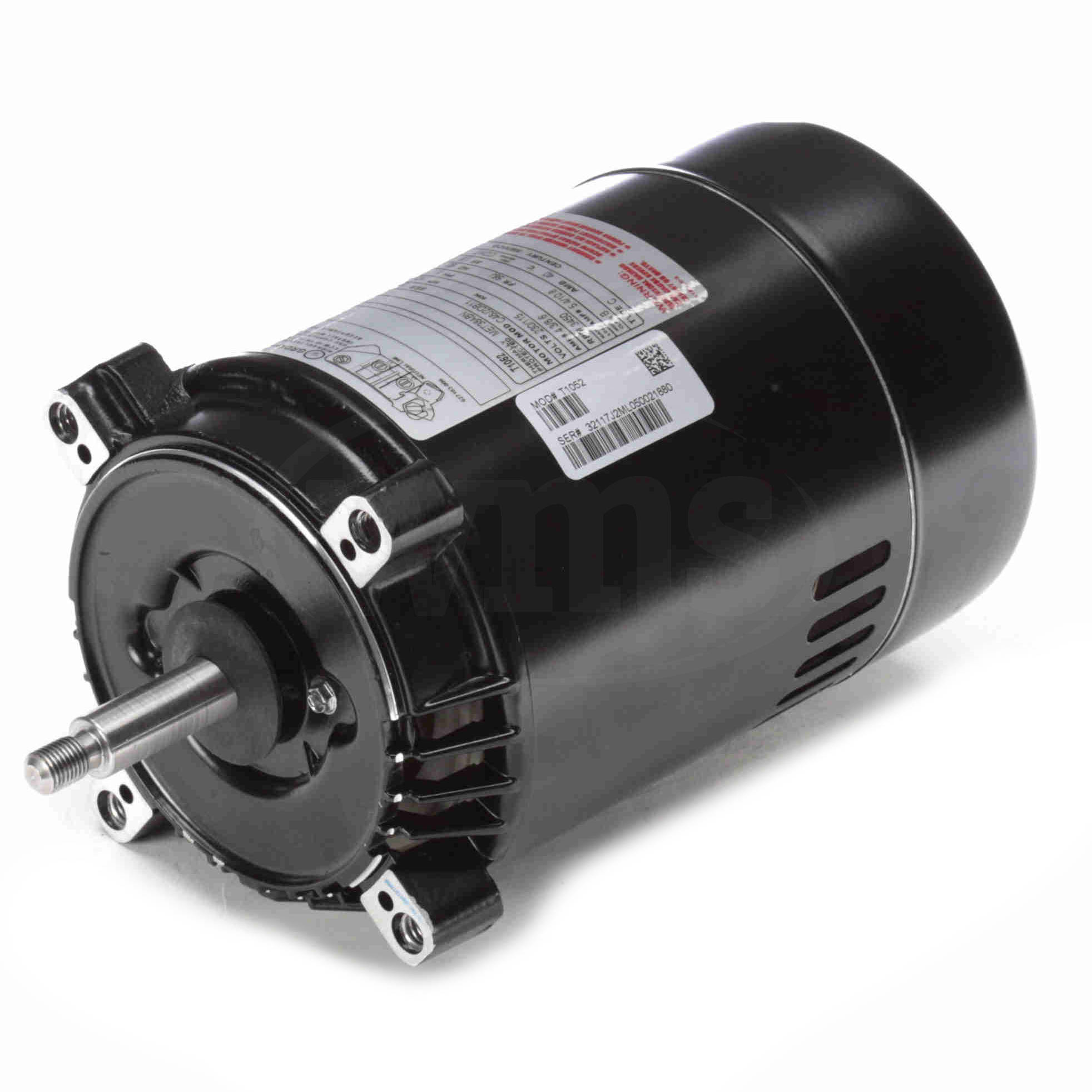

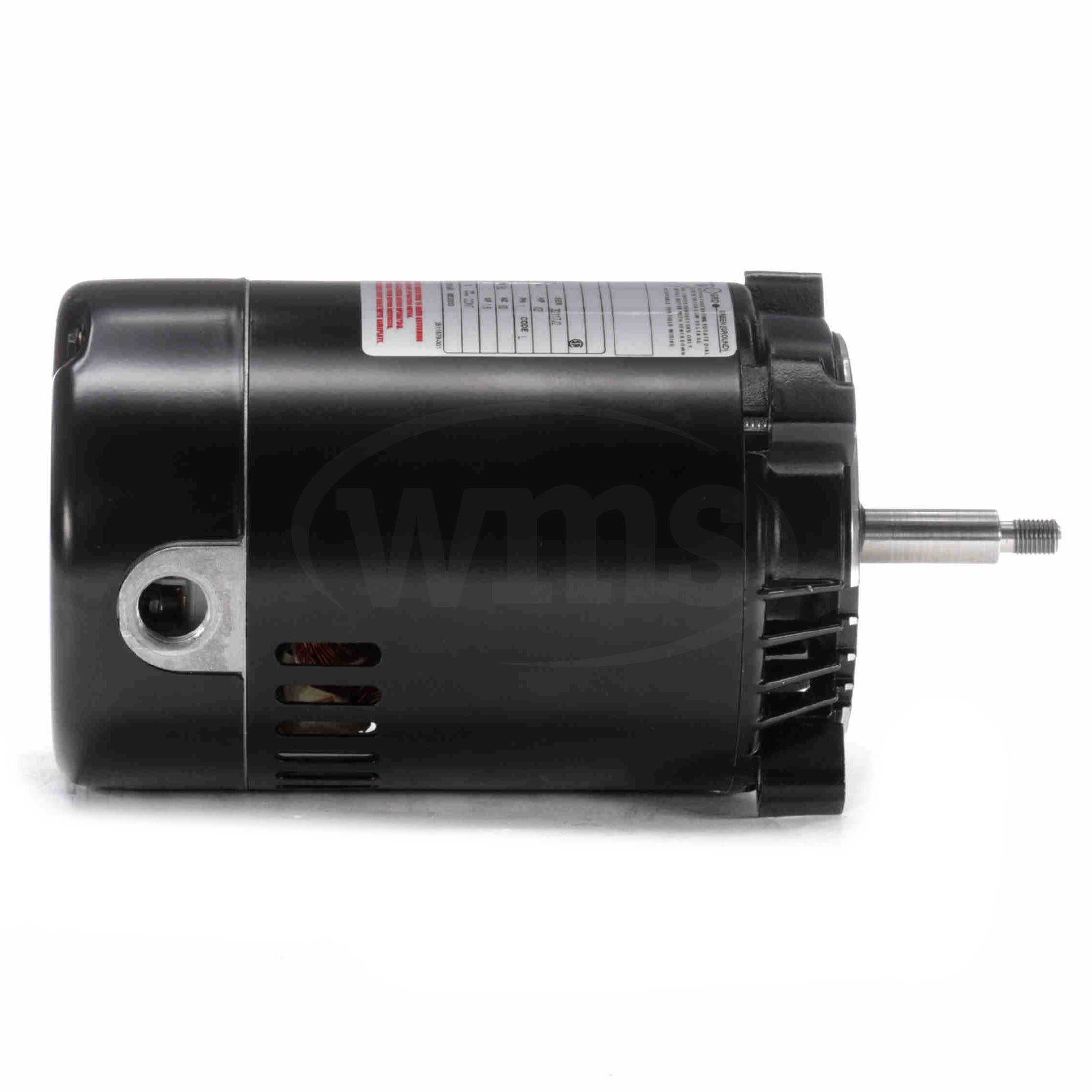

T1052 Century 1/2HP Jet Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: T1052

Selected accessories will also be added to cart
$205.97 / Each
Quantity:
ODP, 56J Frame, 115/230V Single Phase 60Hz

Features

Features
  • Internally mounted capacitor
  • Sealed switch design
  • Threaded shaft

General Specifications

General Specifications
Model : Catalog No :T1052
Part Description :1/2,3450,ODP,56J,1/60/230/115 Category :Jet Pump
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/2 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :230/115 V
Current :4.3/8.6 A Speed :3450 RPM
Service Factor :1.6 Phase :1
Duty :Continuous Insulation Class :B
Frame :56J Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :40 °C
UL :No CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Counterclockwise Pump End
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :11.19 in
Frame Length :5.38 in Shaft Diameter :0.625 in
Shaft Extension :2.433 in UPC :786674032041
Weight :18.00 LB

Speed & Load Characteristics
