/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/T1032 Century 1/3HP Jet Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: T1032

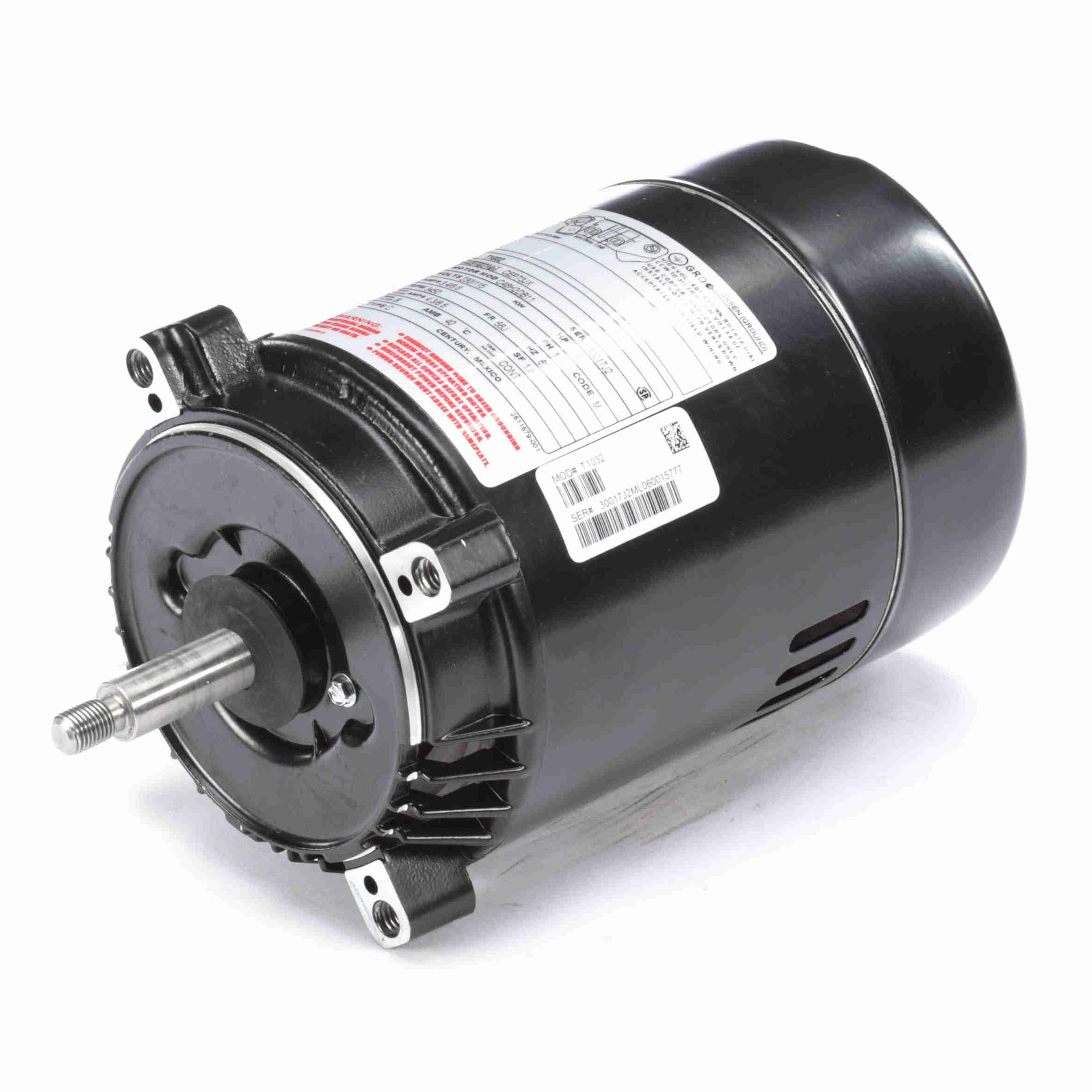

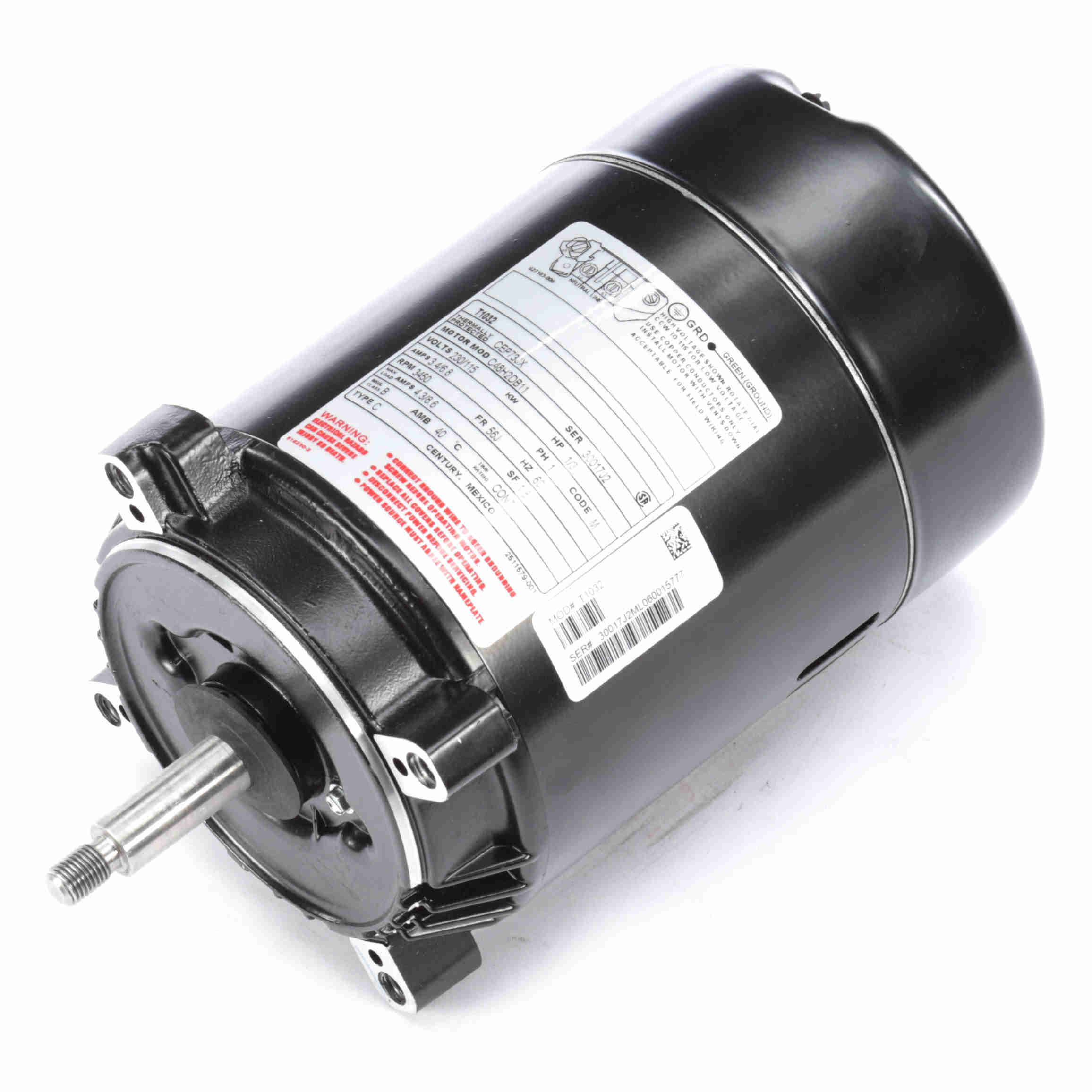

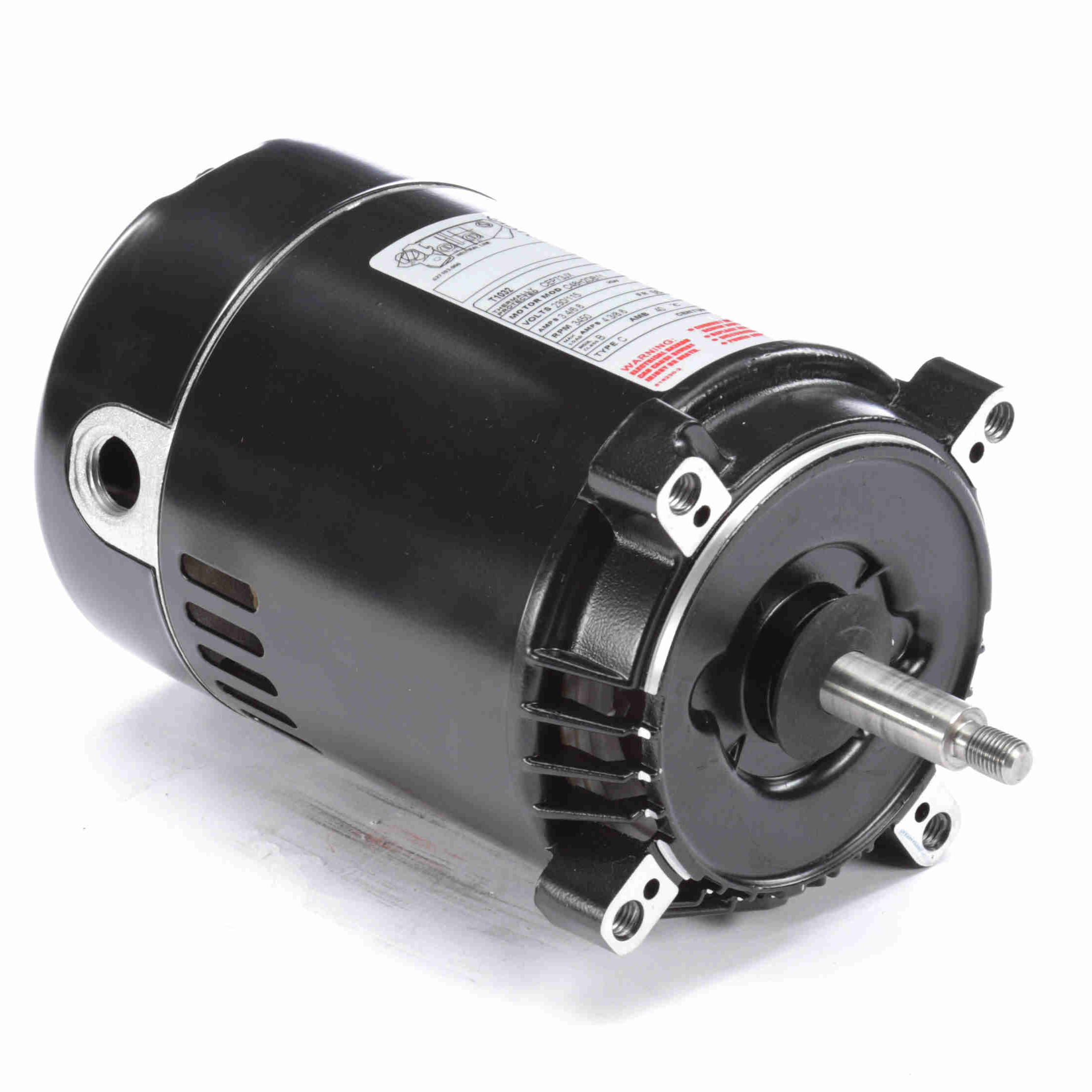

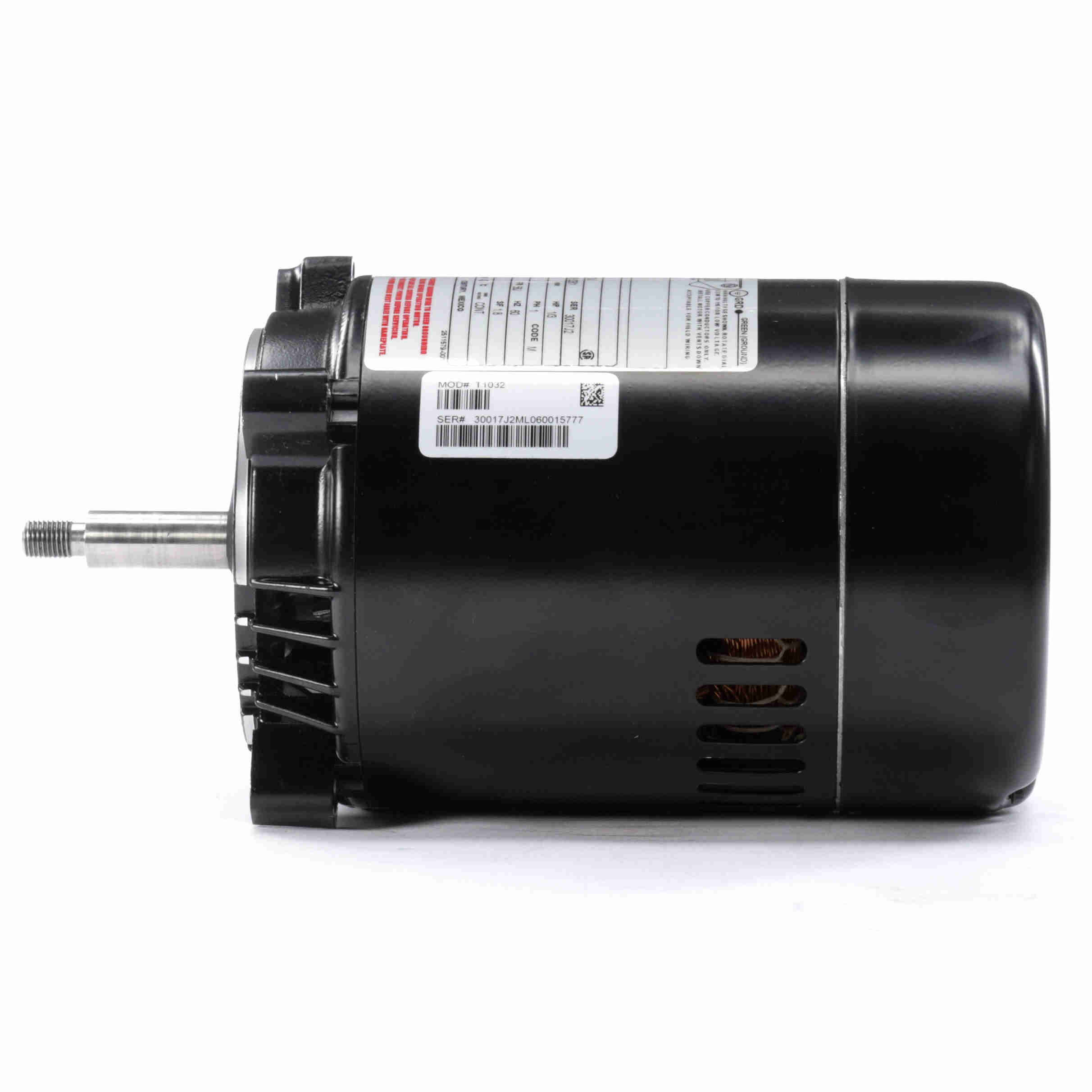

T1032 Century 1/3HP Jet Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: T1032

Selected accessories will also be added to cart
$183.97 / Each
Quantity:
ODP, 56J Frame, 115/230V 60Hz Single Phase, C48H2DB11, 0.625 x 2.737" 7/16" Threaded
Features
  • Internally mounted capacitor
  • Sealed switch design
  • Threaded shaft
General Specifications
Model : Catalog No :T1032
Part Description :1/3,3450,ODP,56J,1/60/230/115 Category :Jet Pump
Stock :Yes
Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :230/115 V
Current :3.4/6.8 A Speed :3450 rpm
Service Factor :1.8 Phase :1
Duty :Continuous Insulation Class :B
Frame :56J Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :40 °C
UL :No CSA :Y
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Counterclockwise Pump End
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :10.81 in
Frame Length :5.00 in Shaft Diameter :0.625 in
Shaft Extension :2.433 in UPC :786674032034
Weight :16.00 LB
