/Products/Surplus Industrial/Circuit Breakers/3-Pole/Square D QDP32200TM PowerPack Circuit Breaker, 3 Pole, 200 Amp, 240VAC 50/60Hz
Click Image to Expand

Product ID: QDP32200TM

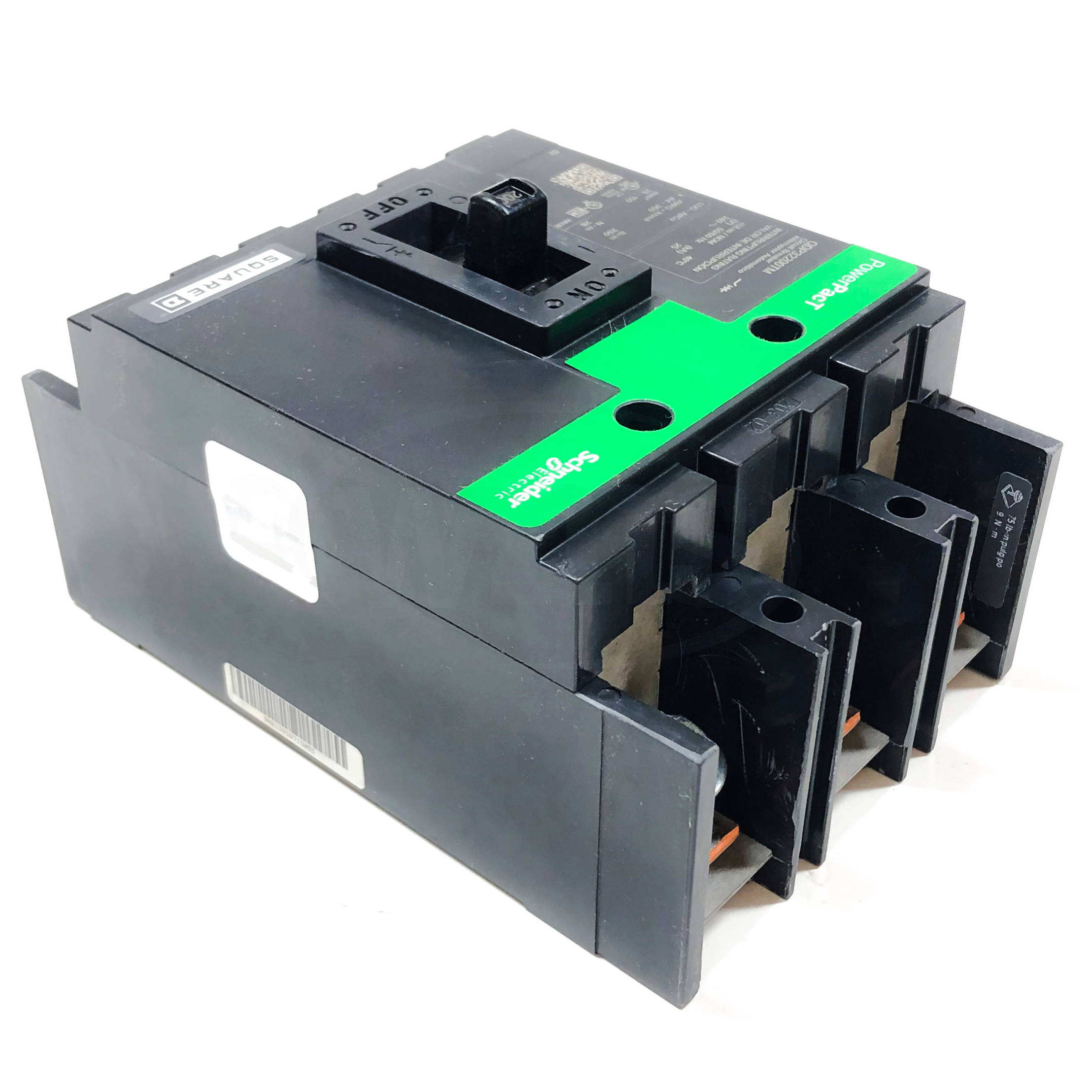

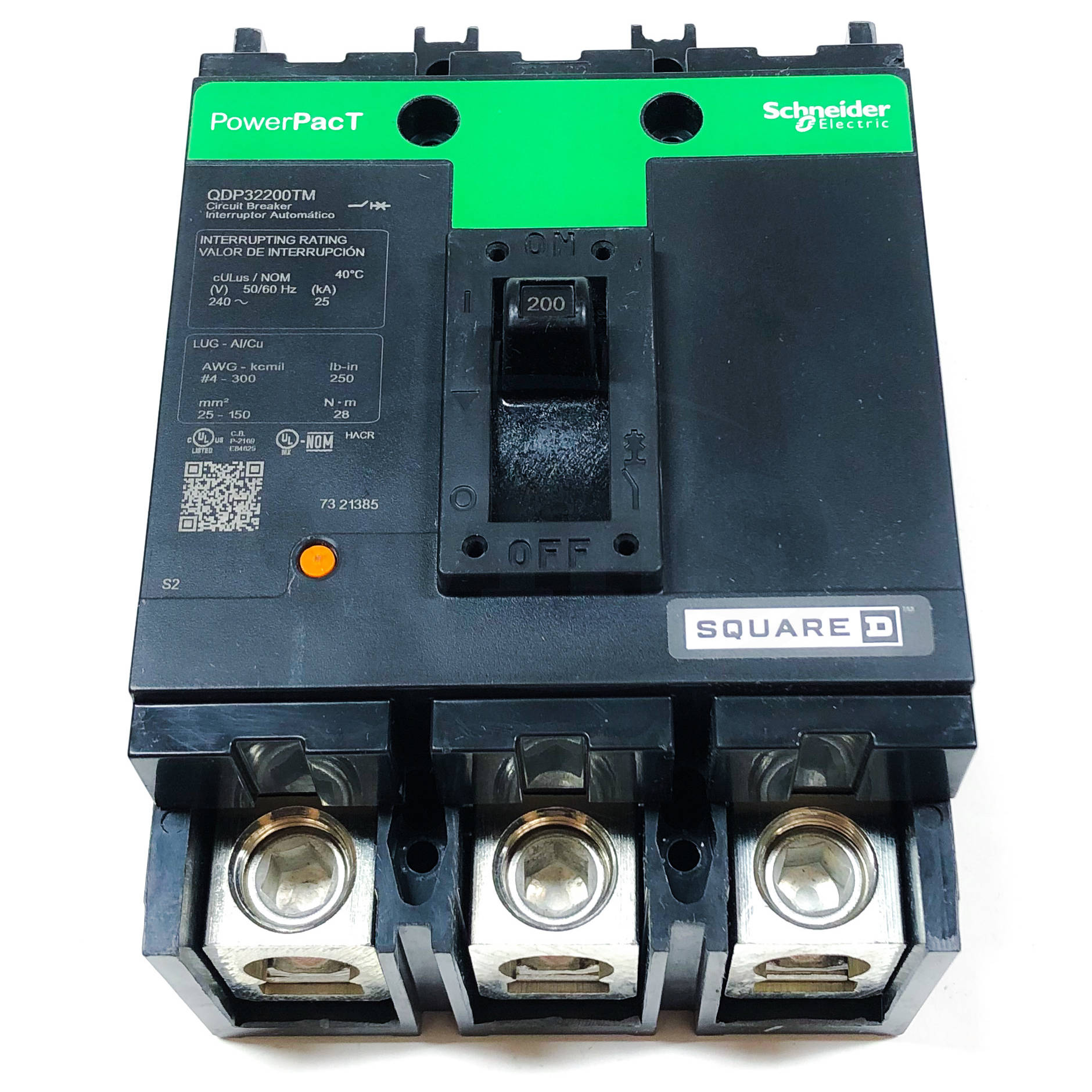

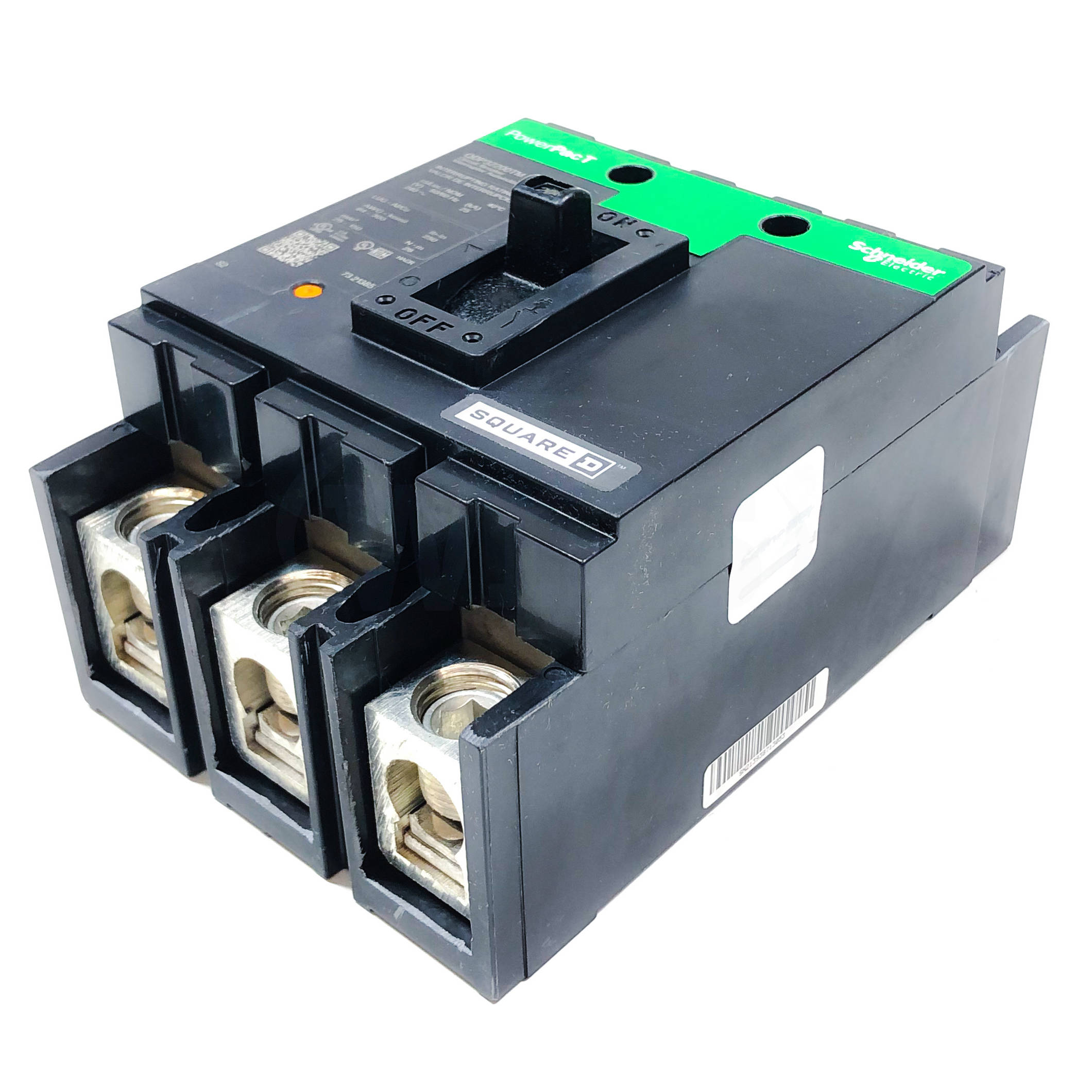

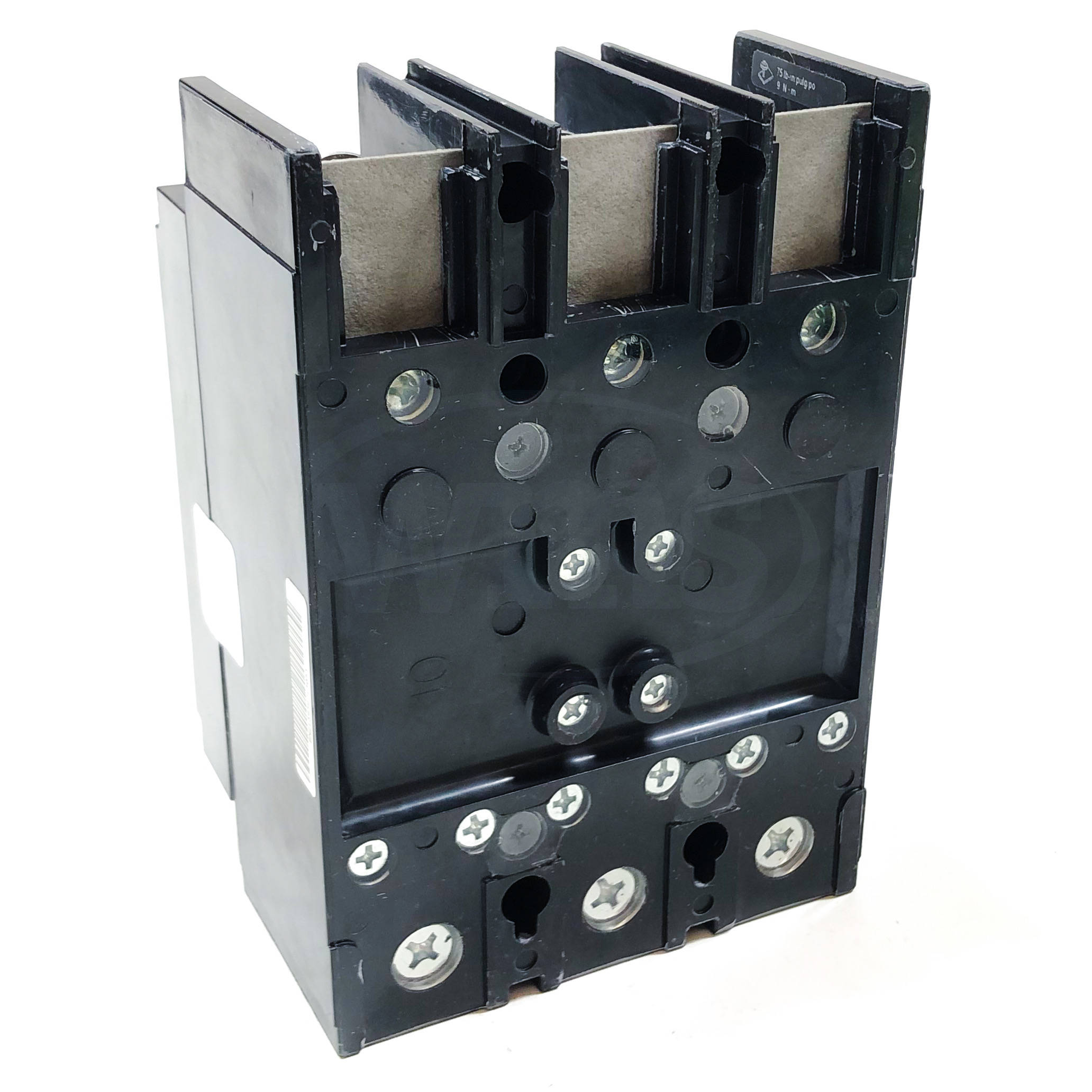

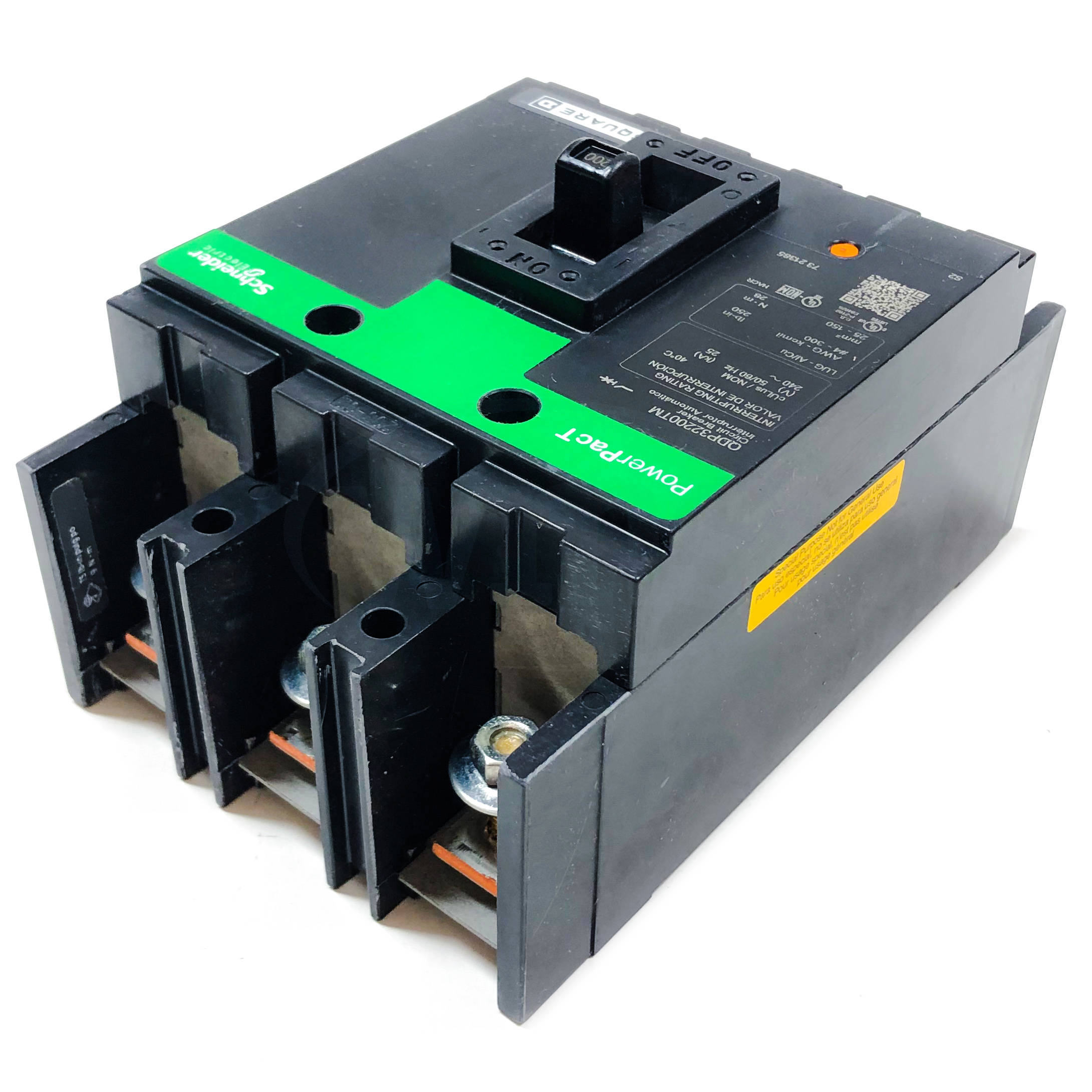

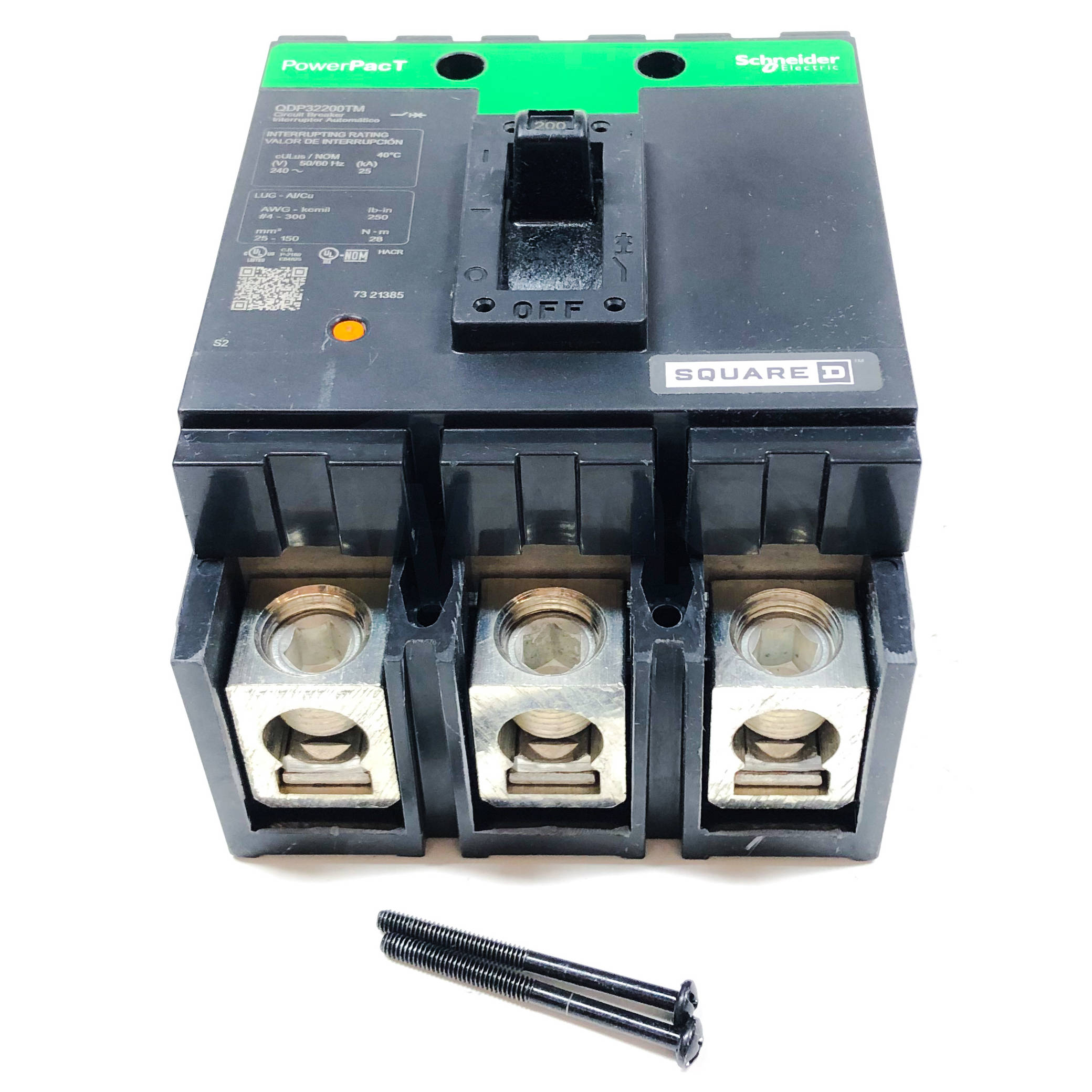

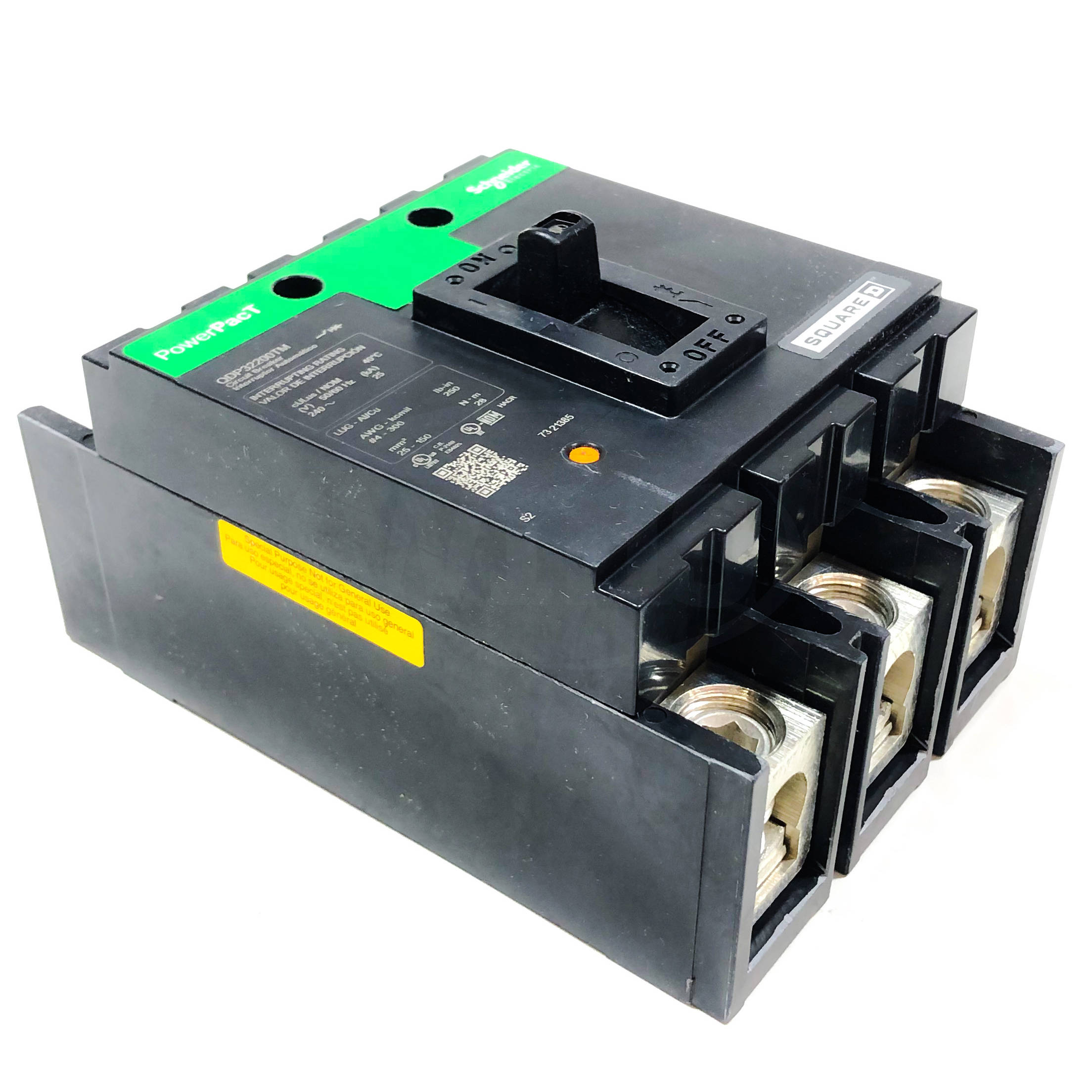

Square D QDP32200TM PowerPack Circuit Breaker, 3 Pole, 200 Amp, 240VAC 50/60Hz

MFG: Schneider Electric (Square D)
MFG Part Number: QDP32200TM

Available Stock: 3
Selected accessories will also be added to cart
$1,599.97 / Each
Quantity:
New, Surplus Stock. Green Premium. Thermal-Magnetic
Main
rangePowerPact
product namePowerPact Q
Product or Component TypeCircuit breaker
Device ApplicationDistribution
Complementary
Line Rated Current200 A
Number of Poles3P
Control TypeOperating handle
breaking capacity codeD
breaking capacity25 kA 120/208 V AC 50/60 Hz UL
25 kA 240 V AC 50/60 Hz UL
[Ue] rated operational voltage240 V AC 50/60 Hz UL
Network Frequency50/60 Hz
[Uimp] rated impulse withstand voltage8 kV UL
trip unit technologyThermal-magnetic
magnetic tripping current2400 A
magnetic hold current1200 A
continuous current rating80 %
utilisation categoryCategory A
Mechanical durability1000 cycles loaded
5000 cycles no load
local signalling1 trip indicator green)
mounting modeUnit mount lug)
Mounting SupportLug
electrical connectionTerminal nut line
Lugs load
tightening torque247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
Power wire stripping length0.87 in (22 mm)
Height6.47 in (164.34 mm)
Width4.5 in (114.30 mm)
Depth3.93 in (99.82 mm)
Environment
standardsUL
CSA
NEMA
NOM-003-SCFI-2000
product certificationsUL
CSA
NOM
Ambient Air Temperature for Operation104…158 °F (40…70 °C)
Ordering and shipping details
Category00024-Q2 & QE METERING BREAKERS
Discount ScheduleDE2A
GTIN785901671398
Nbr. of units in pkg.1
Package weight(Lbs)4.56 lb(US) (2.07 kg)
Country of originMX
