/Products/Pumps/Ashland Pump/Sewage Pumps/SWS50/SWS50V1-10 Ashland 1/2HP Sewage Pump, 115VAC Single Phase

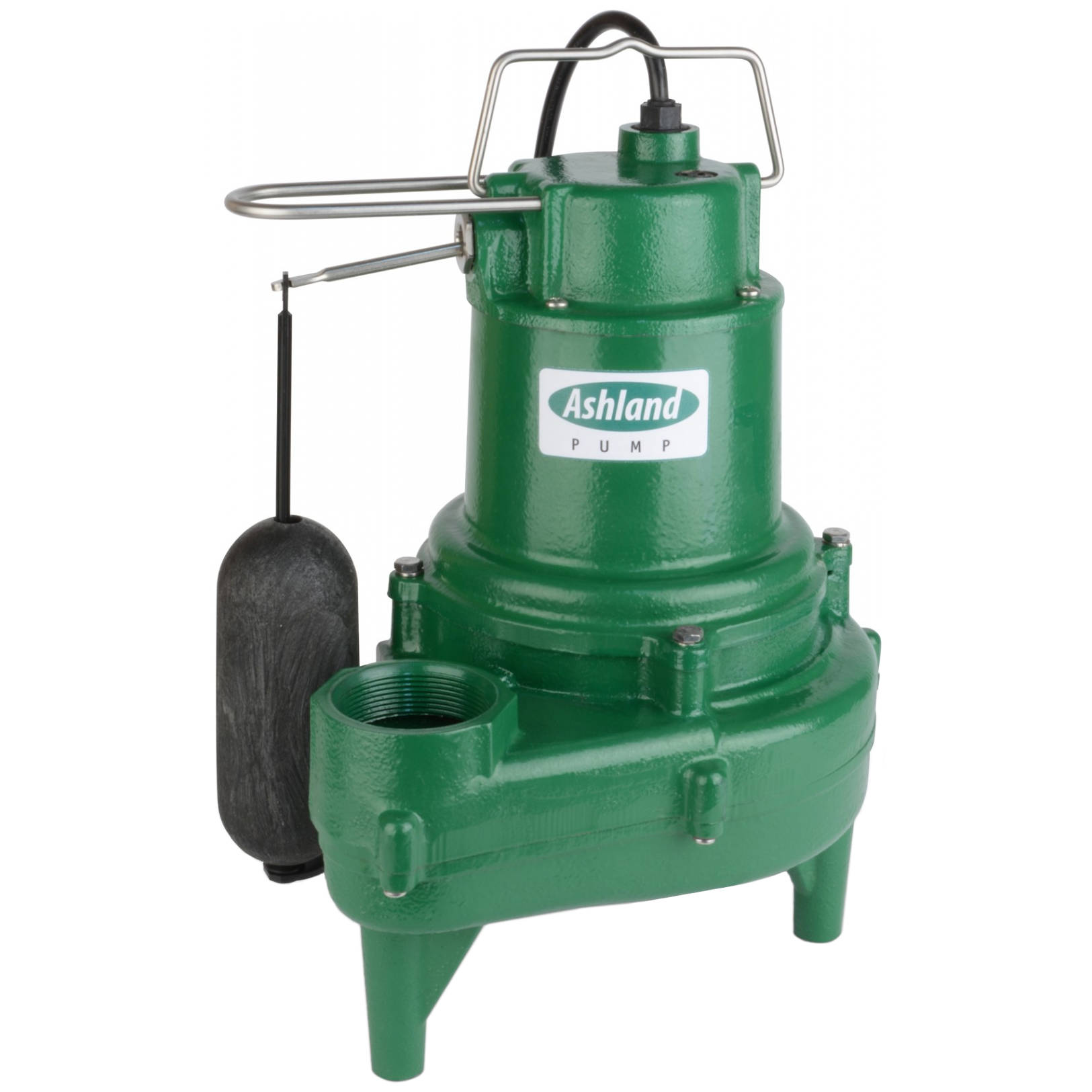

SWS50V1-10 Ashland 1/2HP Sewage Pump, 115VAC Single Phase
Enlarge Photo

Product ID: SWS50V1-10

SWS50V1-10 Ashland 1/2HP Sewage Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWS50V1-10

Selected accessories will also be added to cart
$458.00 / Each
Quantity:
Vertical Snap Action Float, 2" NPT Discharge, Cast Iron Housing&Plastic Impeller

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty PSC motor
  • Upper and lower ball bearing construction for smoother operation
  • Automatic operation

Specifications

Brand Ashland Pump
Model SWS50V-10
Switch Type Vertical Snap Action Float Switch
HP 1/2HP
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
NEMA Start Code P
Full Load Amps 9.4 Amps
Cord Power Size 18AWG
3 Conductors
Cord Type SOW
Cord O.D. 0.325-0.360"
Discharge Size 2" NPT
Impeller Type Vortex
Plastic
Cable Length 10'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Plastic
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing Powder Metallurgy
Lower Bearing 6201
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/2HP
Service Factor 1.00

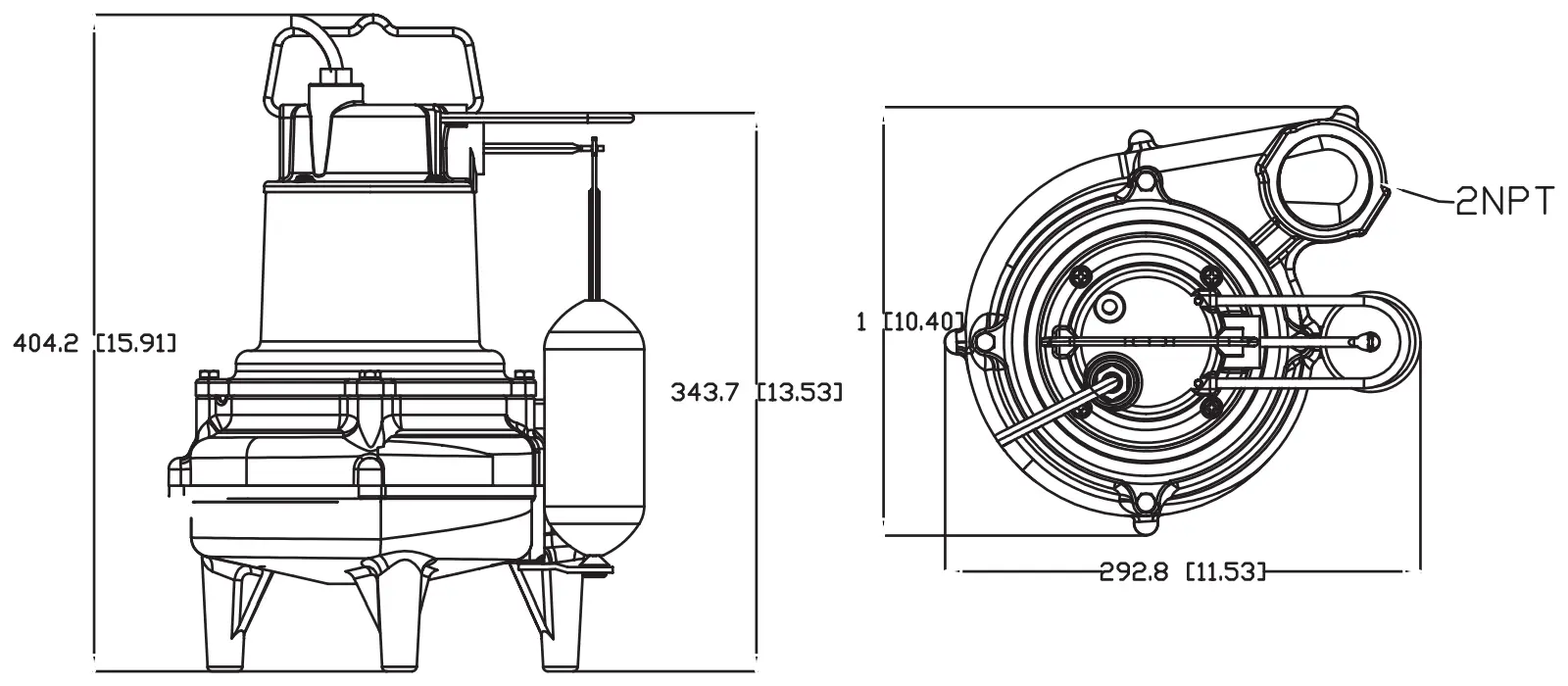

Dimensions

SWS50 Pump Dimensions

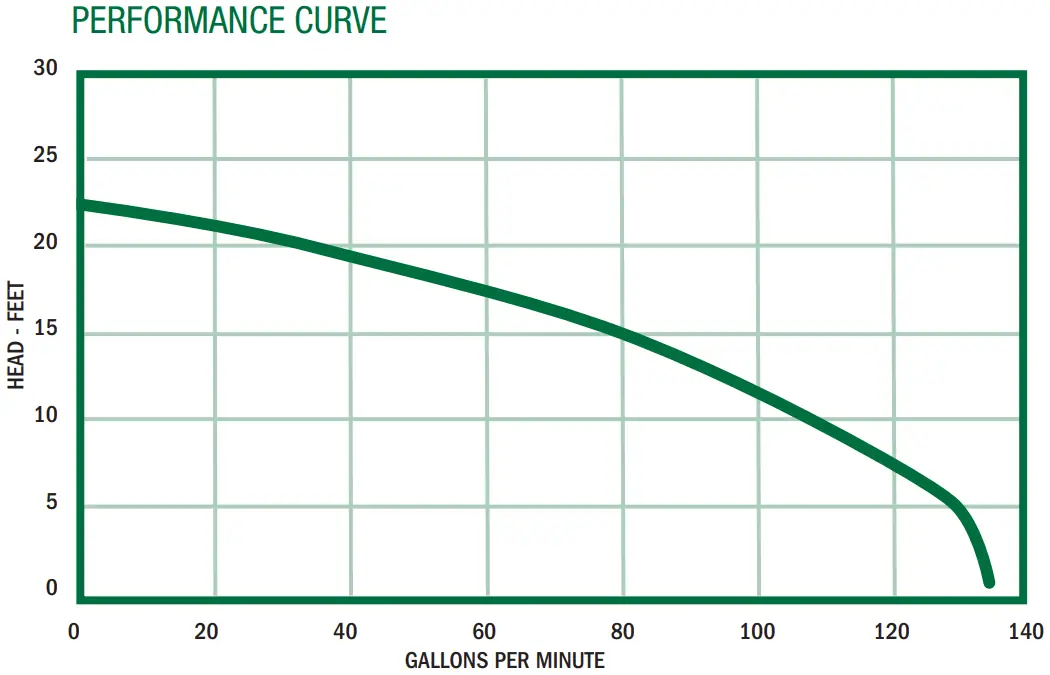

Performance Curve

SWS50 Performance Curve Graph
