/Products/Pumps/Ashland Pump/Sewage Pumps/SWH100 1HP High Head/SWH100M4-20 Ashland 1HP High Head Sewage Pump, 460VAC 3 Phase

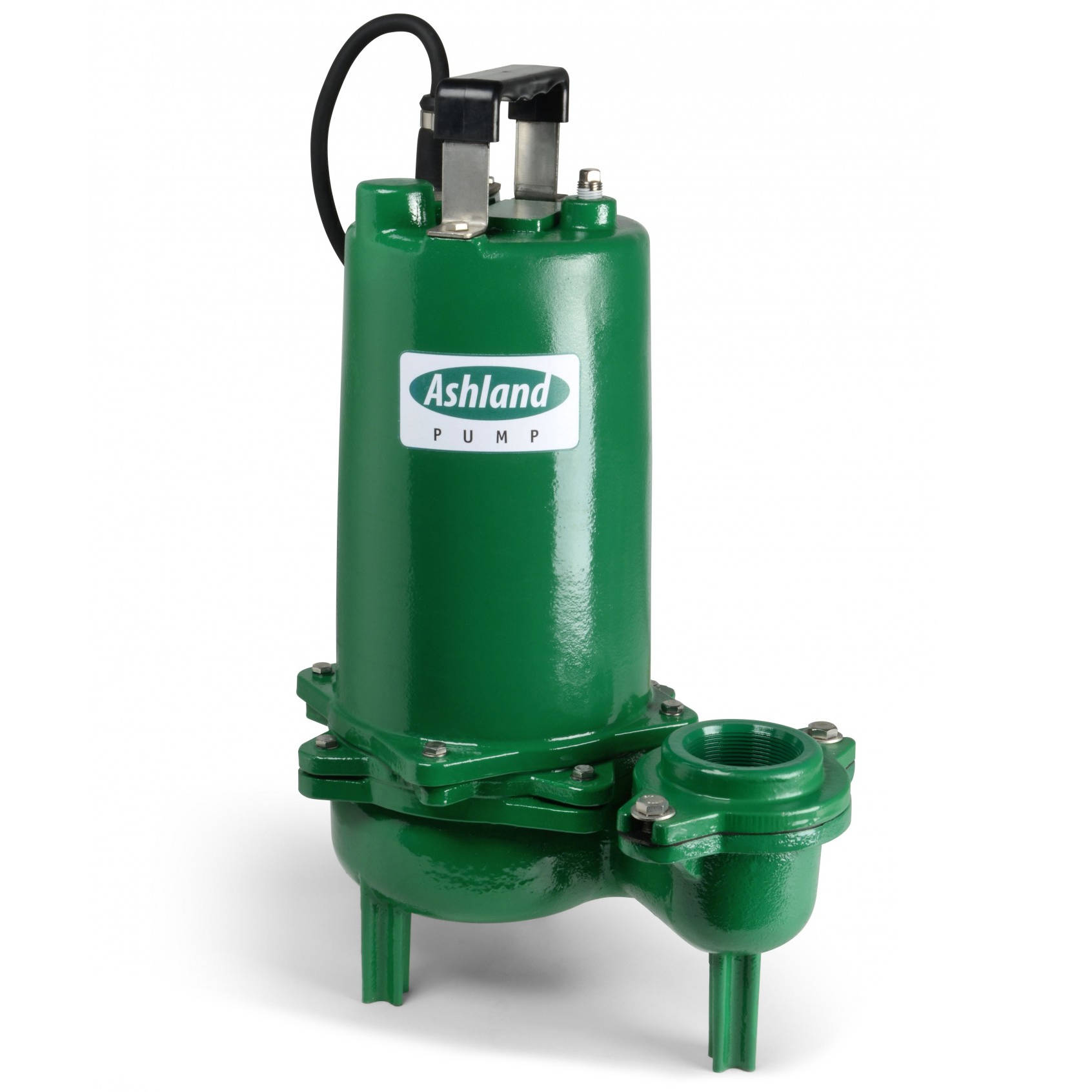

Click Image to Expand

Product ID: SWH100M4-20

SWH100M4-20 Ashland 1HP High Head Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWH100M4-20

Selected accessories will also be added to cart
$1,283.00 / Each
Quantity:
Manual Switch, 3" Flanged Discharge, 2" Solids Handling, Cast Iron Construction

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC Motor (Single Phase) and Induction Motor (3 Phase)
  • Cast iron vortex impeller
  • 3" Flanged Discharge, 2" NPT Adapter
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWH100M4-20
Switch Type Manual
HP 1HP
Voltage 460VAC 60Hz 3 Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 3.3 Amps
Cord Power Size 16AWG/4C
Cord Type SOW
Cord O.D. 0.46"
Discharge Size 2" NPT Flanged Discharge
3" NPT Optional
Impeller Type 9-Vane Vortex - Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 3450
Motor Type PSC (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1HP
Service Factor 1.00

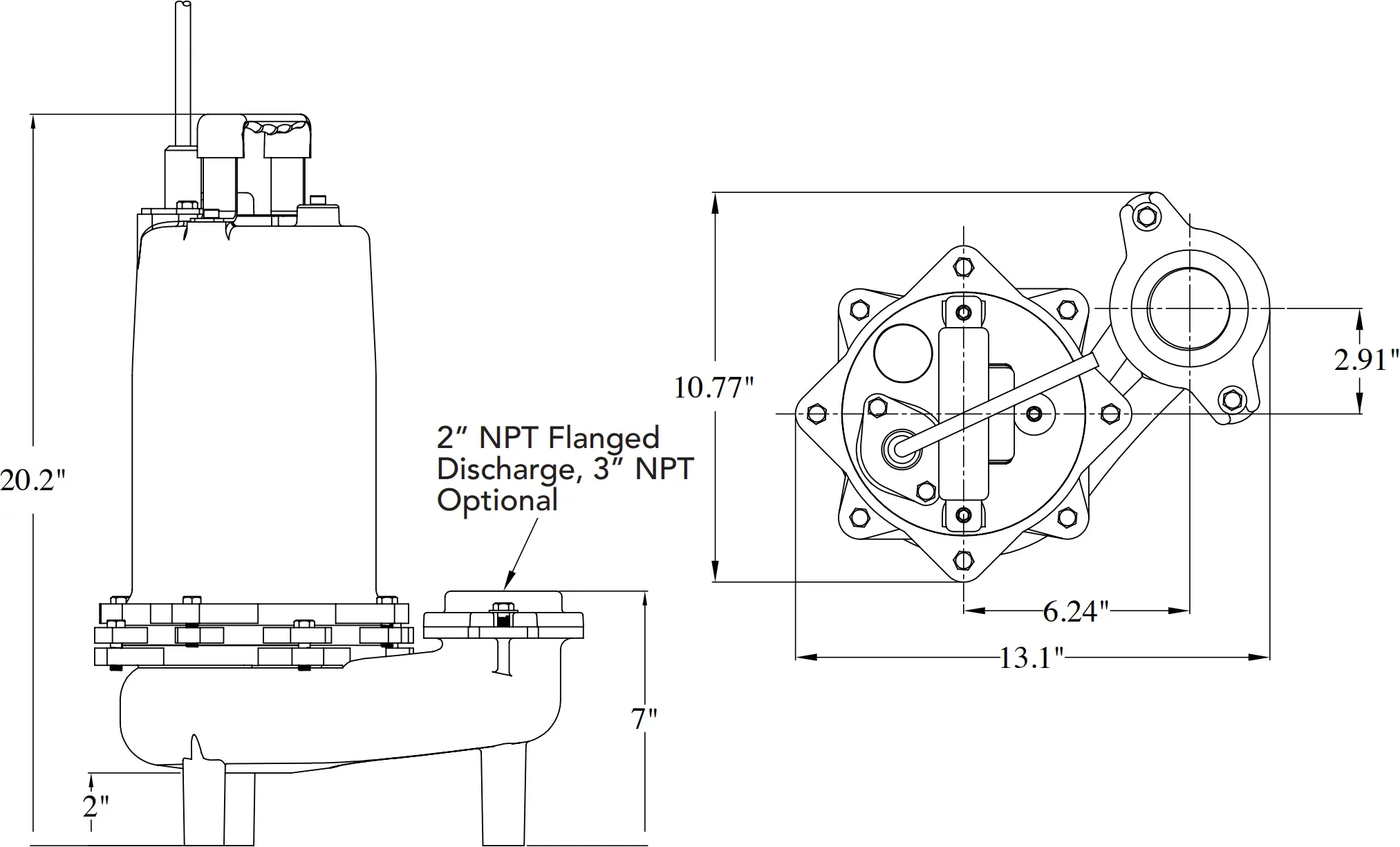

Dimensions

SWH100 Pump Dimensions

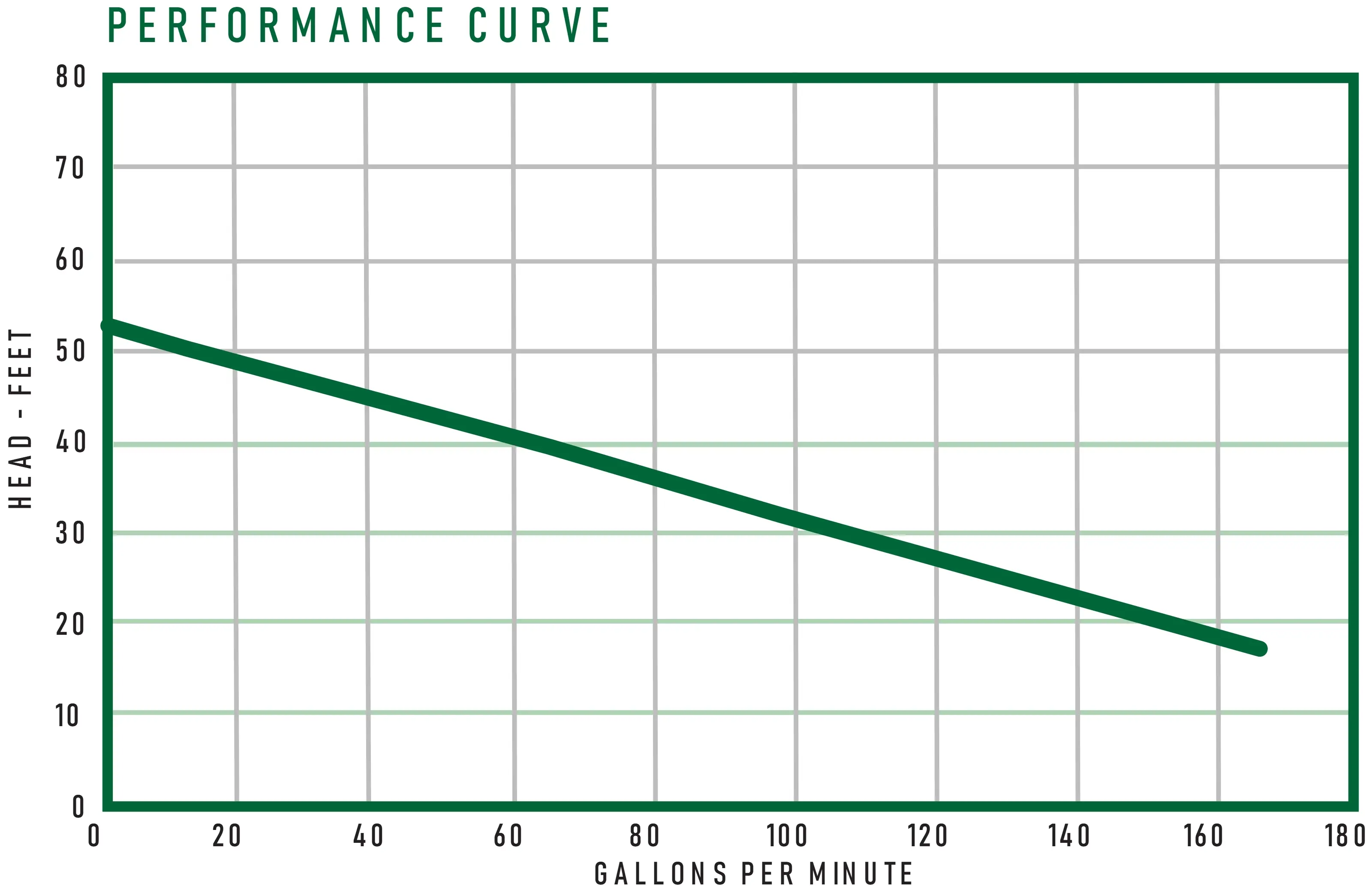

Performance Curve

SWH100 Performance Curve Graph
