/Products/Pumps/Ashland Pump/Sewage Pumps/SWFD500 5HP/SWFD500M4-20 Ashland 5HP Sewage Pump, 460VAC 3 Phase
Click Image to Expand

Product ID: SWFD500M4-20

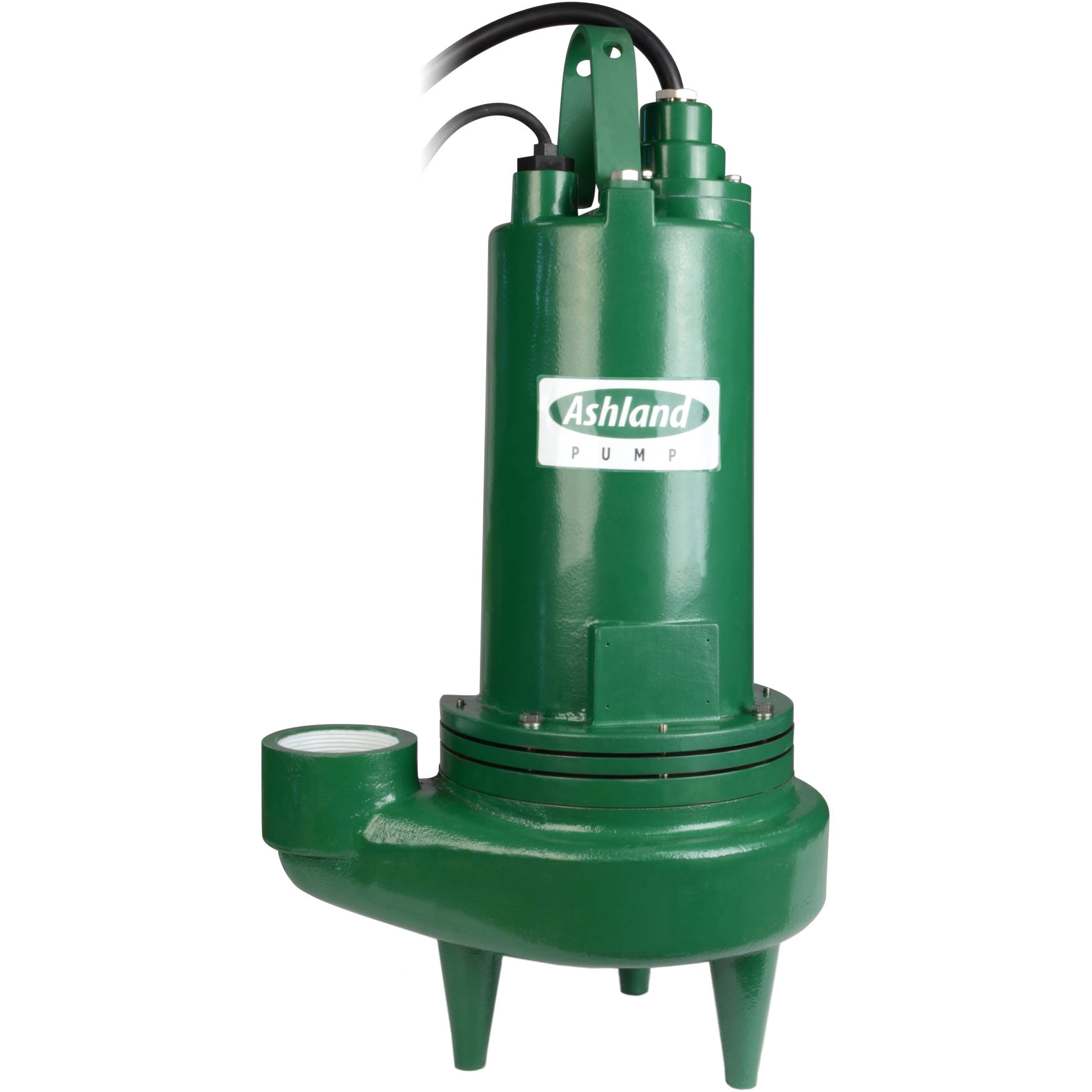

SWFD500M4-20 Ashland 5HP Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWFD500M4-20

Selected accessories will also be added to cart
$4,714.00 / Each
Quantity:
3" NPT Discharge, Cast Iron Construction, 1750RPM

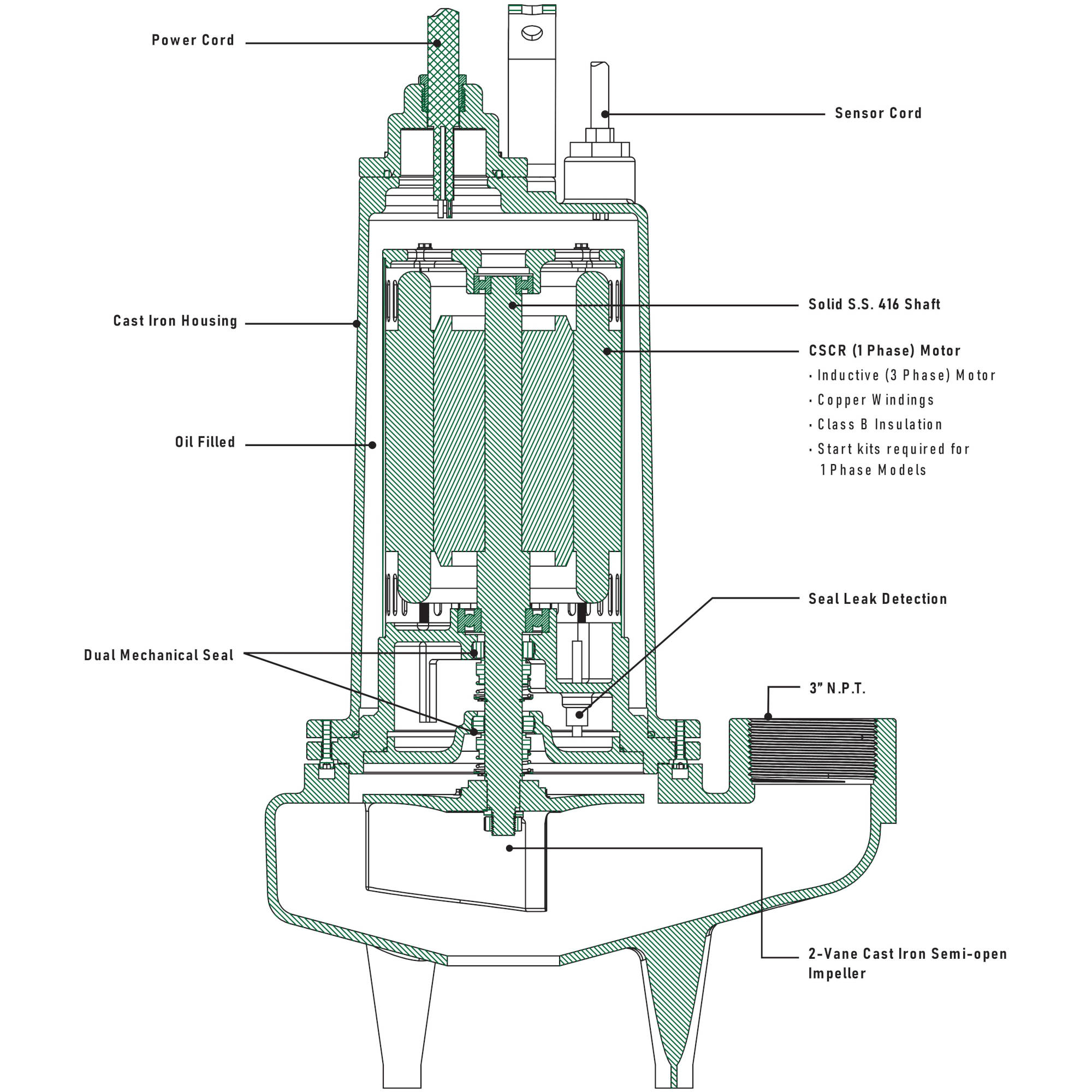

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty CSCR (Single Phase) or PSC (3 Phase) Motor
  • 2-Vane Semi-open Cast Iron Impeller
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWFD500M4-20
Switch Type Manual
Power 5 HP
Voltage 460VAC 60Hz 3 Phase
RPM 1750 RPM
Full Load Amps 11.8 Amps
NEMA Start Code D
Cord Type SOW
Cord Power Size 12AWG/4C
Cord O.D. 0.70"
Discharge Size 3" NPT
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Dual Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6206
RPM 1750 RPM
Motor Type CSCR (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
HP 5HP
Service Factor 1.00

Dimensions

SWFD500 Pump Dimensions

Performance Curve

SWFD500 Performance Curve Graph
