/Products/Pumps/Ashland Pump/Sewage Pumps/SWFD200 2HP/SWFD200M2-20 Ashland 2HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SWFD200M2-20

SWFD200M2-20 Ashland 2HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWFD200M2-20

Selected accessories will also be added to cart
$1,834.00 / Each
Quantity:

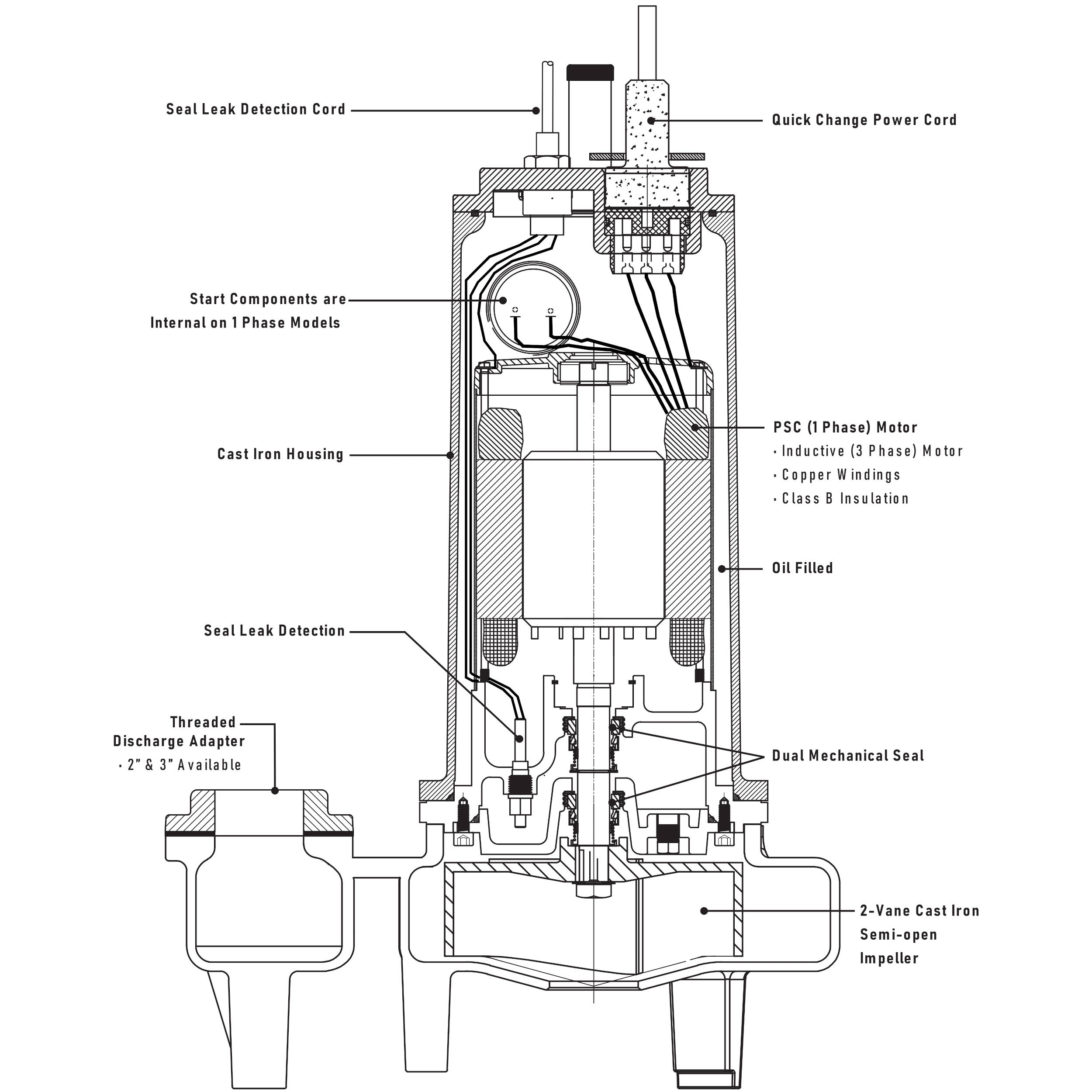

Features

  • 3” Flanged Discharge
  • Heavy duty cast iron Motor Housing and Volute
  • 2-Vane, Semi-open Cast Iron Impeller
  • Mechanical Carbon Ceramic Seal
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWFD200M2-20
Switch Type Manual
Power 2 HP
Voltage 230VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 16.7 Amps
NEMA Start Code P
Cord Type SOW
Cord Power Size 12AWG/3C
Cord O.D. 0.62"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapters
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 2HP
Service Factor 1.00

Dimensions

SWFD200 Pump Dimensions

Performance Curve

SWFD200 Performance Curve Graph
