/Products/Pumps/Ashland Pump/Sewage Pumps/SWFD100 1HP/SWFD100M2-20 Ashland 1HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SWFD100M2-20

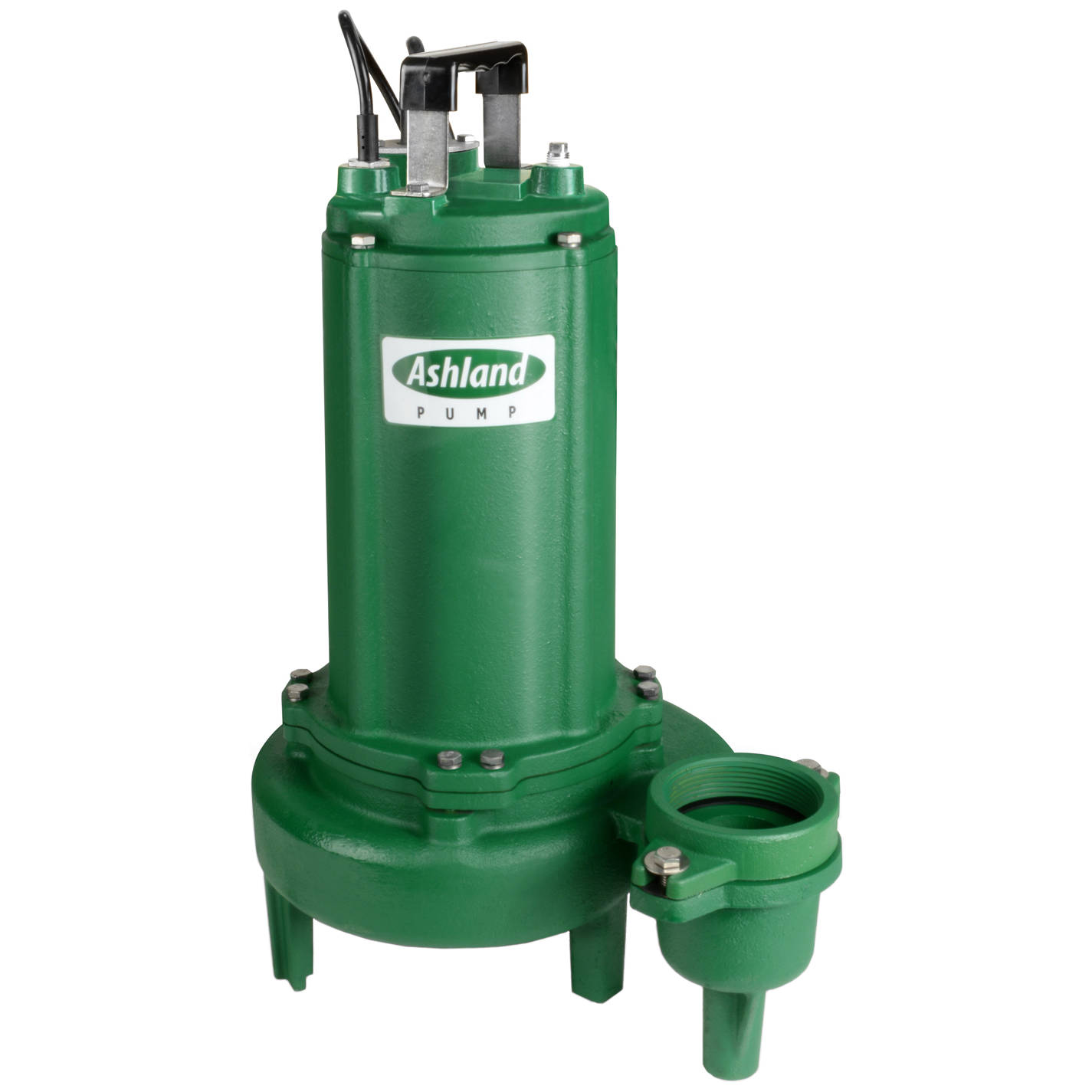

SWFD100M2-20 Ashland 1HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWFD100M2-20

Selected accessories will also be added to cart
$1,441.00 / Each
Quantity:
Manual Switch, 2" Solids Handling, 2" Flanged/2" NPT/3"NPT Discharge, Cast Iron

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty PSC motor

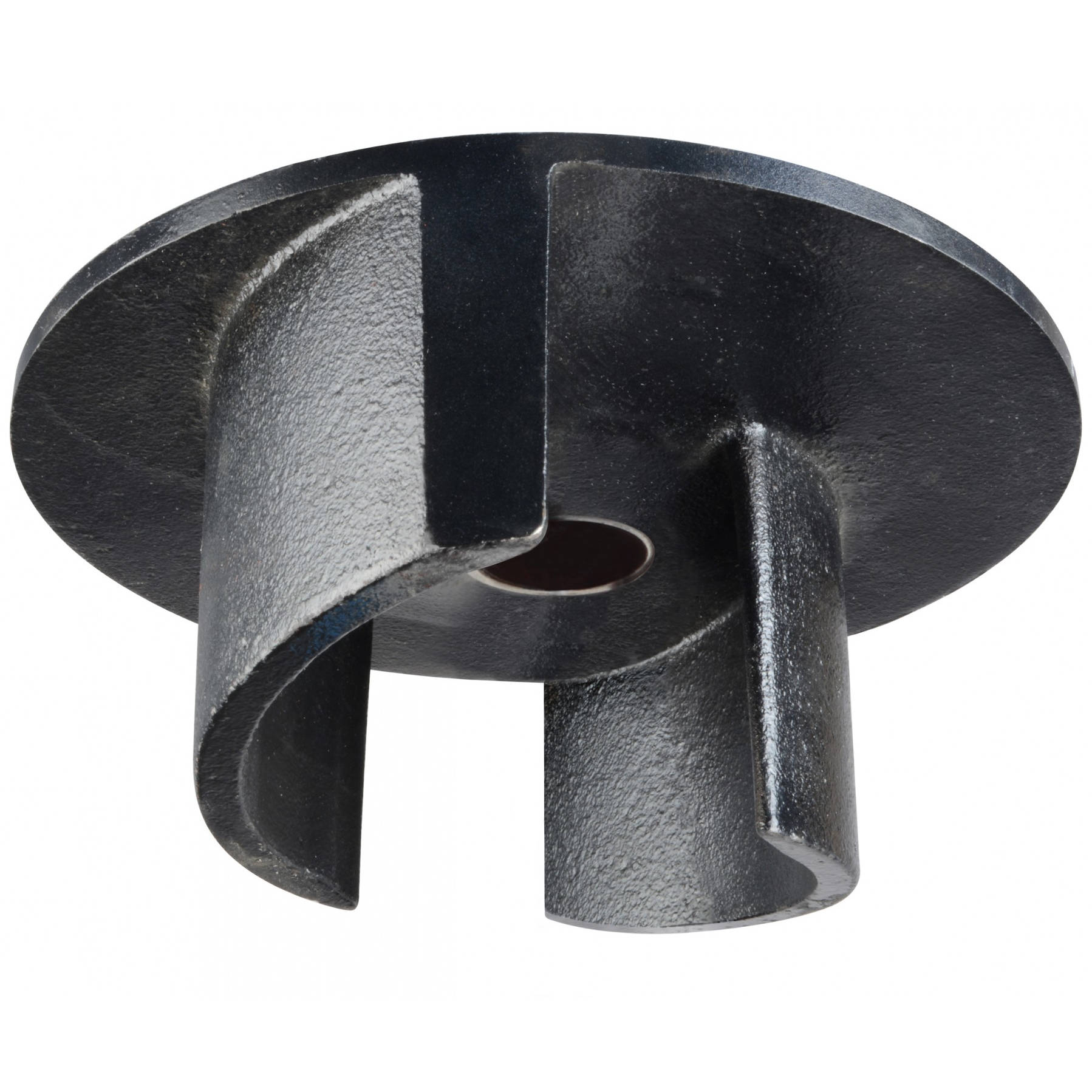

  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWFD100M2-20
Switch Type Manual
Power 1 HP
Voltage 230VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 10.8 Amps
NEMA Start Code P
Cord Type SOW
Cord Power Size 14AWG/3C
Cord O.D. 0.55"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapters
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1HP
Service Factor 1.00

Dimensions

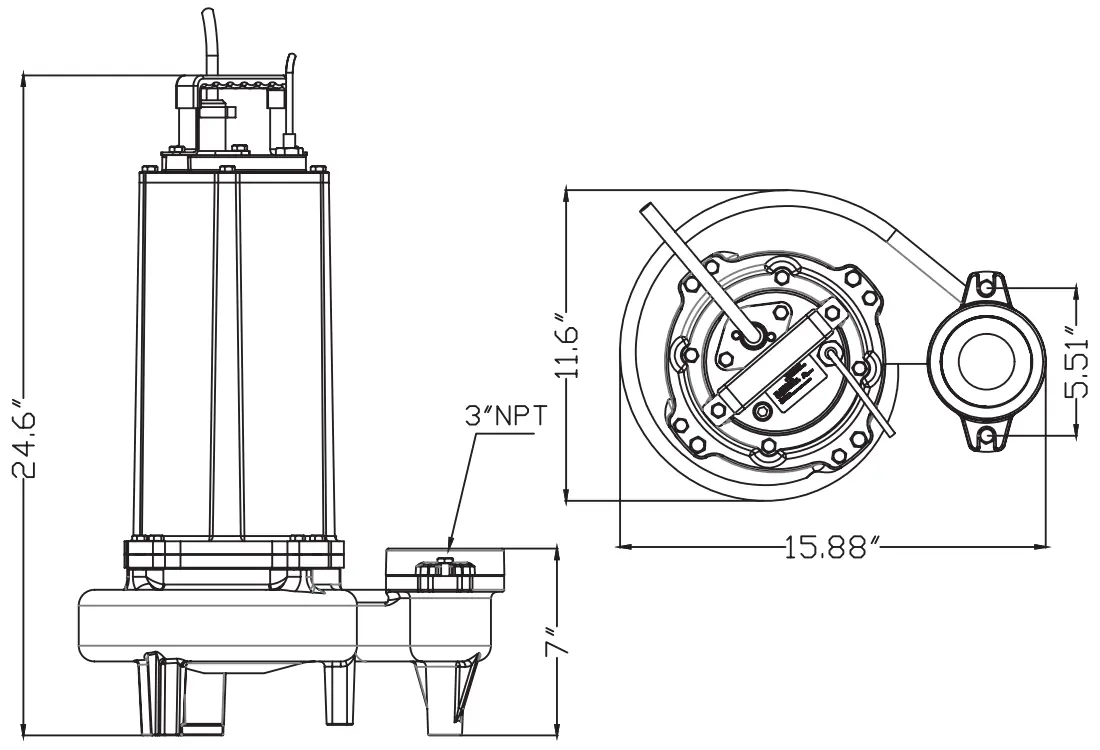

SWFD100 Pump Dimensions

Performance Curve

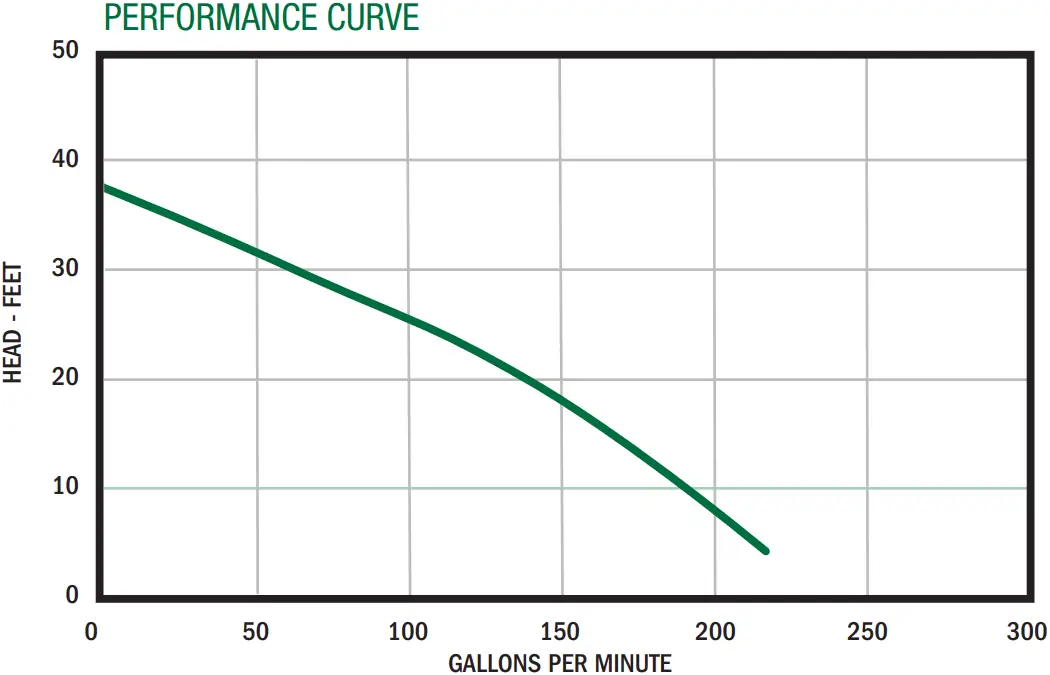

SWFD100 Performance Curve Graph
