/Products/Pumps/Ashland Pump/Sewage Pumps/SWF300 3HP/SWF300M4-20 Ashland 3HP Sewage Pump, 460VAC 3 Phase
Click Image to Expand

Product ID: SWF300M4-20

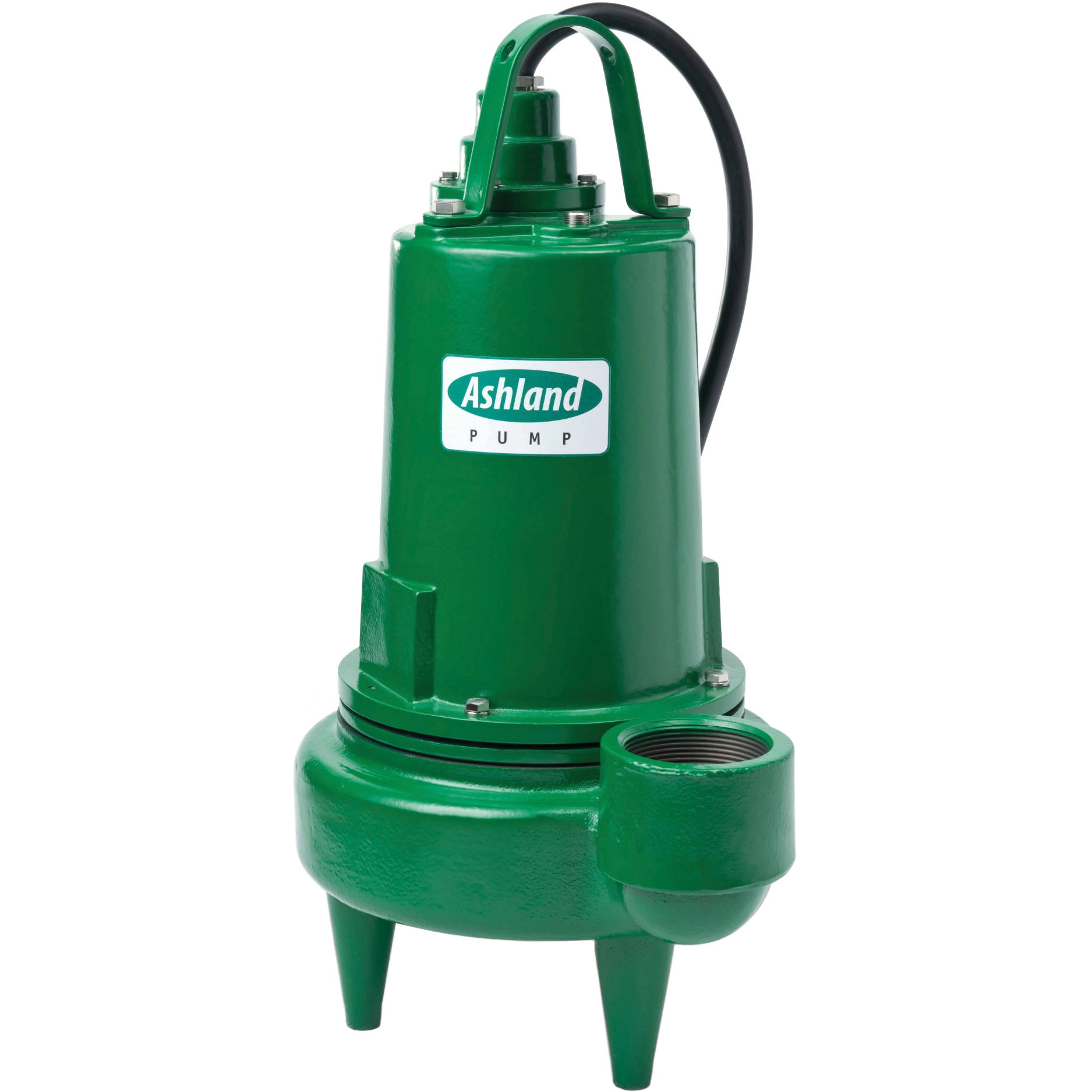

SWF300M4-20 Ashland 3HP Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWF300M4-20

Selected accessories will also be added to cart
$3,012.00 / Each
Quantity:
3" NPT Discharge, Cast Iron Construction, 1750RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWF300M4-20
HP 3HP
Voltage 460VAC 60Hz 3 Phase
RPM 1750 RPM
NEMA Start Code D
Full Load Amps 10.0 Amps
Cord Power Size 12AWG/4C
Cord Type SOW
Cord O.D. 0.7"
Discharge Size 3" NPT

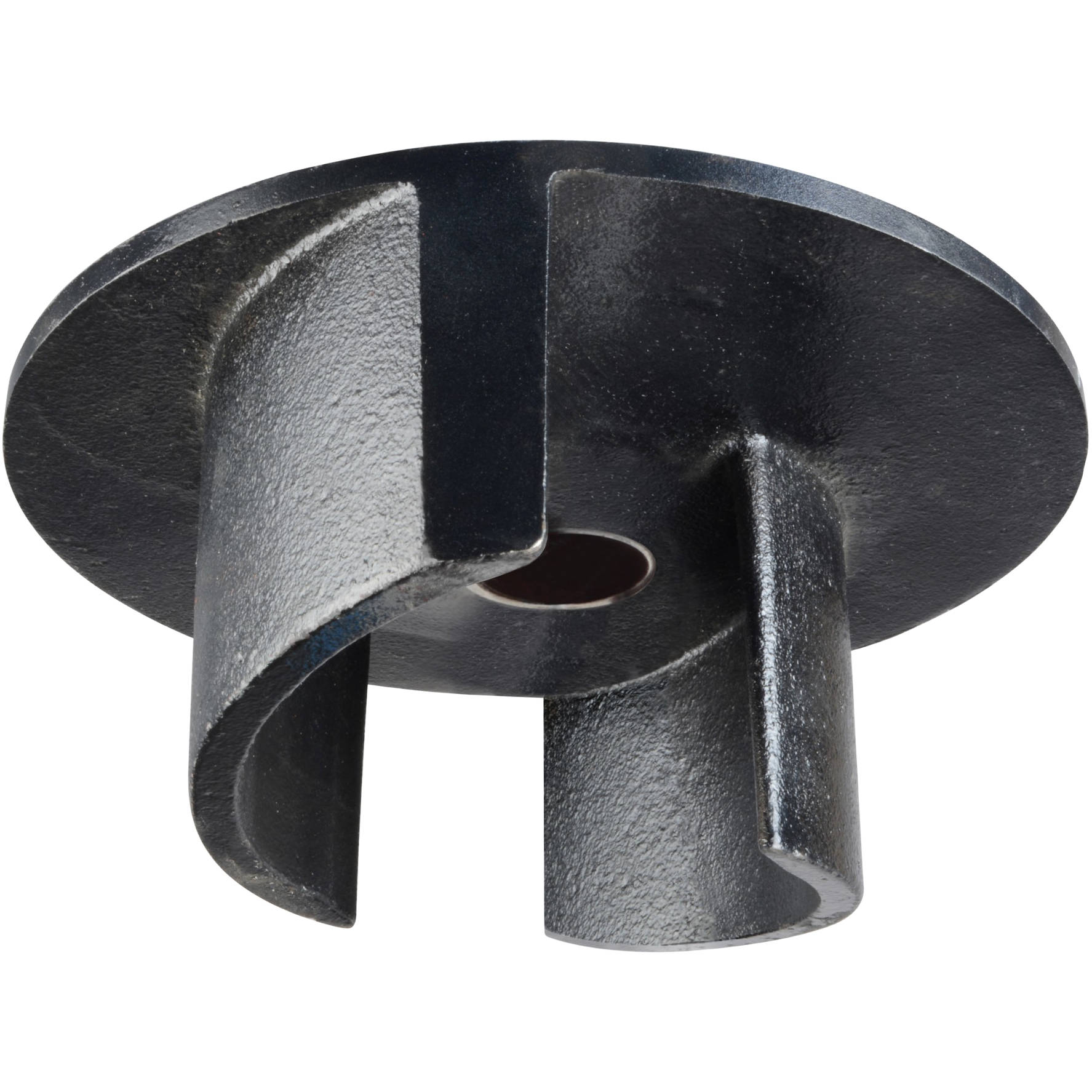

Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 3 HP
Service Factor 1.00

Dimensions

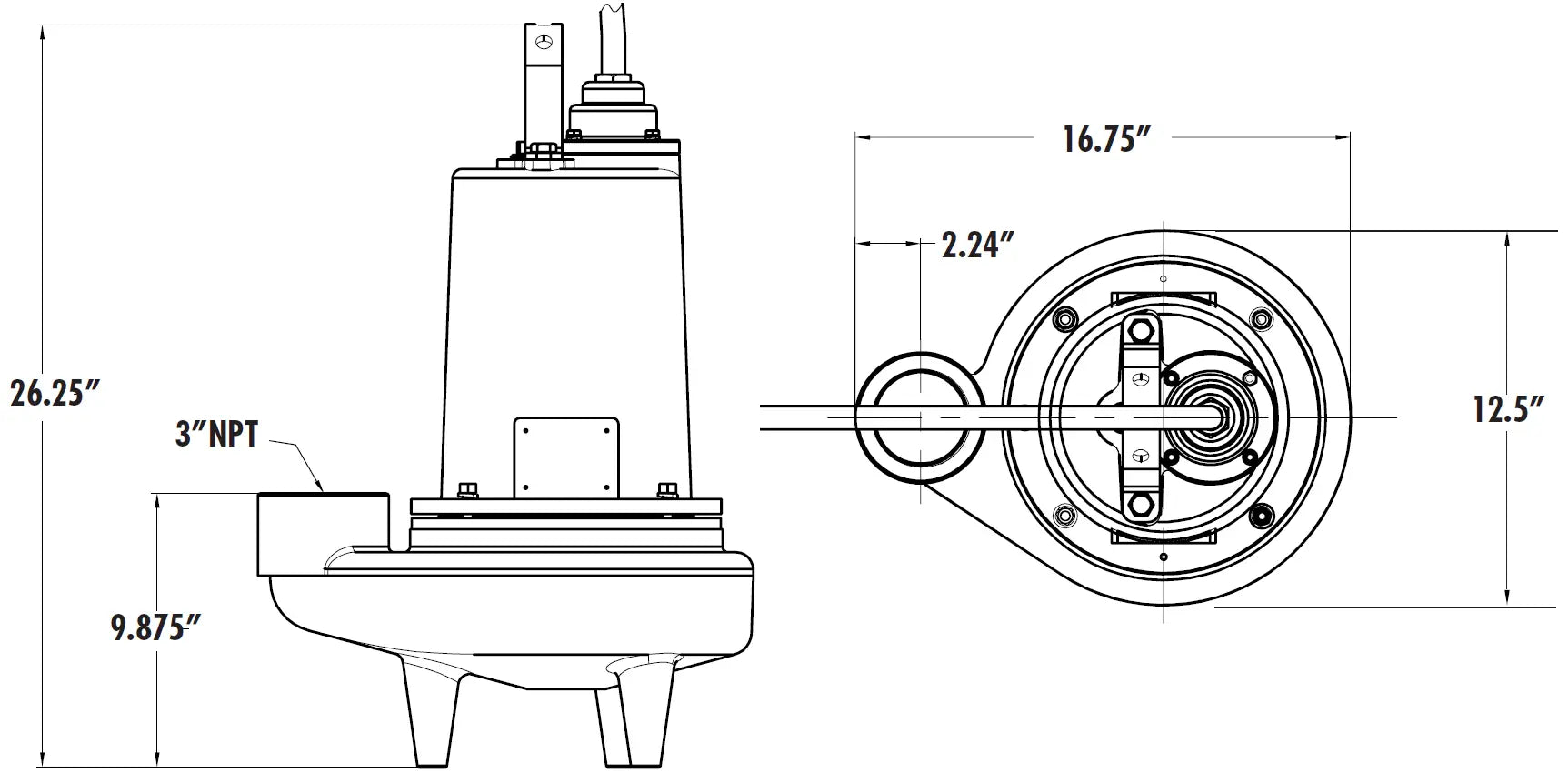

SWF300 Pump Dimensions

Performance Curve

SWF300 Performance Curve Graph
