/Products/Pumps/Ashland Pump/Sewage Pumps/SWF200 2HP/SWF200M5-20 Ashland 2HP Sewage Pump, 208VAC Single Phase
Click Image to Expand

Product ID: SWF200M5-20

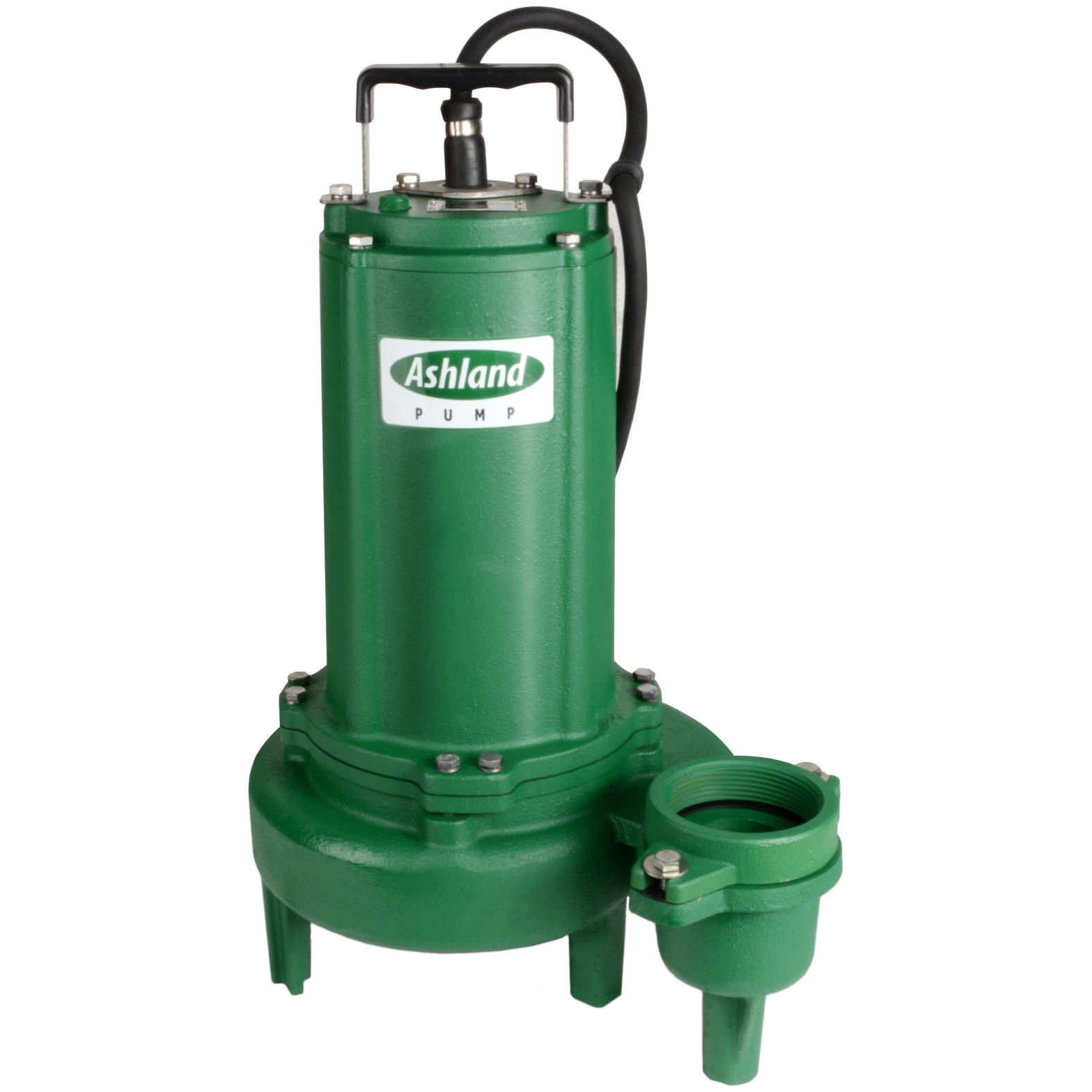

SWF200M5-20 Ashland 2HP Sewage Pump, 208VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWF200M5-20

Selected accessories will also be added to cart
$1,567.00 / Each
Quantity:
2" Flanged Discharge with 2"/3" NPT Adapter, Cast Iron Construction, 1750RPM

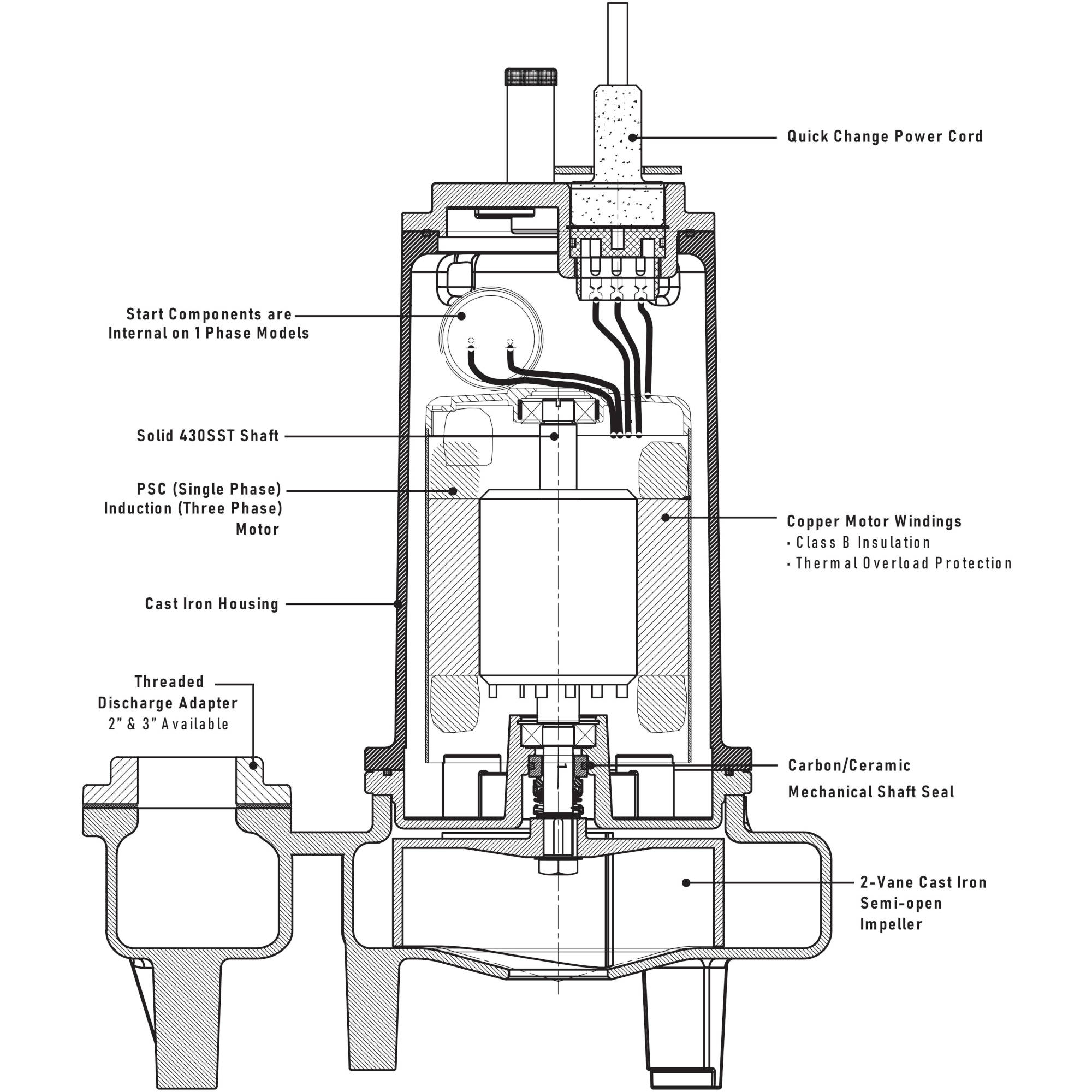

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC (Single Phase) or Induction (3 Phase) motor

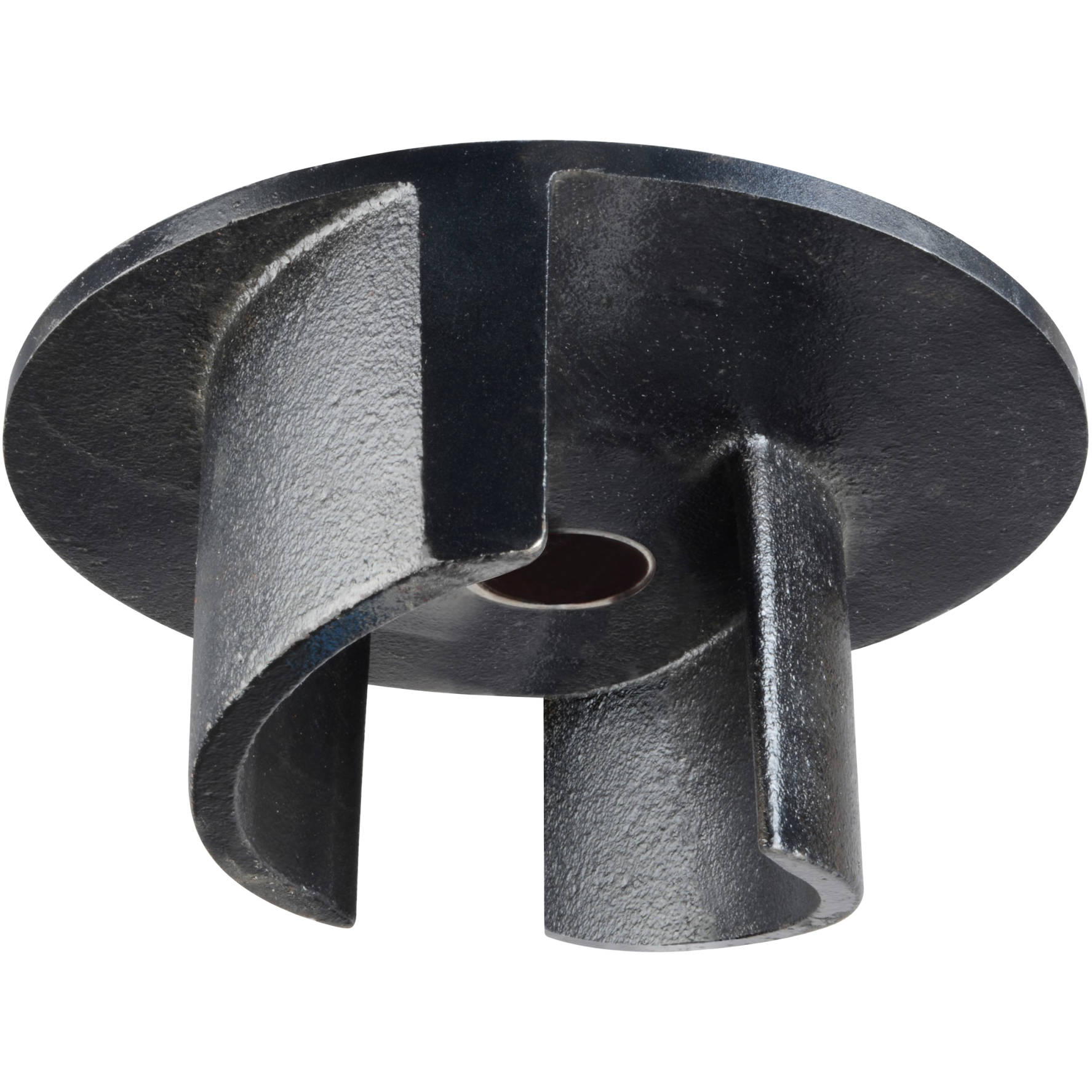

  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWF200M5-20
Switch Type Manual
HP 2HP
Voltage 208VAC 60Hz Single Phase
RPM 1750 RPM
NEMA Start Code L
Full Load Amps 21.0 Amps
Cord Power Size 12AWG/3C
Cord Type SOW
Cord O.D. 0.62"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapter
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 2HP
Service Factor 1.00

Dimensions

SWF200 Pump Dimensions

Performance Curve

SWF200 Performance Curve Graph
