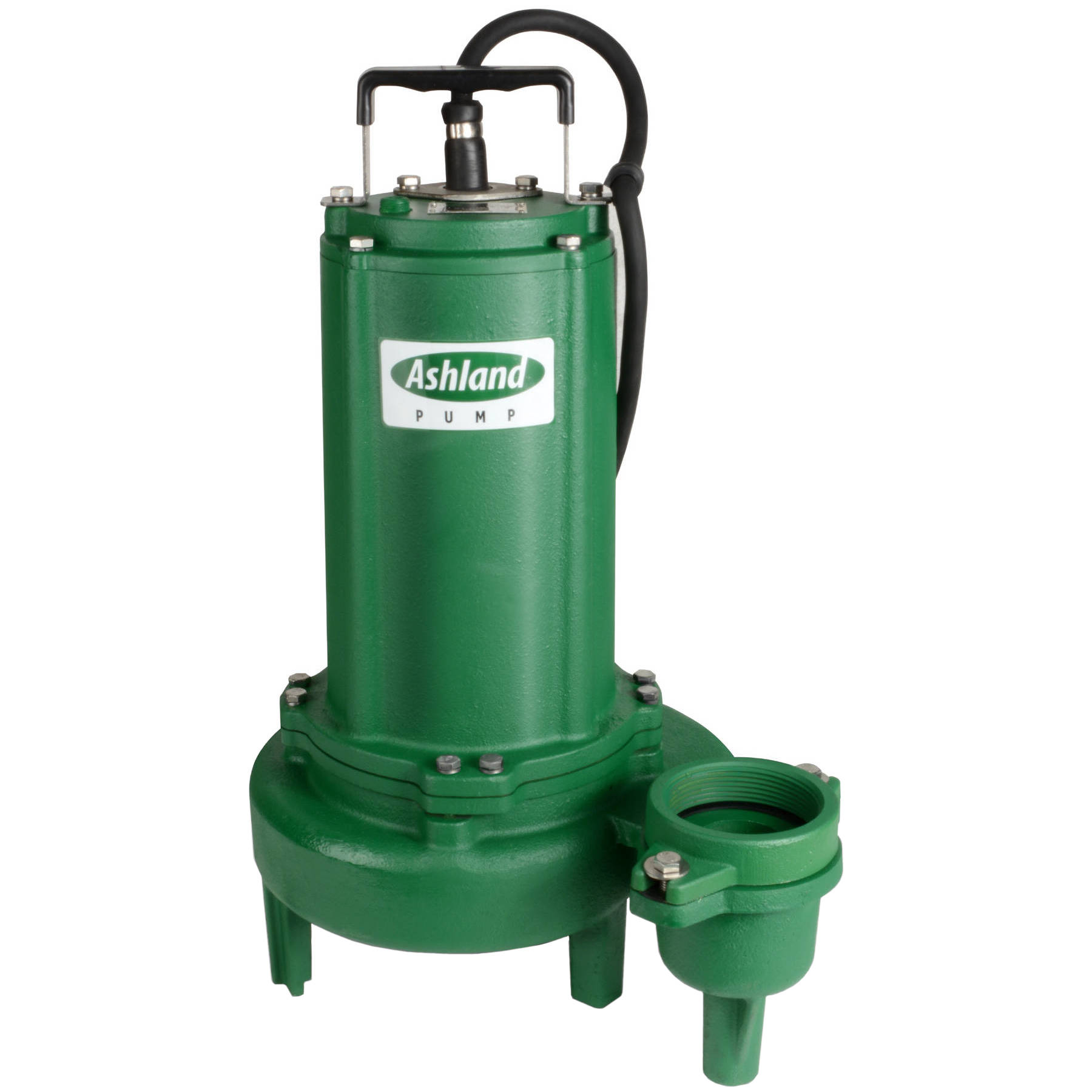

SWF100M5-20 Ashland 1HP Sewage Pump, 208VAC Single Phase
Product ID: SWF100M5-20
MFG: Ashland Pump
MFG Part Number: SWF100M5-20
Selected accessories will also be added to cart
$1,283.00 / Each
Quantity:
Manual Switch, 2" Flanged Discharge, Cast Iron Construction, 1750RPM
Details

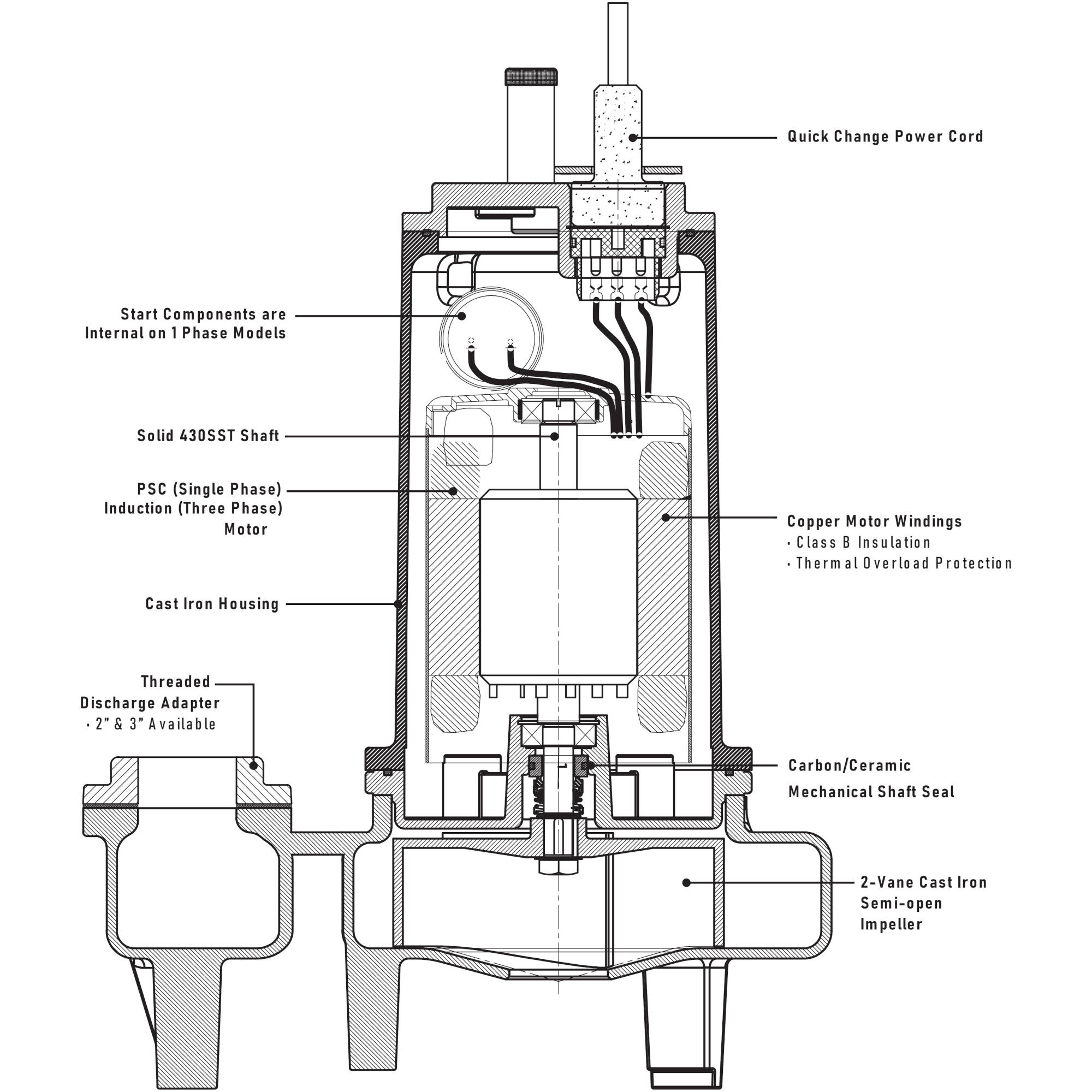

Features
Heavy duty cast iron construction
Oil-filled continuous duty rated PSC motor
Semi-open cast iron impeller
2” solids handling
Specifications
Brand
Ashland Pump
Model
SWF100M5-20
Switch Type
Manual
HP
1HP
Voltage
208VAC 60Hz Single Phase
RPM
1750 RPM
NEMA Start Code
P
Full Load Amps
13.0 Amps
Cord Power Size
14AWG/3C
Cord Type
SOW
Cord O.D.
0.55"
Discharge Size
2" Flanged
with 2" & 3" NPT Adapter
Impeller Type
2-Vane Semi-Open
Cast Iron
Cable Length
20'
Solids Handling
2"
Maximum Liquid Temperature
104°F - Intermittent
Acceptable pH Range
6 - 8
Motor Housing
Cast Iron
Casing
Cast Iron
Impeller
Cast Iron
Motor Shaft
SS430
Hardware
SST
O-Rings
NBR
Mechanical Seal
Single Mechanical
Carbon Ceramic
Upper Bearing
6203
Lower Bearing
6203
RPM
1750 RPM
Motor Type
PSC/Induction
Gen Insulation Class
B
Stator Winding Class
B
Maximum Stator Temperature
130°C
Voltage Tolerance
+/-10%
Motor Protection
Thermally Protected
HP
1HP
Service Factor
1.00
Dimensions
Performance Curve
Links
Ashland SWF100 Electrical Data (PDF, 1 page, 125KB)
Ashland SWF100 Features (PDF, 1 page, 190KB)
Ashland SWF100 Performance Data (PDF, 1 page, 133KB)
Ashland SWF100 Technical Data (PDF, 1 page, 132KB)
Ashland SWF100 & SWF200 Operation, Performance, Specifications and Parts Manual (PDF, 36 pages, 1.44MB)
Ashland SWF100 Catalog Sheet (PDF, 2 pages, 534KB)
Ashland SWF100 Dimensional Data (PDF, 1 page, 183KB)
