/Products/Pumps/Ashland Pump/Sewage Pumps/SW50 1/2HP/SW50M2-20 Ashland 1/2HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SW50M2-20

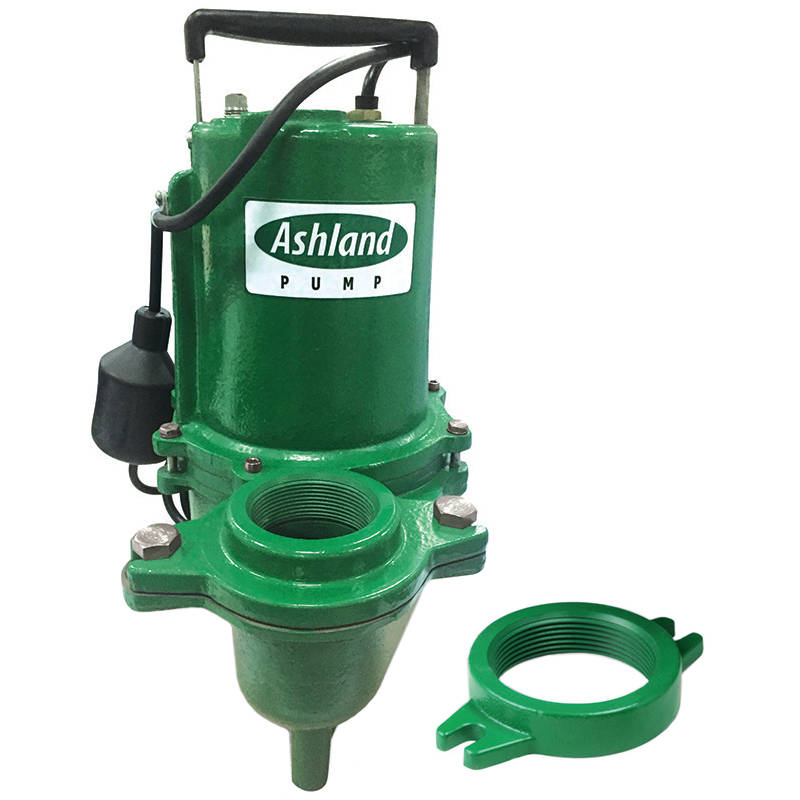

SW50M2-20 Ashland 1/2HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SW50M2-20

Selected accessories will also be added to cart
$536.00 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty PSC motor
  • Cast iron vortex impeller
  • 2” NPT Discharge; Handles 2” Solids
  • Standard 20 ft. Cord Length

Specifications

Brand Ashland Pump
Model SW50M2-20
Switch Type Manual
HP 1/2 HP
Voltage 230VAC 60Hz Single Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 4.8 Amps
Cord Size 16AWG/3C
Cord Type SJTOW
Cord O.D. 0.325-0.360"
Discharge Size 2" NPT
Optional 3" NPT adapter
Impeller Type 9-Vane Vortex
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6202
Lower Bearing 6203
RPM 3450 RPM
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/2 HP
Service Factor 1.00

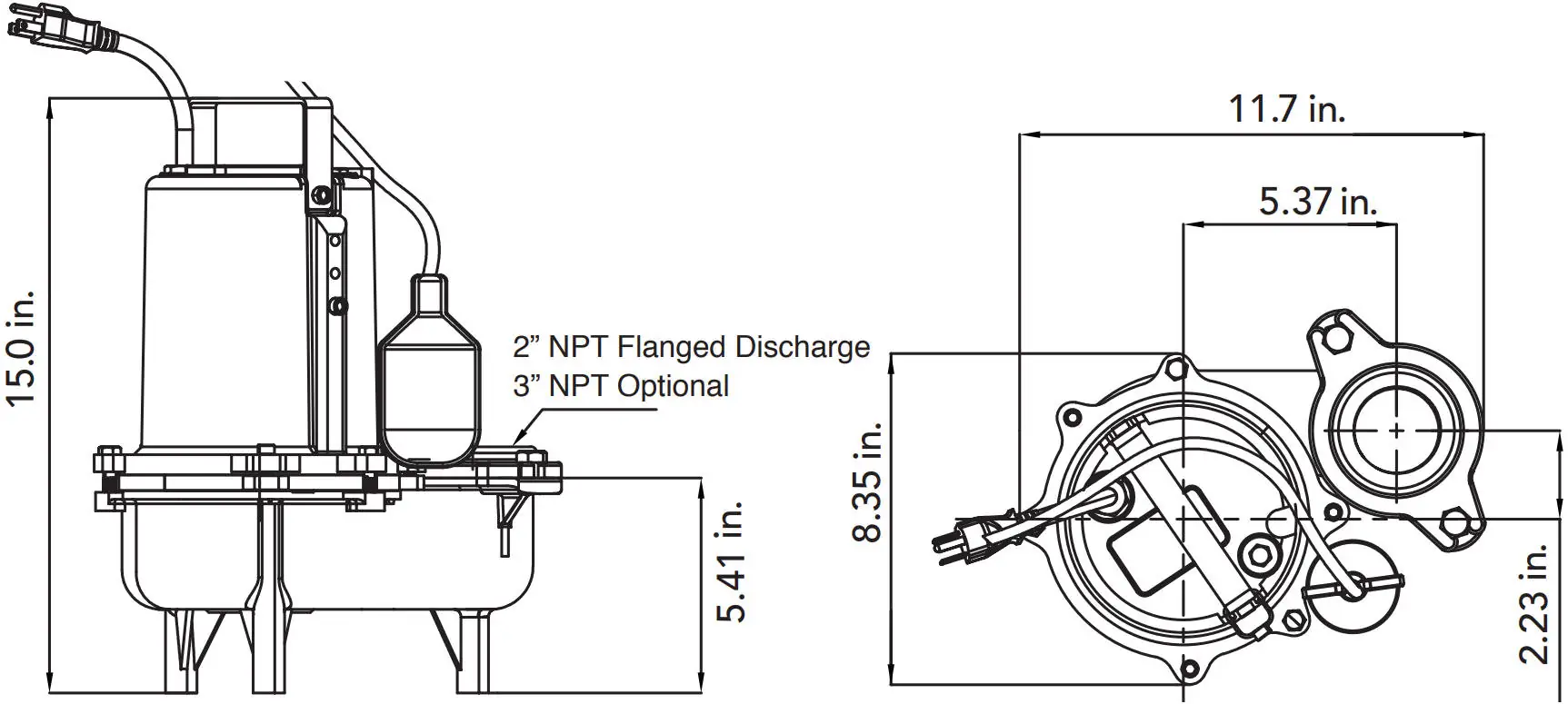

Dimensions

SWF50 Pump Dimensions

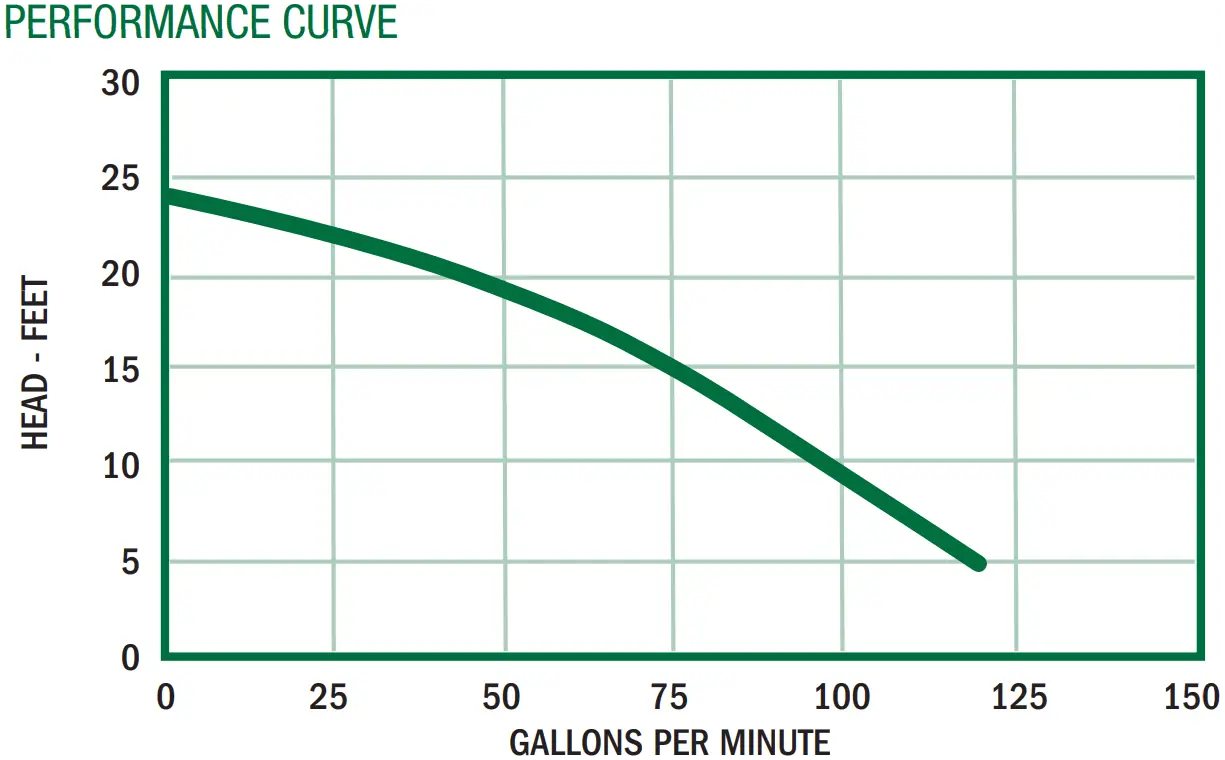

Performance Curve

SW50 Performance Curve Graph
