Product ID: ST1202

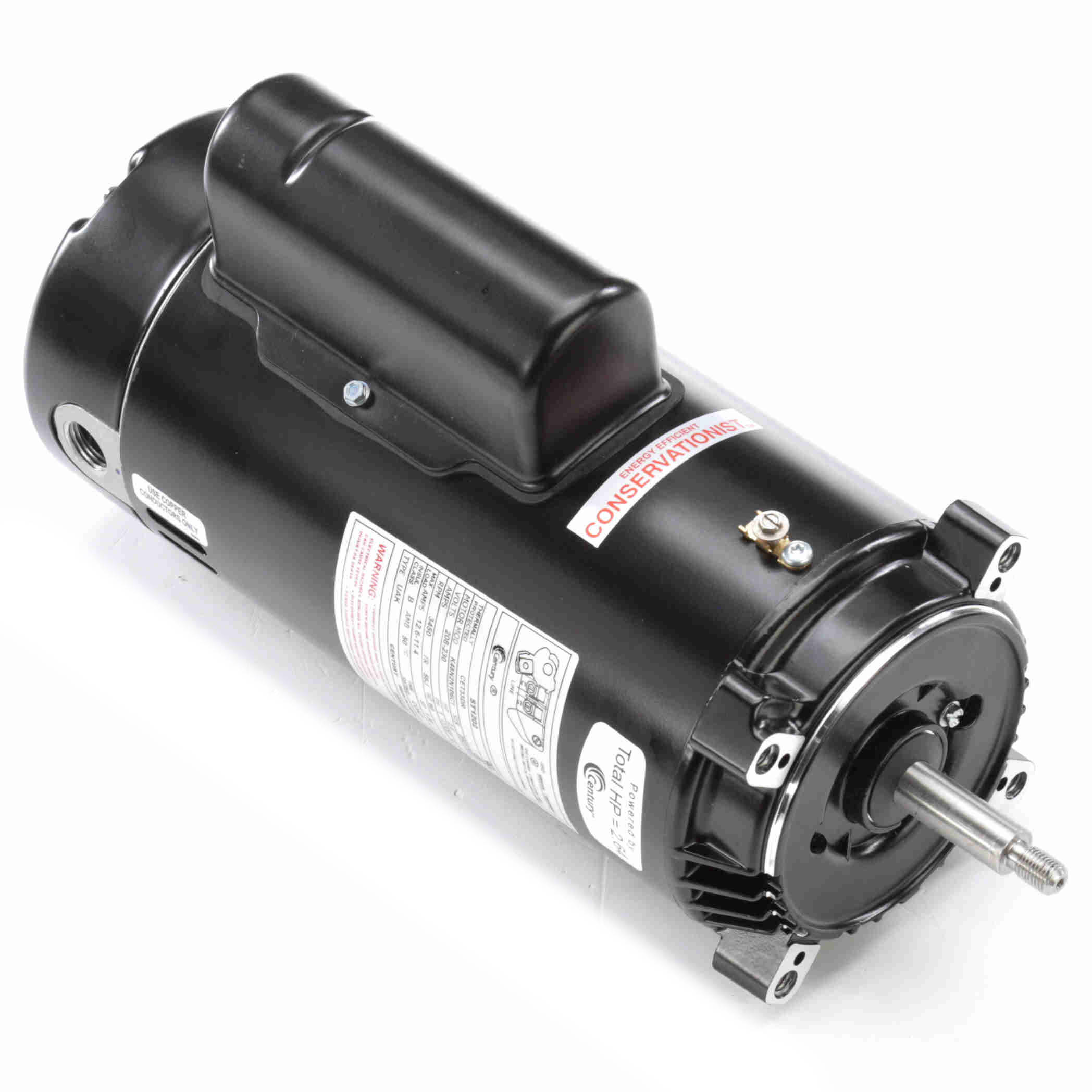

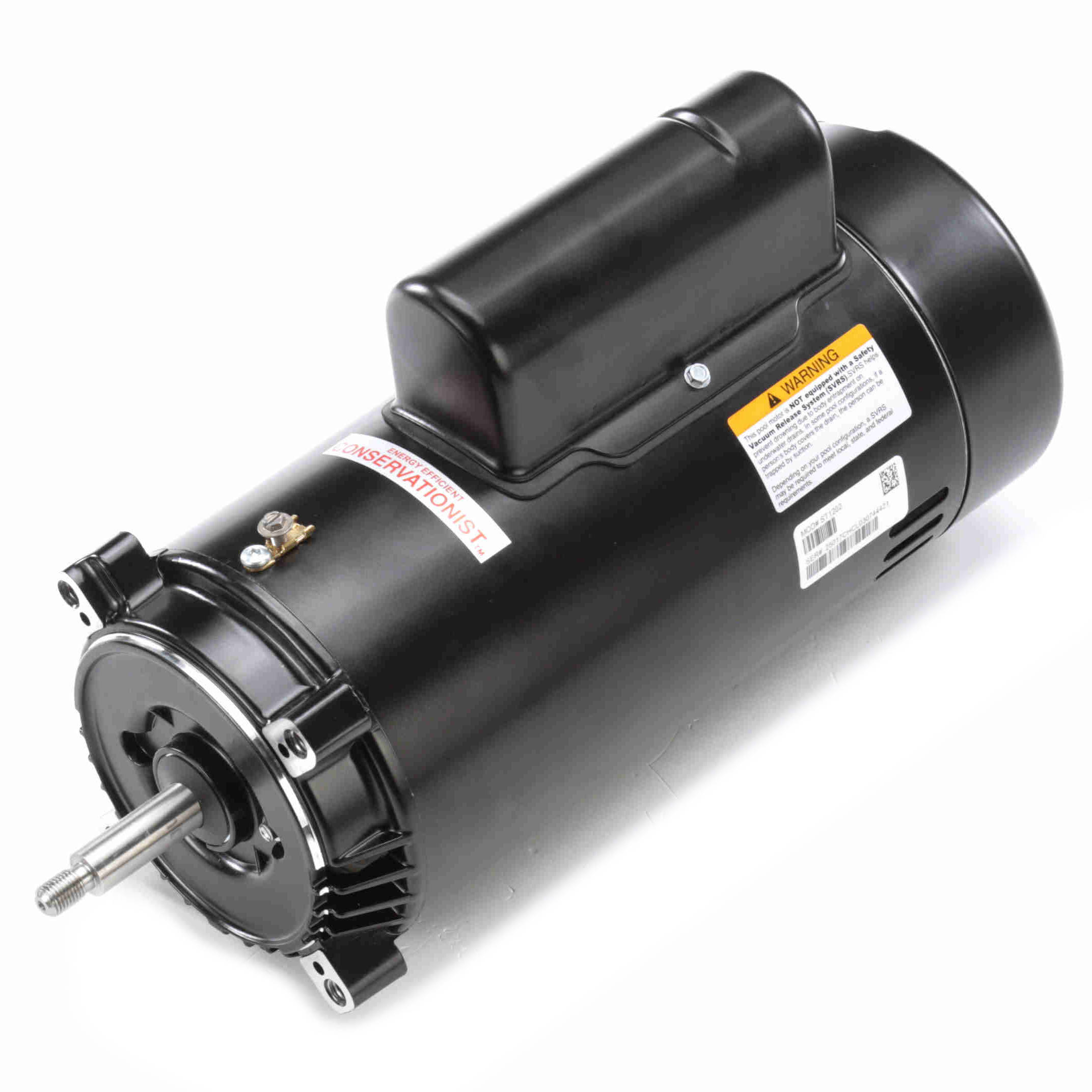

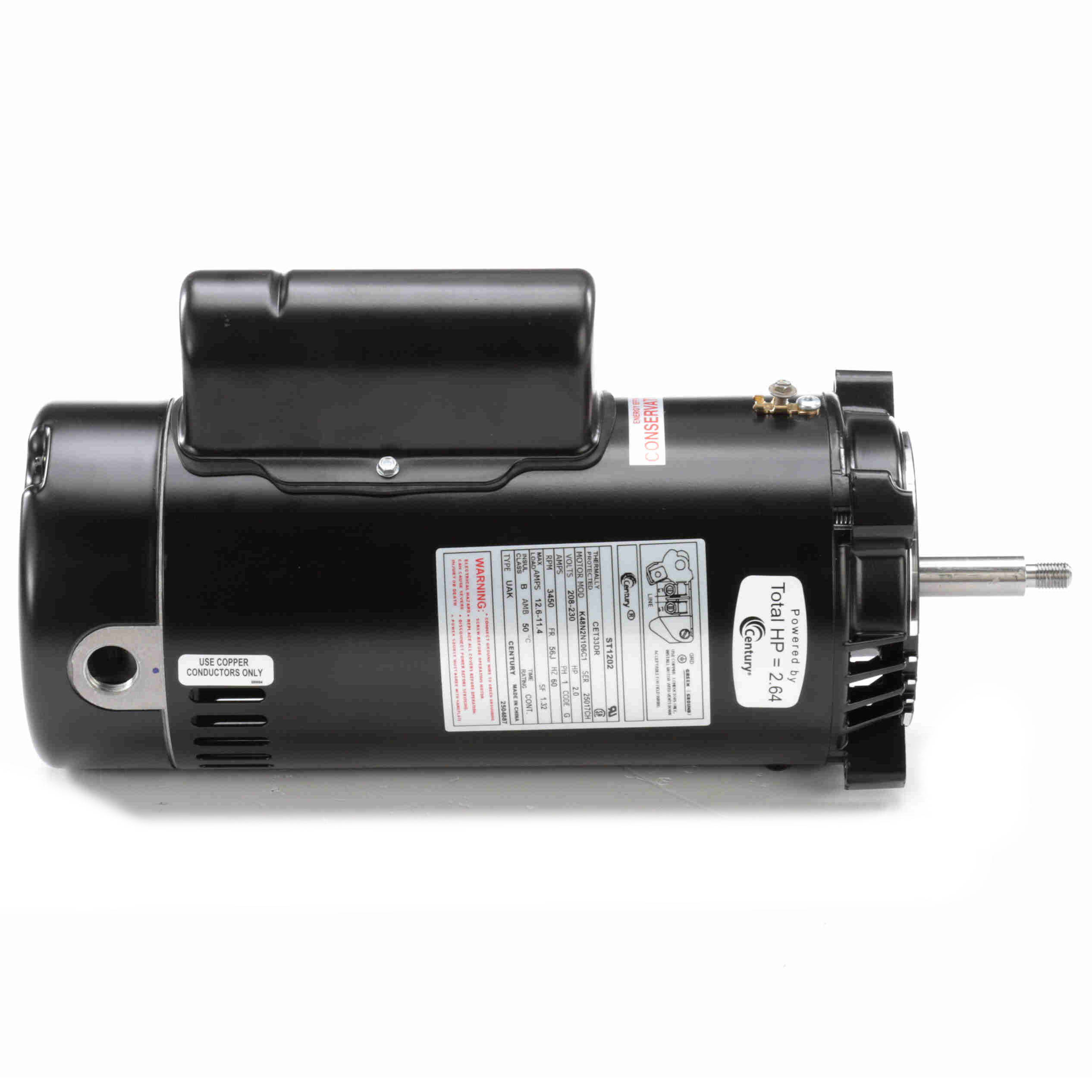

ST1202 Century 2HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ST1202

Selected accessories will also be added to cart
$368.97 / Each
Quantity:
ODP, 56J Frame, 208-230VAC 60Hz Single Phase, Rolled Steel Housing, Threaded 303 Stainless Steel Shaft, CCW Pump End

Features

  • Sealed Ball Bearings
  • Capacitor Start-Capacitor Run
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft
  • Energy Efficient

General Specifications

UPC: 786674031808 Weight: 34 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 2.0 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 12.6-11.4 A Speed: 3450 rpm
Service Factor: 1.32 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Poles: 2
Rotation: Counterclockwise Pump End Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 15.62 in
Frame Length: 9.69 in Shaft Diameter: 0.625 in
Shaft Extension: 2.563 in
