/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/ST1152 Century 1.5HP Pool Pump Electric Motor, 3450 RPM
Click Image to Expand

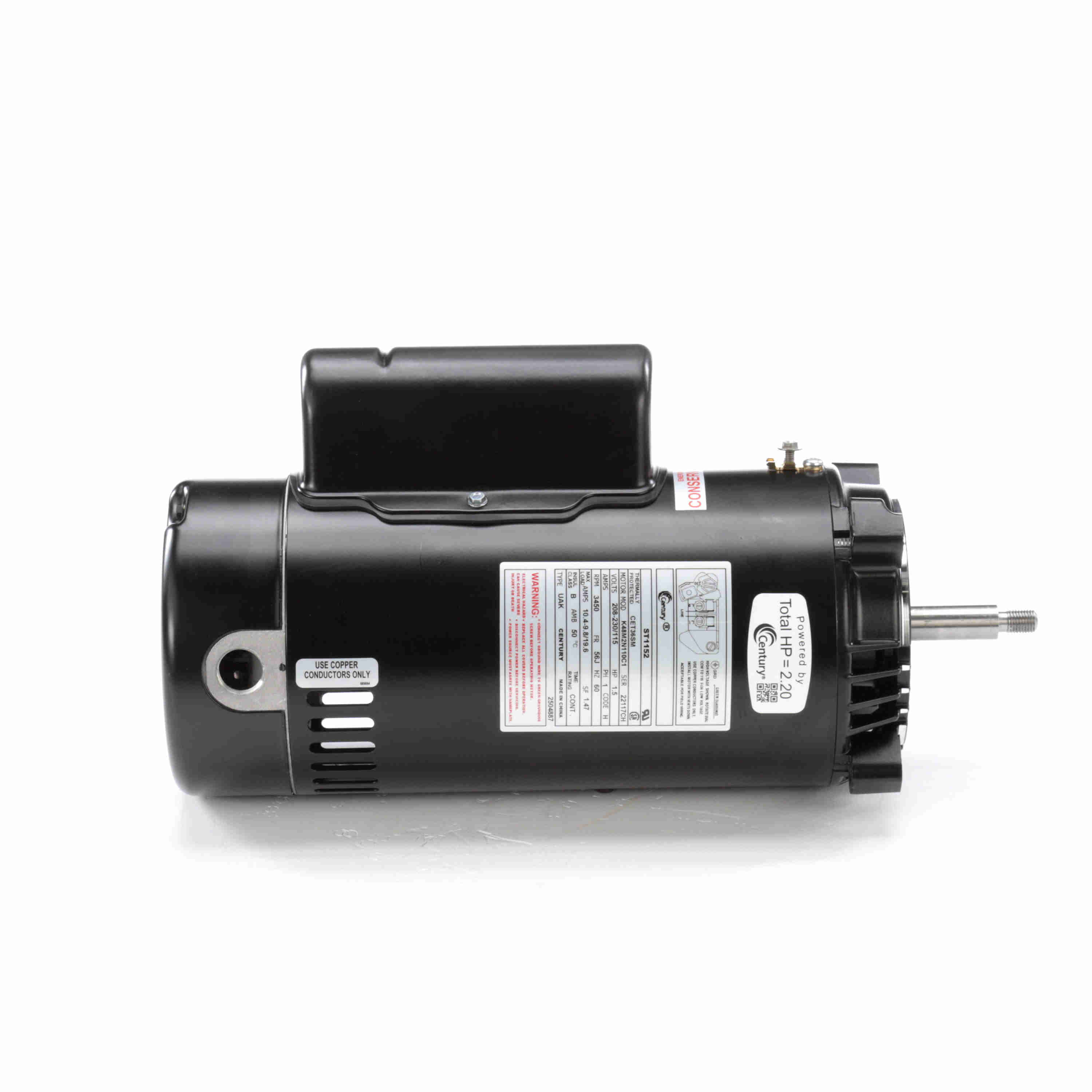

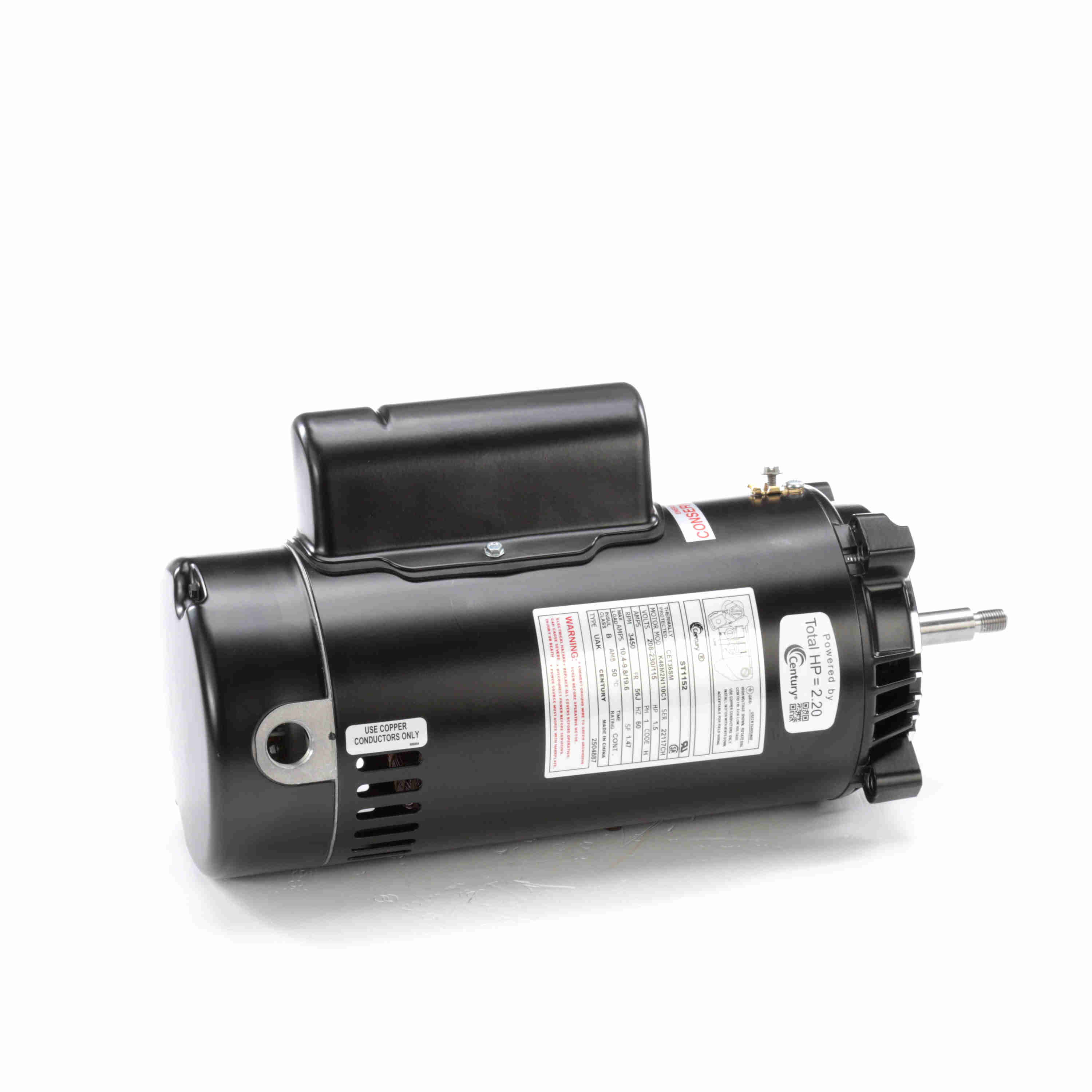

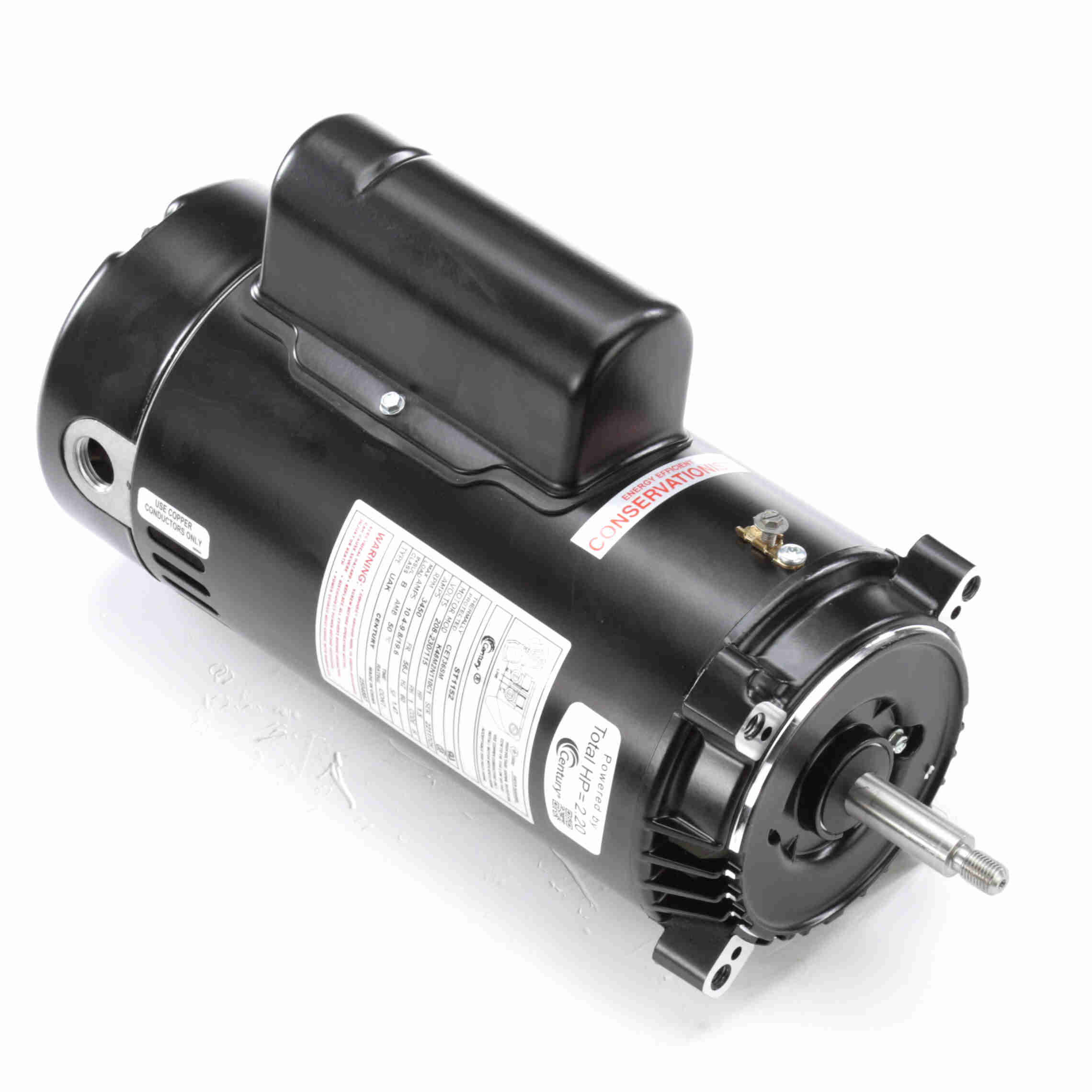

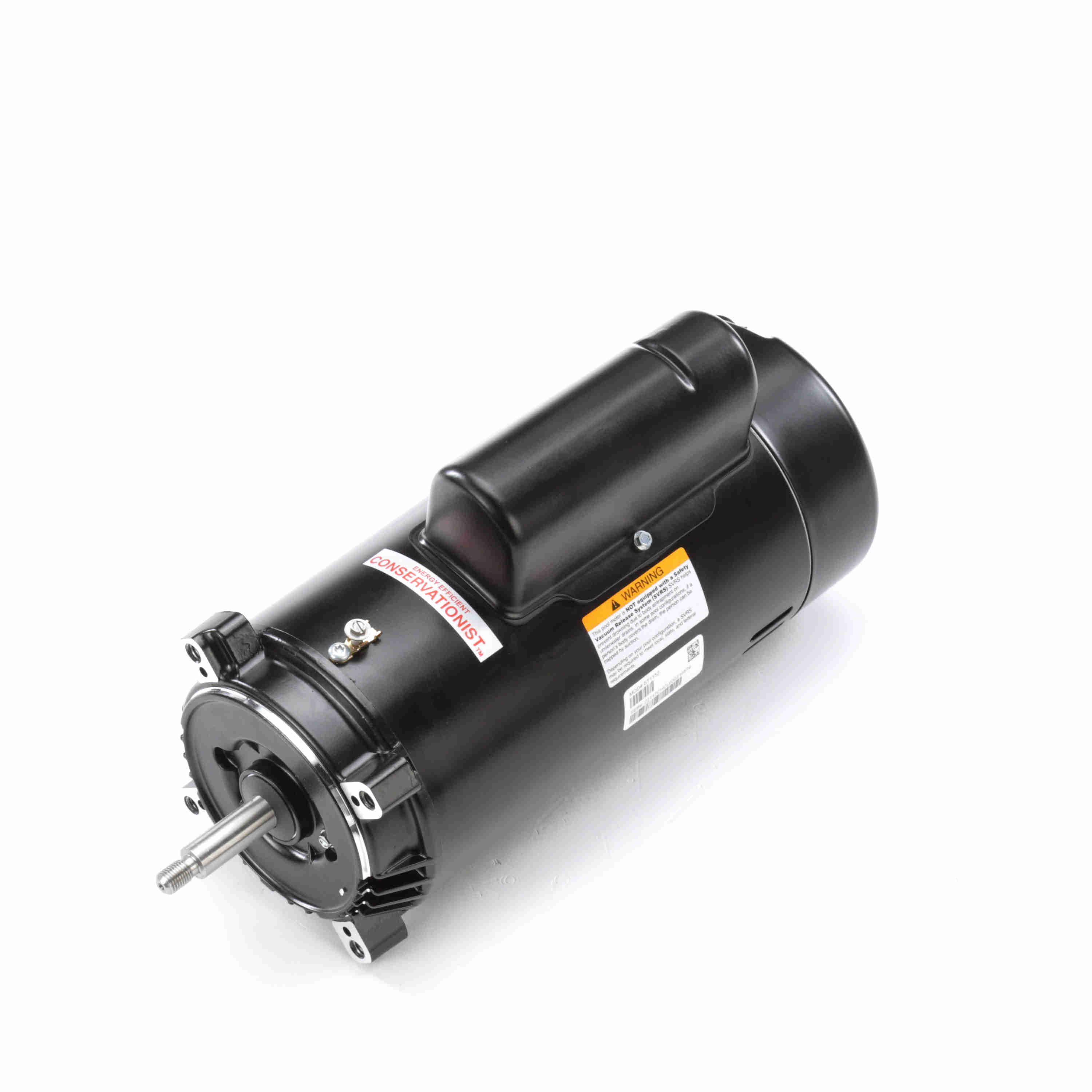

ST1152 Century 1.5HP Pool Pump Electric Motor, 3450 RPM

Product ID: ST1152

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ST1152

Selected accessories will also be added to cart
$434.97 / Each
Quantity:
ODP, 56J Frame, 115/208-230V Single Phase 60Hz

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start-Capacitor Run
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft
  • Energy Efficient

General Specifications

General Specifications
Model :ST1152 Catalog No :ST1152
Part Description :1.5 HP 3450 115/230 ODP 56J THD SHAFT Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.5 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :208-230/115 V
Current :10.4-9.8/19.6 A Speed :3450 rpm
Service Factor :1.47 Phase :1
Duty :Continuous Insulation Class :B
Frame :56J Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Poles :2
Rotation :Counterclockwise Pump End Mounting :Round
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :15.19 in
Frame Length :9.25 in Shaft Diameter :0.625 in
Shaft Extension :2.563 in UPC :786674031792
Weight :32.00 LB
