/Products/Electric Motors/Single Phase/Century/ST1102 Century 1HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: ST1102

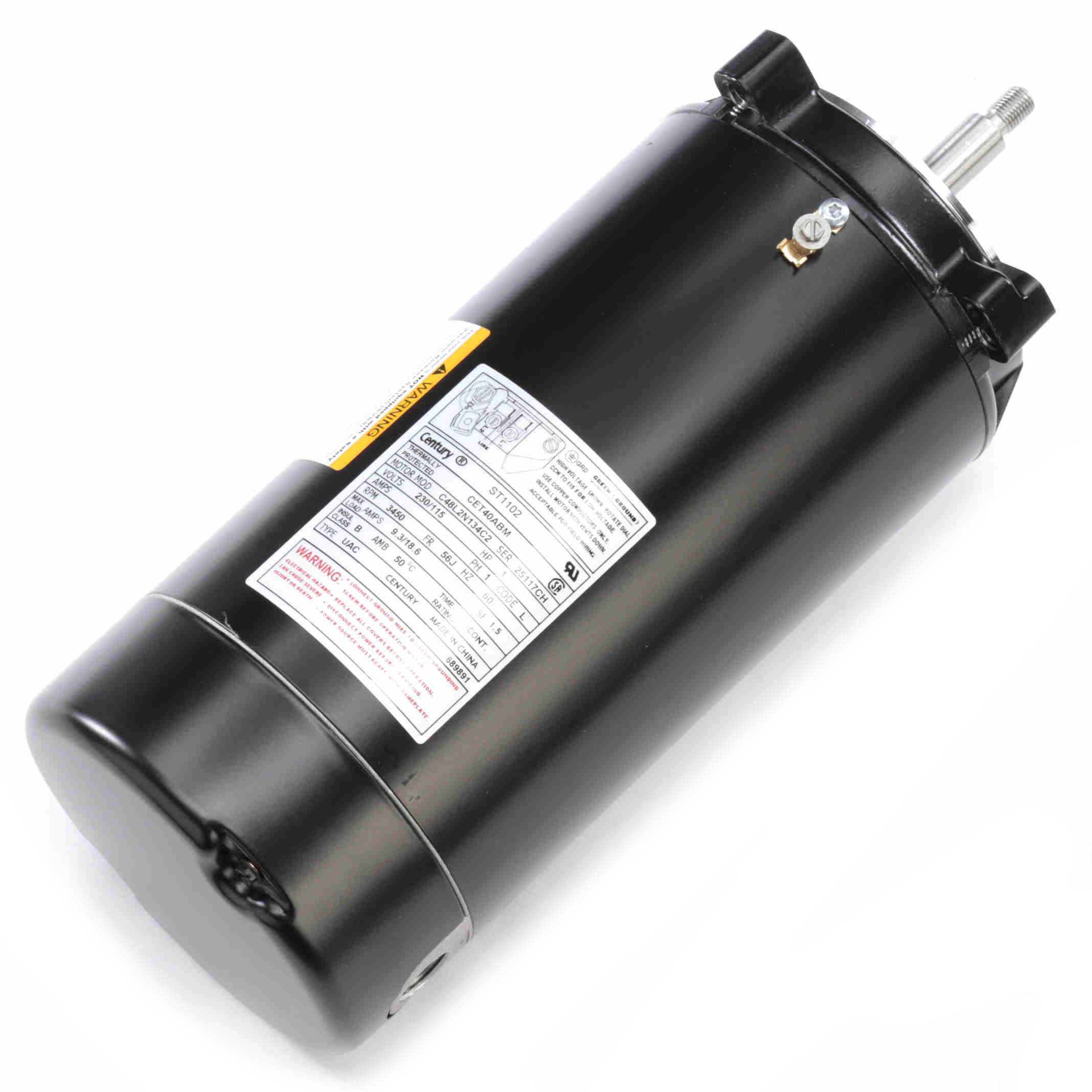

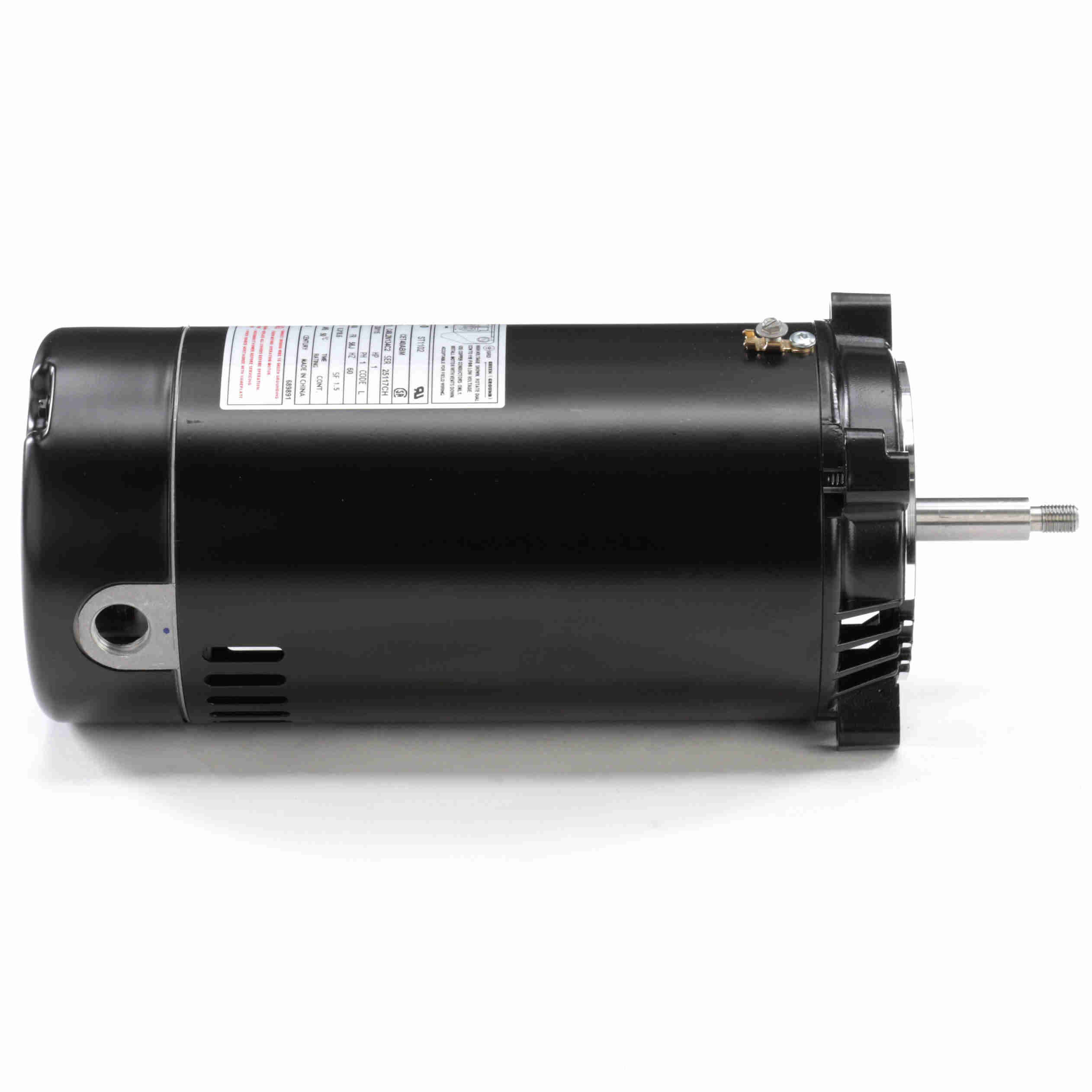

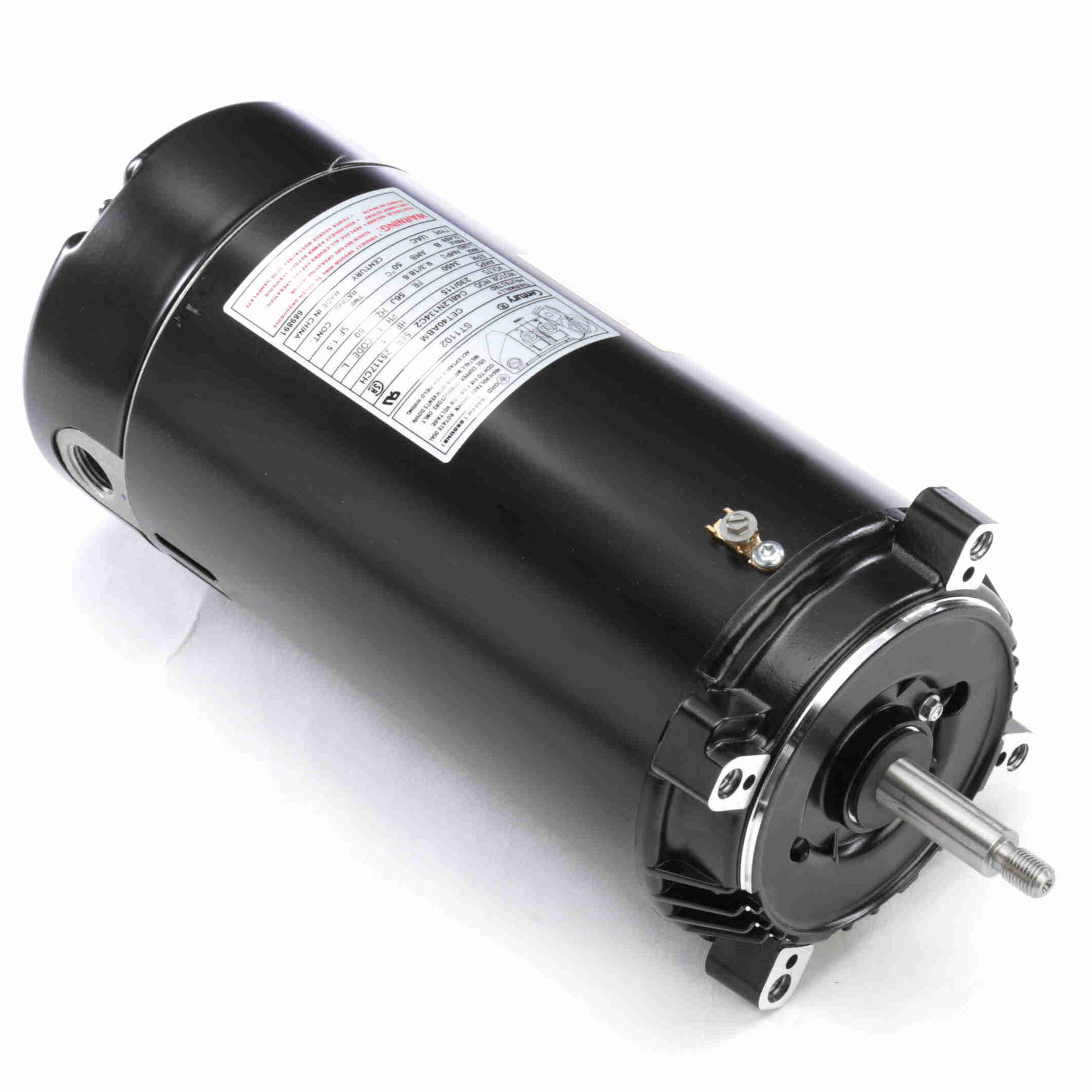

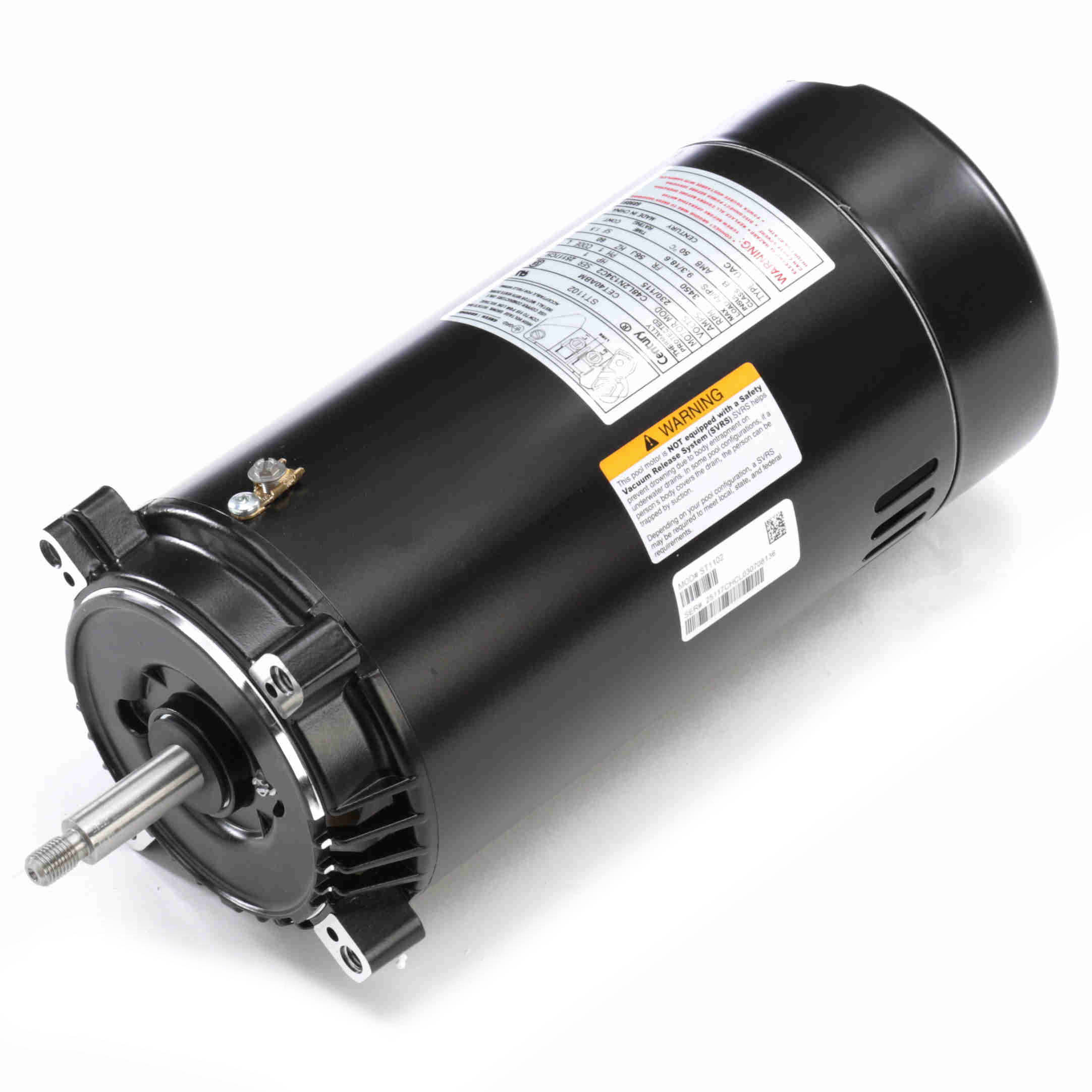

ST1102 Century 1HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ST1102

Selected accessories will also be added to cart
$279.97 / Each
Quantity:
ODP, 56J Frame, 115/230VAC Single Phase 60Hz, Threaded 303 Stainless Steel Shaft, CCWSE, Rolled Steel

Features

  • Sealed Ball Bearings
  • Capacitor Start
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft

General Specifications

UPC: 786674031785 Weight: 26 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 9.3/18.6 A Speed: 3450 rpm
Service Factor: 1.5 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Cap Start Motor Poles: 2
Rotation: Counterclockwise Pump End Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.70 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.562 in
