/Products/VFD's & Soft Starters/WEG/SSW900/SSW900D0365T6E3B WEG, 365/263 Amps, SD/HD, 690VAC, 3 Phase

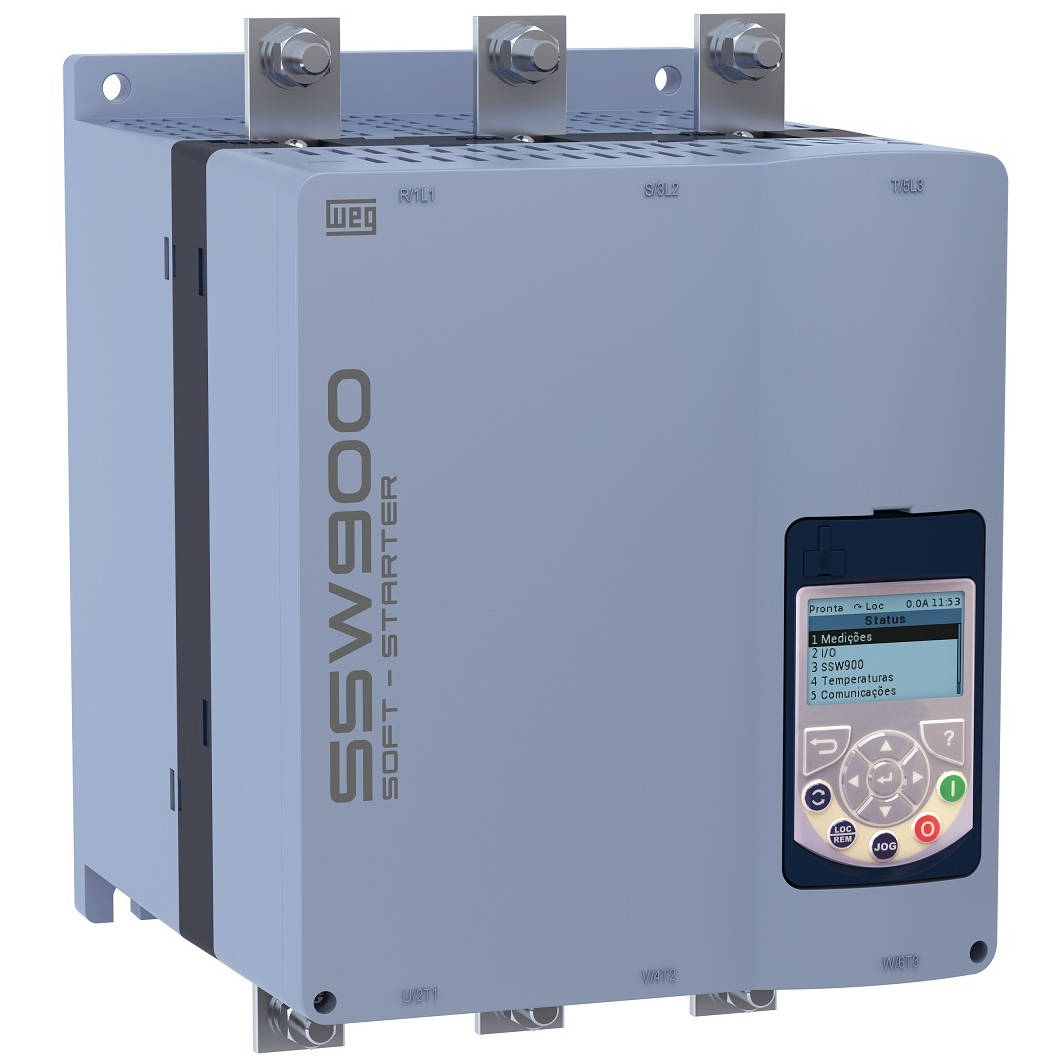

SSW900D0365T6E3B WEG, 365/263 Amps, SD/HD, 690VAC, 3 Phase
Enlarge Photo

Product ID: SSW900D0365T6E3B

SSW900D0365T6E3B WEG, 365/263 Amps, SD/HD, 690VAC, 3 Phase

MFG: WEG Electric Corporation
MFG Part Number: SSW900D0365T6E3B

Selected accessories will also be added to cart
$5,765.38 / Each
Quantity:
450/350HP @ 690V
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

The SSW900 is the right choice for a complete motor protection and start/stop control. The well-structured menu interface allows adjustments and configurations with online parameter help right on the HMI, in addition to event logs with date and time and setup assistant. The SSW900 also has built-in bypass, which contributes to extending the lifetime of the soft starter, optimizing space and reducing heat dissipation inside electric panels.

Applications

  • Pumps
  • Fans/Exhausters/Blowers
  • Mixers
  • Compressors
  • Conveyors
  • Centrifuges
  • Rock crushers
  • Grinders
  • Rotary ovens
  • Ball and Hammer Mills
  • Wood chippers
  • Dryers
  • Roller tables

Features

  • Built-in rated (AC1) bypass contactors for all models.
  • Conformal coated circuit boards.
  • Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function.
  • Oriented start-up and online help.
  • Real time clock with event log.
  • 2 independent slots to connect plug-in modules
  • Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes.
  • Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
  • Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP, Profinet IO.
  • SoftPLC Built in.
  • Integral motor thermal protection.
  • Bluetooth/USB Connectivity

Technical Specifications

Input Voltage 220 to 575VAC (+15% to +10%)
187 to 632VAC (Standard and Delta Connections)
Control Voltage 10A to 200A Models: 93.5 to 264VAC
255 to 1400A Models: 93.5 to 143VAC or 176.8 to 264VAC
Frequency 50 to 60Hz (+/-10%)
Power Consumption 10A to 200A Models: 32VA
255A to 412A Models: 70VA Continuous, 700VA Additional when internal bypass closed
480A to 670A Models: 90VA Continuous, 700VA Additional when internal bypass closed
820A to 950A Models: 140VA Continuous, 800VA Additional when internal bypass closed
1100A to 1400A Models: 180VA Continuous, 850VA Additional when internal bypass closed
Digital Inputs 5 isolated digital inputs
Minimum high level: 18 V dc
Minimum low level: 3 V dc
Maximum voltage: 30 V dc
Input current: 11 mA @ 24 V dc
Programmable functions
Motor Thermistor Inputs 1 input for thermistor
Actuation: 3.9 kO, release: 1.6 kO
Minimum resistance 100 O
Digital Outputs 2 relays with NO contacts, 240 V ac, 1 A, programmable functions
1 relay with NO/NC contact, 240 V ac, 1 A, programmable functions
Analog Outputs 1 analog output 0 to 10 V or 0/4 to 20 mA configurable by software
HMI 12 keys: run/stop, forward/reverse, Jog, local/remote, navigation buttons: left, right, up, down, enter, back and help
Graphic LCD display
Allows monitoring/changing all SSW parameters
Option for external mounting, panel door
USB for firmware updates or communication with the product
Bluetooth connection to monitor and change SSW parameters using smart phone App
PC Programming USB standard rev. 2.0 (basic speed)
Mini B-type USB plug
Interconnecting cable: shielded USB cable, standard host/device shielded USB cable
Safety Standards UL508 - industrial control equipment
EN60947-4-2, LVD 2006/95/EC - low-voltage switchgear and controlgear
Electromagnetic Compatibility Standards CISPR 11 - industrial, scientific and medical (ISM) radio-frequency equipment - electromagnetic disturbance characteristics - limits and methods of measurement
EN 61000-4-2 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 2: electrostatic discharge immunity test
EN 61000-4-3 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 3: radiated, radio-frequency, electromagnetic field immunity test
EN 61000-4-4 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 4: electrical fast transient/burst immunity test
EN 61000-4-5 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 5: surge immunity test
EN 61000-4-6 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 6: immunity to conducted disturbances, induced by radio-frequency fields
EN 61000-4-11 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 11: voltage dips, short interruptions and voltage variations immunity tests
Mechanical Construction Standards EN 60529 - degrees of protection provided by enclosures (IP code)
UL50 - enclosures for electrical equipment
IEC 60721-3-3 - classification of environmental conditions

About This Product

Several Benefits in a Single Product

Combining convenience and innovation, the SSW900 is the right choice for complete  motor protection and start/stop control. Developed for industrial or professional use, the new line of soft-starters allows easy and simple access to the configuration settings and data. Using a menu structure, the new interface of the SSW900 line presents an unprecedented experience of interactivity with the user, allowing adjustments and configurations with online parameter help right on the HMI, in addition to event logs with date and time and setup assistant. The equipment also has built-in bypass, which contributes to extending the useful life of the drive, optimizing space and reducing heat dissipation in electric panels.

The SSW900 soft-starters feature a microprocessor, are totally digital, incorporate state-of-the-art technology and are designed to ensure the best performance in the start and stop of induction motors, being a complete, low-cost solution. The operating interface also enables easy parameter setting, facilitating the start-up and operation. In addition, the built-in Pump Control function enables effective pump control, thus preventing water hammer, and the torque control function enables accelerations and decelerations with linear speed ramps.

Applications

Centrifugal, reciprocating pumps (sanitation, irrigation and oil), fans, exhausters, blowers, air compressors, refrigeration (screw and piston), mixers, aerators, centrifuges, rock crushers, grinders, woodchippers, paper refiners, rotary ovens, wood saws and planes, ball and hammer mills and load conveyors.

Benefits

  • Built-in bypass, providing size reduction and energy savings
  • Ambient temperature up to 55°C without current derating
  • Possibility of standard connection (3 wires) or motor inside delta connection (6 wires)
  • Inputs and outputs with programmable functions and quick connect terminals
  • Different control methods via extremely high-performance algorithms, totally flexible, to meet the needs of any motor start and stop application needs
  • Pump control function for smart control of pumping systems
  • Advanced techniques to detect faults in the power supply and connections, enabling the user to choose the protection actuation between fault or alarm for full motor protection
  • Fire mode (emergency start)
  • Oriented start-up
  • WPS: free software to program both soft-starter and SoftPLC
  • 2 independent slots to connect plug-in modules
  • Real time clock
  • Fault and alarm log saved with time and date by the RTC
  • Exportation of the WPS history to csv file
  • Optional varnishing of the standard 3C2 or 3C3 boards, according to IEC60721-3-3

Smart interface

  • Modern, flexible and easy to use
  • Customizable initial screens
  • Monitoring of the variables in graphical mode
  • Detachable HMI with USB port
  • Copy and download of parameters via HMI
  • Parameter help on the HMI
  • Four selectable languages

Dimensions

WEG SSW900 Dimensions
