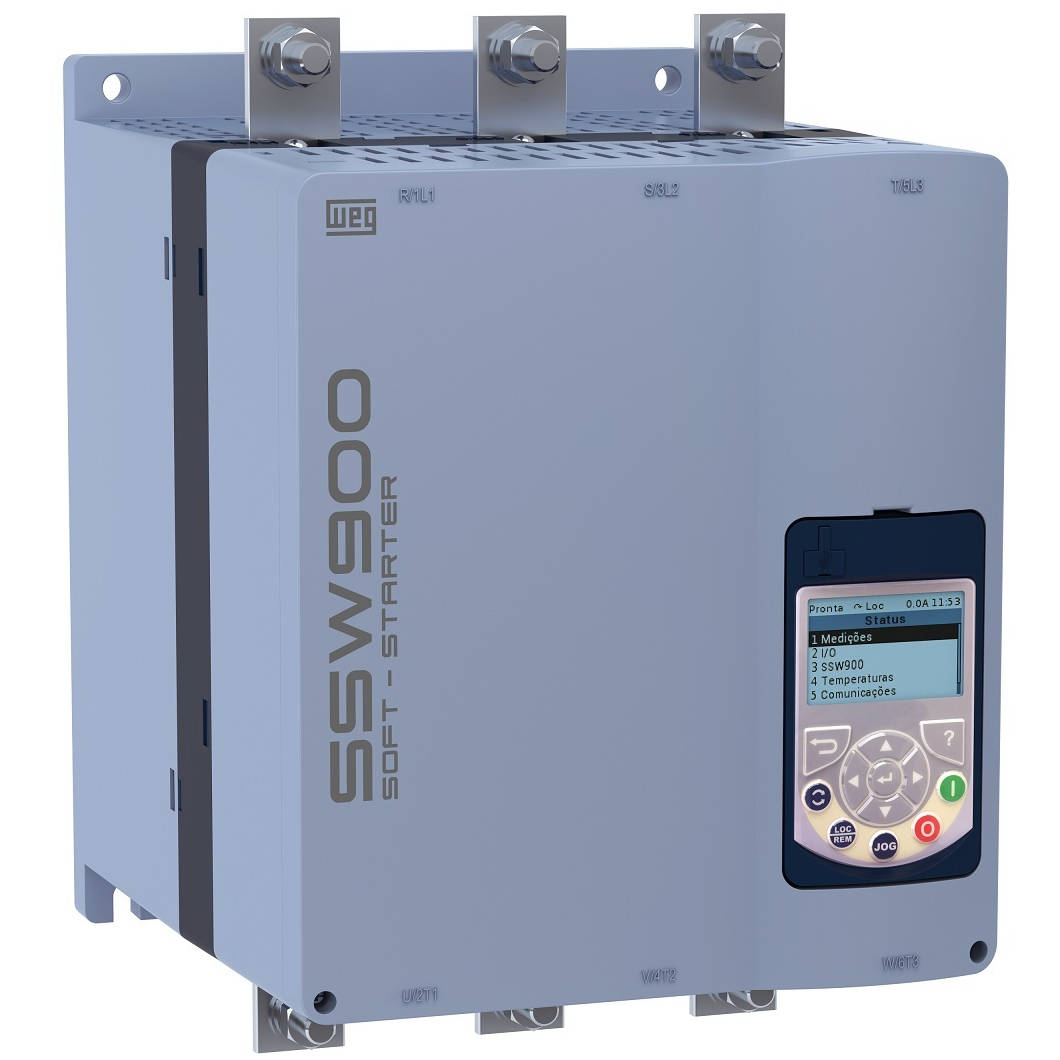

Input Voltage |
220 to 575VAC (+15% to +10%) 187 to 632VAC (Standard and Delta Connections) |
Control Voltage |
10A to 200A Models: 93.5 to 264VAC 255 to 1400A Models: 93.5 to 143VAC or 176.8 to 264VAC |
Frequency |
50 to 60Hz (+/-10%) |
Power Consumption |
10A to 200A Models: 32VA 255A to 412A Models: 70VA Continuous, 700VA Additional when internal bypass closed 480A to 670A Models: 90VA Continuous, 700VA Additional when internal bypass closed 820A to 950A Models: 140VA Continuous, 800VA Additional when internal bypass closed 1100A to 1400A Models: 180VA Continuous, 850VA Additional when internal bypass closed
|
Digital Inputs |
5 isolated digital inputs Minimum high level: 18 V dc Minimum low level: 3 V dc Maximum voltage: 30 V dc Input current: 11 mA @ 24 V dc Programmable functions |
Motor Thermistor Inputs |
1 input for thermistor Actuation: 3.9 kO, release: 1.6 kO Minimum resistance 100 O |
Digital Outputs |
2 relays with NO contacts, 240 V ac, 1 A, programmable functions 1 relay with NO/NC contact, 240 V ac, 1 A, programmable functions |
Analog Outputs |
1 analog output 0 to 10 V or 0/4 to 20 mA configurable by software
|
HMI |
12 keys: run/stop, forward/reverse, Jog, local/remote, navigation buttons: left, right, up, down, enter, back and help Graphic LCD display Allows monitoring/changing all SSW parameters Option for external mounting, panel door USB for firmware updates or communication with the product Bluetooth connection to monitor and change SSW parameters using smart phone App |
PC Programming |
USB standard rev. 2.0 (basic speed) Mini B-type USB plug Interconnecting cable: shielded USB cable, standard host/device shielded USB cable |
Safety Standards |
UL508 - industrial control equipment EN60947-4-2, LVD 2006/95/EC - low-voltage switchgear and controlgear |
Electromagnetic Compatibility Standards |
CISPR 11 - industrial, scientific and medical (ISM) radio-frequency equipment - electromagnetic disturbance characteristics - limits and methods of measurement EN 61000-4-2 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 2: electrostatic discharge immunity test EN 61000-4-3 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 3: radiated, radio-frequency, electromagnetic field immunity test EN 61000-4-4 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 4: electrical fast transient/burst immunity test EN 61000-4-5 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 5: surge immunity test EN 61000-4-6 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 6: immunity to conducted disturbances, induced by radio-frequency fields EN 61000-4-11 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 11: voltage dips, short interruptions and voltage variations immunity tests |
Mechanical Construction Standards |
EN 60529 - degrees of protection provided by enclosures (IP code) UL50 - enclosures for electrical equipment IEC 60721-3-3 - classification of environmental conditions |
