/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/SQS1152R Century 1.5/0.19HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: SQS1152R

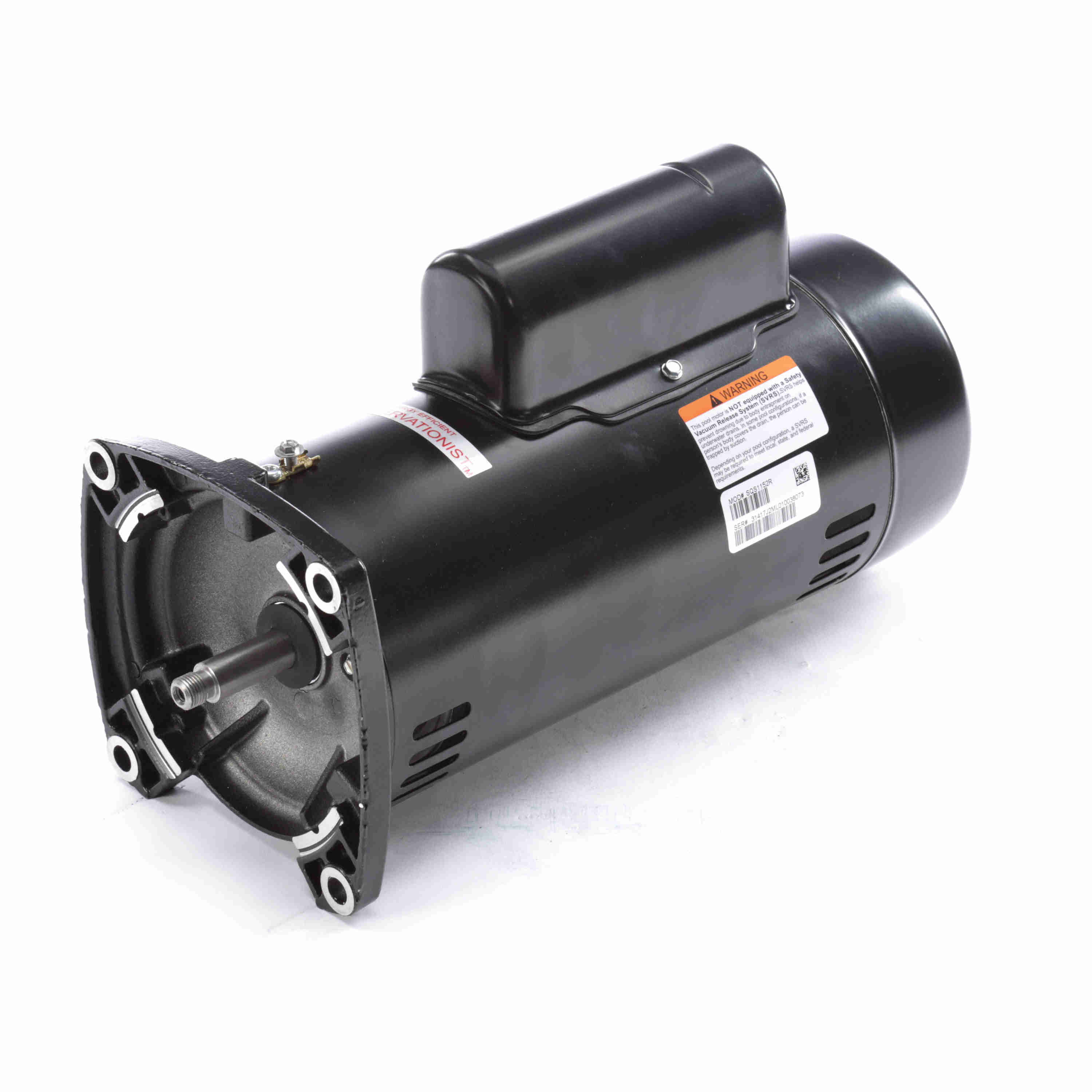

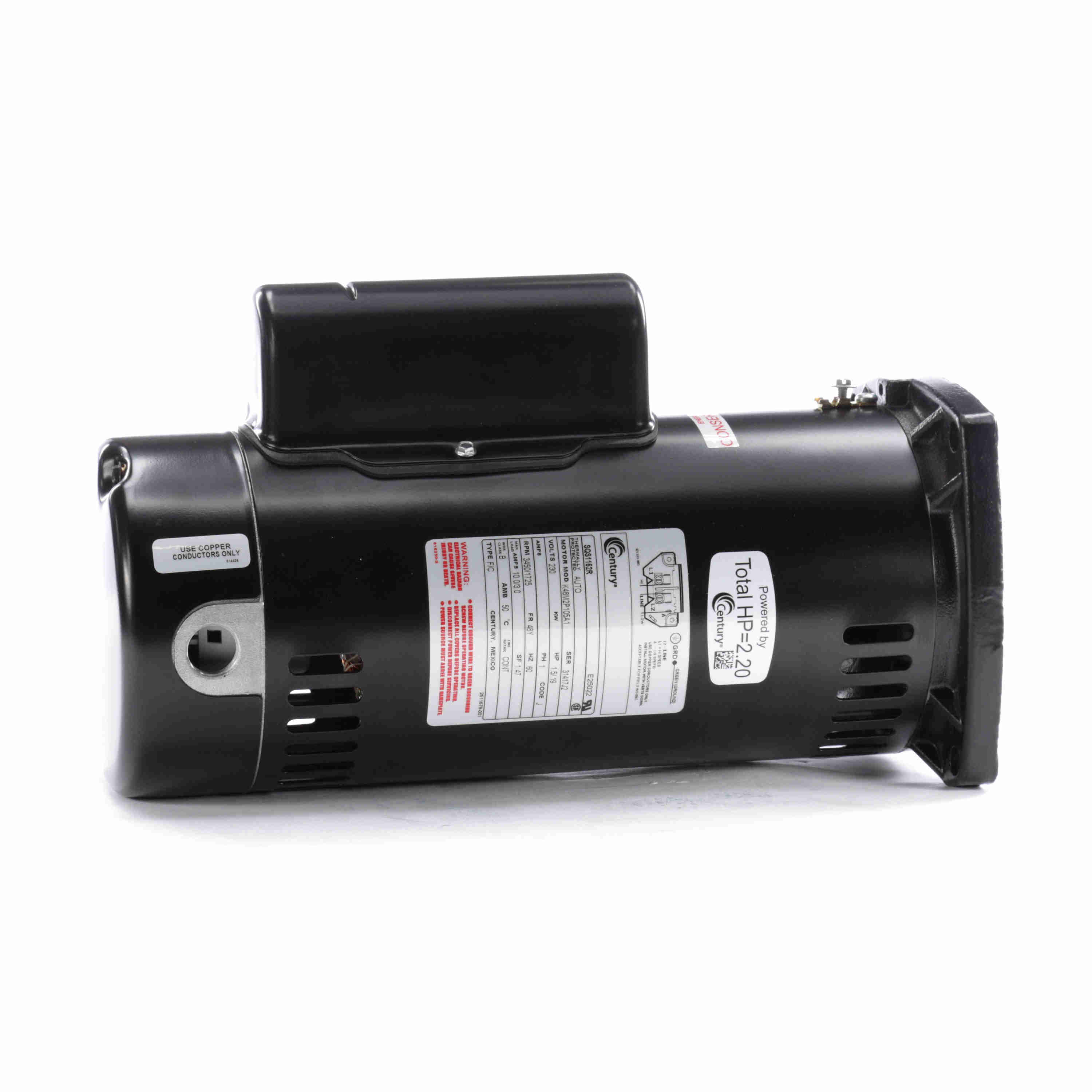

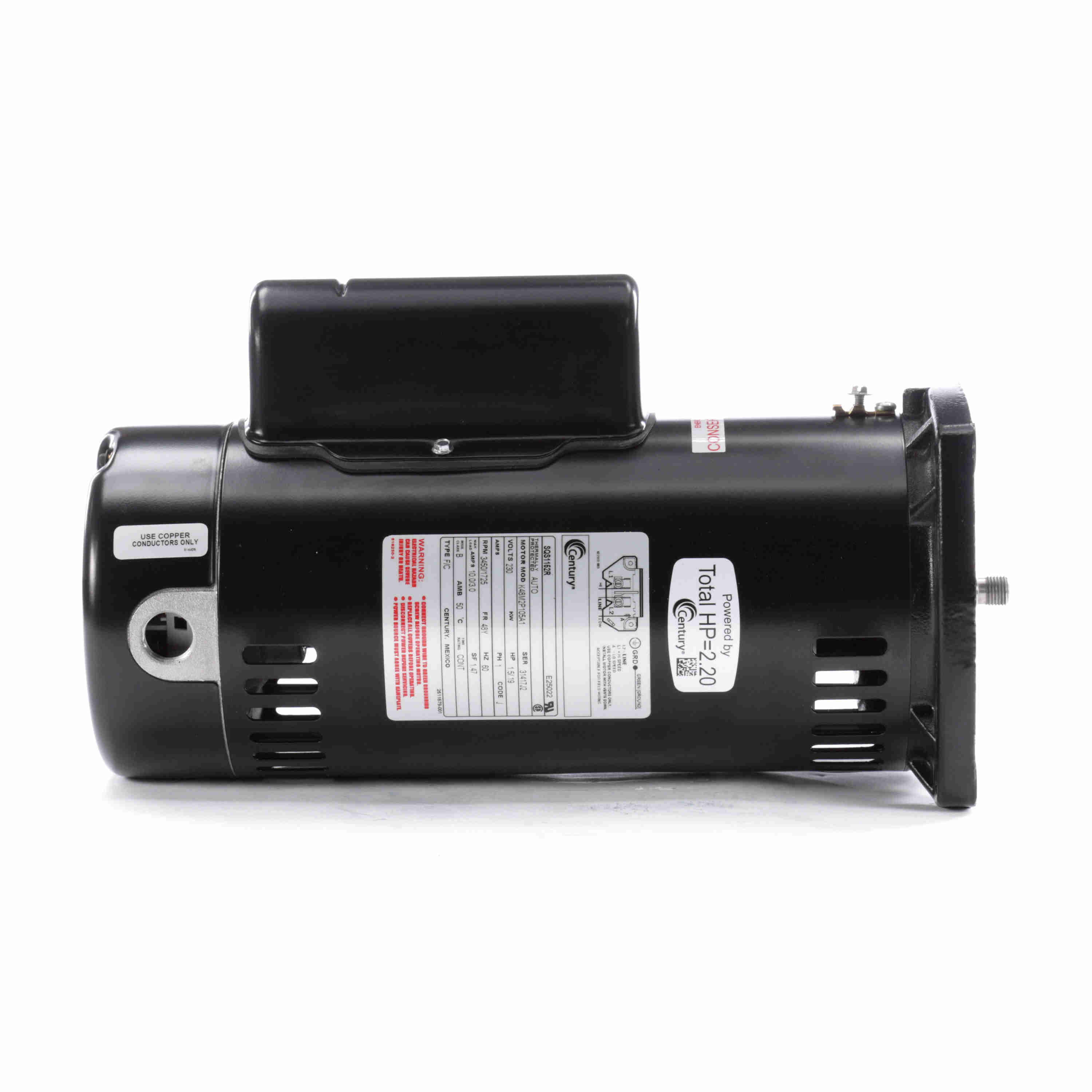

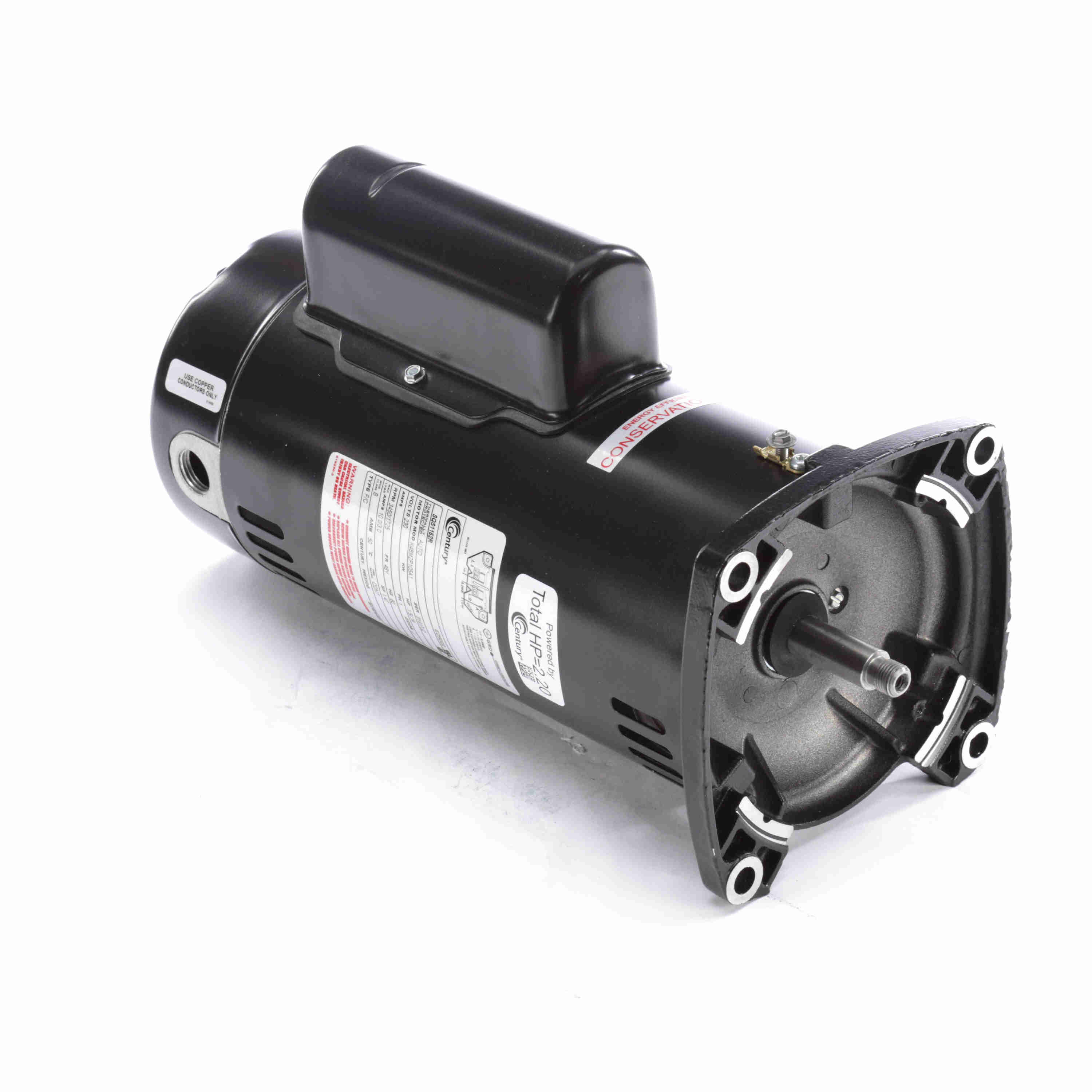

SQS1152R Century 1.5/0.19HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: SQS1152R

Selected accessories will also be added to cart
$474.97 / Each
Quantity:
ODP, 48Y Frame, 230VAC Single Phase 60Hz, Rolled Steel, CCW Pump End, 5/8" Threaded Shaft

Features

  • Two Speed
  • All Copper Windings
  • Energy Efficient
  • 50°C Ambient
  • Capacitor Start Low Speed
  • PSC High Speed
  • Open Dripproof
  • Meets California Energy Commission Appliance Regulations 2008
  • UL 1081 Design
  • 303 Stainless Steel Shaft

General Specifications

UPC: 786674031242 Weight: 33.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.5/.19 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230 V
Current: 10.0/3.0 A Speed: 3450/1725 rpm
Service Factor: 1.47 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Psc Low Speed, Cap Start High Speed Poles: 2
Rotation: Counterclockwise Pump End Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.26 in
Frame Length: 10.38 in Shaft Diameter: 0.625 in
Shaft Extension: 0.906 in

Speed & Load Characteristics
