SQ1202 Century 2HP Pool / Spa Pump Electric Motor, 3450 RPM
Click Image to Expand
Previous Image
Next Image
Previous
Next
Previous
Next
Product ID: SQ1202

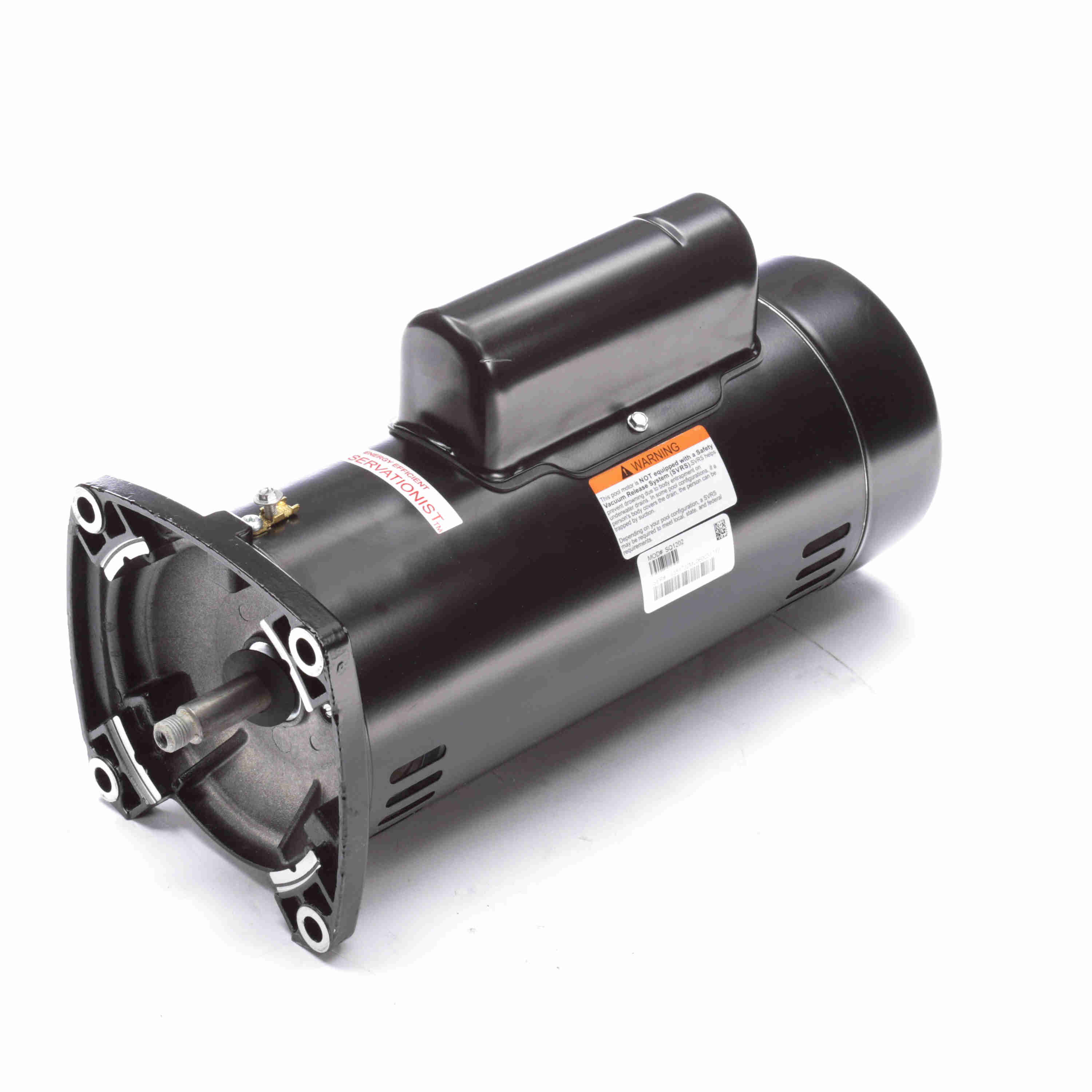

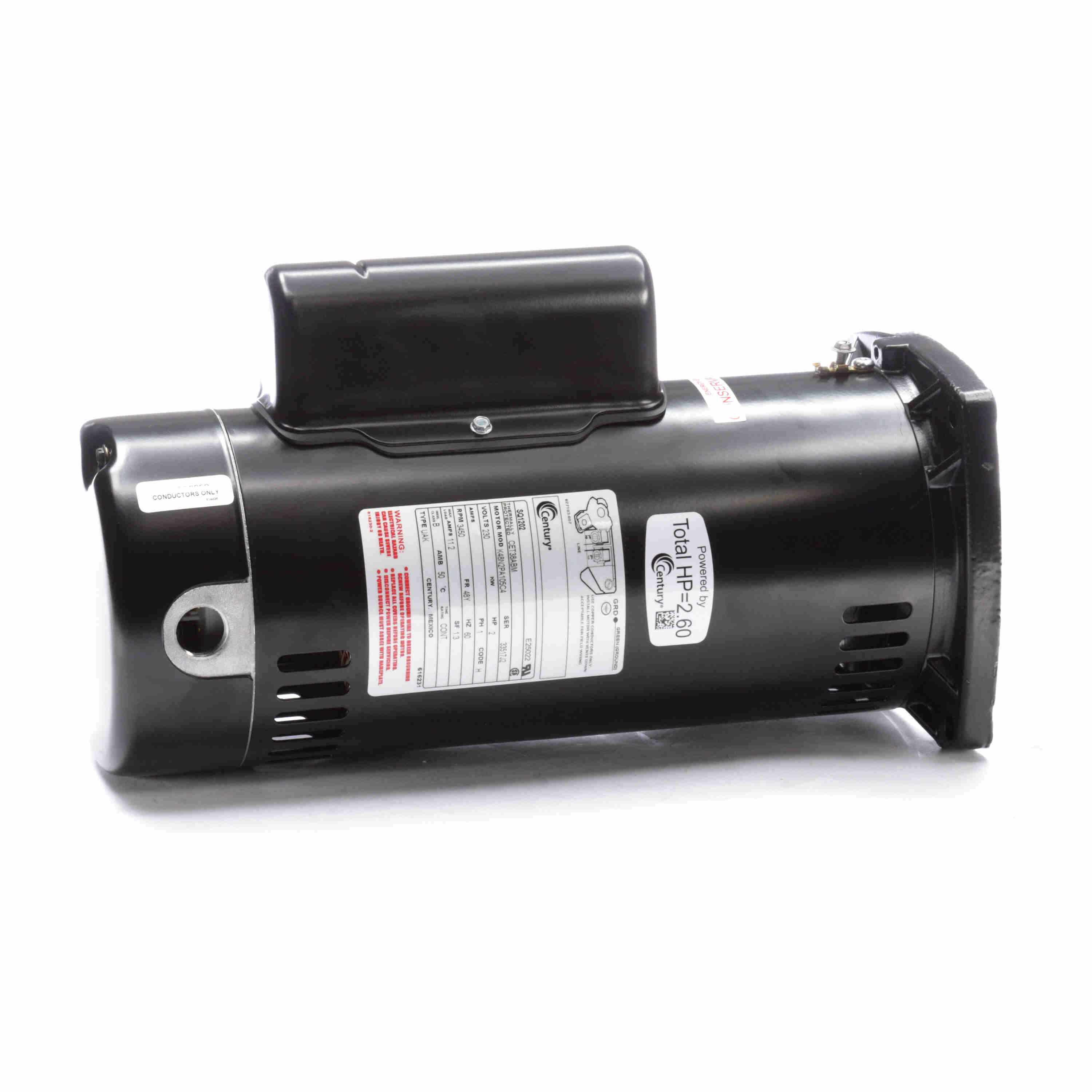

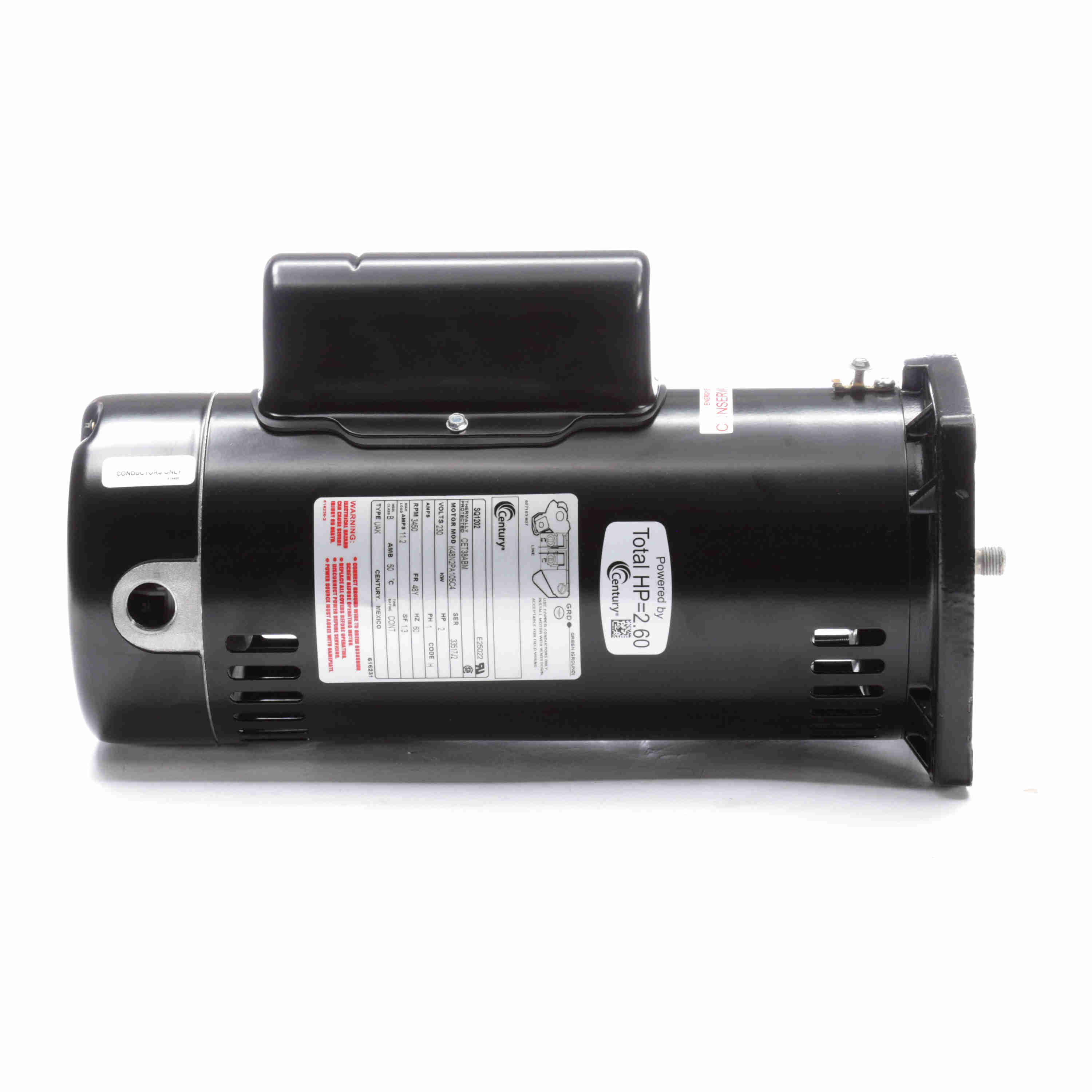

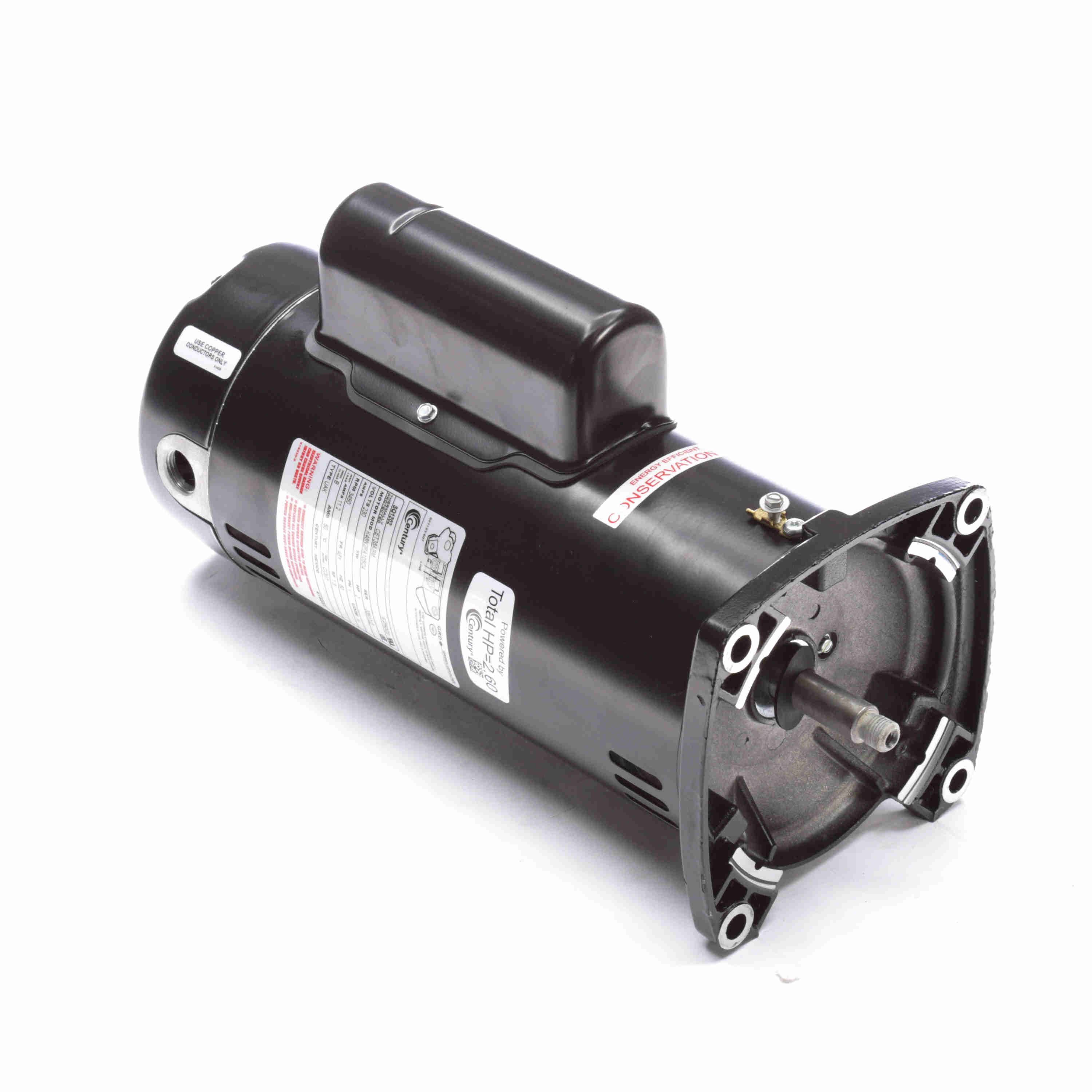

SQ1202 Century 2HP Pool / Spa Pump Electric Motor, 3450 RPM
MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: SQ1202
Selected accessories will also be added to cart
$601.97 / Each
Quantity:
ODP, 48Y Frame, 230VAC 60Hz Single Phase, Square Flange, 303 Stainless Steel Shaft
Details
Features
Features
Sealed Ball Bearings
Capacitor Start
Open Dripproof
303 Stainless Steel Shaft
50°C Ambient
UL 1081 Design
Energy Efficient
General Specifications
General Specifications
Model :
SQ1202
Catalog No :
SQ1202
Part Description :
2 HP 3450 230 ODP 48Y THD SHAFT
Category :
Induction Motors
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
2 Hp
Output KW :
1.5 kW
Frequency :
60 Hz
Voltage :
230 V
Current :
11.2 A
Speed :
3450 rpm
Service Factor :
1.3
Phase :
1
Duty :
Continuous
Insulation Class :
B
Frame :
48Y
Enclosure :
Open Drip Proof
Overload Protector :
Automatic
Ambient Temperature :
50 °C
UL :
Recognized
CSA :
Y
Technical Specifications
Technical Specifications
Electrical Type :
Capacitor Start Capacitor Run
Poles :
2
Rotation :
Counterclockwise Pump End
Mounting :
Round
Motor Orientation :
Horizontal
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Rolled Steel
Shaft Type :
Threaded
Overall Length :
14.57 in
Frame Length :
10.69 in
Shaft Diameter :
0.625 in
Shaft Extension :
0.906 in
UPC :
786674031174
Weight :
34.00 LB
