/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/SQ1102 Century 1HP Pool Pump Electric Motor, 3450 RPM
Click Image to Expand

Product ID: SQ1102

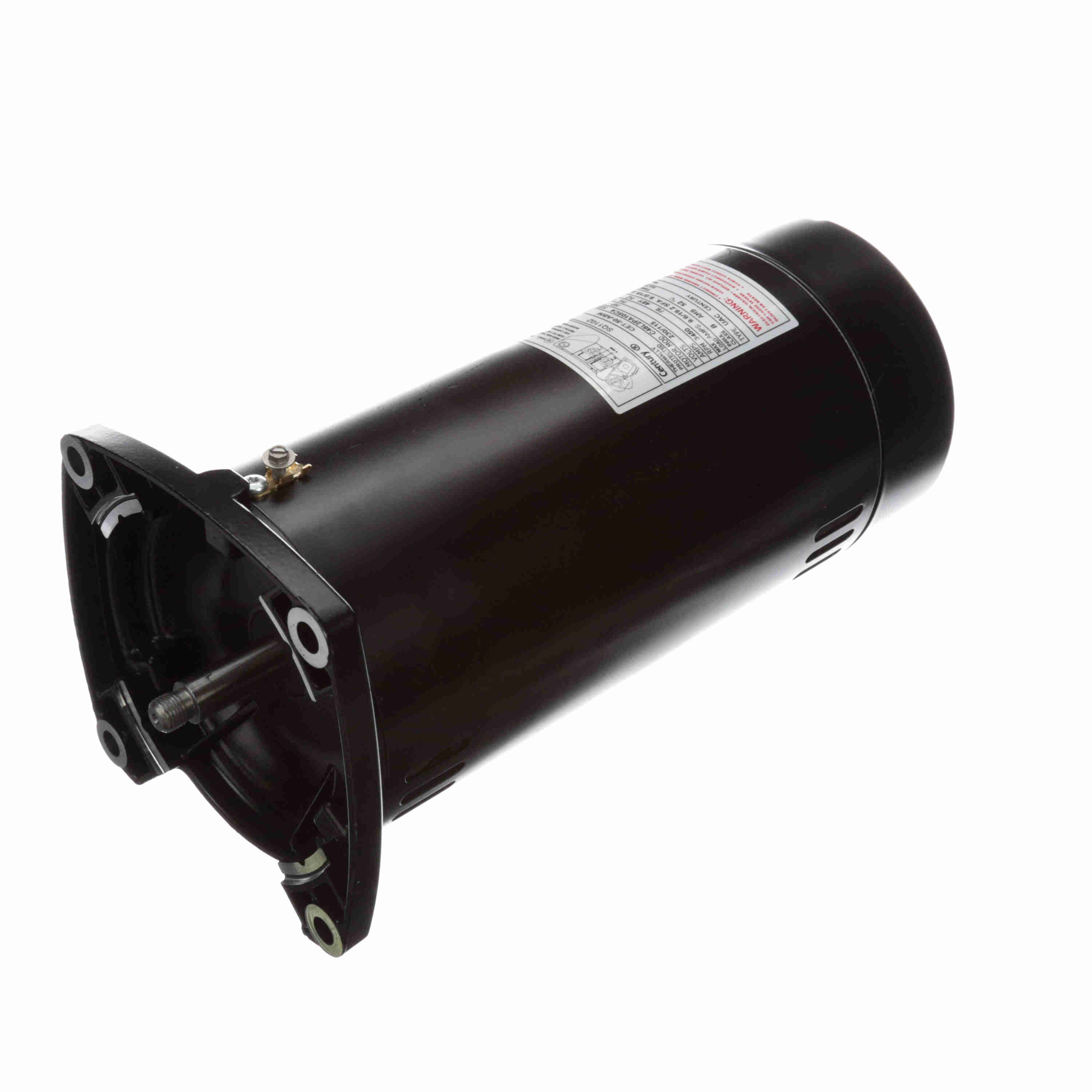

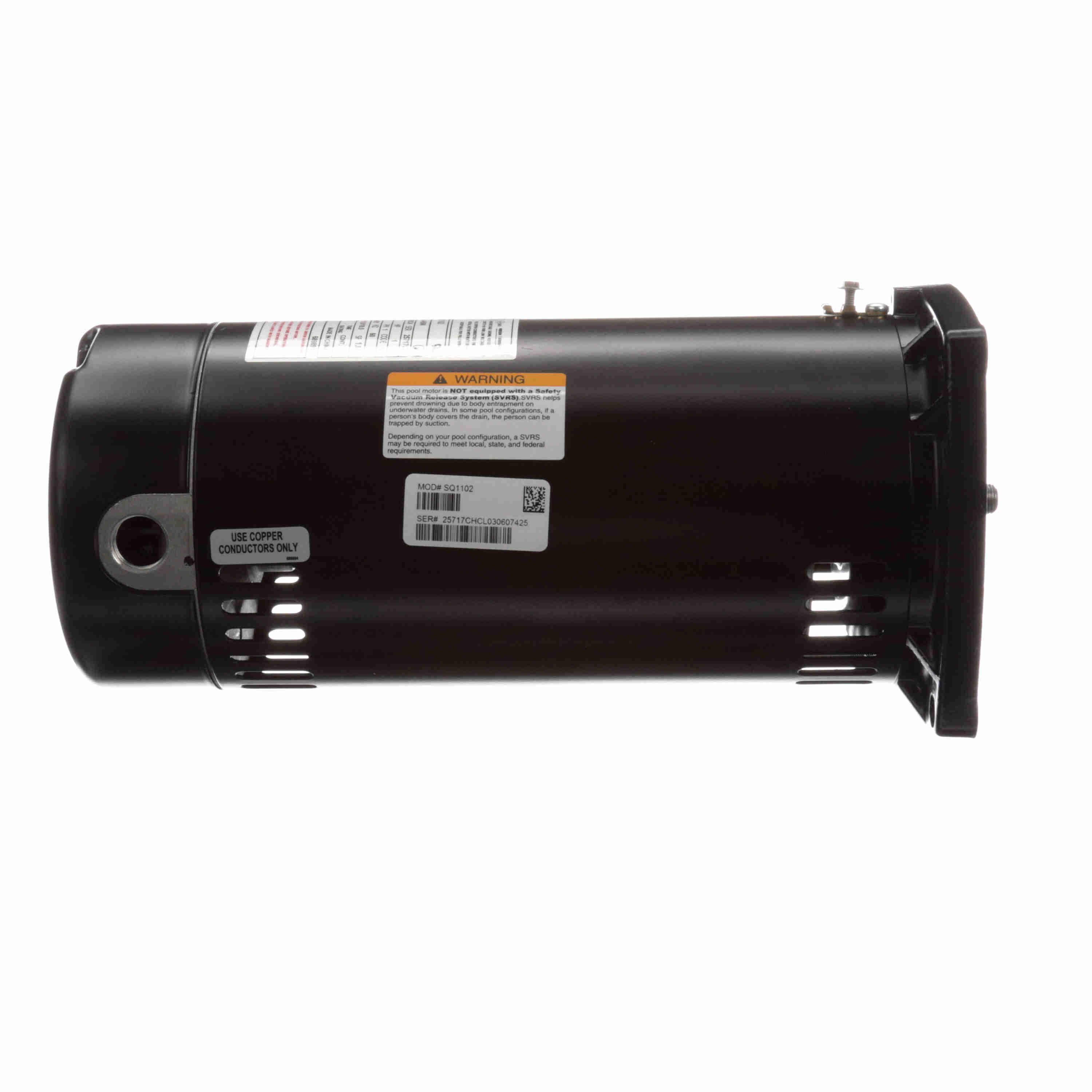

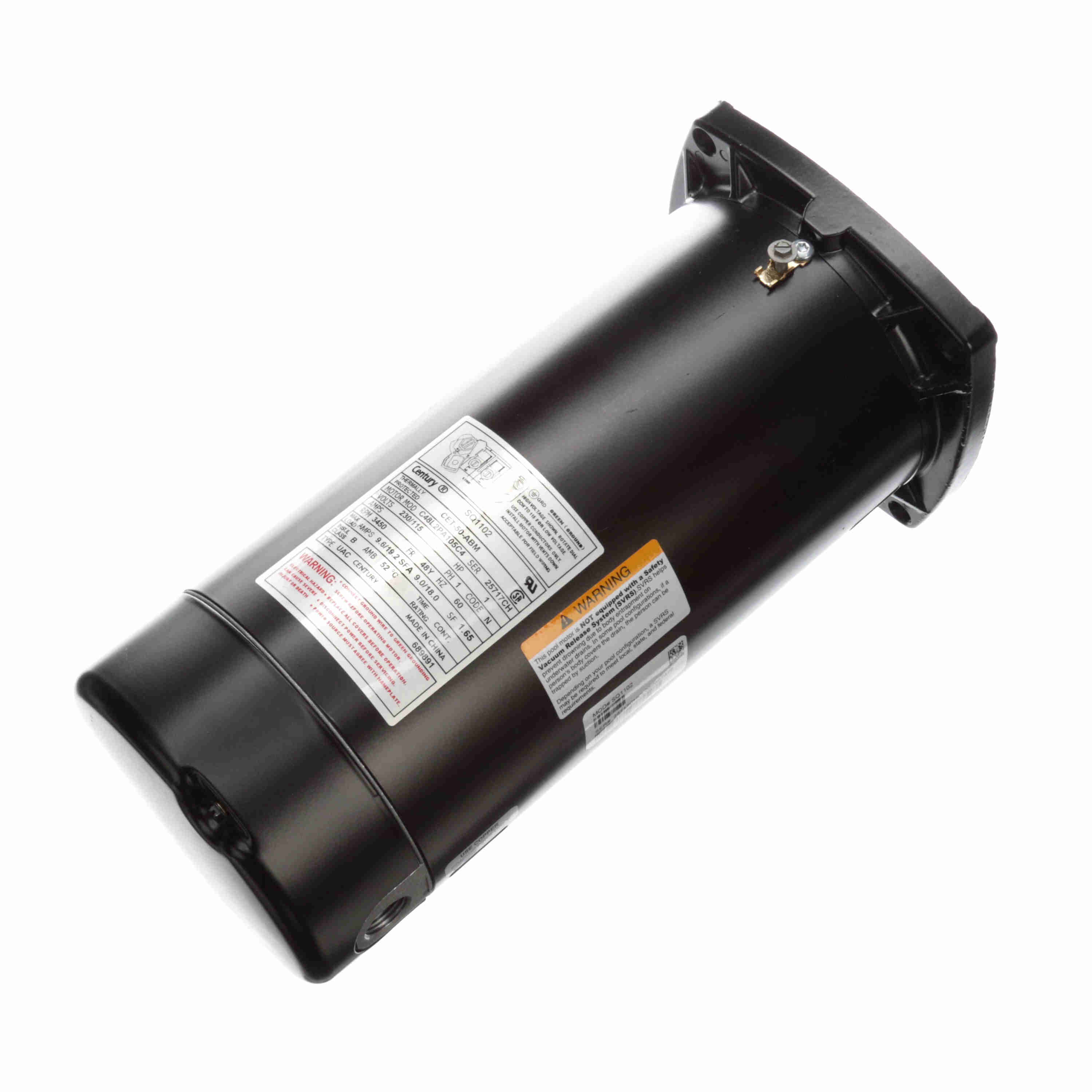

SQ1102 Century 1HP Pool Pump Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: SQ1102

Selected accessories will also be added to cart
$340.97 / Each
Quantity:
ODP, 48Y Frame, 115/230V Single Phase 60Hz

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start
  • Open Dripproof
  • 303 Stainless Steel Shaft
  • 50°C Ambient
  • UL 1081 Design

General Specifications

General Specifications
Model :SQ1102 Catalog No :SQ1102
Part Description :1 HP 3450 115/230 ODP 48Y THD SHAFT Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230/115 V
Current :9.0/18.0 A Speed :3450 rpm
Service Factor :1.65 Phase :1
Duty :Continuous Insulation Class :B
Frame :48Y Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Cap Start Motor Poles :2
Rotation :Counterclockwise Pump End Mounting :Round
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :13.82 in
Frame Length :9.94 in Shaft Diameter :0.625 in
Shaft Extension :0.906 in UPC :786674031150
Weight :27.00 LB
