/Products/Pumps/Ashland Pump/Sump Pumps/Cast Iron/SPV33 Ashland 1/3HP Cast Iron Sump Pump, 115VAC Single Phase
Click Image to Expand

SPV33 Ashland 1/3HP Cast Iron Sump Pump, 115VAC Single Phase

Product ID: SPV33

MFG: Ashland Pump
MFG Part Number: SPV33

Selected accessories will also be added to cart
$237.00 / Each
Quantity:
1-1/2" NPT Discharge, 1750RPM

Features

  • Heavy duty cast iron/thermoplastic construction
  • Oil-filled continuous duty PSC motor
  • Upper and lower ball bearing construction for smoother operation
  • Automatic operation

Specifications

Brand Ashland Pump
Model SPV33
Switch Type Float
HP 1/3 HP
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 5 Amps
Cord Type SJTW 18/3C
Cord Power Size 16AWG/3C
Discharge Size 1-1/2" NPT
Impeller Type 6-Vane
Thermoplastic
Cable Length 10'
Solids Handling 1/4"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 120°C
Power Cord Type SJTW
Sensor Cord Type 18/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Thermoplastic
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6200
Lower Bearing 6201 - RS
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Service Factor 1.00

Dimensions

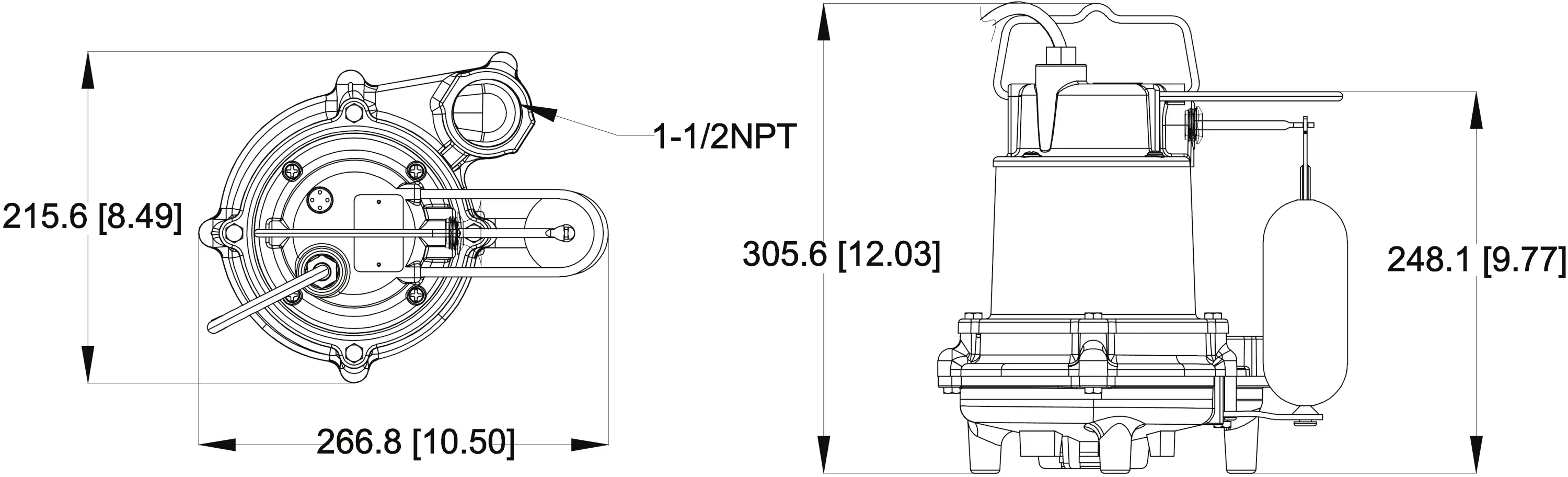

SPV33 Pump Dimensions

Performance Curve

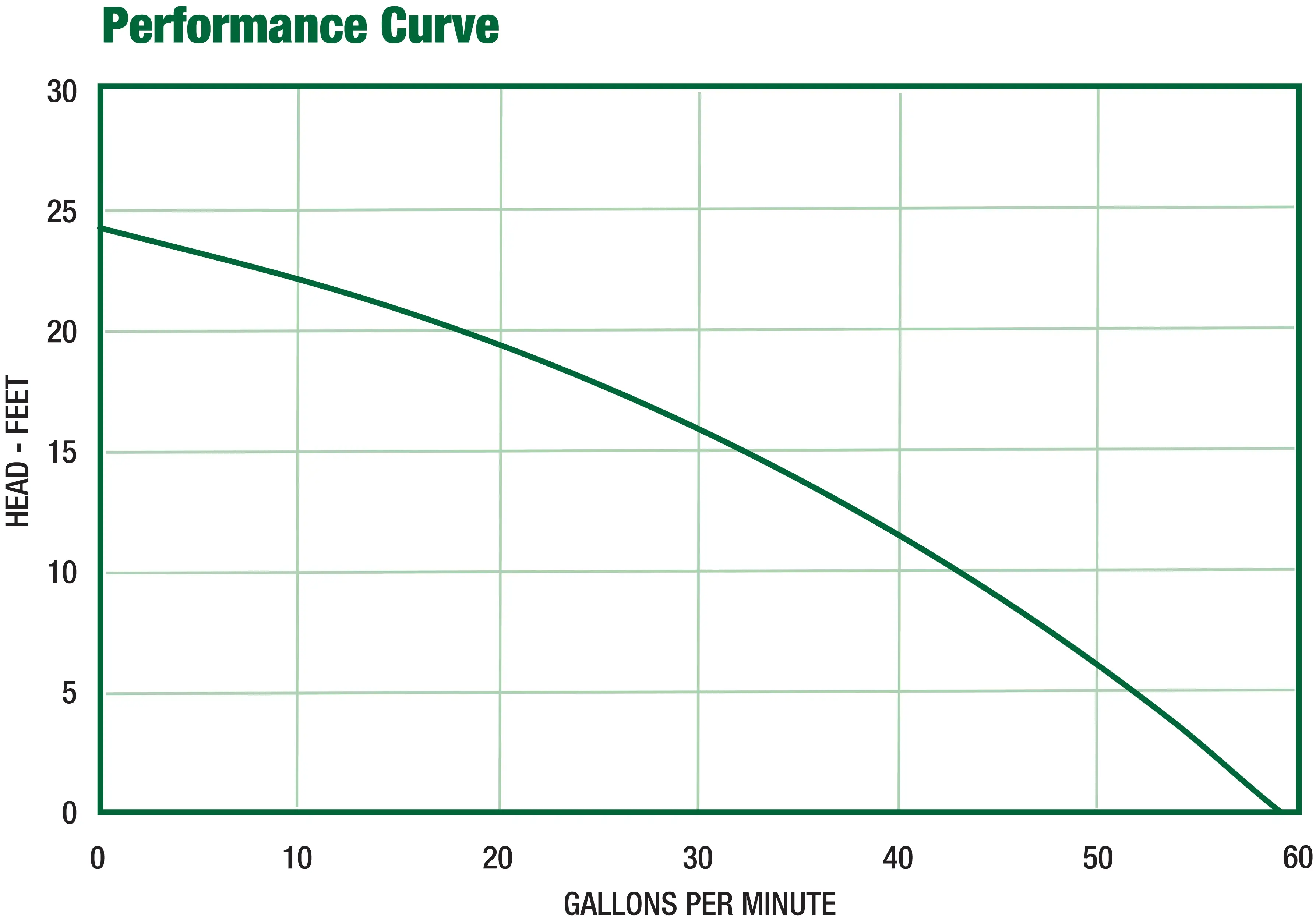

SPV33 Performance Curve Graph
