Thomas & Betts/Russellstoll
Pin and Sleeve Receptacles, Control Circuit Connections Series

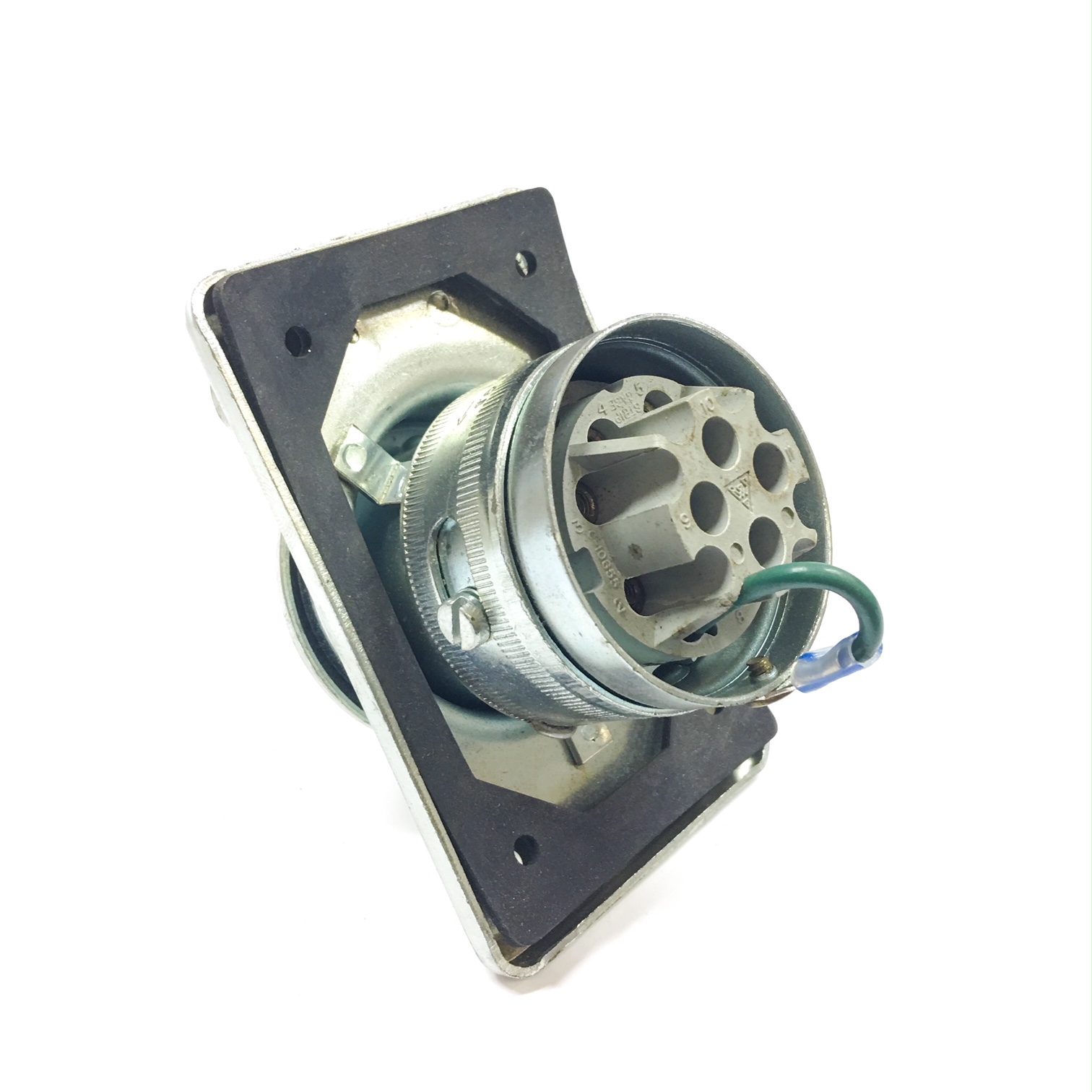

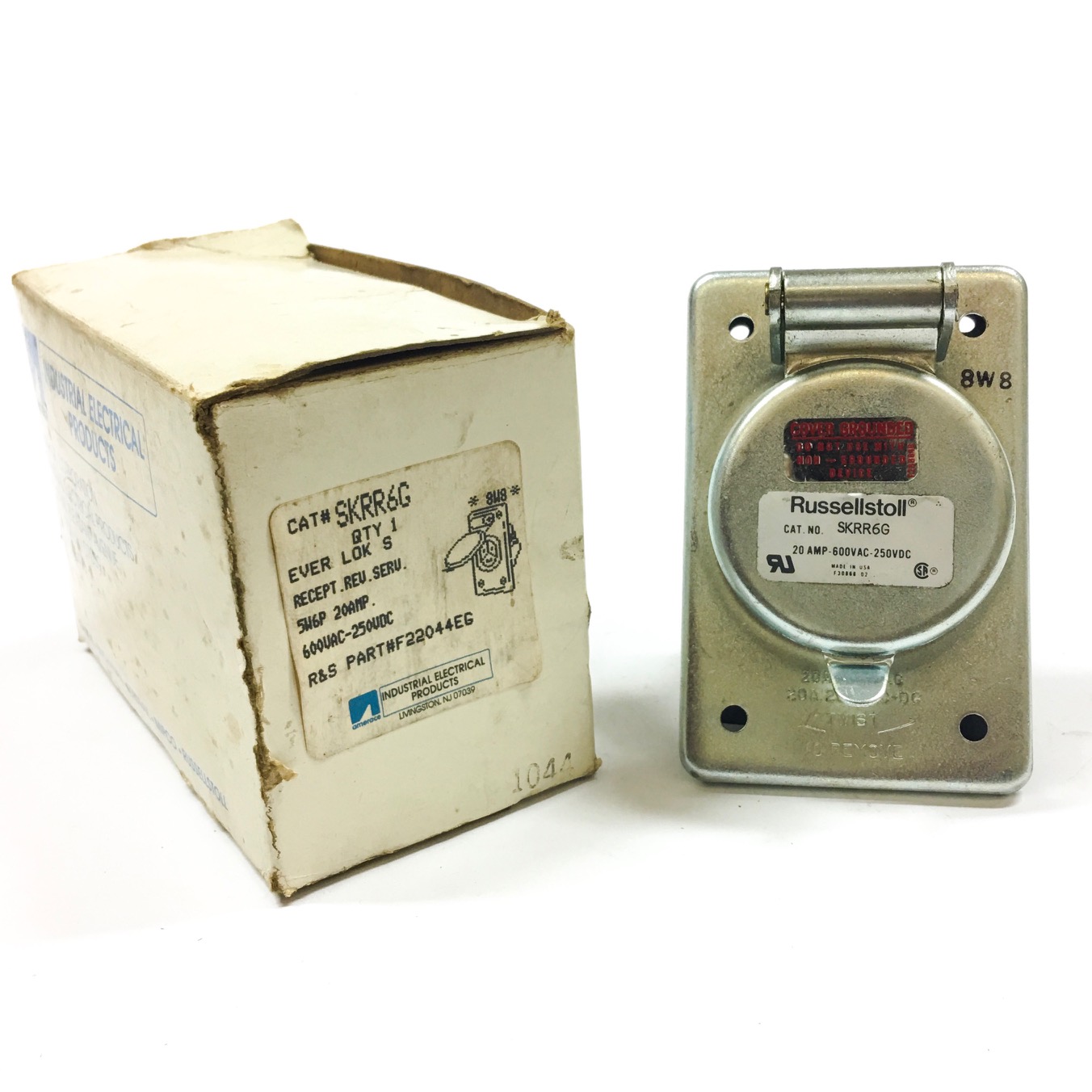

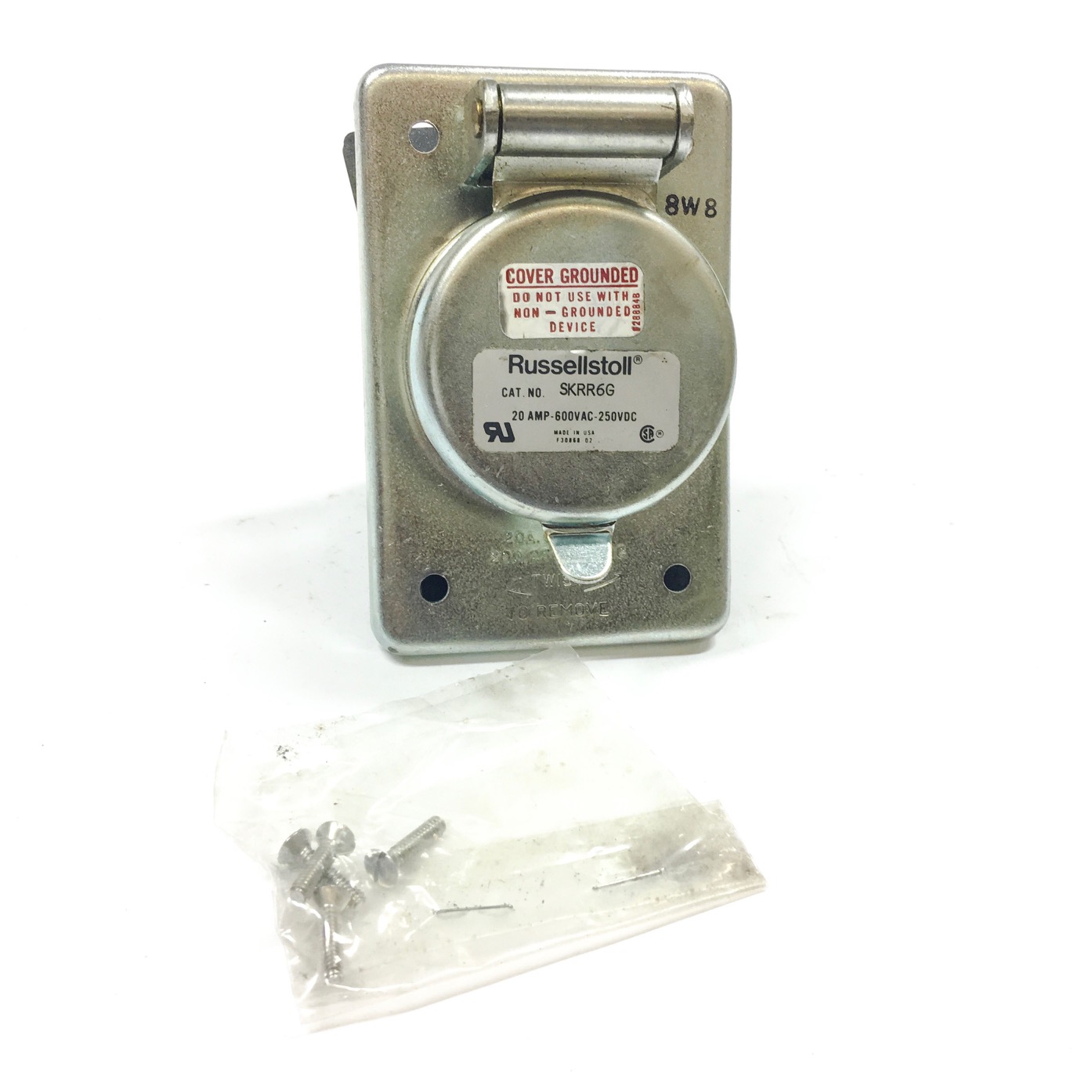

Item# SKRR6G - RCPT R S 600VAC250SKRR

Control Circuit Connections Series Information:
-Wide Selection of Cable Bushings, Conduit Adapters, and Other Accessories
-NEMA 1 or NEMA 4X Environmental Protection
-From 2 Pole, 3 Wires to 11 Pole, 12 Wires
-20A, 600VAC/250VDC Maximum Rating
-Durable Aluminum or Steel Housing

Type SK multi-circuit receptacles, plugs, inlets and connectors are designed for indoor or NEMA 1 automatic press, tool control and welder applications requiring rugged, shock-resistant devices capable of safely interrupting rated currents under load. Receptacles and connectors have Neoprene gasket mounts and positive grounding path through separate contact. Type SKW multi-circuit receptacles, plugs, inlets and connectors are designed for outdoor NEMA 4, rough service and critical environment machinery, HVACR systems, servo control and other automatic/controlled functions requiring rugged, shock-resistant devices capable of safely breaking rated loads. Equipment grounding contacts “make first” and “break last.” Wiring space is generous. Listed ratings are for interrupting currents under load. The time-tested Ever-Lok automatic locking feature provides positive connections under the most severe conditions of shock and vibration, yet a twist of the wrist instantly disengages the plug when required.
