/Products/Electric Motors/Single Phase/Century/SGF2054AV2 Century 1/2-1/6HP Fan & Blower HVAC/R Electric Motor, 1800RPM

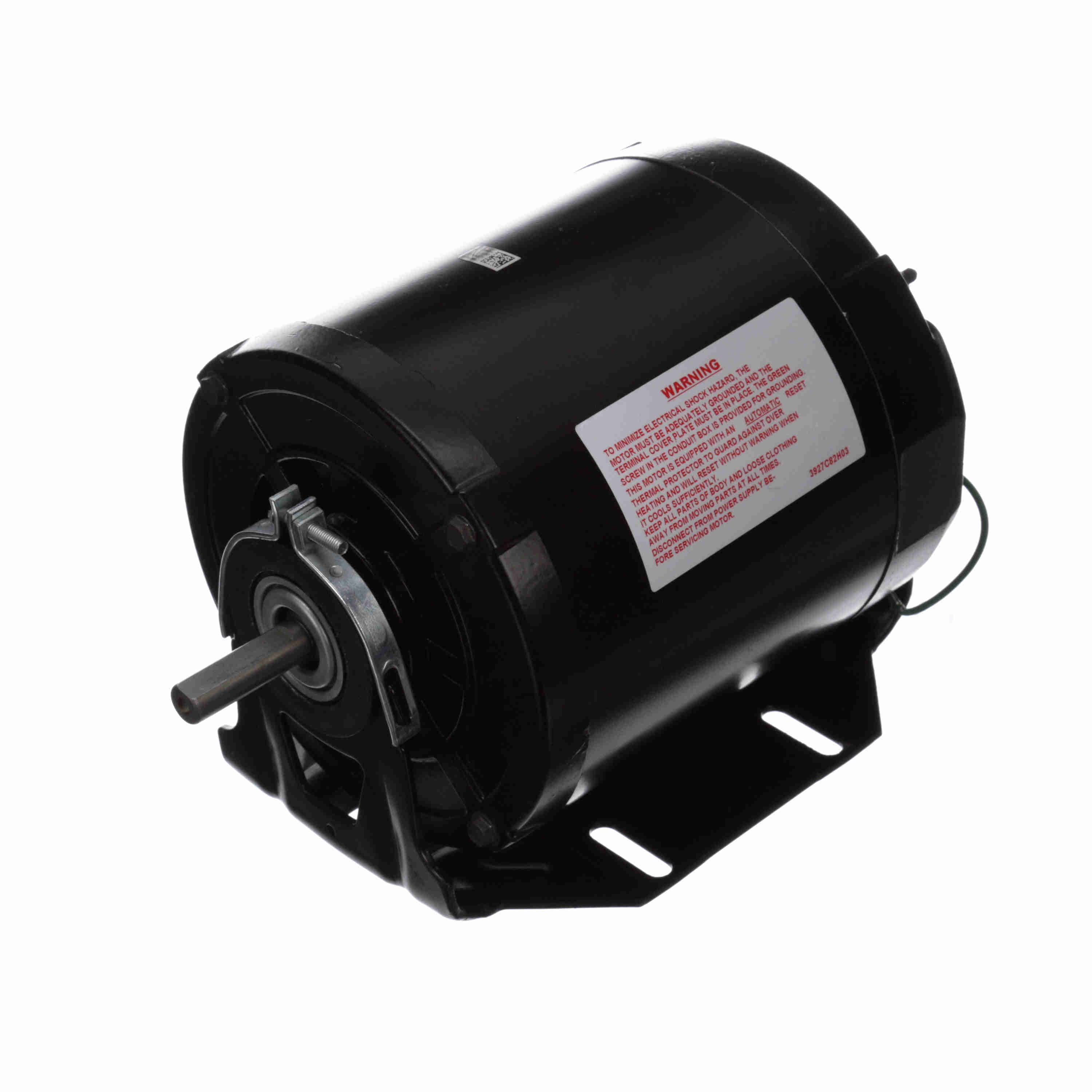

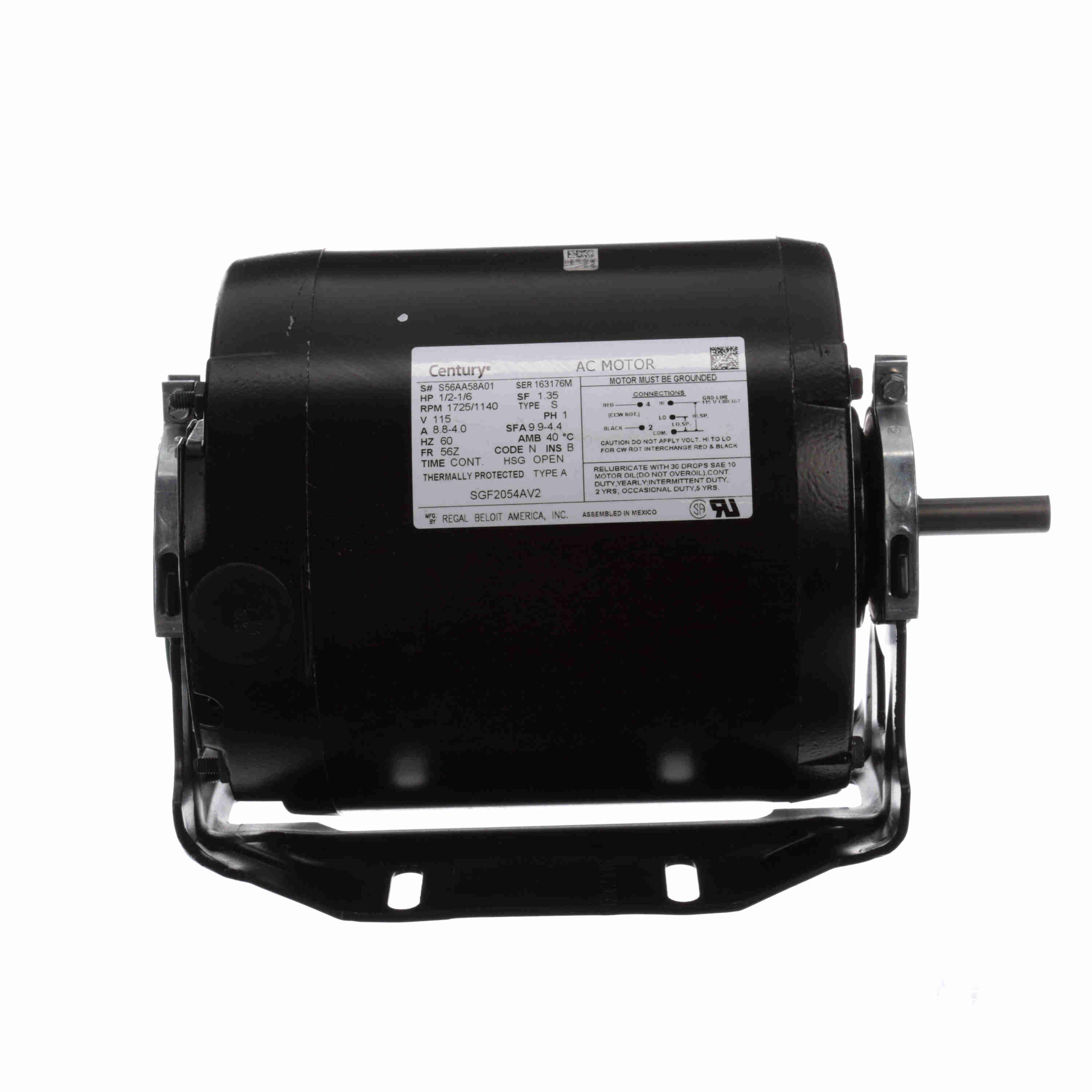

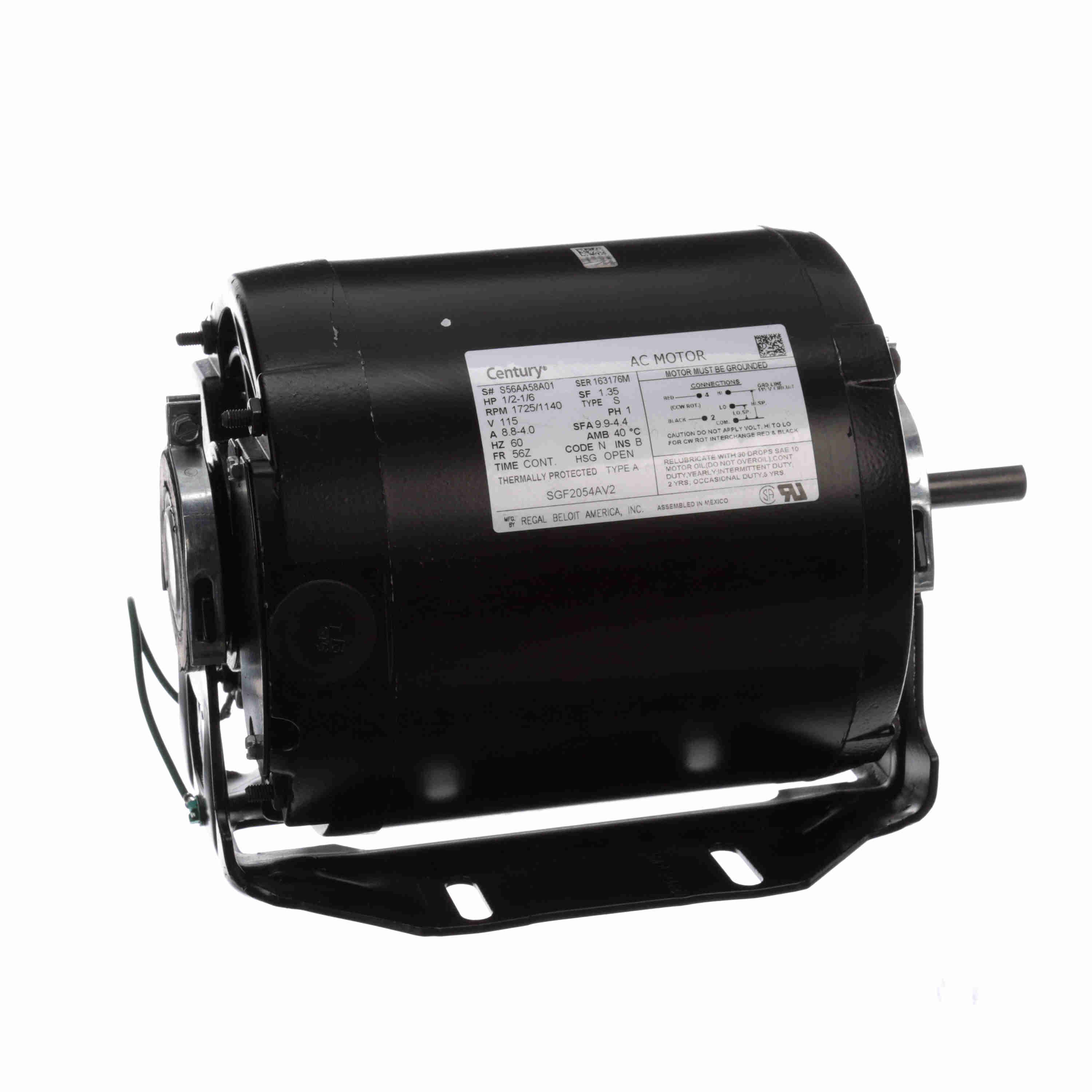

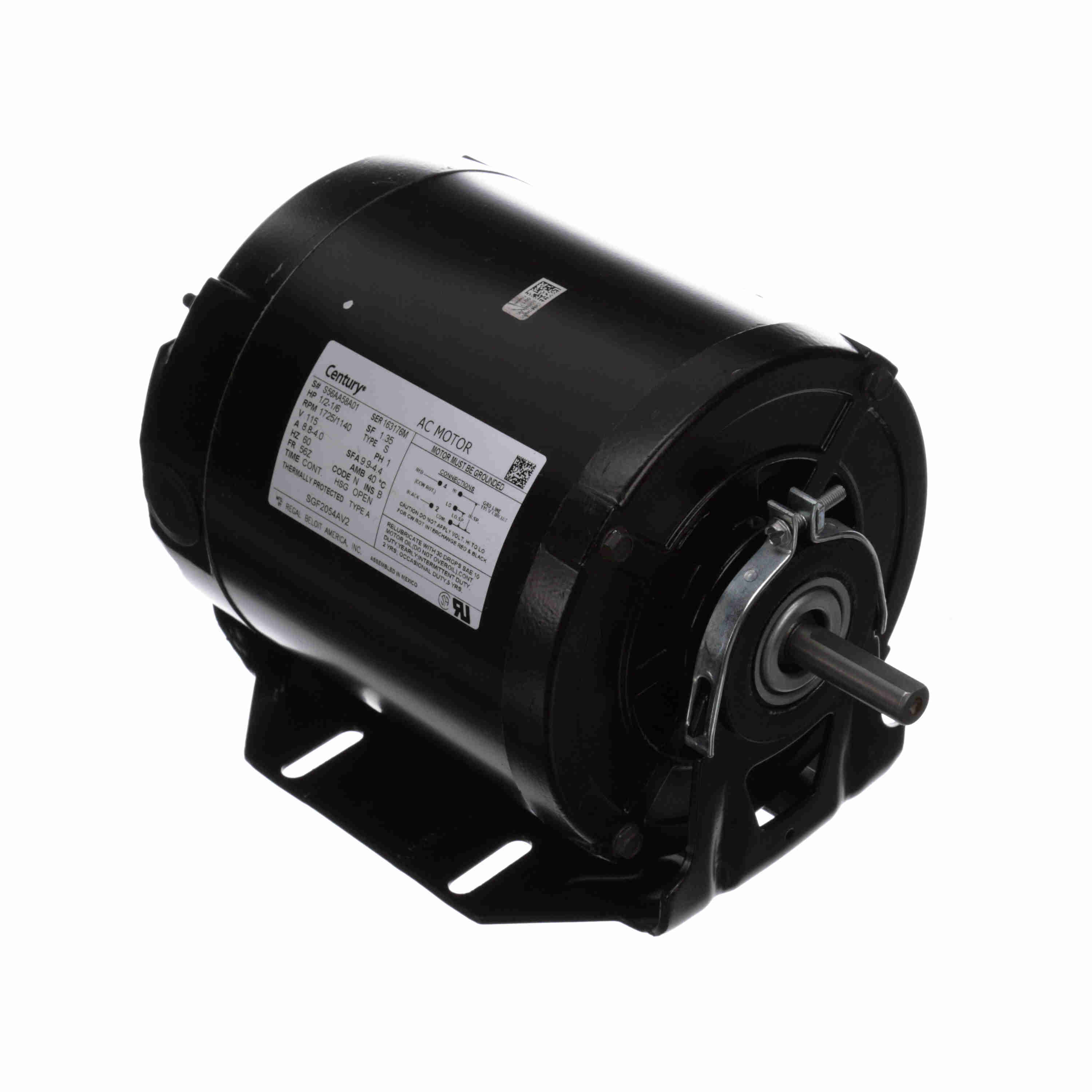

Click Image to Expand

Product ID: SGF2054AV2

SGF2054AV2 Century 1/2-1/6HP Fan & Blower HVAC/R Electric Motor, 1800RPM

MFG: A.O.Smith (Century/RegalRexnord)
MFG Part Number: SGF2054AV2

Selected accessories will also be added to cart
$399.97 / Each
Quantity:
Open, 56Z Frame, 115VAC Single Phase 60Hz

Features

  • Resilient Base
  • Continuous duty
  • Single and two speed

General Specifications

UPC: 786674030931 Weight: 21.00 LB
Packaged Length: 13 IN Packaged Width: 10 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/2-1/6 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115 V
Current: 8.8-4.0 A Speed: 1725/1140 rpm
Service Factor: 1.35 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56Z Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 9.97 in
Frame Length: 5.19 in Shaft Diameter: 0.500 in
Shaft Extension: 1.42 in
