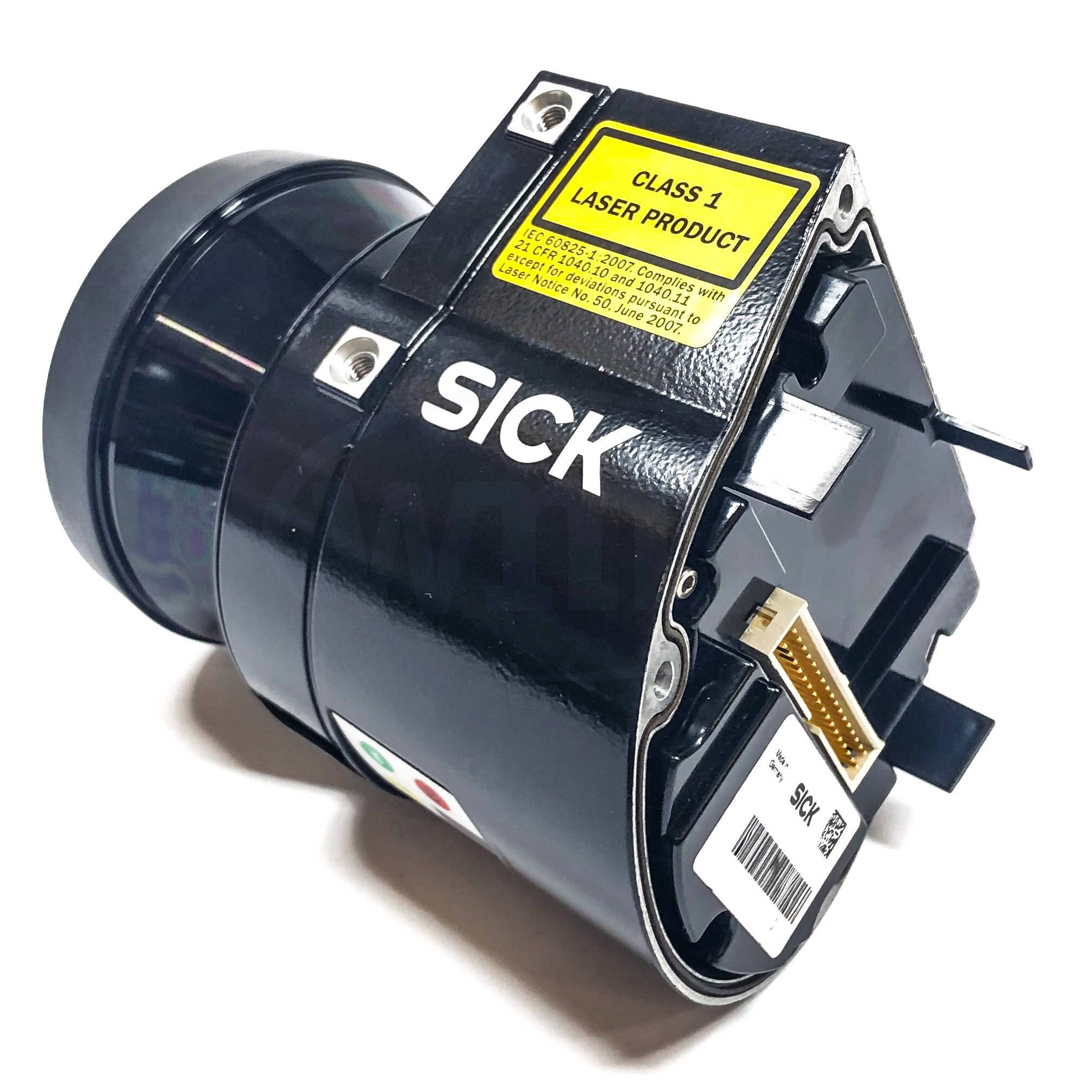

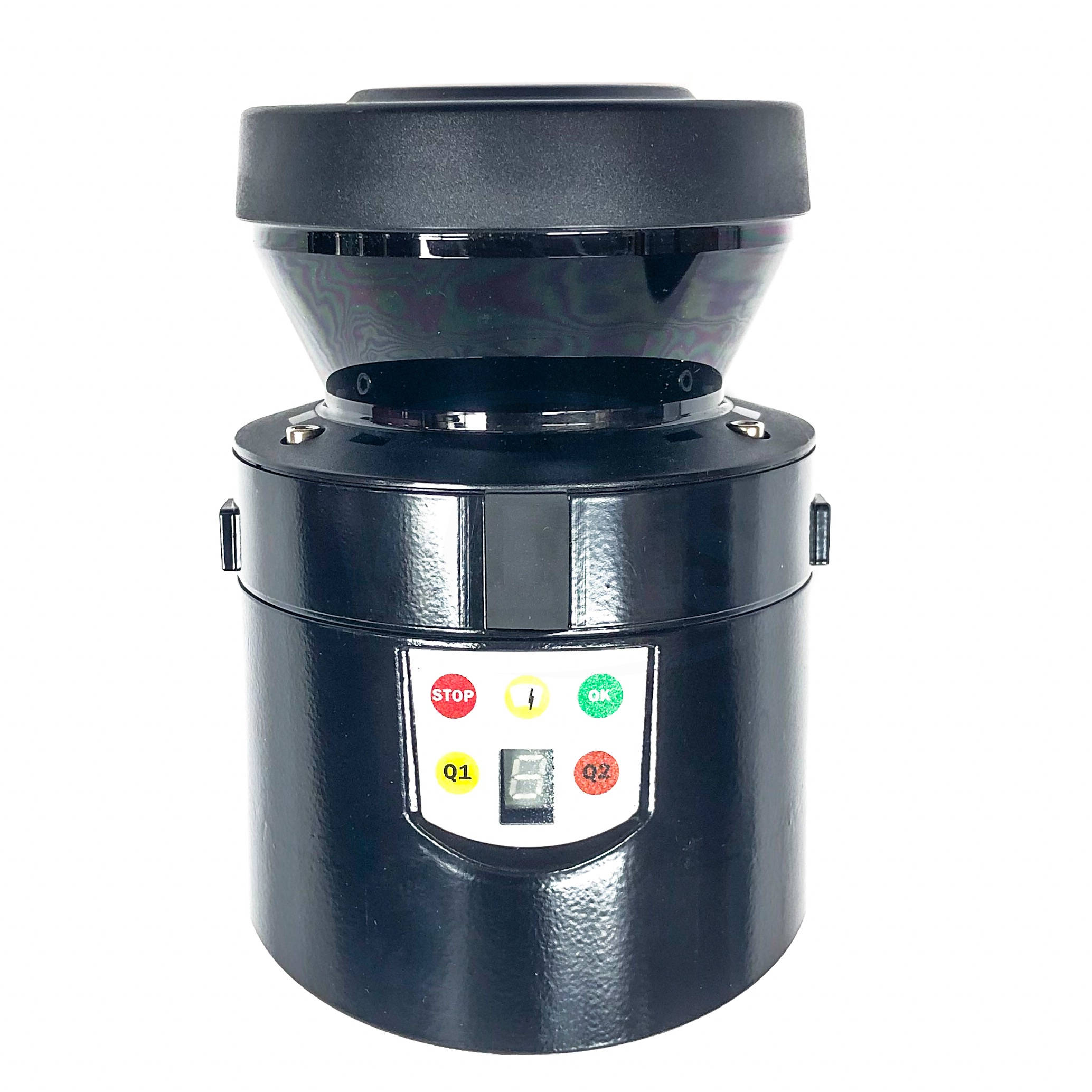

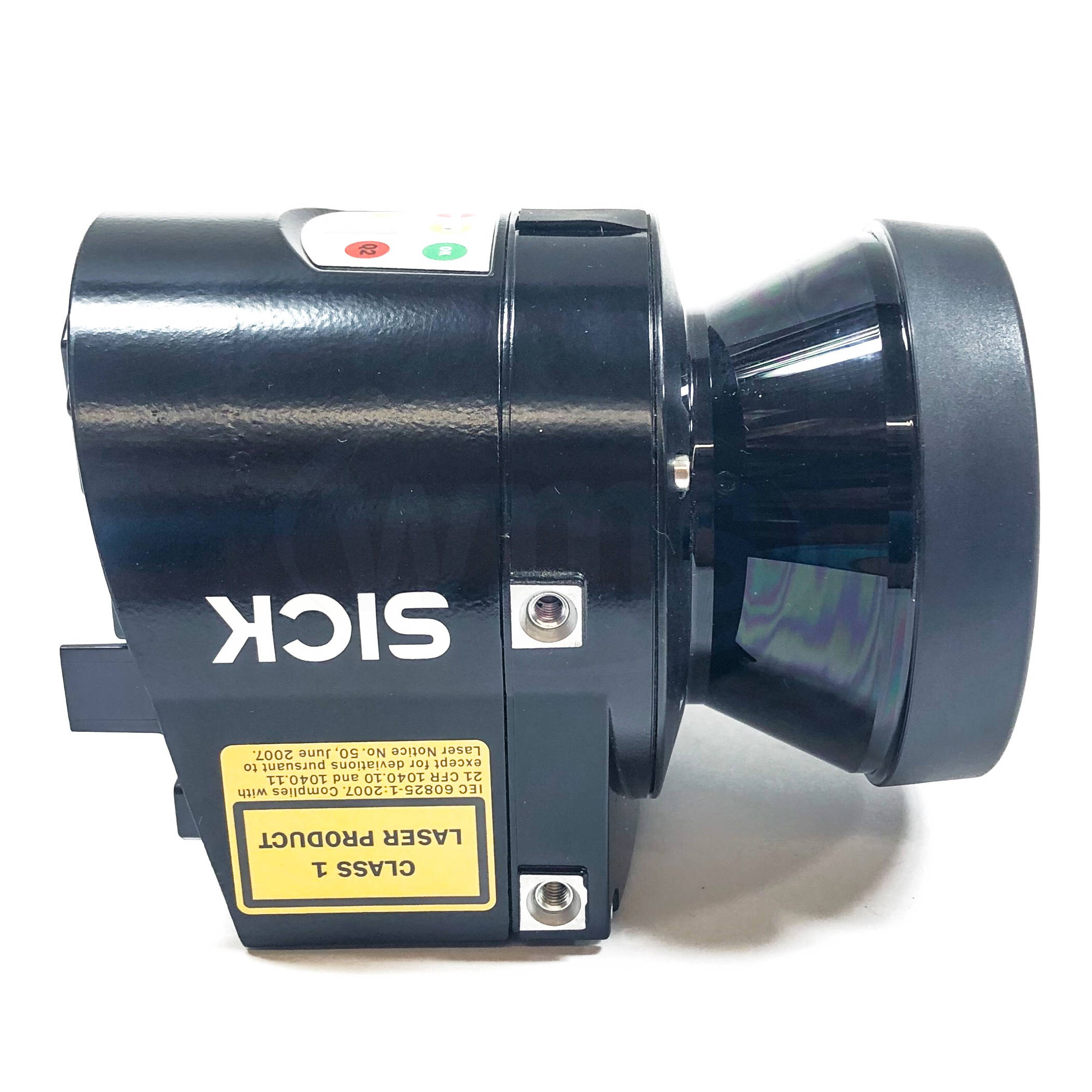

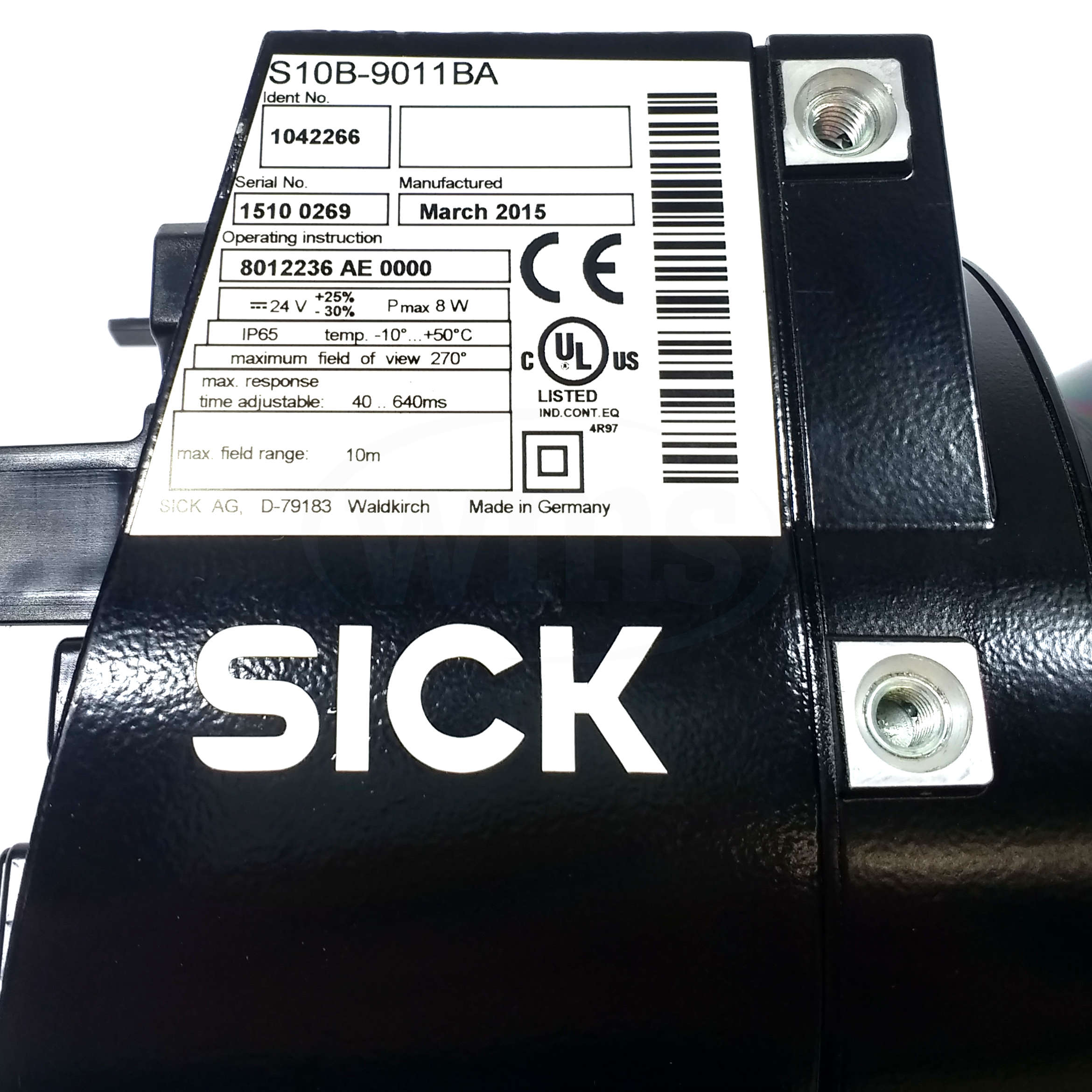

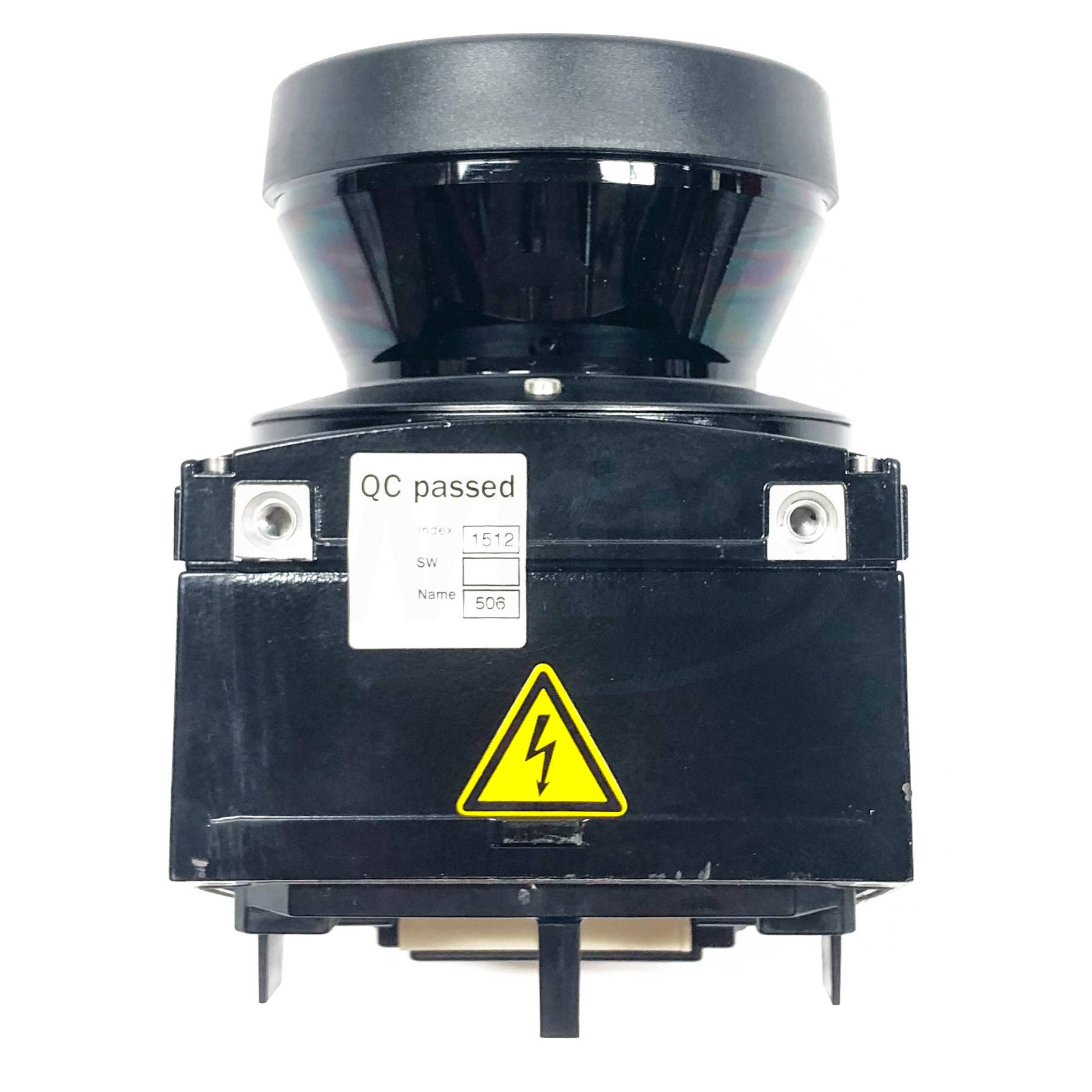

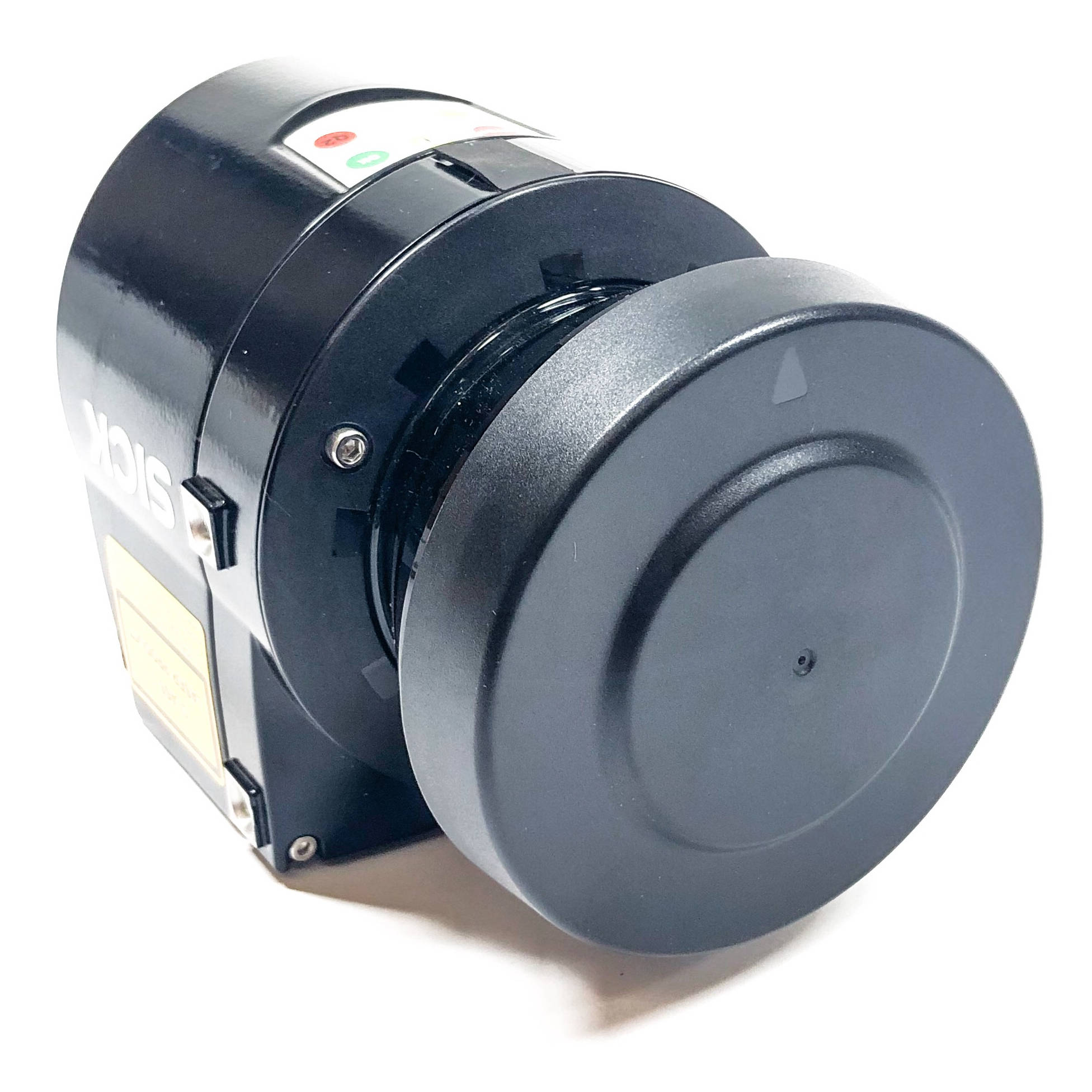

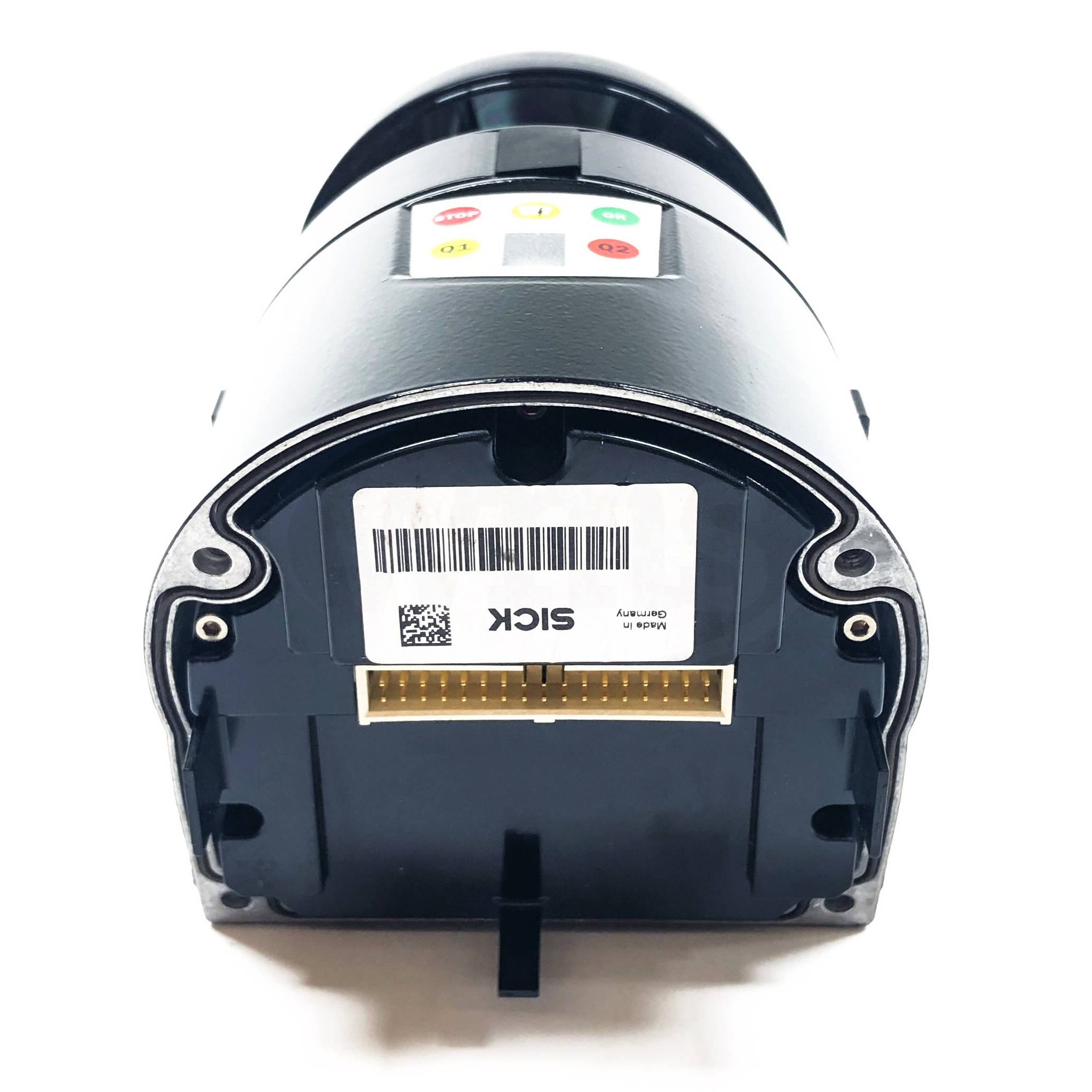

Sick S10B-9011BA 2d LiDAR Sensor, S100/ Indoor
24VDC 8W Max
IP65
Temperature Range: -10° to +50°C
40-640ms Max Response Time
Max Field Range: 10m
Made in Germany
From Manufacturer:
FEATURES
Application Indoor
Light source Infrared (905 nm)
Laser class 1, complies with 21 CFR 1040.10 and 1040.11 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle
Horizontal 270°
Scanning frequency 25 Hz
Angular resolution
0.5°
1°
Working range 0 m ... 10 m
Scanning range
At 10% remission 4.5 m
MECHANICS/ELECTRONICS
Electrical connection 1 x system plug with screw terminal block (accessory)
Supply voltage 16.8 V DC ... 30 V DC
Power consumption 8 W
Output current = 250 mA
Housing color Black (RAL 9005)
Enclosure rating IP65 (EN 60529, Section 14.2.5)
Protection class II (VDE 0106, EN50178)
Weight 1.2 kg, without connecting cables
Dimensions (L x W x H) 105 mm x 102 mm x 152 mm
PERFORMANCE
Detectable object shape Almost any (diameter: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm (selectable))
Integrated application Field evaluation
Number of field sets 1 field pair (2 fields)
Simultaneous evaluation cases 1 (2 fields)
INTERFACES
Serial ? , RS-232
CANopen ?
Digital inputs 1 (standby)
Digital outputs 5 (Q1, Q2, O1, O2, diagnosis)
Optical indicators 1 7-segment display (contamination warning, initial condition)
AMBIENT DATA
Object remission 1.8 % ... > 1,000 % (reflectors)
Electromagnetic compatibility (EMC) EN 61000-6-2:2005-08
Vibration resistance IEC 60068-2-6:2007-12
Shock resistance IEC 60068-2-29:1987
Ambient operating temperature –10 °C ... +50 °C
Storage temperature –30 °C ... +70 °C
GENERAL NOTES
Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety.
CLASSIFICATIONS
ECl@ss 5.0 27270990
ECl@ss 5.1.4 27270990
ECl@ss 6.0 27270913
ECl@ss 6.2 27270913
ECl@ss 7.0 27270913
ECl@ss 8.0 27270913
ECl@ss 8.1 27270913
ECl@ss 9.0 27270913
ETIM 5.0 EC002550
ETIM 6.0 EC002550
UNSPSC 16.0901 46171620
