/Products/Phase Converters/Maxiphase/230 Volt Phase Converters, ODP/RPC 5-15 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: RPC 5-15

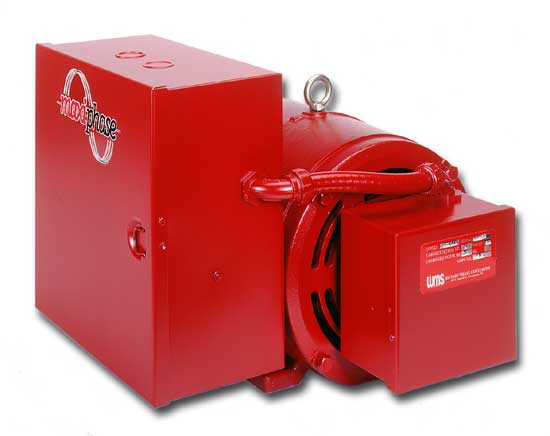

RPC 5-15 Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: RPC 5-15

Selected accessories will also be added to cart
$1,350.00 / Each
Quantity:
Largest HP 5, Combined HP 15, N.L Amps 2.5, 230 Volt, ODP

Specifications

Model RPC 5-15
Largest Single Load 5 HP
Maximum Combined Load 15 HP
Voltage 230 Volts
Frequency 60Hz
No Load Amperage 2.5 Amps
"a" Dimension 17 Inches
"b" Dimension 15 Inches
"c" Dimension 17 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size 213T
Input Circuit Breaker Rating 60A
Input Wire Size #6 Minimum
Approximate Weight 175 lbs

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
