/Products/Phase Converters/Maxiphase/230 Volt Phase Converters, ODP/RPC 10-30 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: RPC 10-30

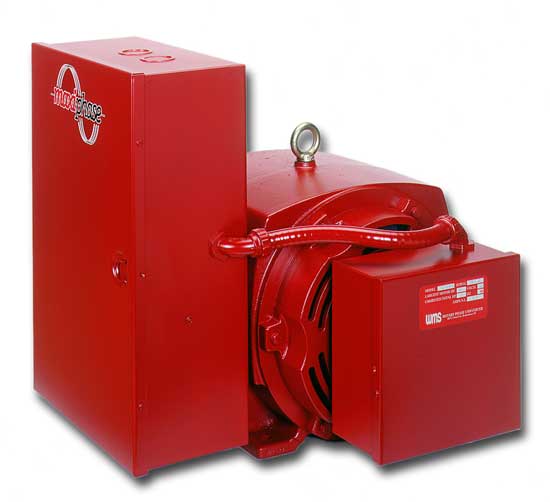

RPC 10-30 Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: RPC 10-30

Selected accessories will also be added to cart
$2,340.00 / Each
Quantity:
Largest HP 10, Combined HP 30, N.L Amps 10, 230 Volt, ODP

Specifications

Model RPC 10-30
Largest Single Load 10 HP
Maximum Combined Load 30 HP
Voltage 230 Volts
Frequency 60Hz
Amperage 10.0 Amps
"a" Dimension 20 Inches
"b" Dimension 20 Inches
"c" Dimension 21 Inches
Motor Enclosure ODP
Open Drip-Proof
Motor Frame Size 254T
Input Circuit Breaker Rating 100A
Input Wire Size #1 Minimum
Approximate Weight 282 lbs

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
