/Products/Surplus Industrial/Power Transmission/Ball / Roller Bearings/RCJT1-15/16 Timken Two-Bolt Flanged Ball Bearing, 1-15/16"
Click Image to Expand

Product ID: RCJT1-15/16

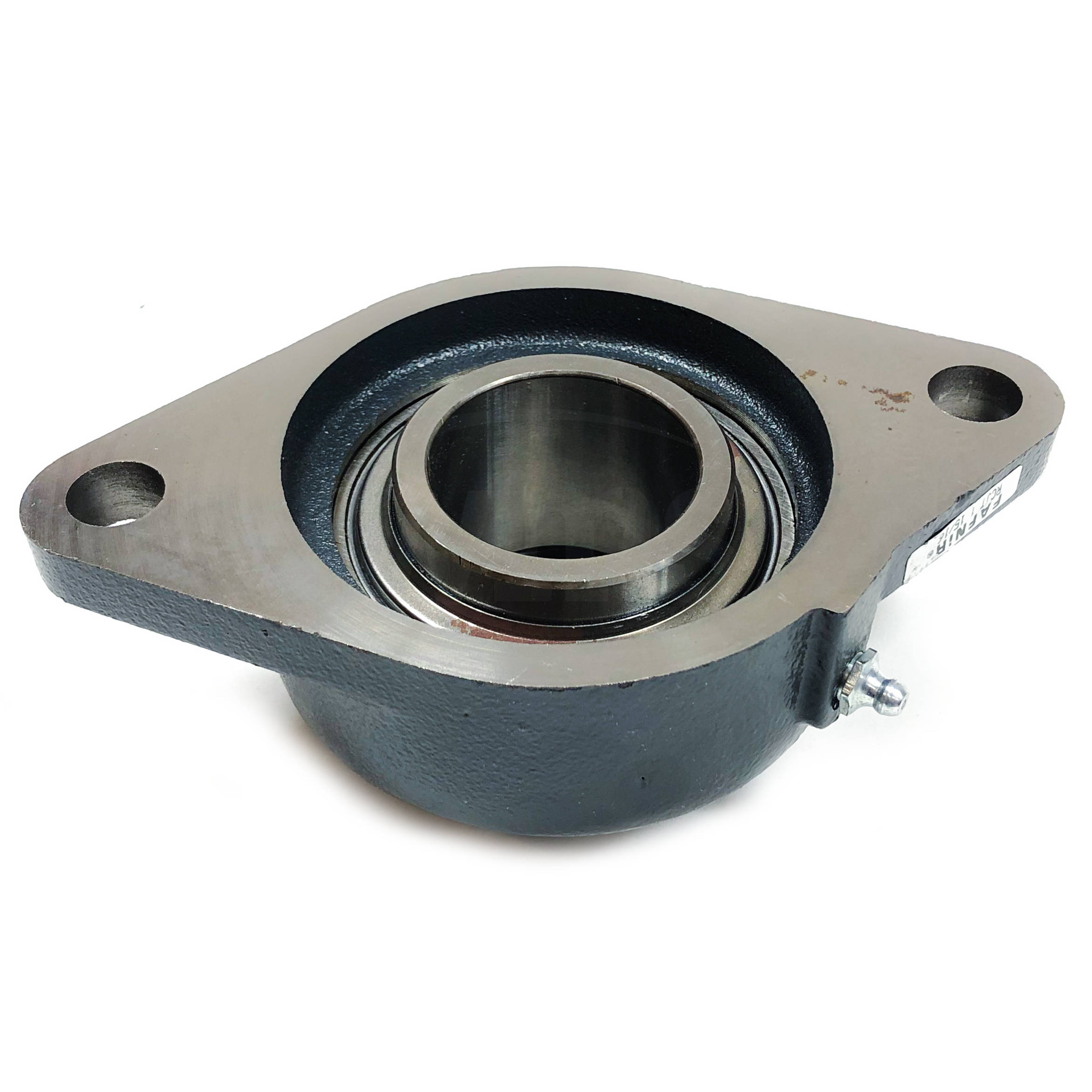

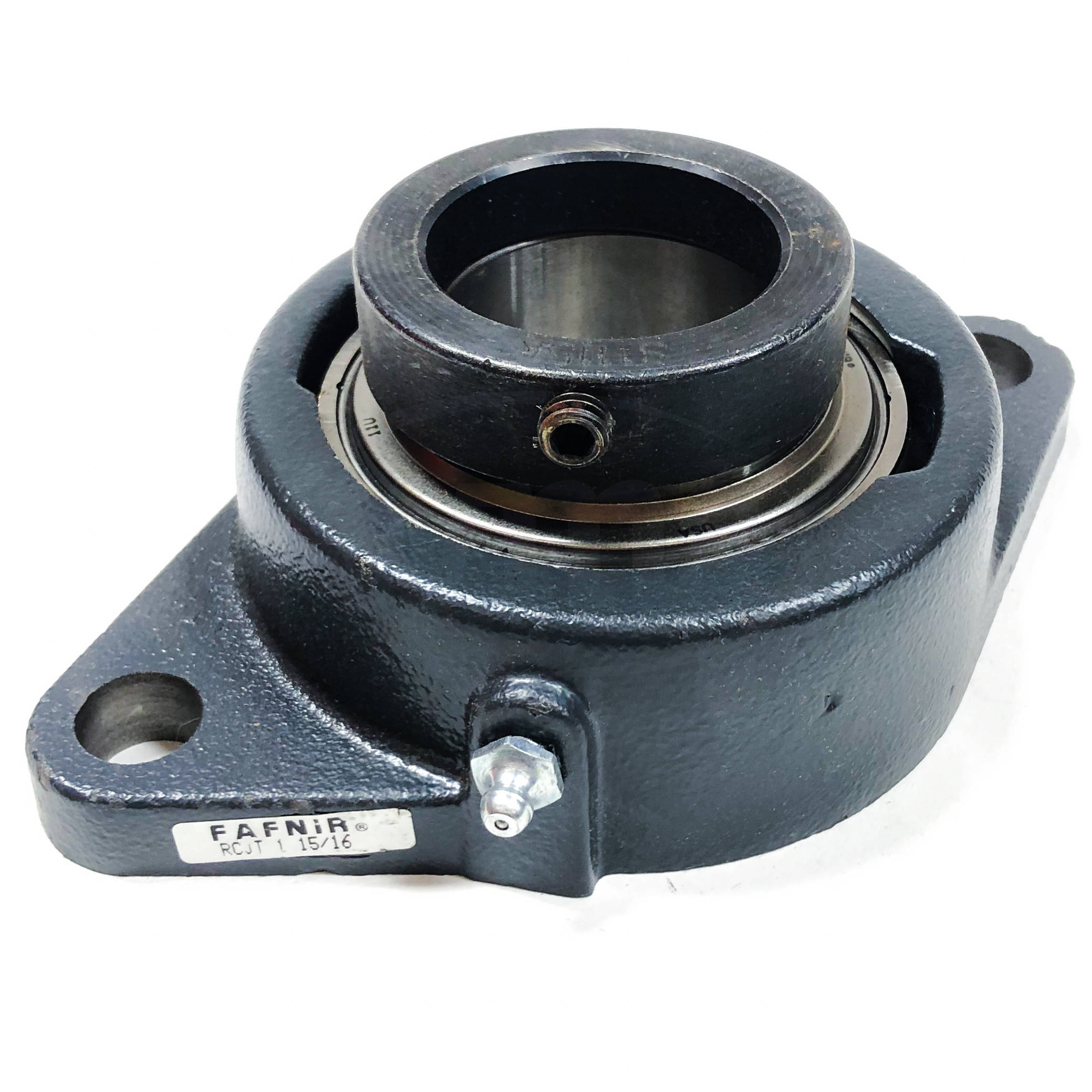

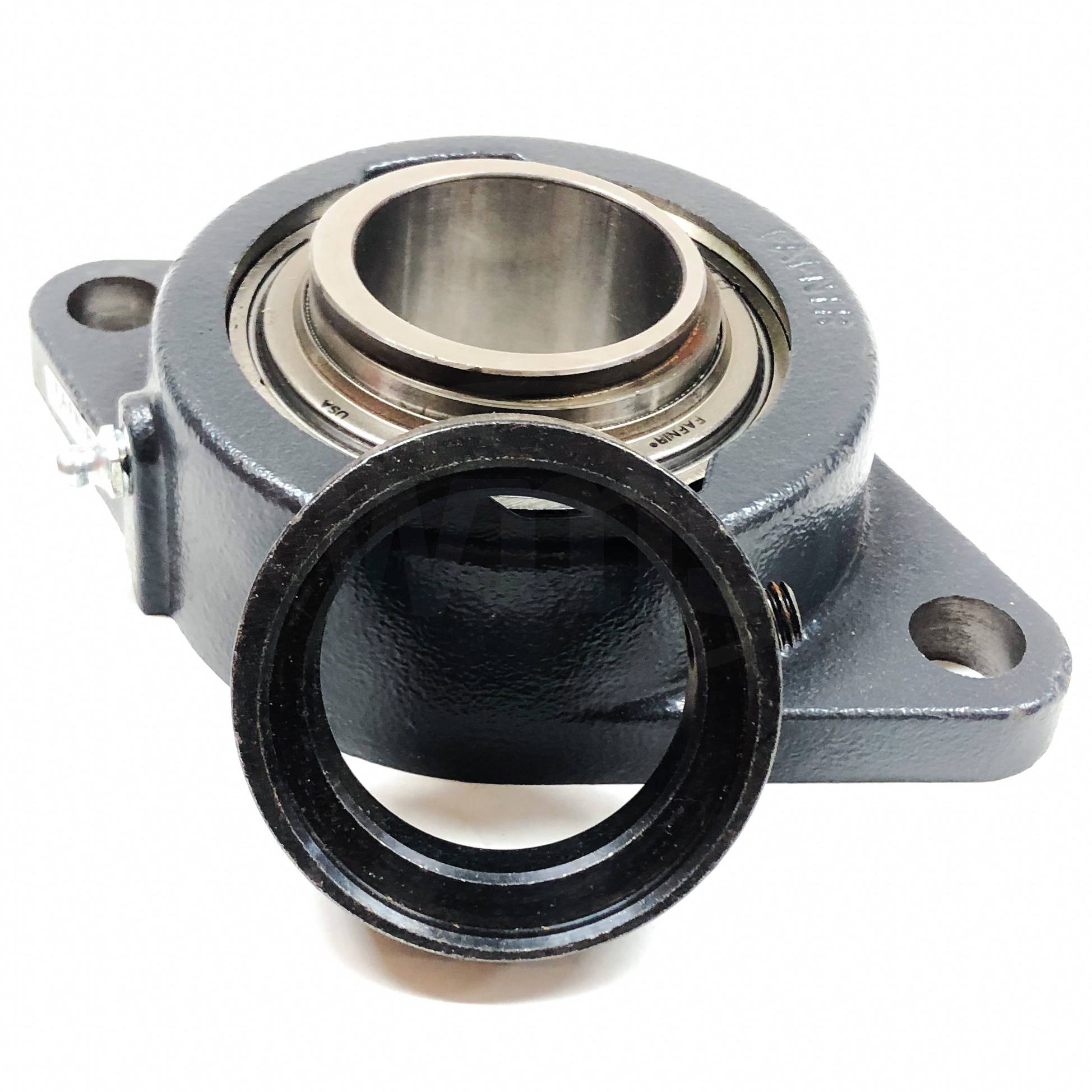

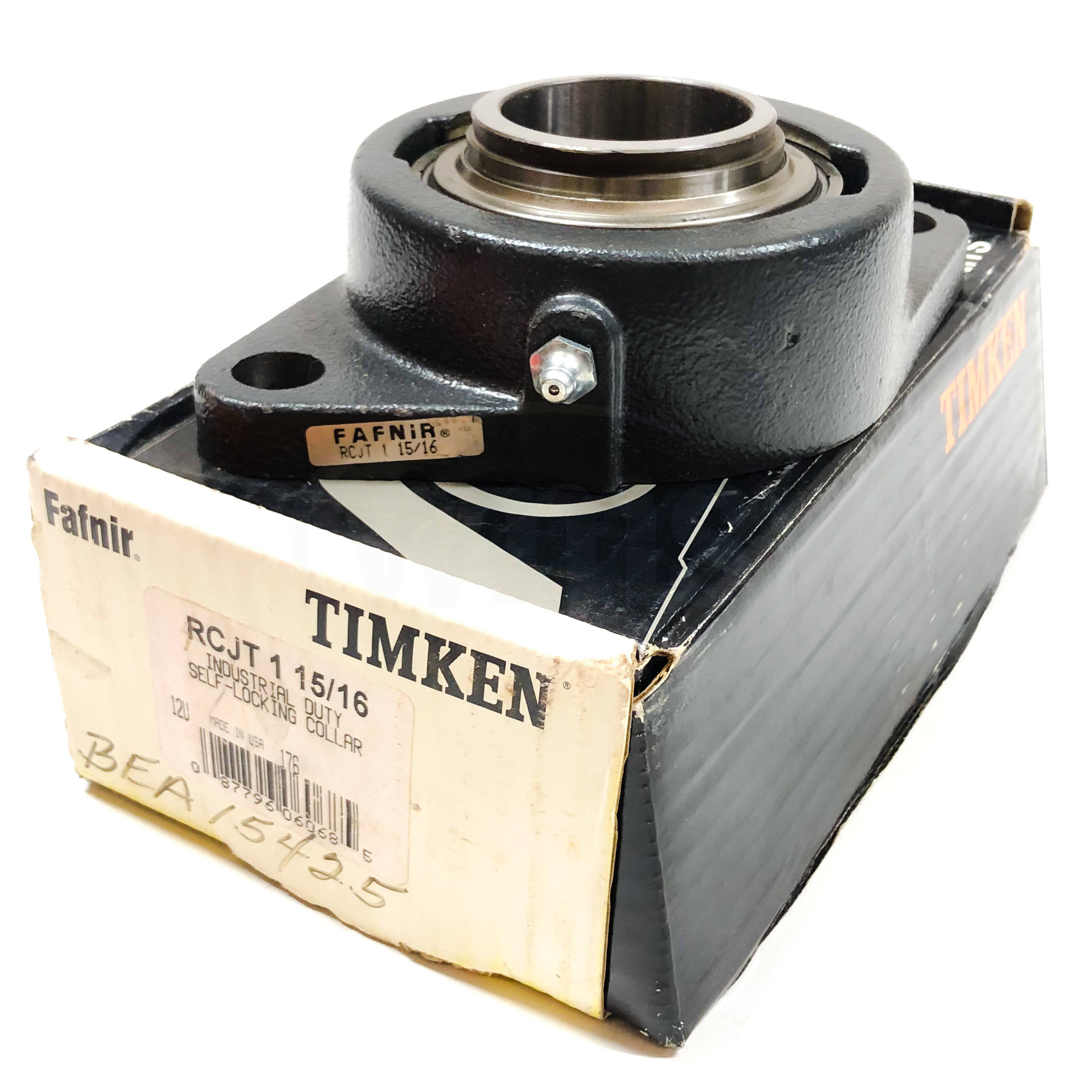

RCJT1-15/16 Timken Two-Bolt Flanged Ball Bearing, 1-15/16"

MFG: The Timken Company
MFG Part Number: RCJT1-15/16

Available Stock: 1
Selected accessories will also be added to cart
$199.97 / Each
Quantity:
New, Surplus Stock.

Specifications

Shaft Size d

 1 15/16 in49.2 mm

Bearing Type

 Ball Bearing

Bearing Number

 G1115KRRB

Dimension E

 2.614 in66.4 mm

Inside Ring Outside Diameter

 2.728 in69.3 mm

e

 0.103 in2.615 mm

Series

 Industrial

Weight

 6.005 lb2.724 Kg

Seal Type

 Shroud Seal

Housing Construction

 Two-Bolt Flange

Alternate Part Name

 RCJT1 15/16

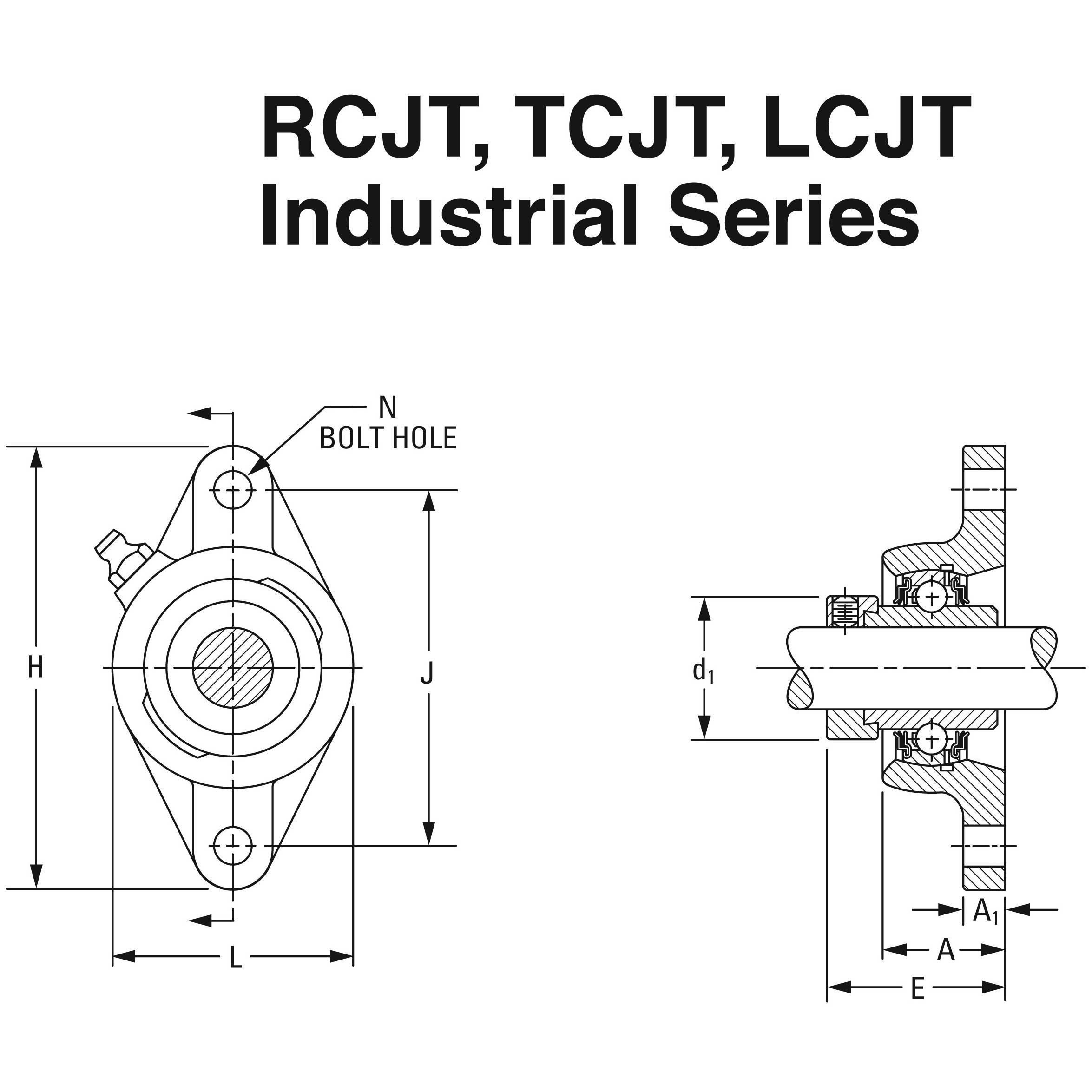

Dimensions

Housing Width A

 42.9 mm1.689 in

Total Length H

 188.9 mm7.437 in

Total Height L

 115.9 mm4.563 in

Bolt Hole Spacing J

 157.2 mm6.189 in

Bolt Hole Size N

 17.1 mm0.673 in

Flange Thickness A1

 12.70 mm0.500 in

Center of Bearing from Housing End A2

 1.116 mm0.044 in

Inside Ring Width B

 0 mm0.000 in

Basic Load Ratings

Static Load Rating

 5210 lbf23200 N

Dynamic Load Rating

 8740 lbf38900 N
