/Products/Surplus Industrial/Power Transmission/Ball / Roller Bearings/RCJ1-11/16 Timken/Fafnir Four-Bolt Flange Mount Bearing, 1-11/16" Bore
Click Image to Expand

Product ID: RCJ1-11/16

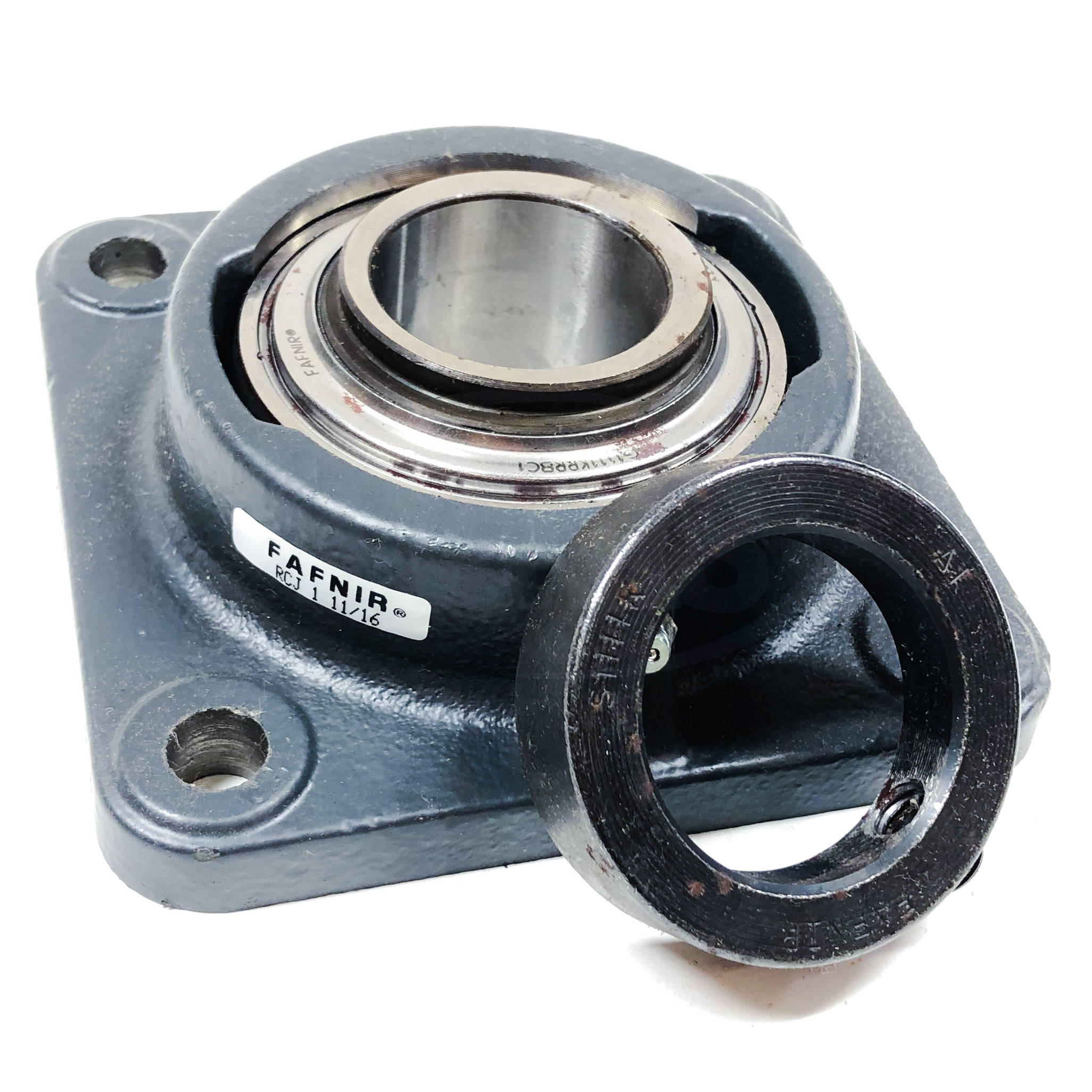

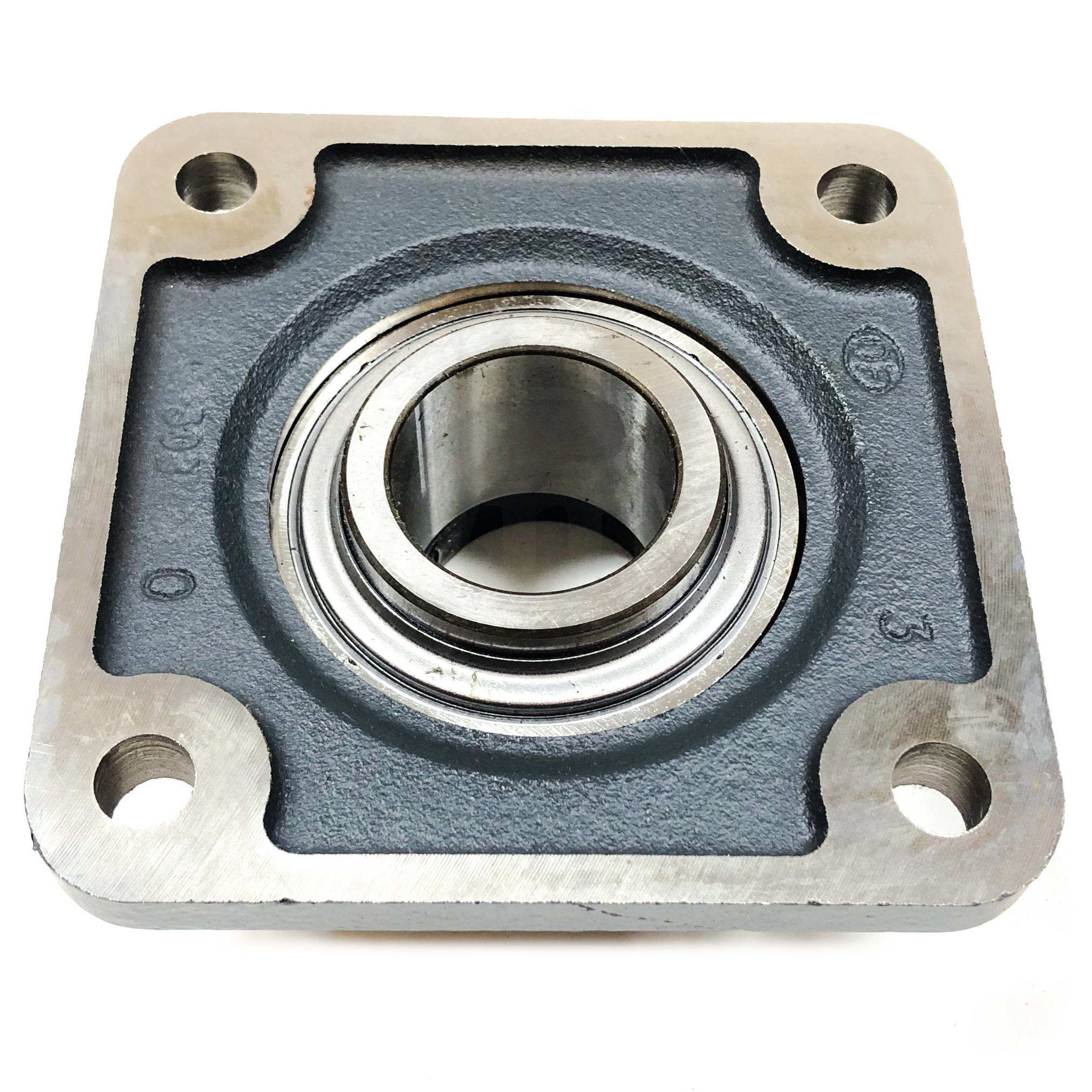

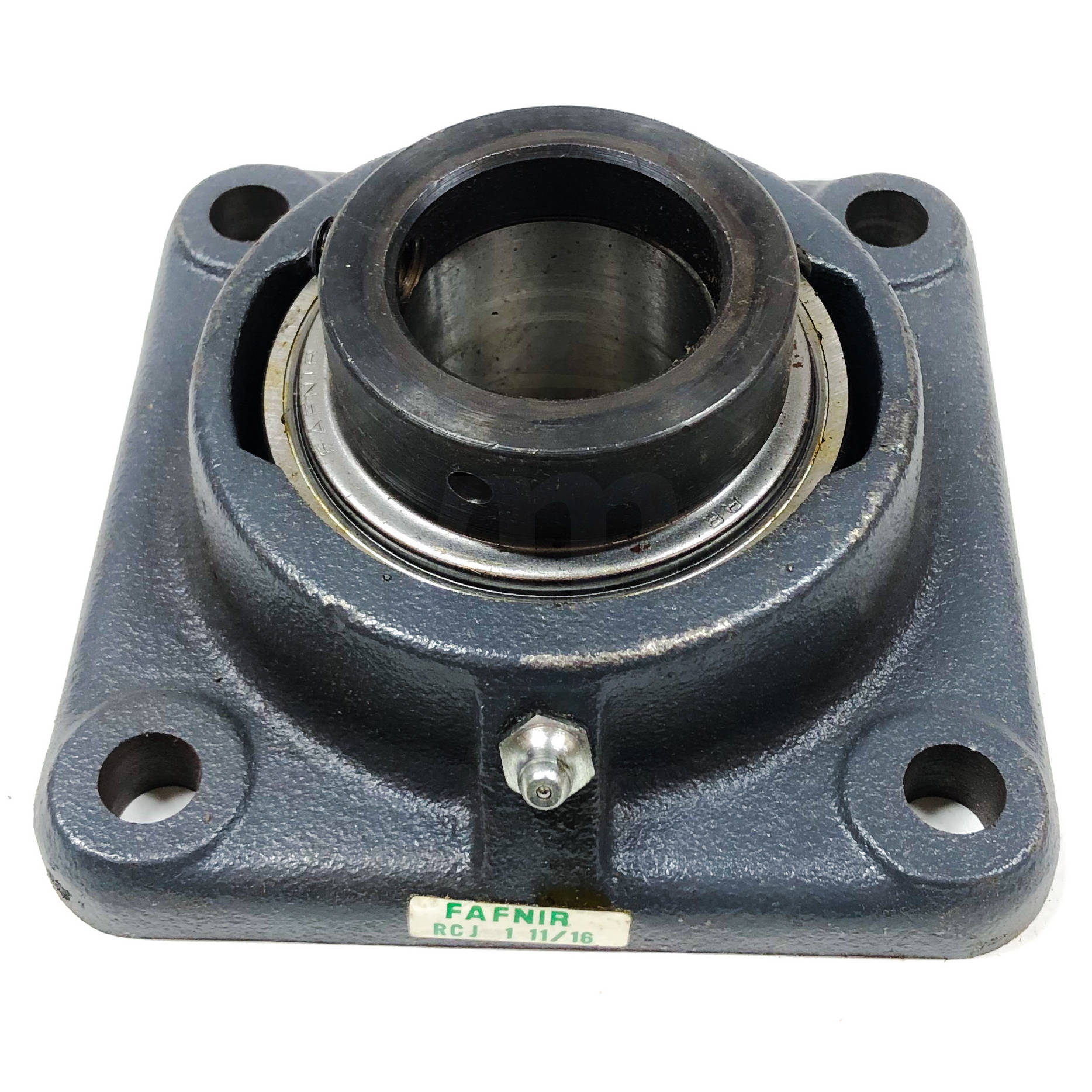

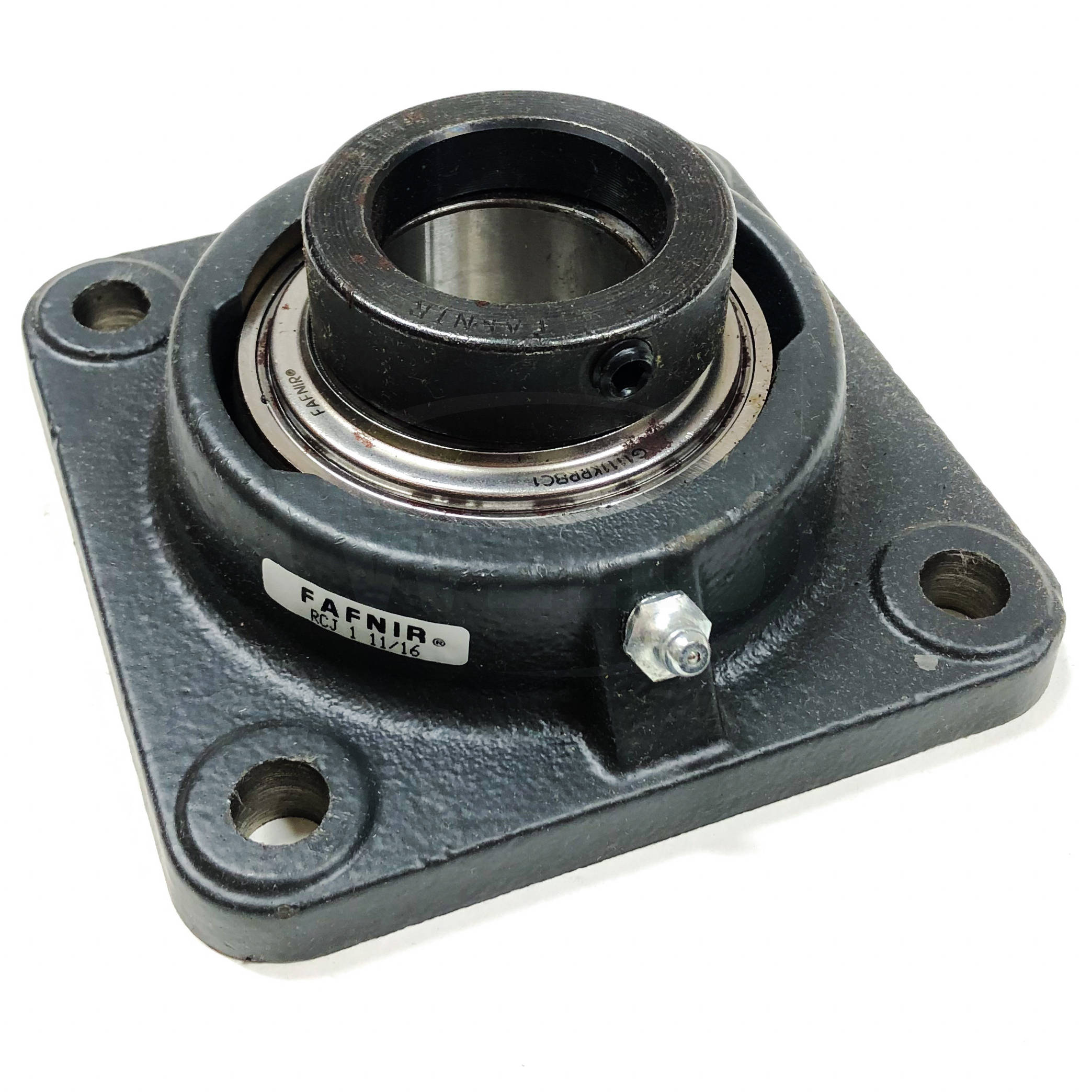

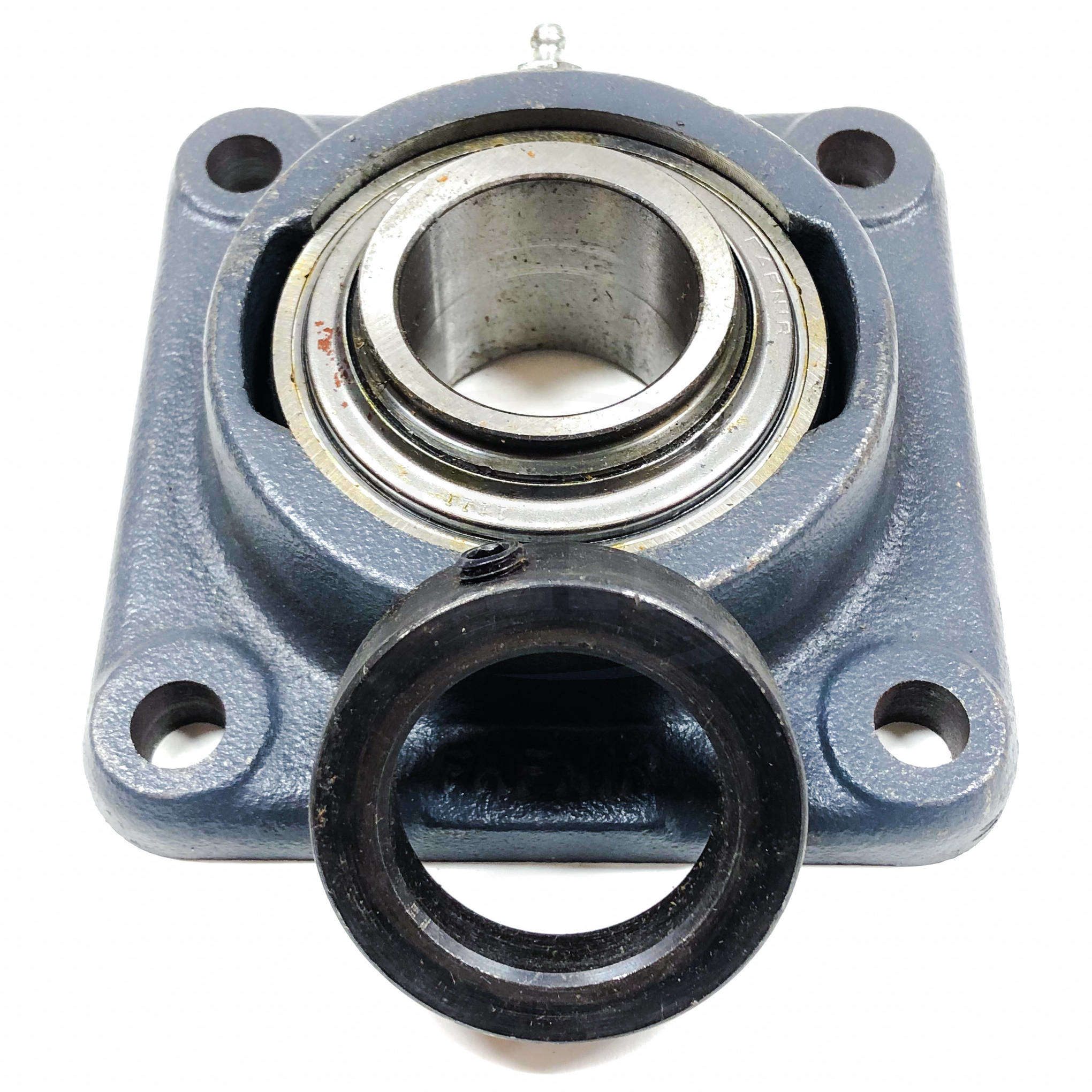

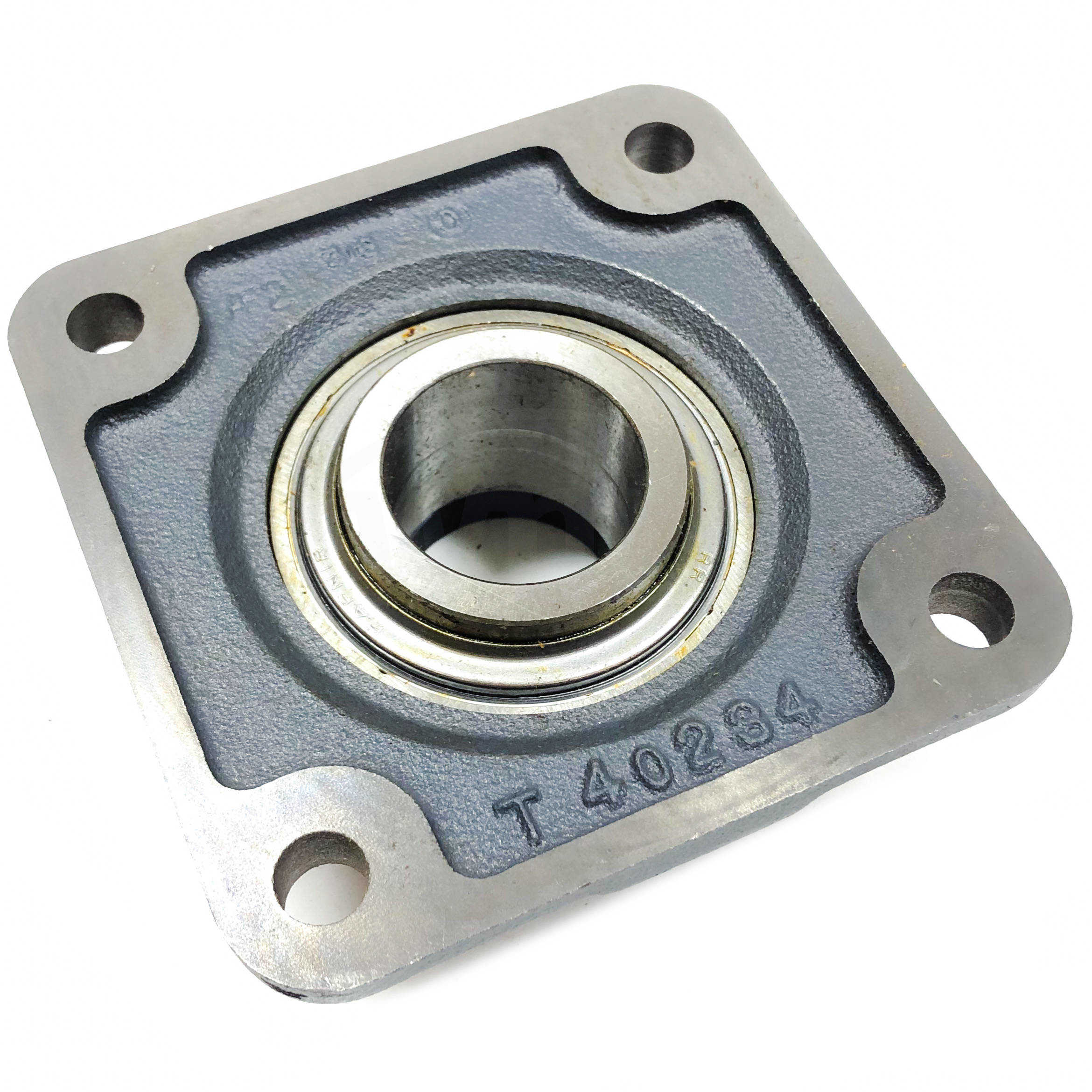

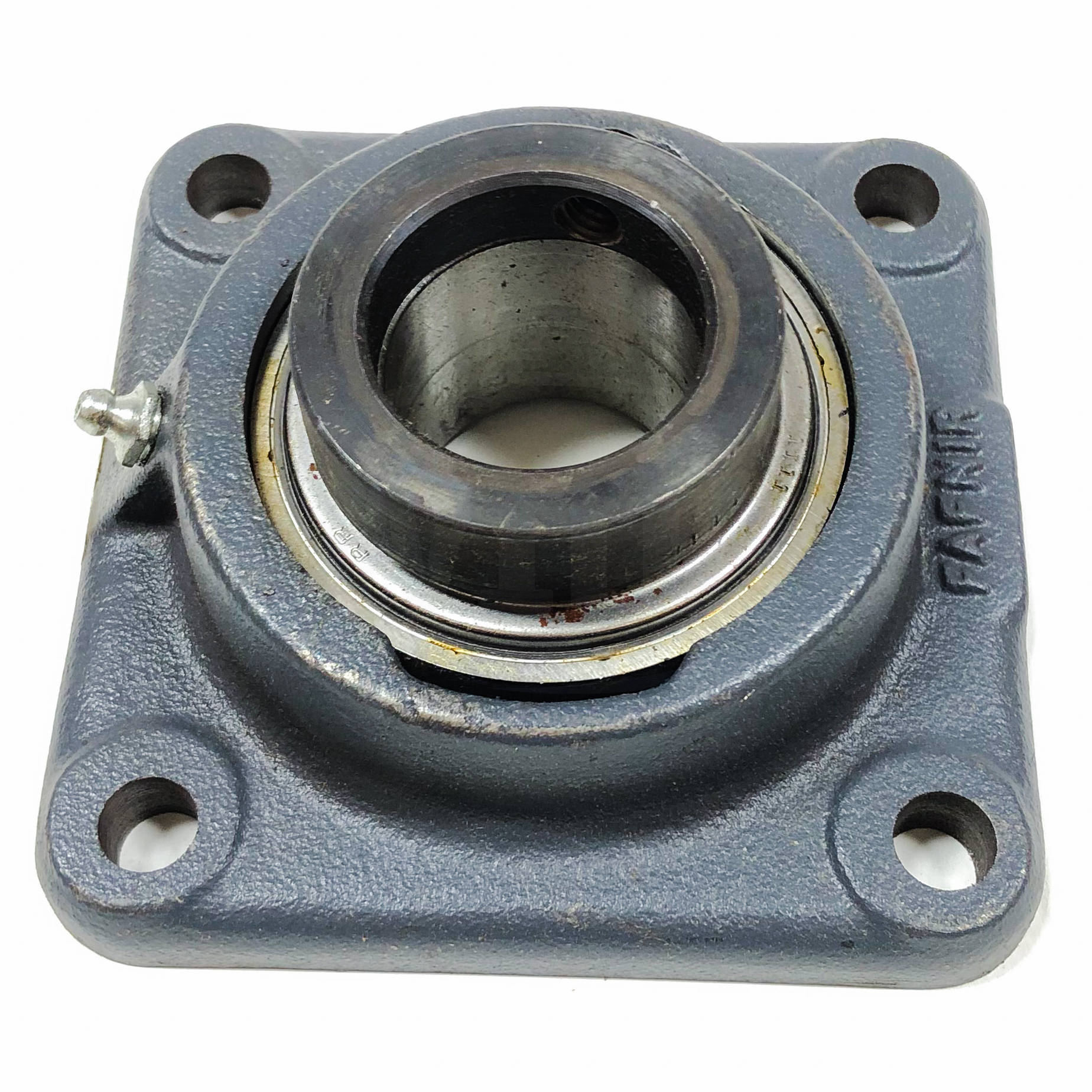

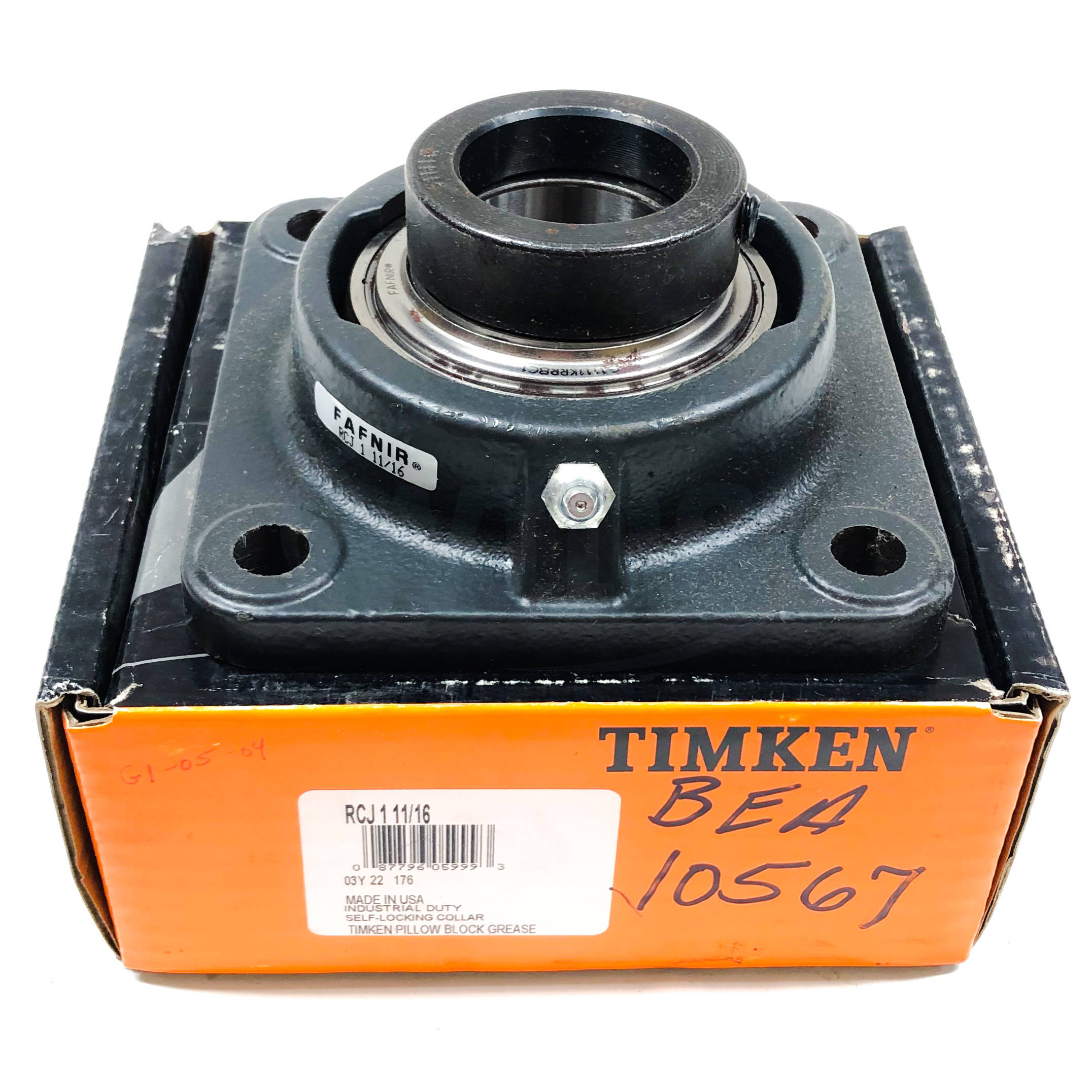

RCJ1-11/16 Timken/Fafnir Four-Bolt Flange Mount Bearing, 1-11/16" Bore

MFG: The Timken Company
MFG Part Number: RCJ1-11/16

Available Stock: 3
Selected accessories will also be added to cart
$149.97 / Each
Quantity:
New, Surplus Stock.

Specifications

Shaft Size d

 1 11/16 in42.9 mm

Bearing Number

 G1111KRRB

Dimension D

 4.126 in104.8 mm

Dimension E

 2.335 in59.3 mm

Inside Ring Outside Diameter

 2.480 in63 mm

Series

 Industrial

Weight

 5.7 lb2.585 Kg

Seal Type

 Shroud Seal

Housing Construction

 Four-Bolt Square Flange

Alternate Part Name

 RCJ111/16

Dimensions

Total Length L

 136.5 mm5.374 in

Housing Width A

 1.531 in38.9 mm

Bolt Hole Spacing J

 104.8 mm4.126 in

Bolt Hole Size N

 12 mm0.472 in

Flange Thickness A1

 14.3 mm0.563 in

Center of Bearing from Housing End A2

 24.4 mm0.961 in

Inside Ring Width B

 N/A

Bolt Size

 M12

Center of Bearing from Bearing End S

 24.4 mm0.961 in

Basic Load Ratings

Static Load Rating

 4600 lbf20500 N

Dynamic Load Rating

 8160 lbf36300 N
