/Products/Surplus Industrial/Power Transmission/Ball / Roller Bearings/RAS1-5/16 Fafnir Self-Locking Collar Pillow Block, 1-5/16"
Click Image to Expand

Product ID: RAS1-5/16

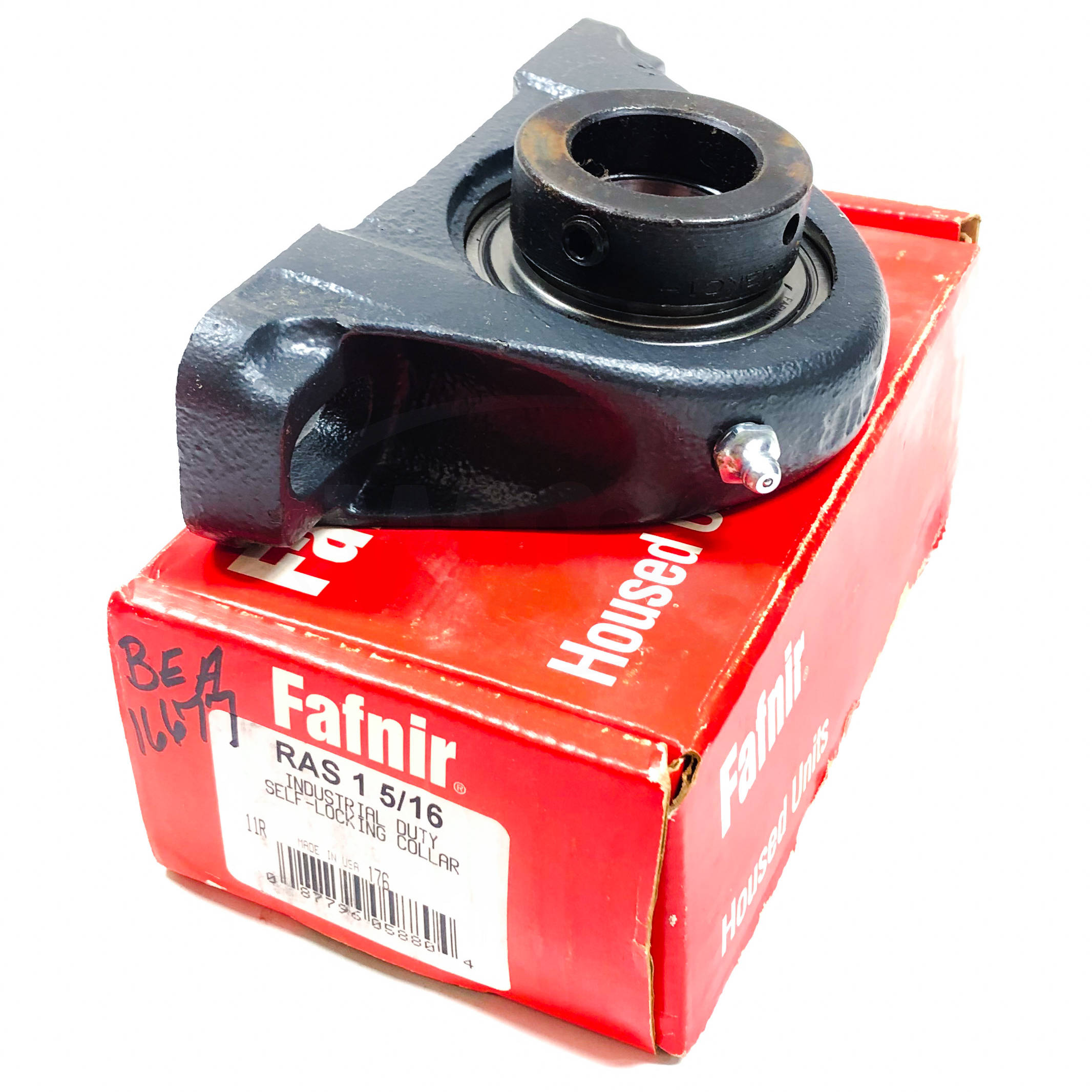

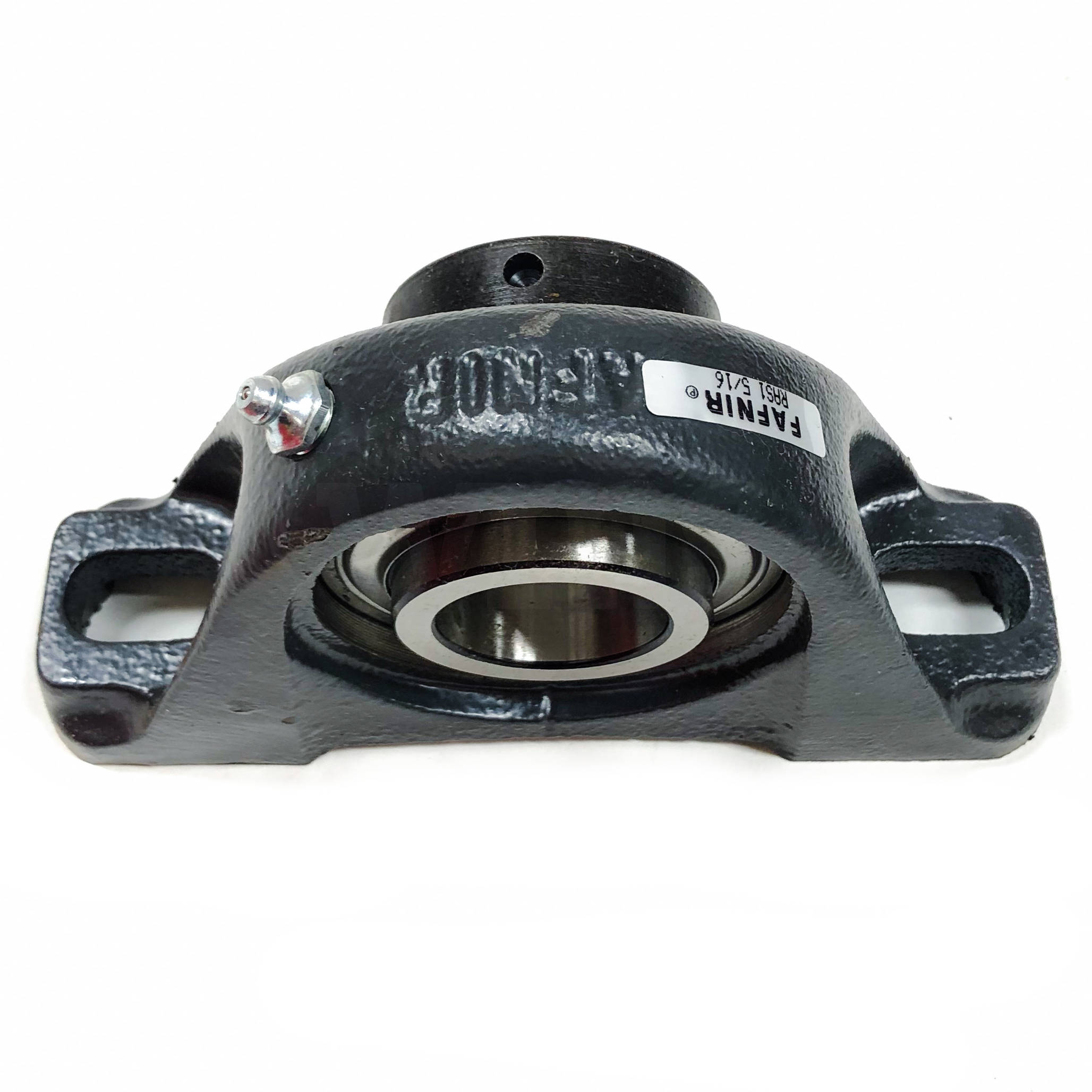

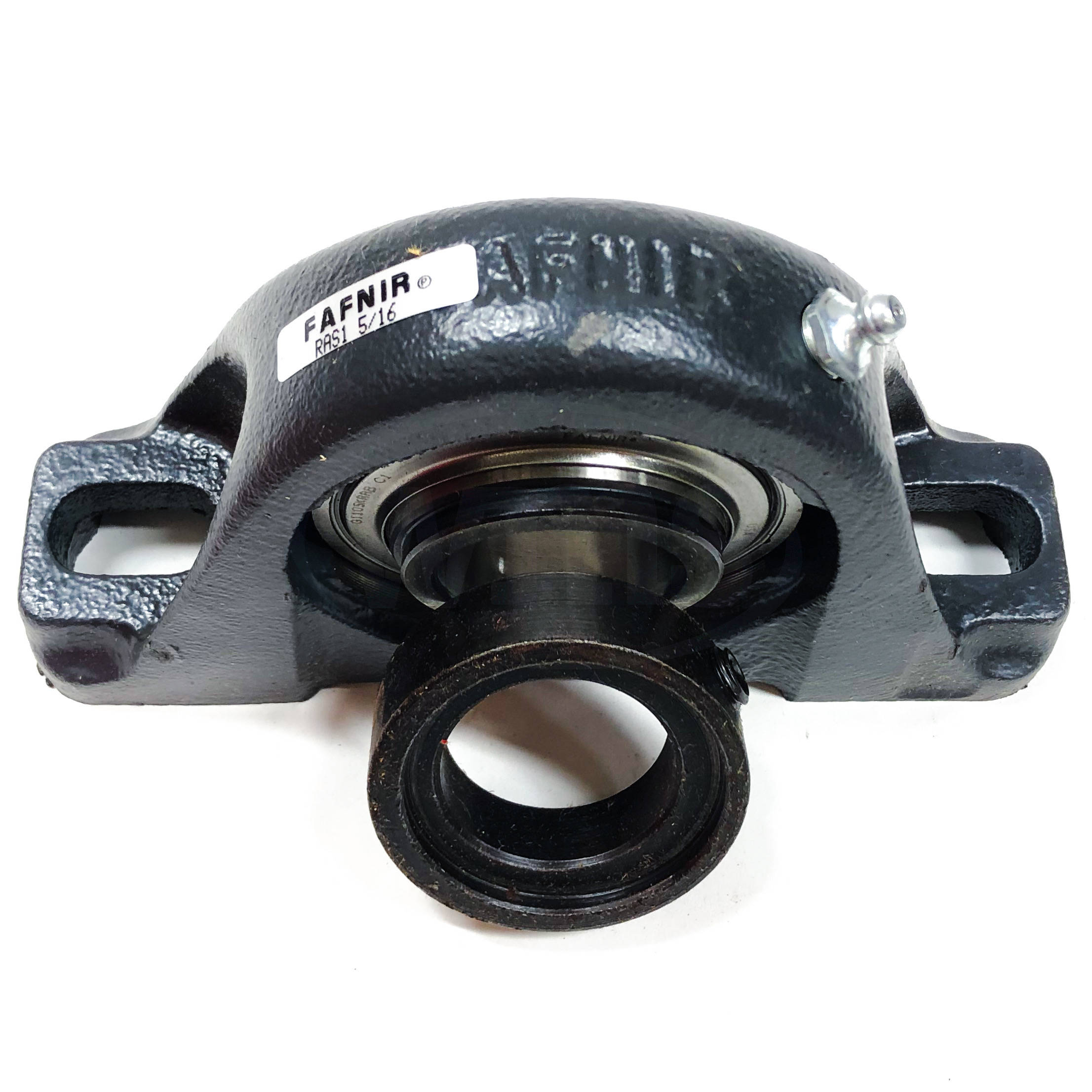

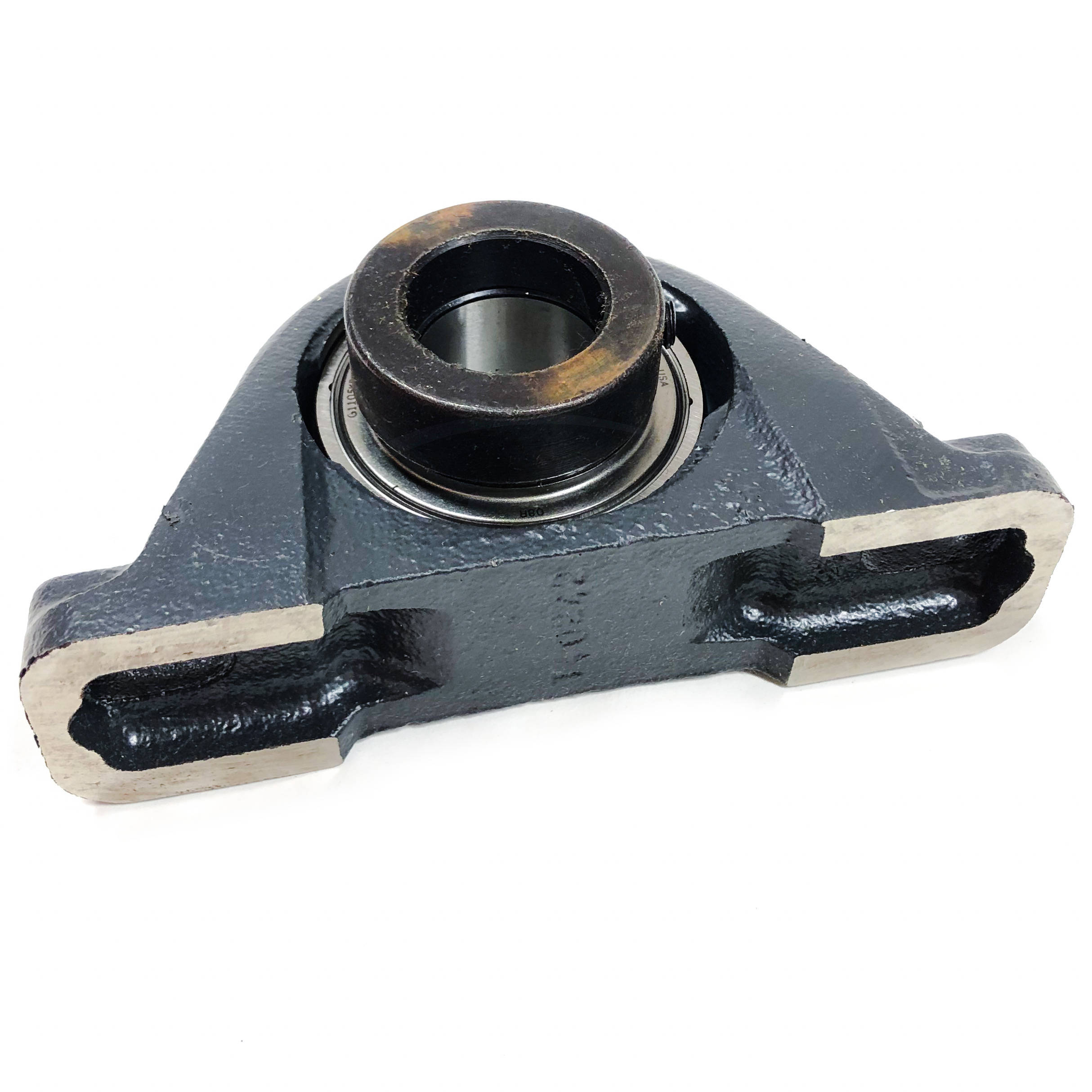

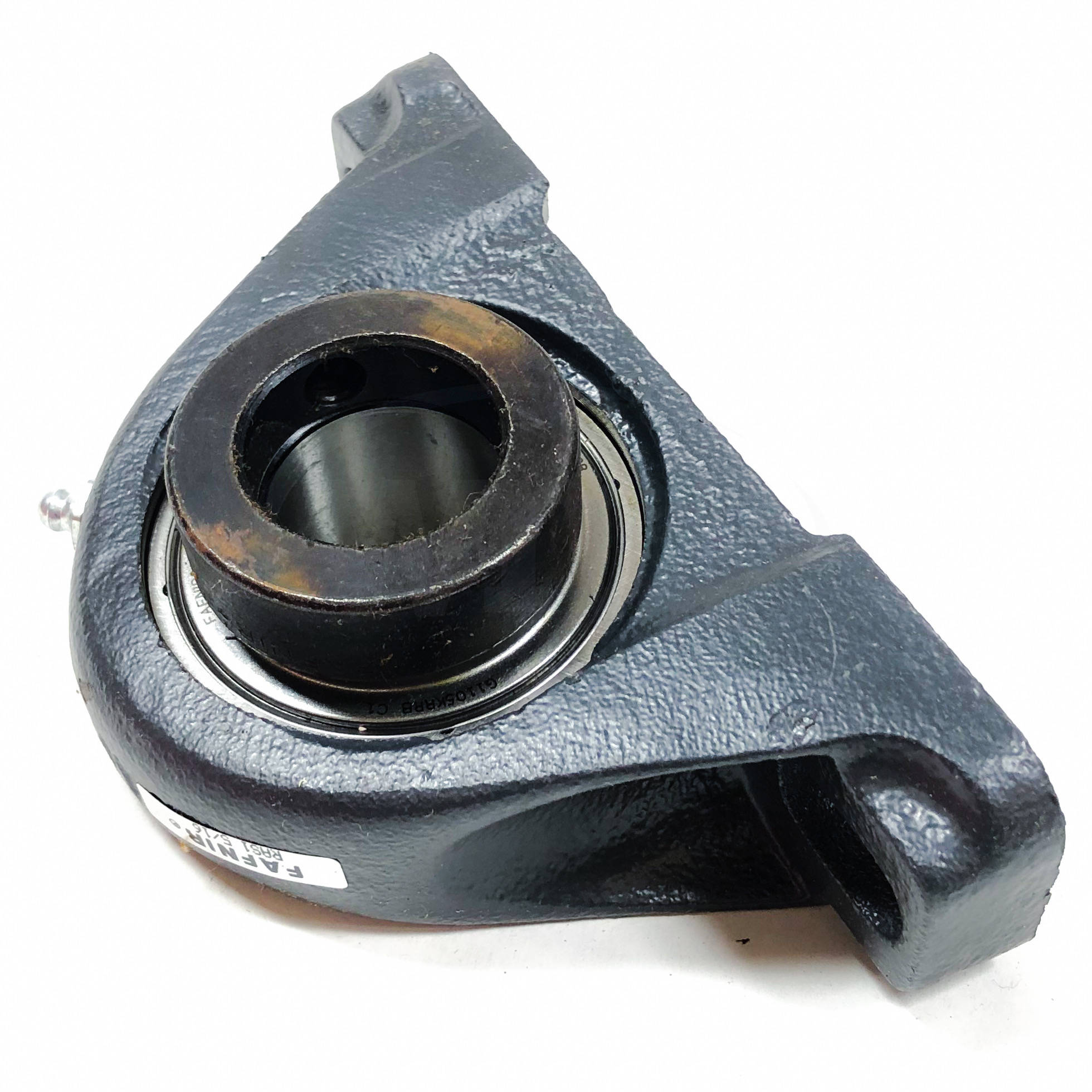

RAS1-5/16 Fafnir Self-Locking Collar Pillow Block, 1-5/16"

MFG: Fafnir Bearing
MFG Part Number: RAS1-5/16

Available Stock: 4
Selected accessories will also be added to cart
$149.97 / Each
Quantity:
New, Surplus Stock. Industrial Duty, Cast Iron

Specifications

Shaft Size d

 1 5/16 in33.3 mm

Bearing Type

 Ball Bearing

Bearing Number

 G1105KRRB

Dimension T

 0.921 in23.4 mm

Series

 Industrial

Weight

 4.167 lb1.89 Kg

Seal Type

 Shroud Seal

Housing Construction

 Two-Bolt Pillow Block

Alternate Part Name

 RAS1 5/16

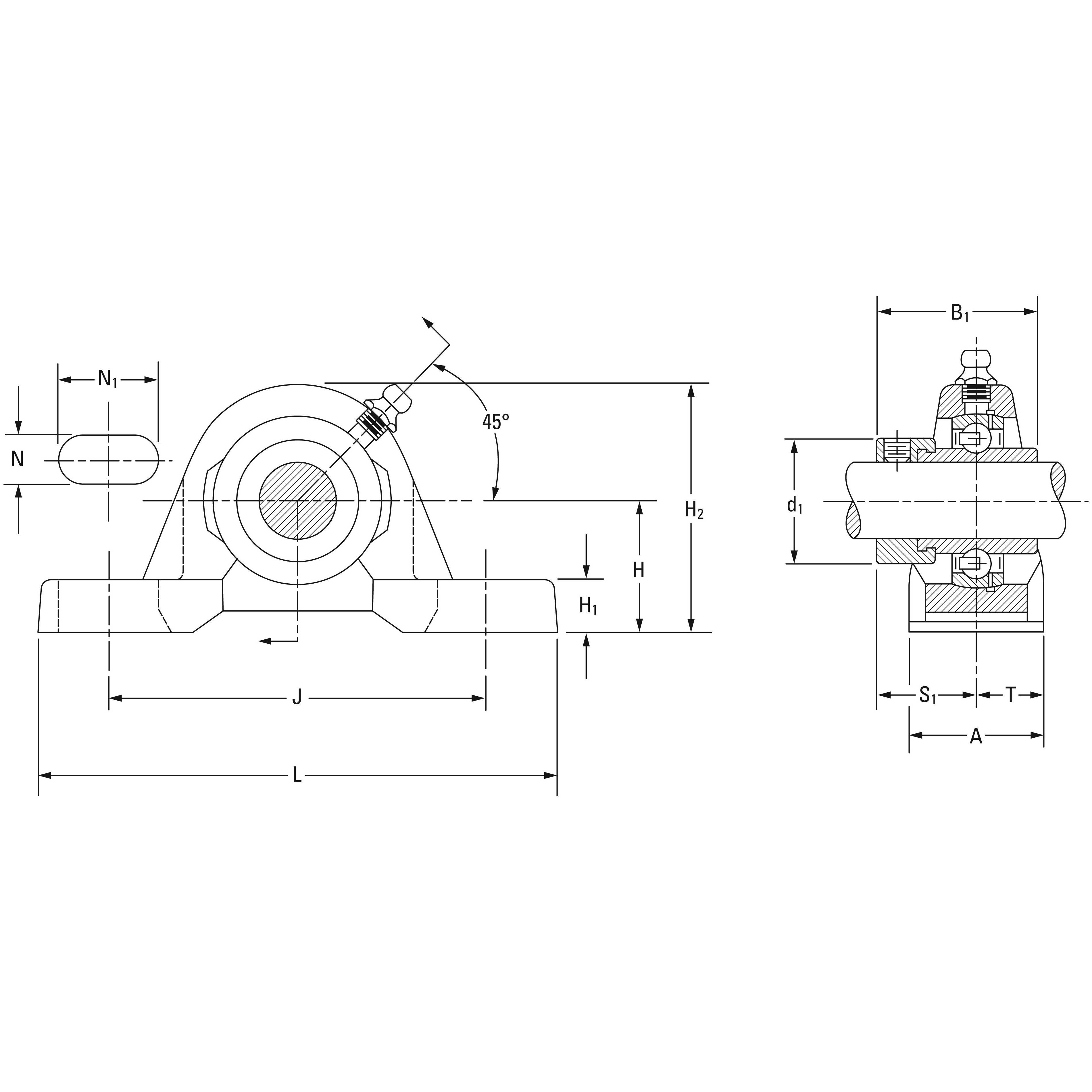

Dimensions

Base to Center Height H

 47.63 mm1.875 in

Total Length L

 166.7 mm6.563 in

Total Width A

 1.843 in46.8 mm

Bolt Hole Spacing J

 130.2 mm5.126 in

Bolt Hole Width N

 14.3 mm0.563 in

Bolt Hole Length N1

 24.6 mm0.969 in

Foot Height H1

 18.3 mm

Total Height H2

 95.3 mm3.752 in

Dimension L1

 55.6 mm2.189 in

Inside Ring Width B

 N/A

Center of Bearing from End S

 18.7 mm0.736 in

Dimension B1

 2.016 in51.2 mm

Basic Load Ratings

Static Load Rating

 3440 lbf15300 N

Dynamic Load Rating

 6400 lbf28500 N
