/Products/Electric Motors/Single Phase/Century/Room Air Conditioner/RAL1006 Century 1/8HP Fan Coil / Air Conditioner Electric Motor, 1075RPM
Click Image to Expand

Product ID: RAL1006

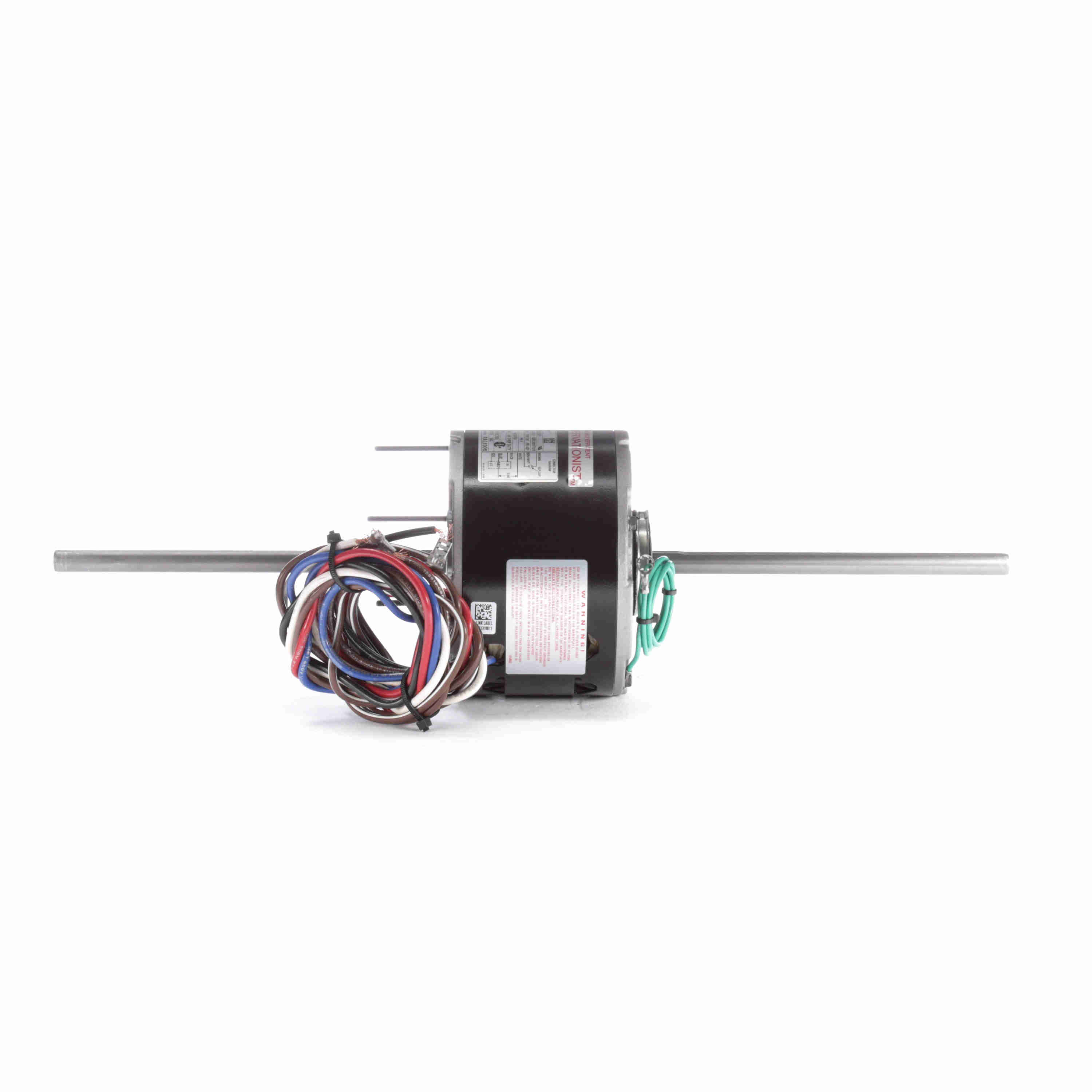

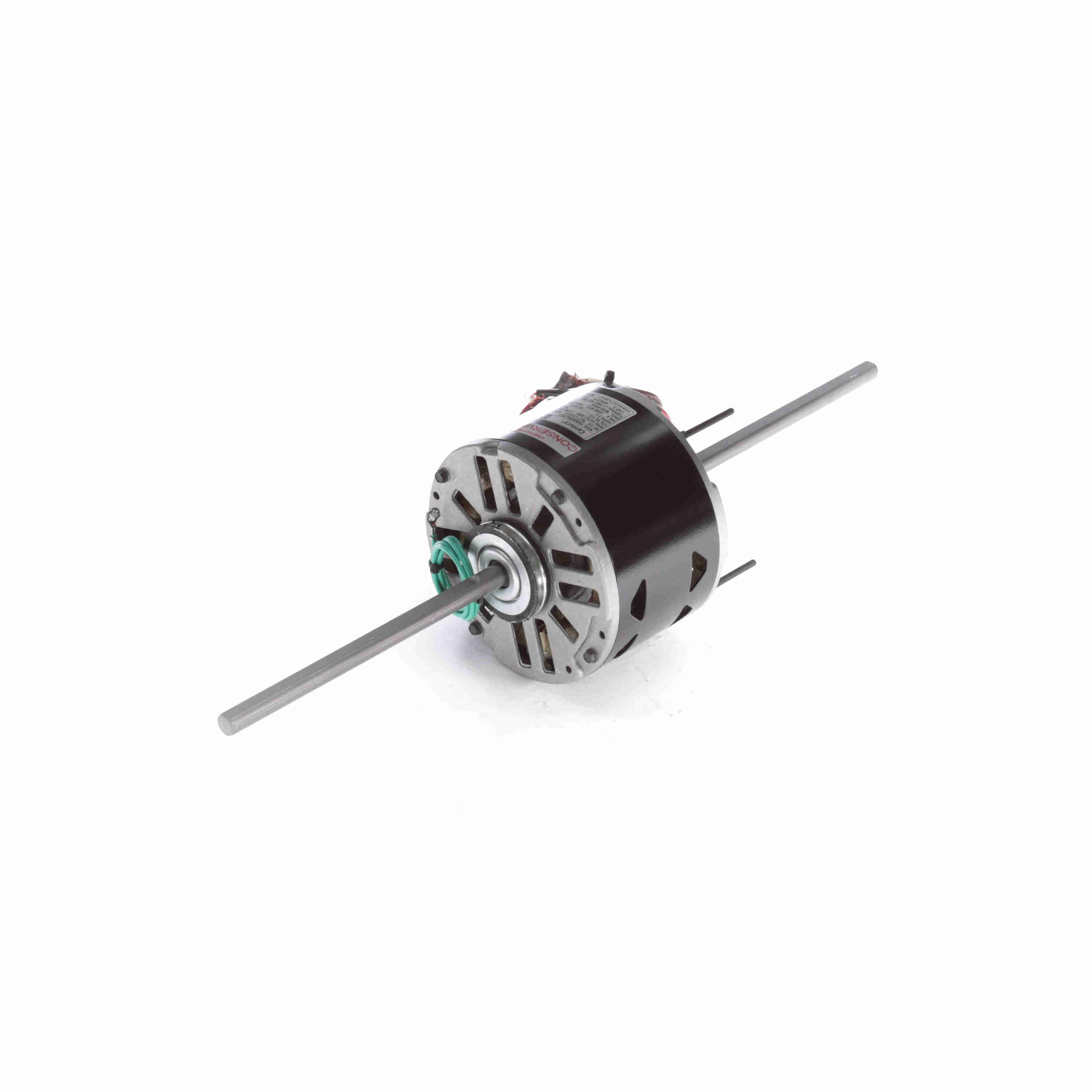

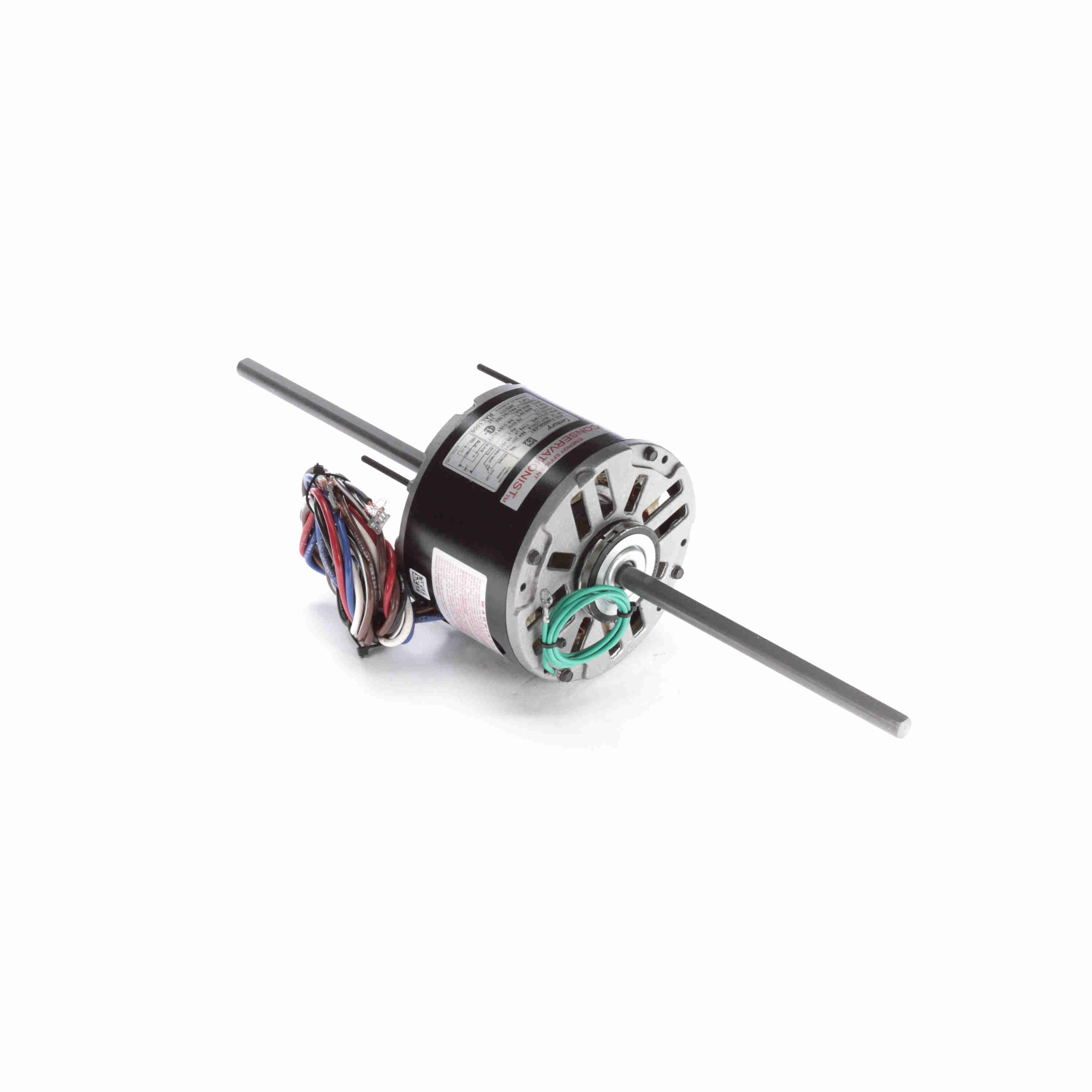

RAL1006 Century 1/8HP Fan Coil / Air Conditioner Electric Motor, 1075RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: RAL1006

Selected accessories will also be added to cart
$211.97 / Each
Quantity:
3-Speed, 48 Frame, 115VAC Single Phase 60Hz

Features

  • Fan Coil - Room Air Conditioner - Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Class A Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 35" Leads
  • Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

General Specifications

UPC: 786674030269 Weight: 11.00 LB
Packaged Length: 22.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/8 Hp Output KW: 0.10 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.0 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 48Y Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 60 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Ring/Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 20.00 in Frame Length: 3.13 in
Shaft Diameter: 0.500 in Shaft Extension: 8.3X.5X8.0 in

Speed & Load Characteristics
