/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base, "F" (D-Flange)/R393A Marathon 1HP/0.75kW IEC Metric Globetrotter Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 080T17FH15514

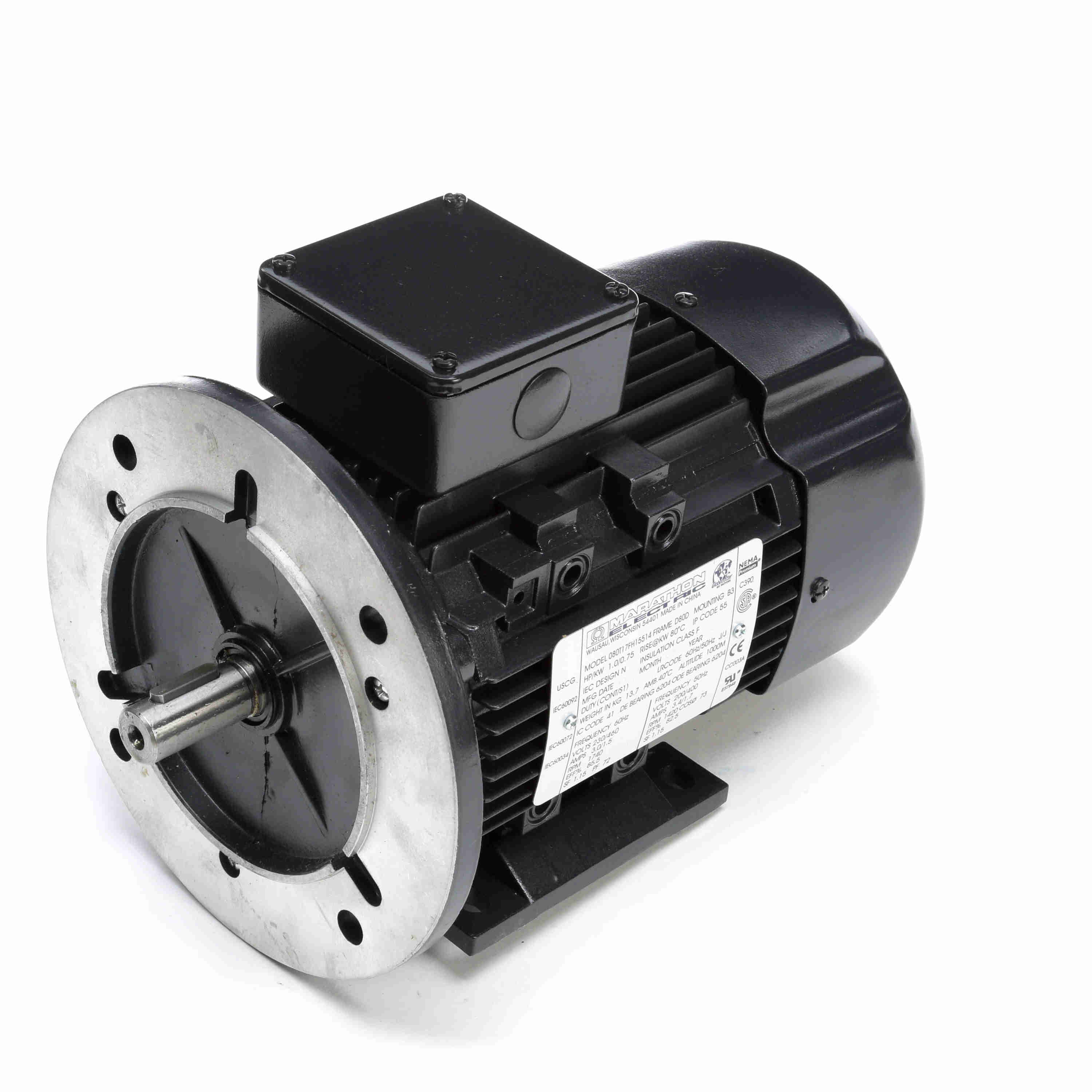

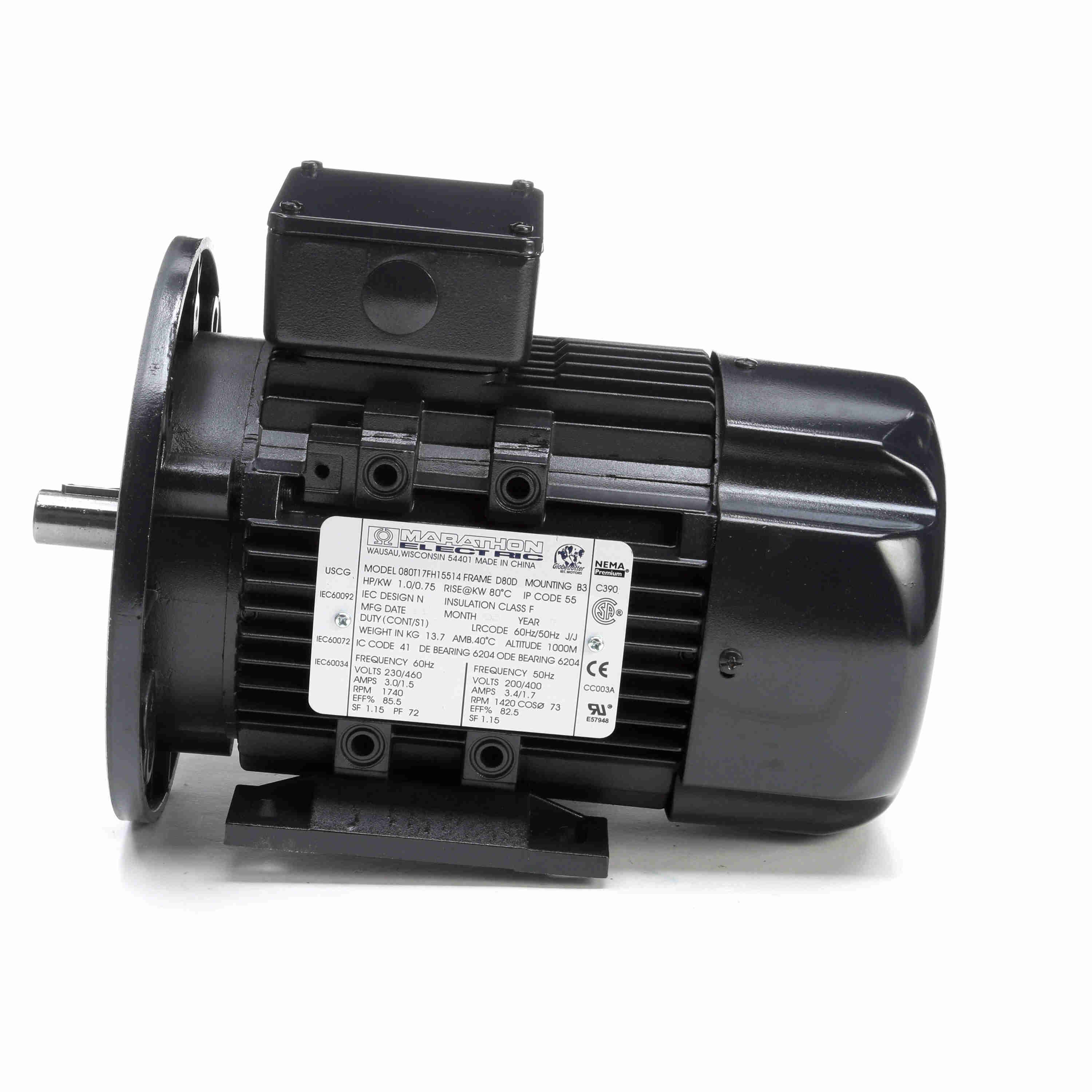

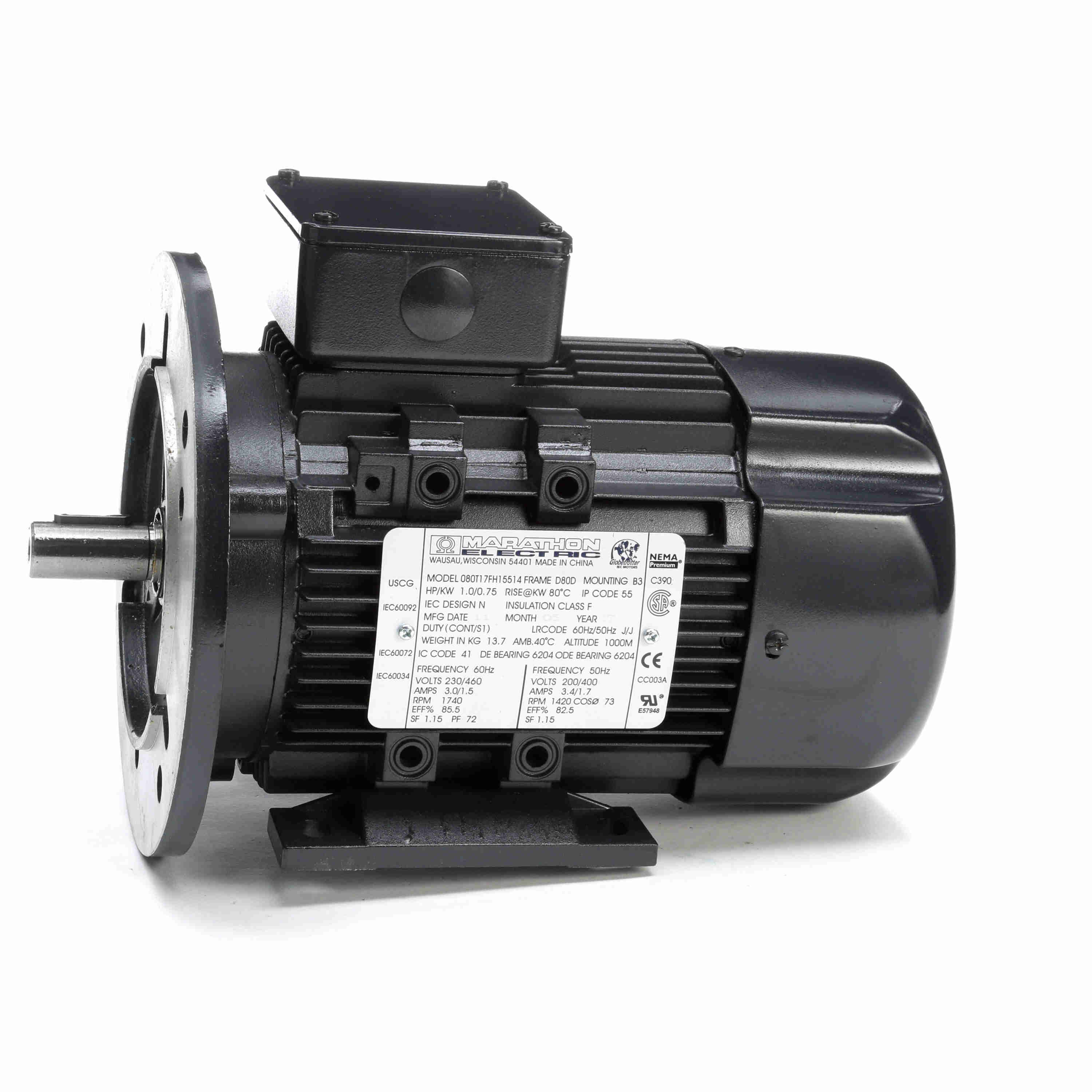

R393A Marathon 1HP/0.75kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 080T17FH15514

Selected accessories will also be added to cart

$655.97 / Each

Quantity:

TEFC, IP55, D80 Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 080T17FH15514, Rigid Base, "F" D-Flange, Aluminum Frame, 3/4" Shaft

Details
Purchase Components

Features

Aluminum (63-90 frame) or Cast Iron (100-250 frame) construction
Nameplated 60/50 hertz at same HP (except as noted )
Max Guard® Class F Insulation, Class B rise @ rated KW
IP55 weatherproof enclosure
Rotatable/Removable Base (63-90 frame)
Wye Start-Delta Run on 160 Frame and larger
10:1 Variable Torque, Constant Torque speed range as noted
Top Mounted/Oversized gasketed terminal box
Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)
Meets IEC 34 electrical standards; Meets IEC 72 dimensions and tolerances

General Specifications

UPC:	722856054371	Weight:	47.00 LB
Packaged Length:	14.17 IN	Packaged Width:	9.65 IN
Packaged Height:	10.24 IN

Nameplate Specifications

Output HP:	1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	3.0/1.5 A	Speed:	1740 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	85.5 %	Power Factor:	72
Duty:	Continuous	Insulation Class:	F
Design Code:	NO DESIGN CODE	KVA Code:	J
Frame:	D80	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6204	Opp Drive End Bearing Size:	6204
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	55

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Reversible
Resistance Main:	0 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Aluminum
Shaft Type:	IEC	Overall Length:	11.88 in
Frame Length:	6.10 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.57 in	Assembly/Box Mounting:	F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Break-Down	0.00	0.0	10.00	333.0	0	0.00	0.0	1.00
Full Load	1.50	100.0	3.00	100.0	1,740	0.00	0.0	1.00
Locked-Rotor	9.90	660.0	8.50	283.0	0	0.00	0.0	1.00
No Load	0.92	61.0	0.00	0.0	0	0.00	0.0	1.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %	150 %
Current (Amps)	0.86	0.91	1.00	1.20	1.50	1.70	1.80	2.10
Rated Output (KW)	0.08	0.25	0.44	0.65	0.87	0.99	1.09	1.32
Efficiency (%)	33.8	75.1	85.5	84.9	86.4	87.2	86.4	84.9
Power Factor (%)	12.1	34.1	55.6	68.0	72.4	73.4	75.7	79.1
Speed (RPM)	1,798	1,789	1,778	1,766	1,753	1,744	1,738	1,721
Temp. Rise @ FL	0.0	0.0	0.0	0.0	18.0	22.0	0.0	0.0
Torque (ft-lbs)	0.11	0.73	1.50	2.20	3.00	3.50	3.80	4.60
