Product ID: 071T17FH5508

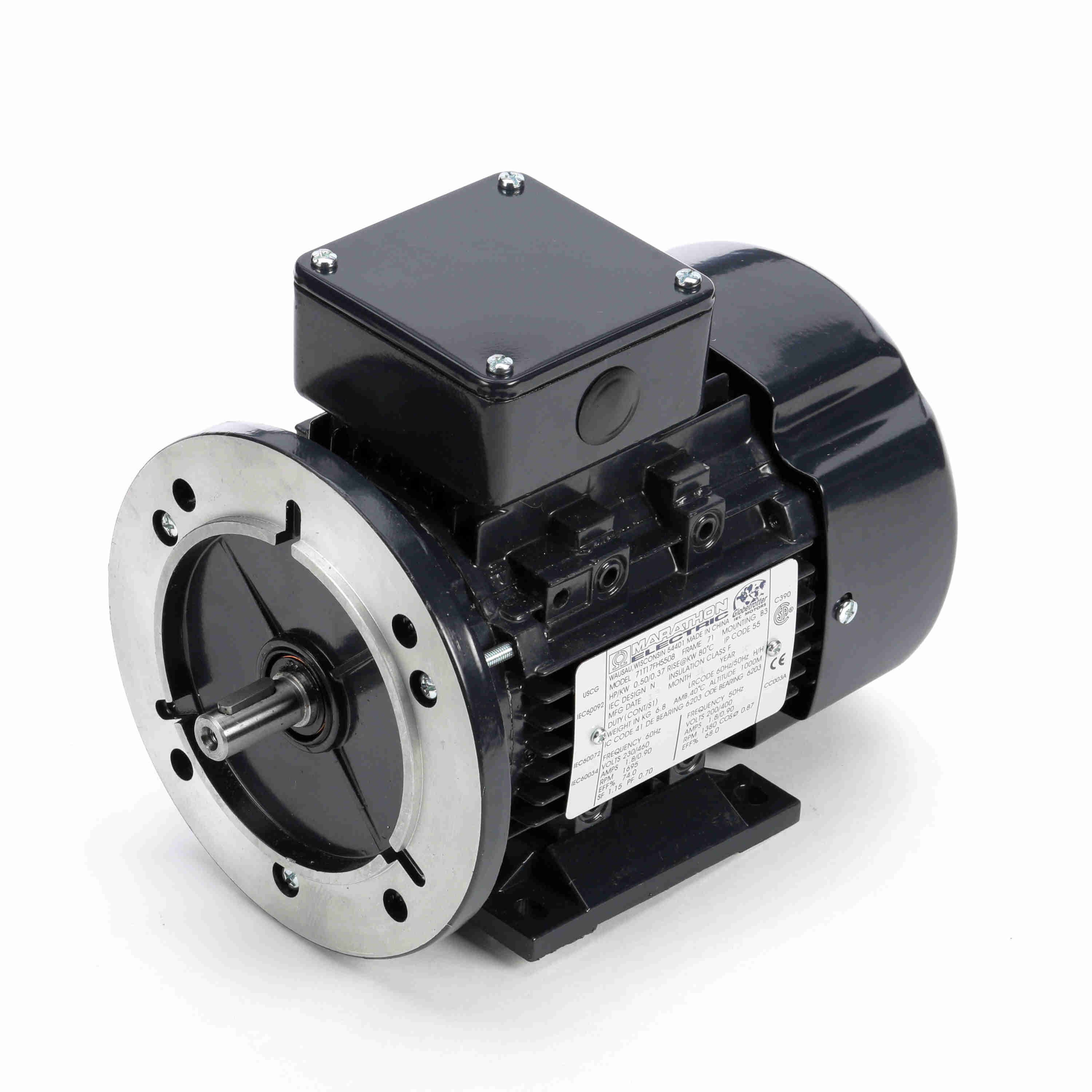

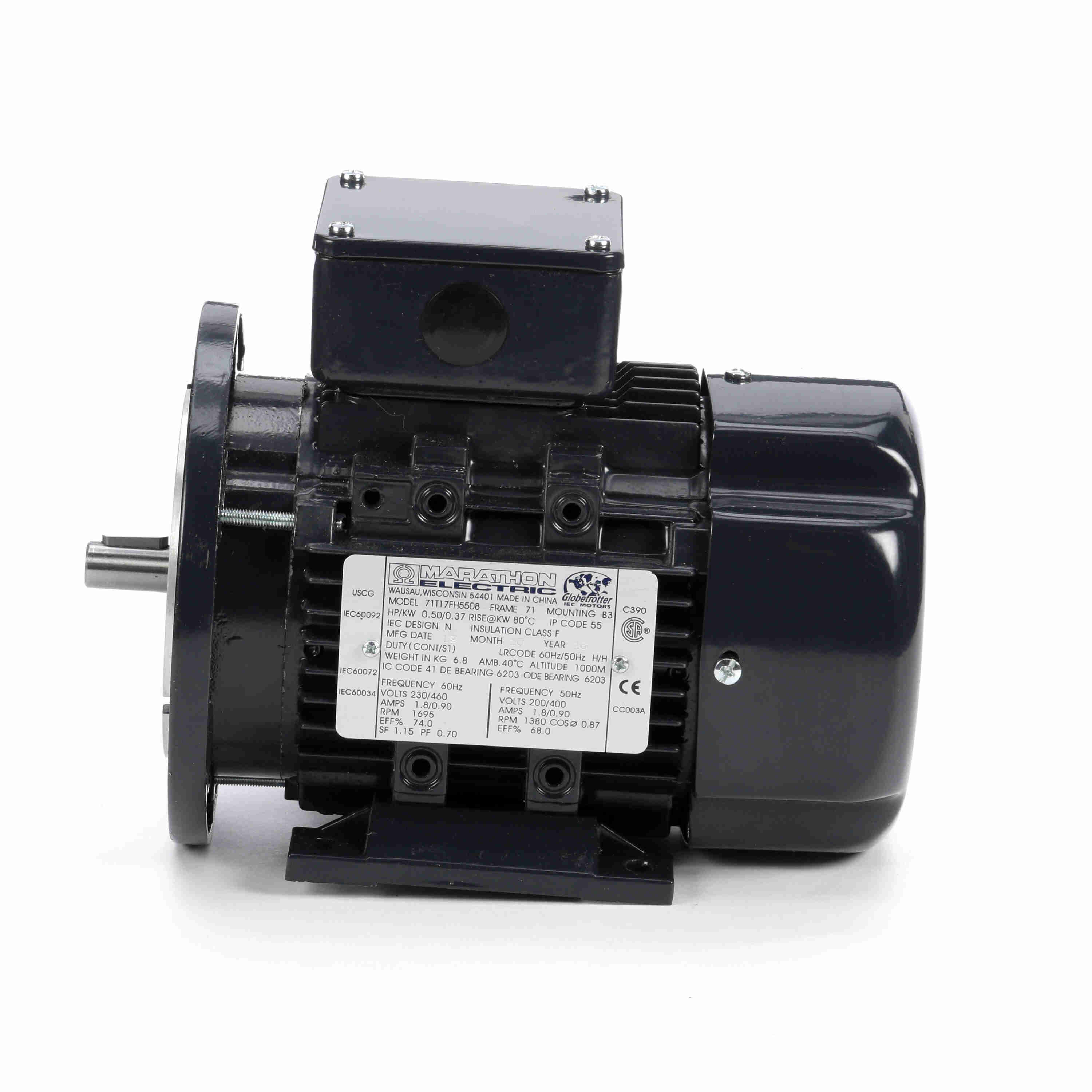

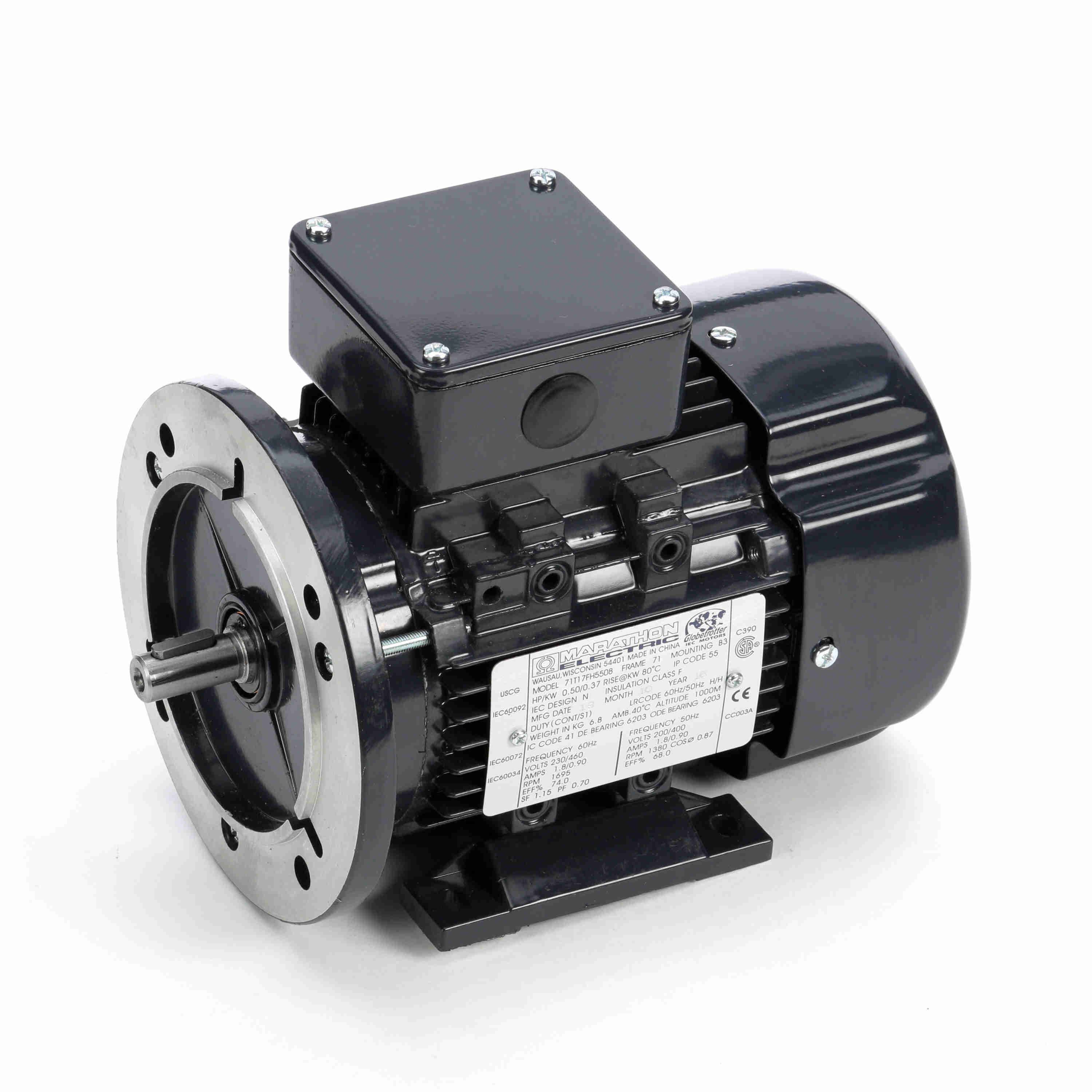

R387 Marathon 0.50HP/0.37kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 071T17FH5508

Selected accessories will also be added to cart

$361.97 / Each

Quantity:

TEFC, IP55, 71 Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 071T17FH5508, Rigid Base, "F" D-Flange, Aluminum Frame, 14mm Keyed Shaft

Details
Purchase Components

Features

Meets IE3 European and NEMA Premium® efficiencies
MAX GUARD® Class F Insulation, Class B rise @ rated KW
Wye Start-Delta Run on 160 Frame and larger
10:1 Variable Torque, Constant Torque speed range as noted
Top Mounted/Oversized gasketed terminal box

General Specifications

UPC:	722856027290	Weight:	17.00 LB
Packaged Length:	10.24 IN	Packaged Width:	6.89 IN
Packaged Height:	7.48 IN

Nameplate Specifications

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	1.8/0.90 A	Speed:	1695 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	74 %	Power Factor:	70
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	H
Frame:	71	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	55

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Rated	Starting Method:	Line Or Inverter
Poles:	4	Rotation:	Reversible
Resistance Main:	11.84 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Aluminum
Shaft Type:	IEC	Overall Length:	9.44 in
Frame Length:	4.68 in	Shaft Diameter:	0.555 in
Shaft Extension:	1.18 in	Assembly/Box Mounting:	F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	1.80		24.00	100.0	1,710			0.50
Break-Down	0.00		61.20	255.0	0			0.50
Pull-Up	0.00		56.40	235.0	0			0.50
Locked-Rotor	8.95		62.40	260.0	0			0.50

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	0.65	0.70	0.75	0.80	0.90	1.05	1.18
Rated Output (KW)	0.07	0.17	0.27	0.38	0.49	0.62	0.75
Efficiency (%)	0.0	56.0	69.5	73.2	73.8	72.3	70.3
Power Factor (%)	12.9	30.3	45.0	59.5	68.9	73.9	80.0
Speed (RPM)	1,797	1,777	1,755	1,735	1,710	1,678	1,646
Temp. Rise @ FL	0.0	0.0	0.0	0.0	40.0	0.0	0.0
Torque (ft-lbs)	0.00	6.00	12.00	18.00	24.00	30.00	36.00
