/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base/R313A Marathon, 1HP/0.75kW IEC Metric Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: 080T17FH15327

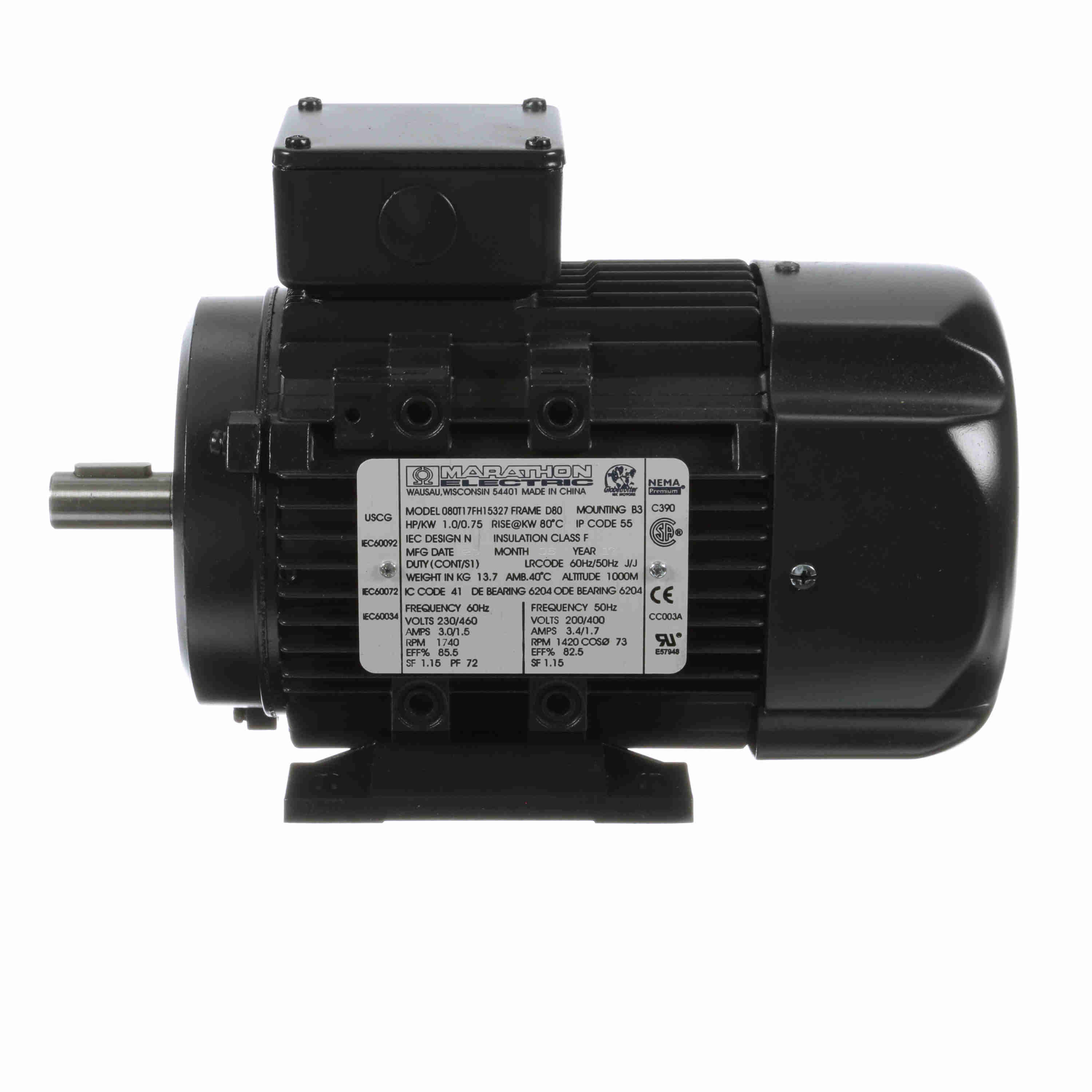

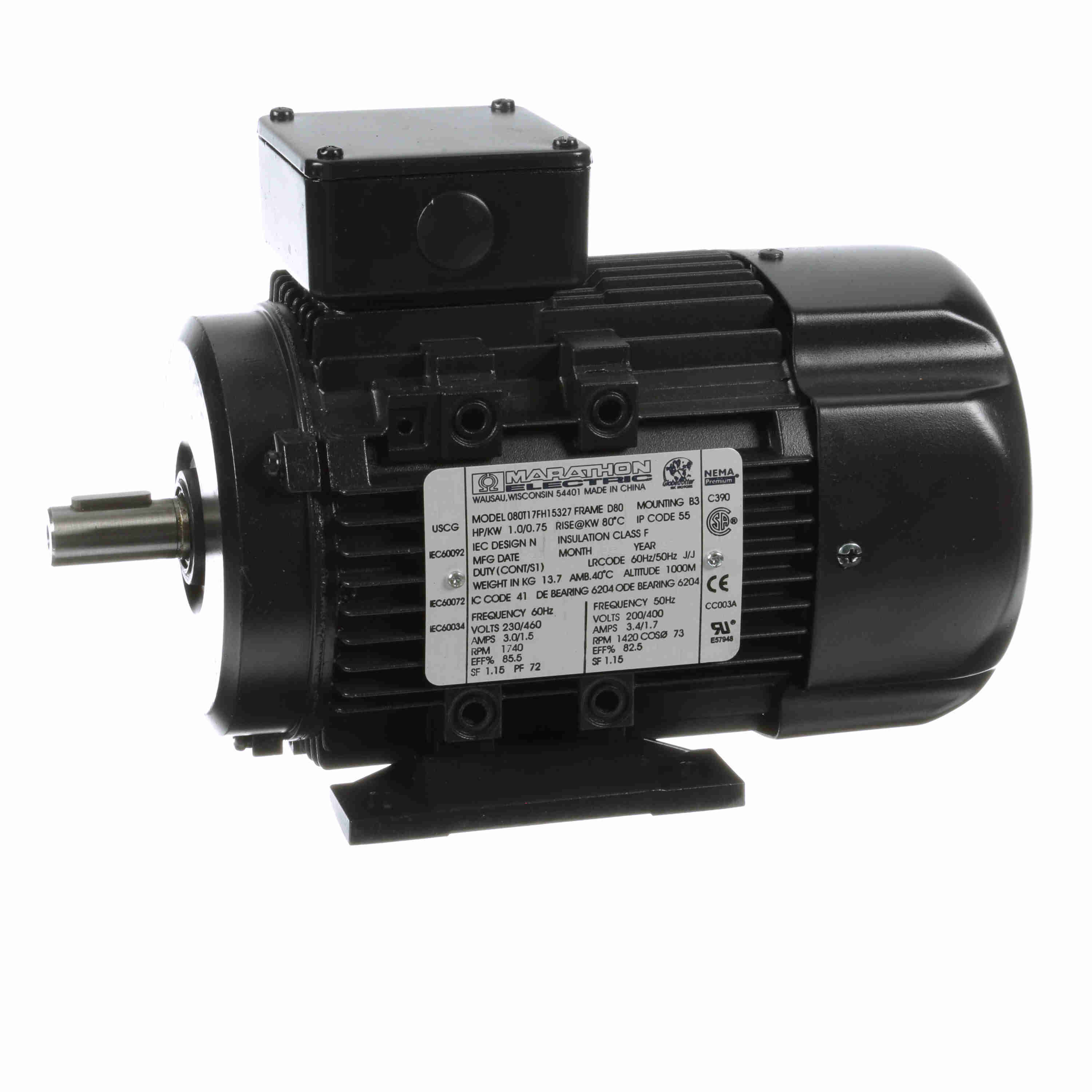

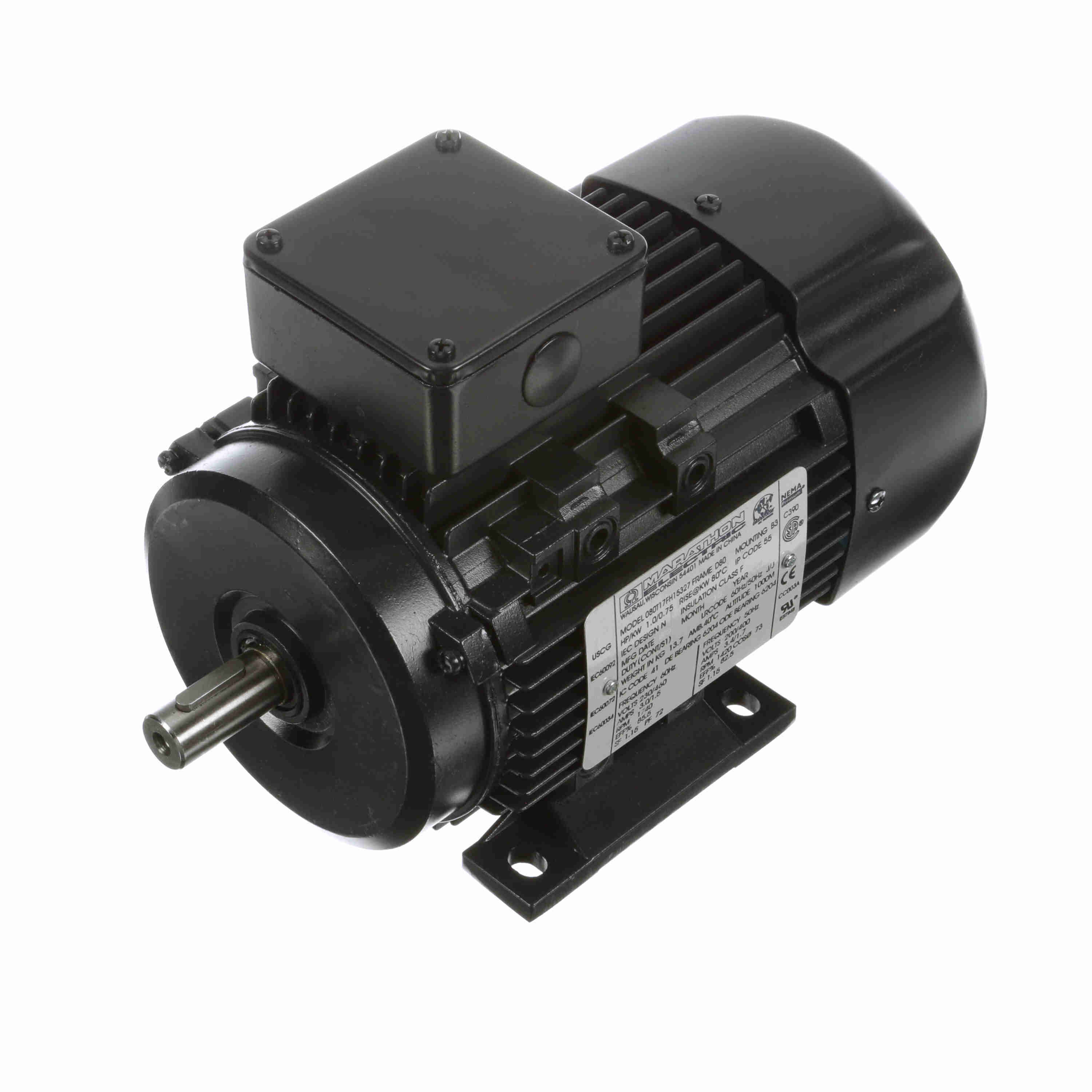

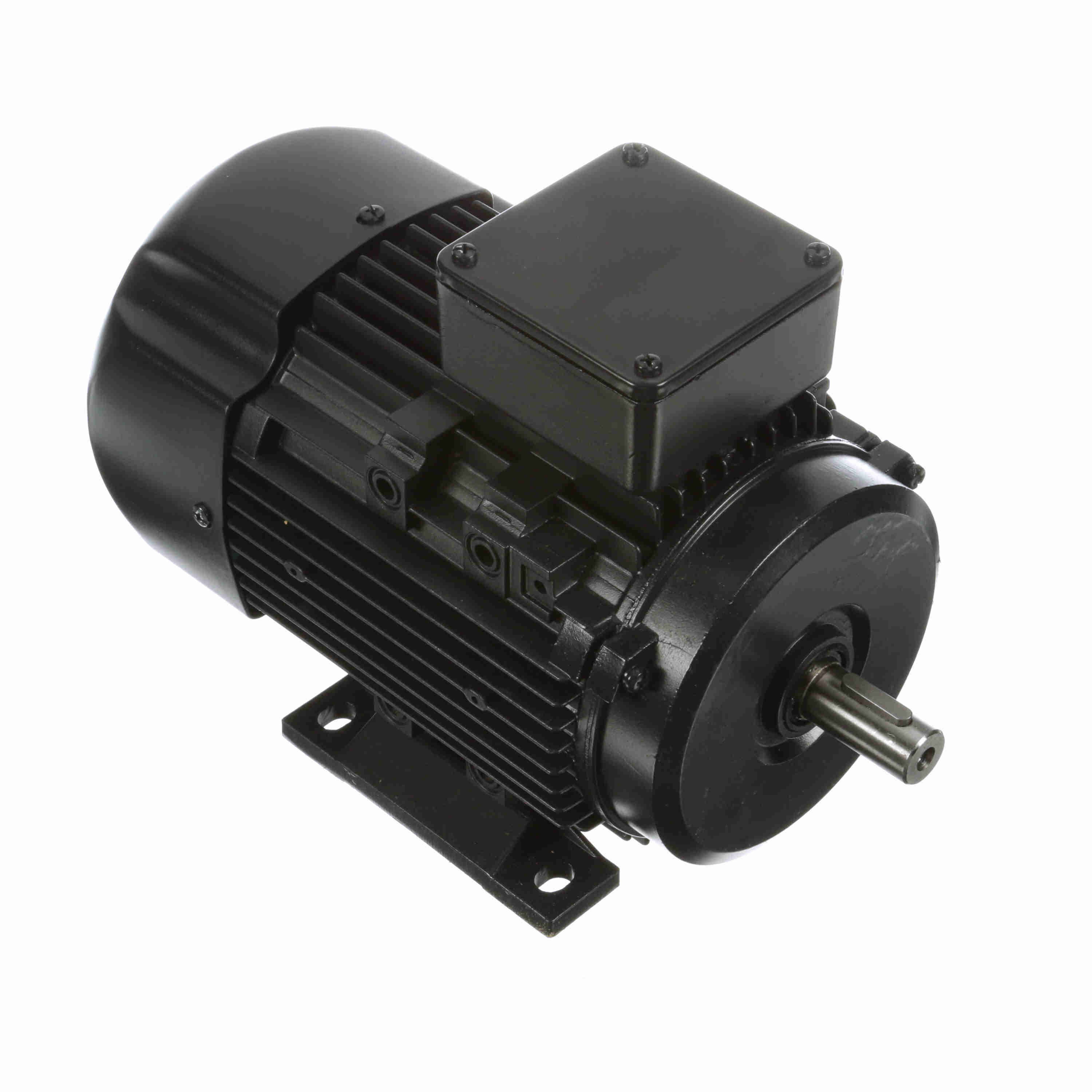

R313A Marathon, 1HP/0.75kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 080T17FH15327

Selected accessories will also be added to cart
$625.97 / Each
Quantity:
TEFC, IP55, 80 Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 080T17FH15327, Rigid Base, Aluminum Frame, 19mm Keyed Shaft

Features

  • Aluminum (63-90 frame) or Cast Iron (100-250 frame) construction
  • Nameplated 60/50 hertz at same HP (except as noted )
  • Max Guard® Class F Insulation, Class B rise @ rated KW
  • IP55 weatherproof enclosure
  • Rotatable/Removable Base (63-90 frame)
  • Wye Start-Delta Run on 160 Frame and larger
  • Meets IEC 34 electrical standards; Meets IEC 72 dimensions and tolerances
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)

General Specifications

UPC: 722856054333 Weight: 48.00 LB
Packaged Length: 14.17 IN Packaged Width: 9.65 IN
Packaged Height: 10.24 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.0/1.5 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 72
Duty: Continuous Insulation Class: F
Design Code: NO DESIGN CODE KVA Code: J
Frame: 80 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 11.88 in
Frame Length: 6.10 in Shaft Diameter: 0.750 in
Shaft Extension: 1.57 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 9.90 660.0 8.50 283.0 0 0.00 0.0 1.00
Full Load 1.50 100.0 3.00 100.0 1,740 0.00 0.0 1.00
No Load 0.92 61.0 0.00 0.0 0 0.00 0.0 1.00
Break-Down 0.00 0.0 10.00 333.0 0 0.00 0.0 1.00
