/Products/Phase Converters/Phase Technologies/Phase Perfect (PT)/Enterprise Series, 240V/PTE010R Phase Perfect Enterprise 10HP Digital Phase Converter

Product ID: PTE010R

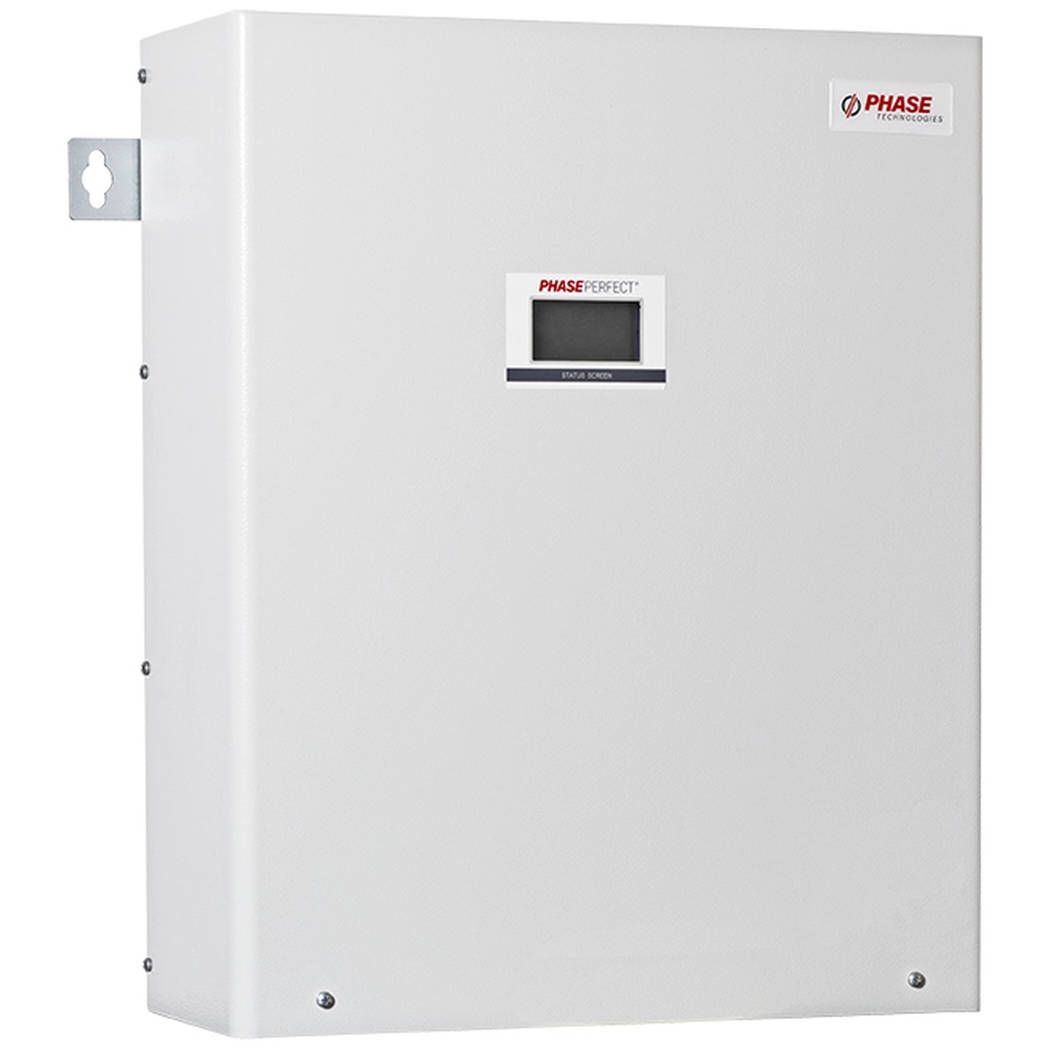

PTE010R Phase Perfect Enterprise 10HP Digital Phase Converter

MFG: Phase Technologies, LLC
MFG Part Number: PTE010R

Temporarily out of stock

Selected accessories will also be added to cart

$3,418.00 / Each

240VAC Single Phase Input, 240VAC 3 Phase, 36 Amp Max Output, NEMA 3R Outdoor Enclosure, 14.9kVA, 25" x 23" 8" Enclosure

Details
Purchase Components

Description

A variety of commercial and industrial electrical equipment require three-phase power. Electric utilities typically do not install three-phase power because it costs significantly more than a single-phase installation. Rotary phase converters, static phase converters and phase converting variable frequency drives (VFD) generate three-phase power from a single-phase source. However, these technologies have serious limitations, which motivated Phase Technologies, LLC to develop the Phase Perfect^® digital phase converter. This patented technology overcomes limitations of earlier phase converter designs and is an affordable alternative to utility installed three-phase power.

A Phase Perfect^® digital phase converter provides excellent power quality under all load conditions. The Phase Perfect® operates with near unity power factor and essentially no harmonic distortion of the input while supplying balanced undistorted output voltage. It can safely power virtually any three-phase load within its rated capacity. Three-phase equipment such as submersible pumps, center-pivot irrigation systems, machine tools, sawmills, elevators, HVAC equipment, and CNC equipment are powered easily and reliably. Even when three-phase transmission lines are nearby, installing three-phase service is not cost justified in many small to medium-sized applications. In these cases, Phase Perfect^® offers an affordable alternative source of three-phase power.

Specifications

Brand	Phase Perfect
Model Number	PTE010R
Voltage	240VAC
Rated Horsepower	10 HP
Output kVA	14.9 kVA
Input Voltage	187-260 VAC
Output Voltage	Same as Input Voltage
Phase-to-Phase Voltage Balance	Within 2%
Maximum Steady-State Output	36 Amps
Max Overload	Class 4
Standby Power Consumption	74 Watts 252 BTU/hr
Efficiency	98.7% Typical
Recommended Breaker Size	80 Amps
Minimum Input Wire Size	3 AWG (60°C) 4 AWG (75°C)
Enclosure	NEMA Type 3R Outdoor
Dimensions	25-1/16" x 22-5/8" x 7-15/16"
Weight	51 lbs
Operating Temperature Range	-10°C to 50°C 14°F to 122°F
Storage Temperature Range	-20°C to 60°C -4°F to 140°F
Noise Rating	85 dBA
Start Delay on Power Up	2 Seconds
Warranty	1 Year
