Product ID: PTE007R

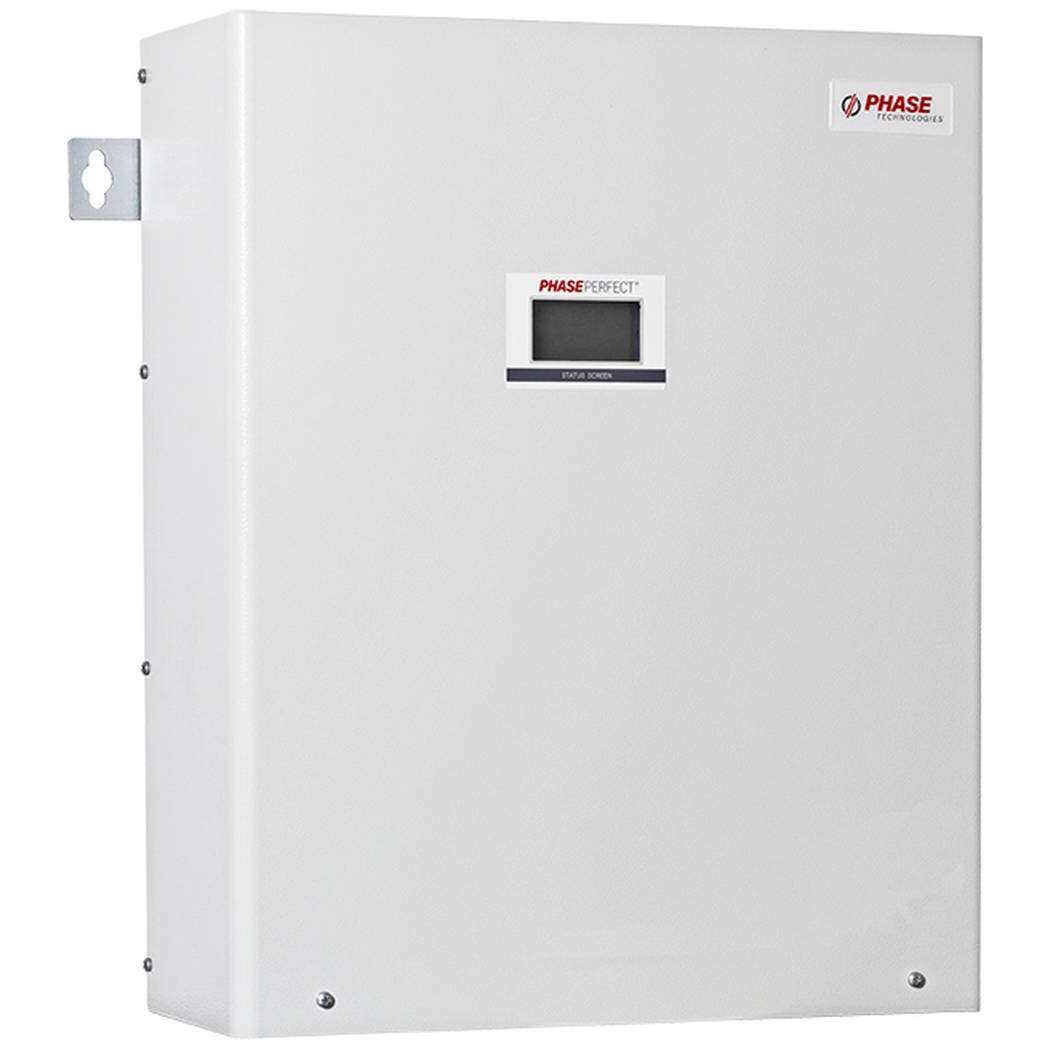

PTE007R Phase Perfect Enterprise 7.5HP Digital Phase Converter

MFG: Phase Technologies, LLC
MFG Part Number: PTE007R

Available Stock: 1
Selected accessories will also be added to cart
$2,717.00 / Each
Quantity:
240VAC Single Phase Input, 240VAC 3 Phase 26 Amp Output, NEMA 3R Outdoor Enclosure, 10.8kVA, 25" x 23" x 8" Enclosure

Description

A variety of commercial and industrial electrical equipment require three-phase power. Electric utilities typically do not install three-phase power because it costs significantly more than a single-phase installation. Rotary phase converters, static phase converters and phase converting variable frequency drives (VFD) generate three-phase power from a single-phase source. However, these technologies have serious limitations, which motivated Phase Technologies, LLC to develop the Phase Perfect® digital phase converter. This patented technology overcomes limitations of earlier phase converter designs and is an affordable alternative to utility installed three-phase power.

A Phase Perfect® digital phase converter provides excellent power quality under all load conditions.  The Phase Perfect® operates with near unity power factor and essentially no harmonic distortion of the input while supplying balanced undistorted output voltage. It can safely power virtually any three-phase load within its rated capacity. Three-phase equipment such as submersible pumps, center-pivot irrigation systems, machine tools, sawmills, elevators, HVAC equipment, and CNC equipment are powered easily and reliably. Even when three-phase transmission lines are nearby, installing three-phase service is not cost justified in many small to medium-sized applications. In these cases, Phase Perfect® offers an affordable alternative source of three-phase power.

Specifications

Brand Phase Perfect
Model Number PTE007R
Voltage 240VAC
Rated Horsepower 7.5 HP
Output kVA 10.8 kVA
Input Voltage 187-260 VAC
Output Voltage Same as Input Voltage
Phase-to-Phase Voltage Balance Within 2%
Maximum Steady-State Output 26 Amps
Max Overload Class 4
Standby Power Consumption 70 Watts
239 BTU/hr
Efficiency 98.7% Typical
Recommended Breaker Size 60 Amps
Minimum Input Wire Size 4 AWG (60°C)
6 AWG (75°C)
Enclosure NEMA Type 3R Outdoor
Dimensions 25-1/16" x 22-5/8" x 7-15/16"
Weight 51 lbs
Operating Temperature Range -10°C to 50°C
14°F to 122°F
Storage Temperature Range -20°C to 60°C
-4°F to 140°F
Noise Rating 85 dBA
Start Delay on Power Up 2 Seconds
Warranty 1 Year
