Product ID: PT420R

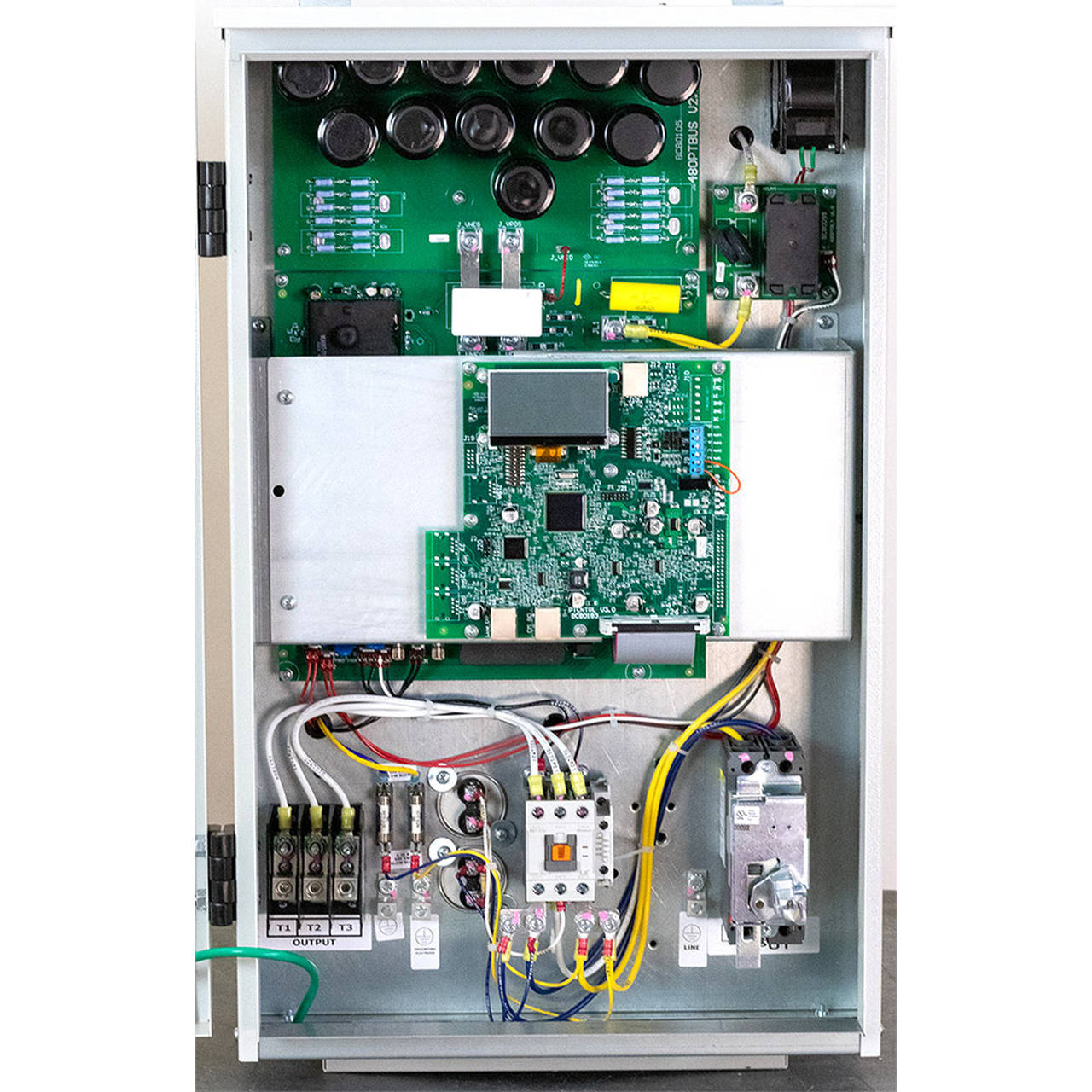

PT420R Phase Perfect 20HP Digital Phase Converter, 480VAC

MFG: Phase Technologies, LLC
MFG Part Number: PT420R

Temporarily out of stock
Selected accessories will also be added to cart
$6,639.00 / Each
NEMA Type 3R Outdoor Enclosure, 27 kVA, 32 Amps

Description

A variety of commercial and industrial electrical equipment require three-phase power. Electric utilities typically do not install three-phase power because it costs significantly more than a single-phase installation. Rotary phase converters, static phase converters and phase converting variable frequency drives (VFD) generate three-phase power from a single-phase source. However, these technologies have serious limitations, which motivated Phase Technologies, LLC to develop the Phase Perfect® digital phase converter. This patented technology overcomes limitations of earlier phase converter designs and is an affordable alternative to utility installed three-phase power.

A Phase Perfect® digital phase converter provides excellent power quality under all load conditions.  The Phase Perfect® operates with near unity power factor and essentially no harmonic distortion of the input while supplying balanced undistorted output voltage. It can safely power virtually any three-phase load within its rated capacity. Three-phase equipment such as submersible pumps, center-pivot irrigation systems, machine tools, sawmills, elevators, HVAC equipment, and CNC equipment are powered easily and reliably. Even when three-phase transmission lines are nearby, installing three-phase service is not cost justified in many small to medium-sized applications. In these cases, Phase Perfect® offers an affordable alternative source of three-phase power.

Specifications

Brand Phase Perfect
Model Number PT420R
Voltage 480 VAC
Rated Horsepower 20 HP
Output kVA 27 kVA
Input Voltage 440 to 520 VAC
Output Voltage Same as Input Voltage
Phase-to-Phase Voltage Balance Within 1%
Maxium Steady-State Output 32 Amps
Maxium Overload 175 Amps for 4 Seconds
Standby Power Consumption 74 Watts
Efficiency 97% Typical
Recommended Breaker Size 70 Amps
Minimum Wire Size N/A
Enclosure NEMA Type 3R, Outdoor, Rainproof
Dimensions 28" x 22" x 15"
Weight 74 lbs
Operating Temperature Range 0°C to 50°C
32°F to 122°F
Storage Temperature Range -20°C to 50°C
-4°F to 122°F
Warranty 1 Year

Links

Applications

  • CNC
  • HVAC
  • Elevators
  • Winery
  • Machine Shops
  • Wood Working
  • Irrigation
  • Oil & Gas
  • Polishing Equipment
  • Grinders
