Product ID: PT010

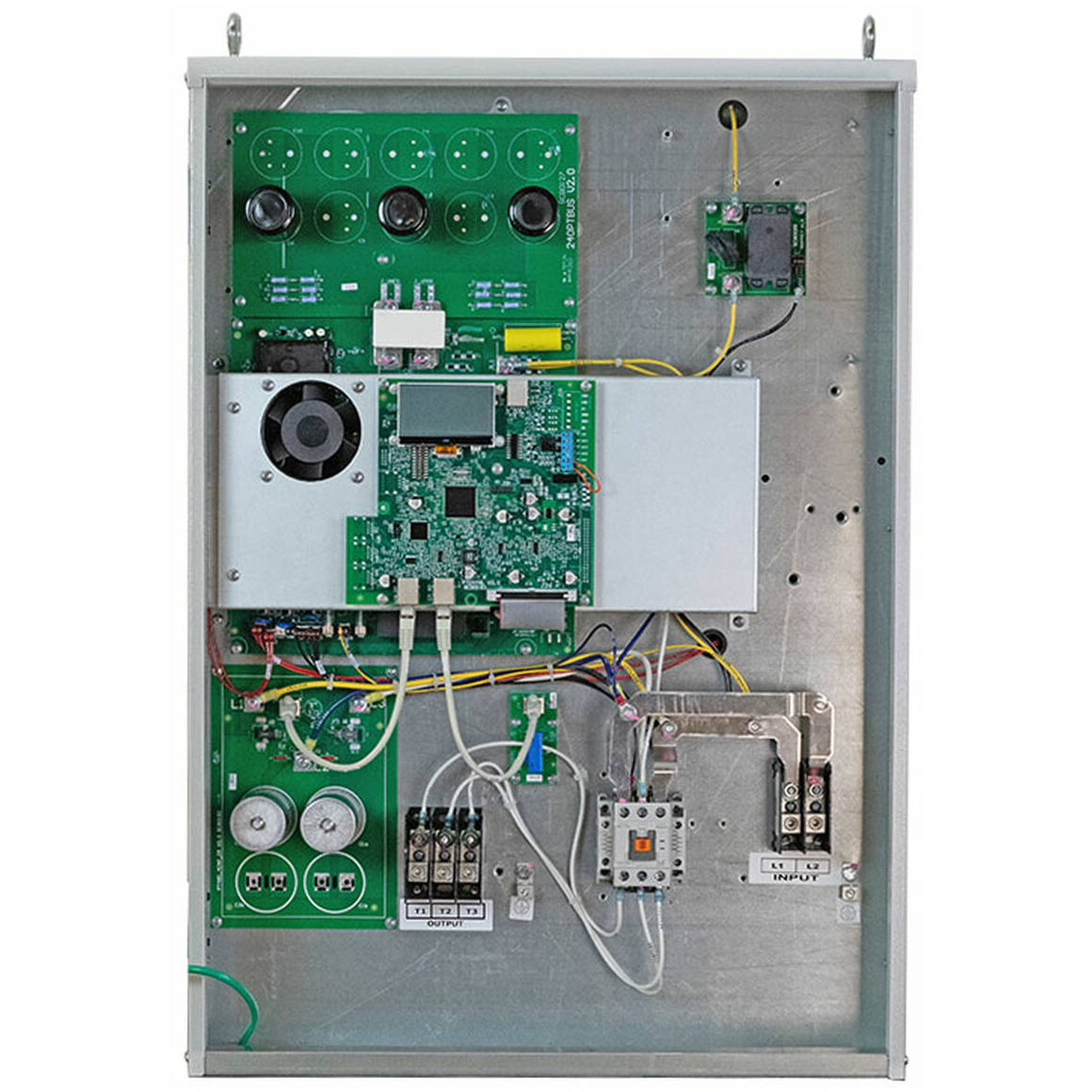

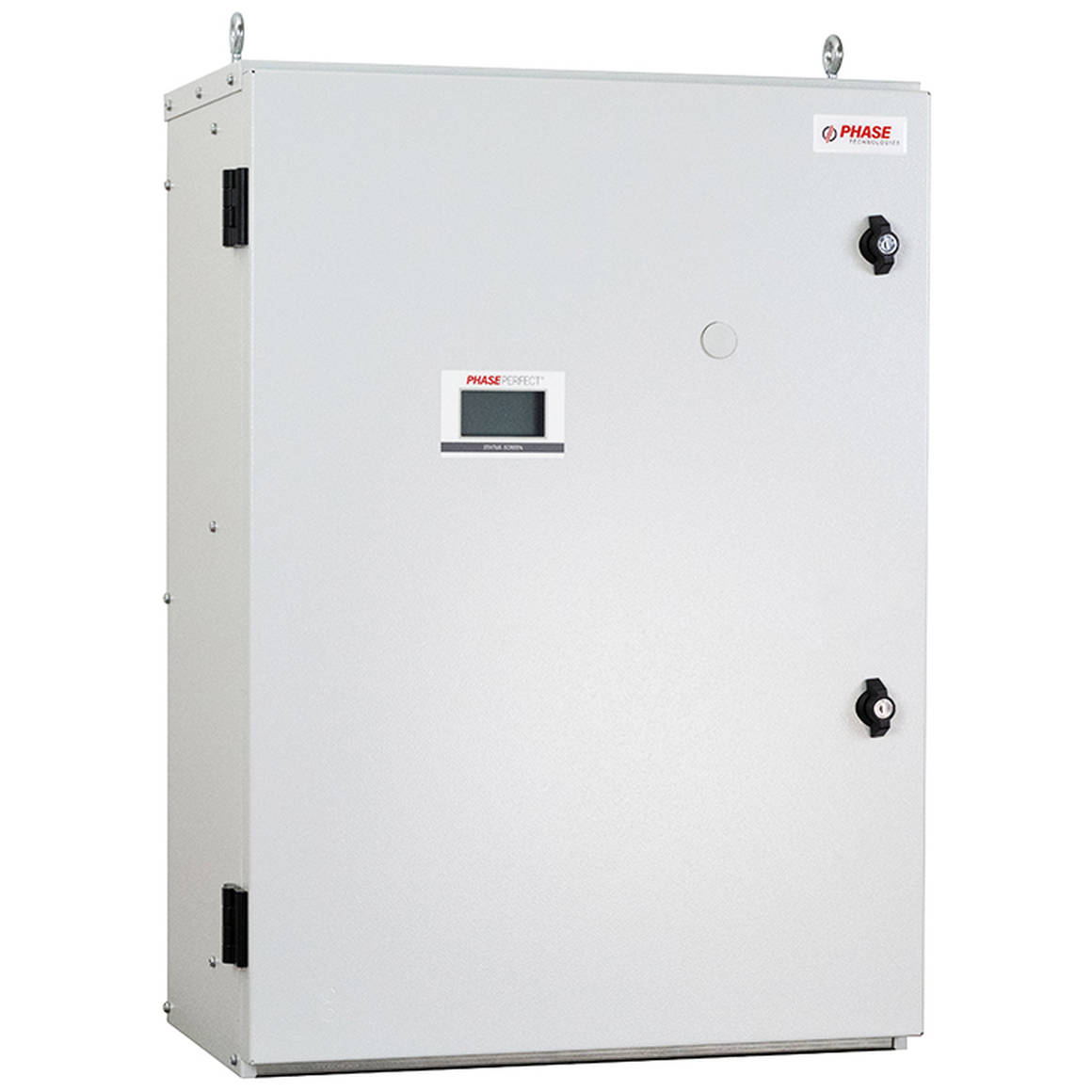

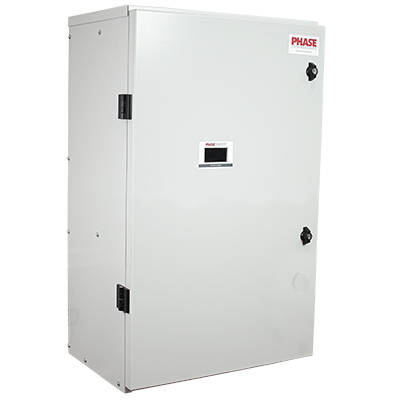

PT010 Phase Perfect 10HP Digital Phase Converter, 240VAC

MFG: Phase Technologies, LLC
MFG Part Number: PT010

Temporarily out of stock
Selected accessories will also be added to cart
$4,466.00 / Each
NEMA Type 1 Indoor Enclosure, 14.9 KVA, 36 Amps

Description

A variety of commercial and industrial electrical equipment require three-phase power. Electric utilities typically do not install three-phase power because it costs significantly more than a single-phase installation. Rotary phase converters, static phase converters and phase converting variable frequency drives (VFD) generate three-phase power from a single-phase source. However, these technologies have serious limitations, which motivated Phase Technologies, LLC to develop the Phase Perfect® digital phase converter. This patented technology overcomes limitations of earlier phase converter designs and is an affordable alternative to utility installed three-phase power.

A Phase Perfect® digital phase converter provides excellent power quality under all load conditions.  The Phase Perfect® operates with near unity power factor and essentially no harmonic distortion of the input while supplying balanced undistorted output voltage. It can safely power virtually any three-phase load within its rated capacity. Three-phase equipment such as submersible pumps, center-pivot irrigation systems, machine tools, sawmills, elevators, HVAC equipment, and CNC equipment are powered easily and reliably. Even when three-phase transmission lines are nearby, installing three-phase service is not cost justified in many small to medium-sized applications. In these cases, Phase Perfect® offers an affordable alternative source of three-phase power.

Specifications

Brand Phase Perfect
Model Number PT010
Voltage 240VAC
Rated Horsepower 10 HP
Output kVA 14.9 kVA
Input Voltage 187 to 260 VAC
Output Voltage Same as Input Voltage
Phase-to-Phase Voltage Balance Within 2%
Maxium Steady-State Output 36 Amps
Max Overload Class 4
Standby Power Consumption 74 Watts
Efficiency 98.7% Typical
Recommended Breaker Size 80 Amps
Minimum Wire Size 4 AWG
Enclosure NEMA Type 1 Indoor
Dimensions 37" x 25" x 17"
Weight 102 lbs
Operating Temperature Range -10°C to 50°C
14°F to 122°F
Storage Temperature Range -20°C to 60°C
-4°F to 140°F
Noise Rating 75 dBA (with Fan Running)
50dBA (without Fan Running)
Start Delay on Power Up 2 Seconds
Warranty 1 Year

Links

Applications

  • CNC
  • HVAC
  • Elevators
  • Winery
  • Machine Shops
  • Wood Working
  • Irrigation
  • Oil & Gas
  • Polishing Equipment
  • Grinders
