/Products/Pumps/Seals/PS-800 U.S. Seal Mfg 5/8" Pump Seal
Click Image to Expand

Product ID: PS-800

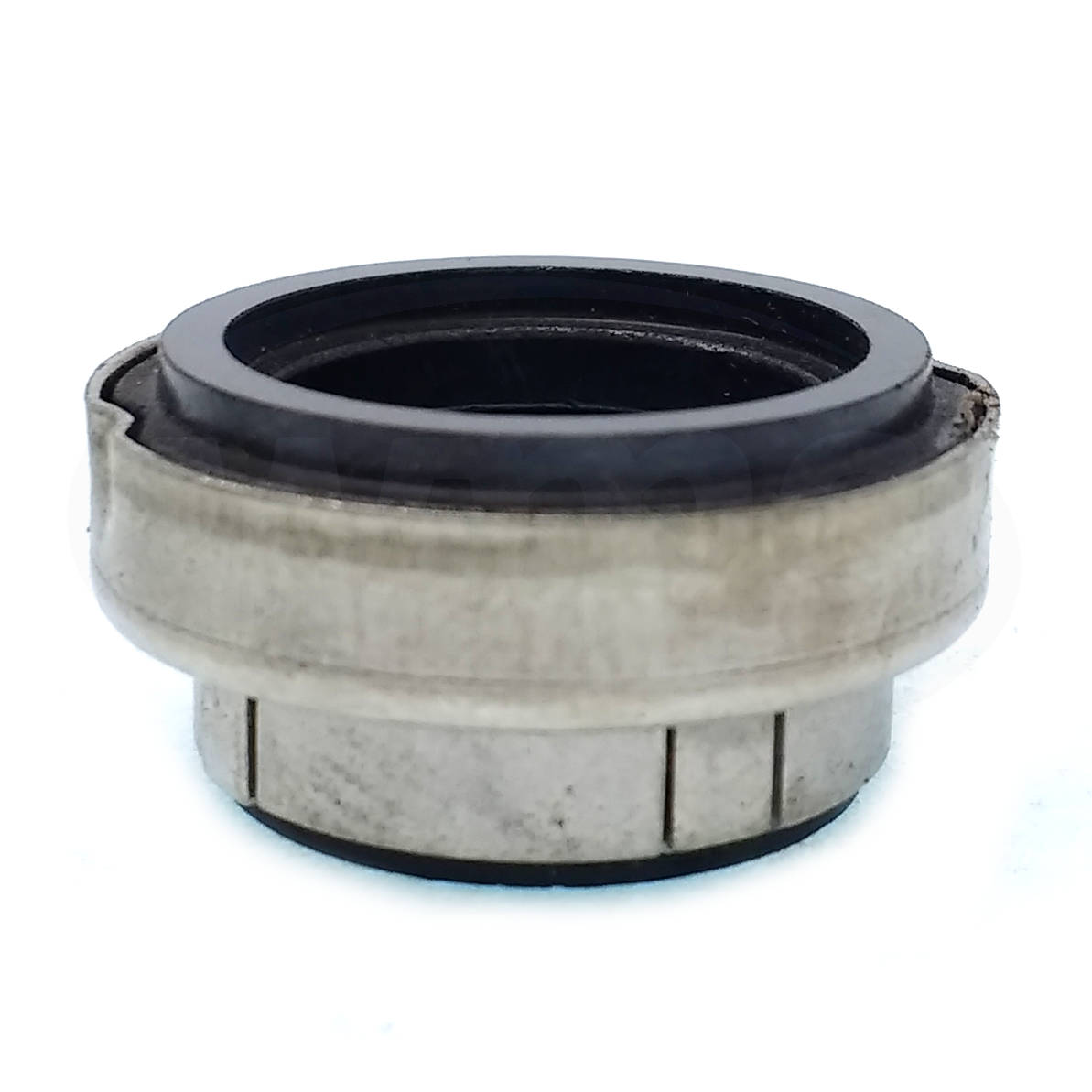

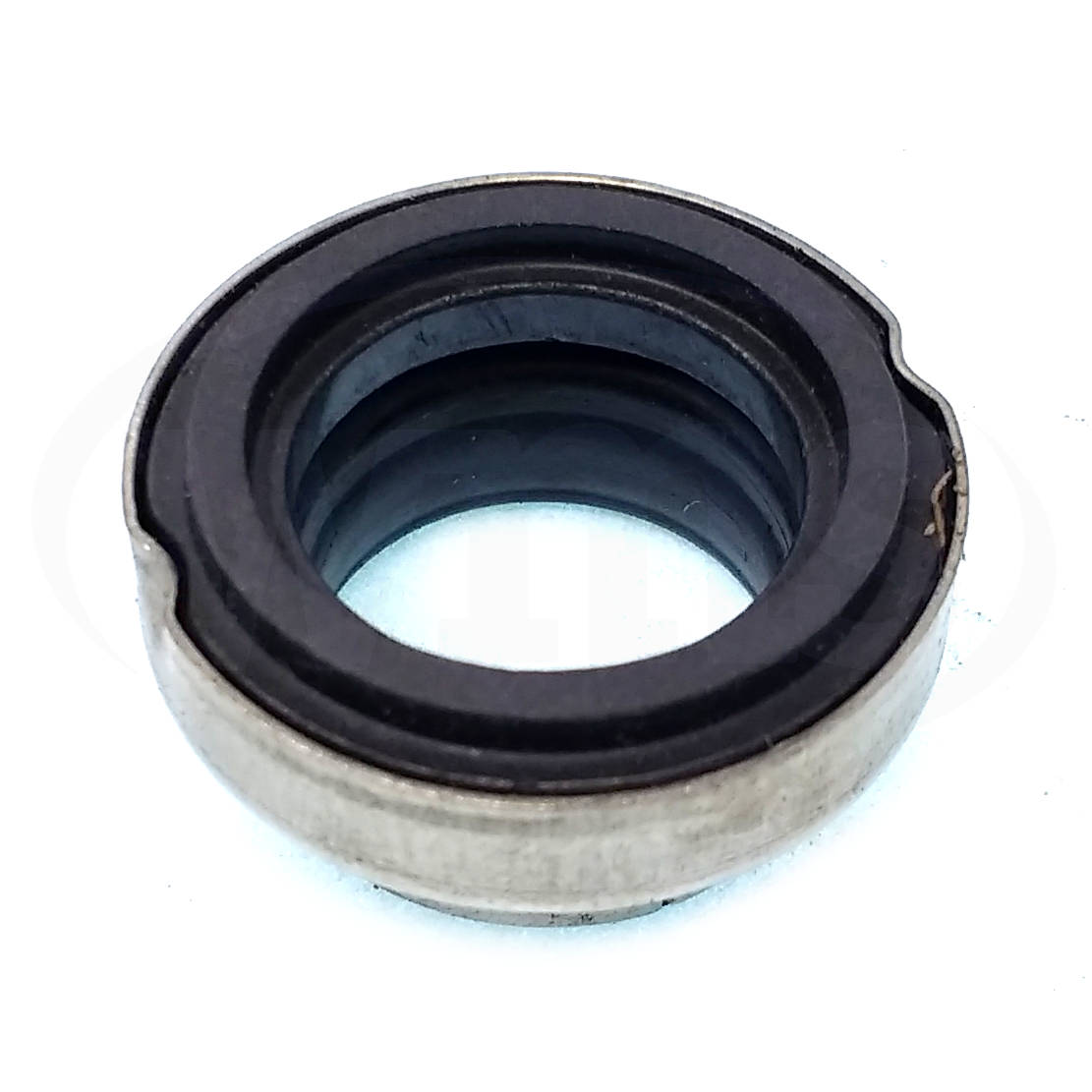

PS-800 U.S. Seal Mfg 5/8" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-800

Available Stock: 2
Selected accessories will also be added to cart
$18.79 / Each
Quantity:
BMFJF

Description

Specifications

Seal Size 0.625
5/8”
Head Figure C
Head Outside Diameter 1-1/16”
1.062”
Head Operating Height 1-3/16”
1.187”
Mating Ring Figure 1
Mating Ring Bore 1.156”
Mating Ring Thickness 5/16”
0.312”
Material Code BMFJF
Buna Secondary Seals
Molded Plastic Primary Rings
Stainless Steel Metal Parts

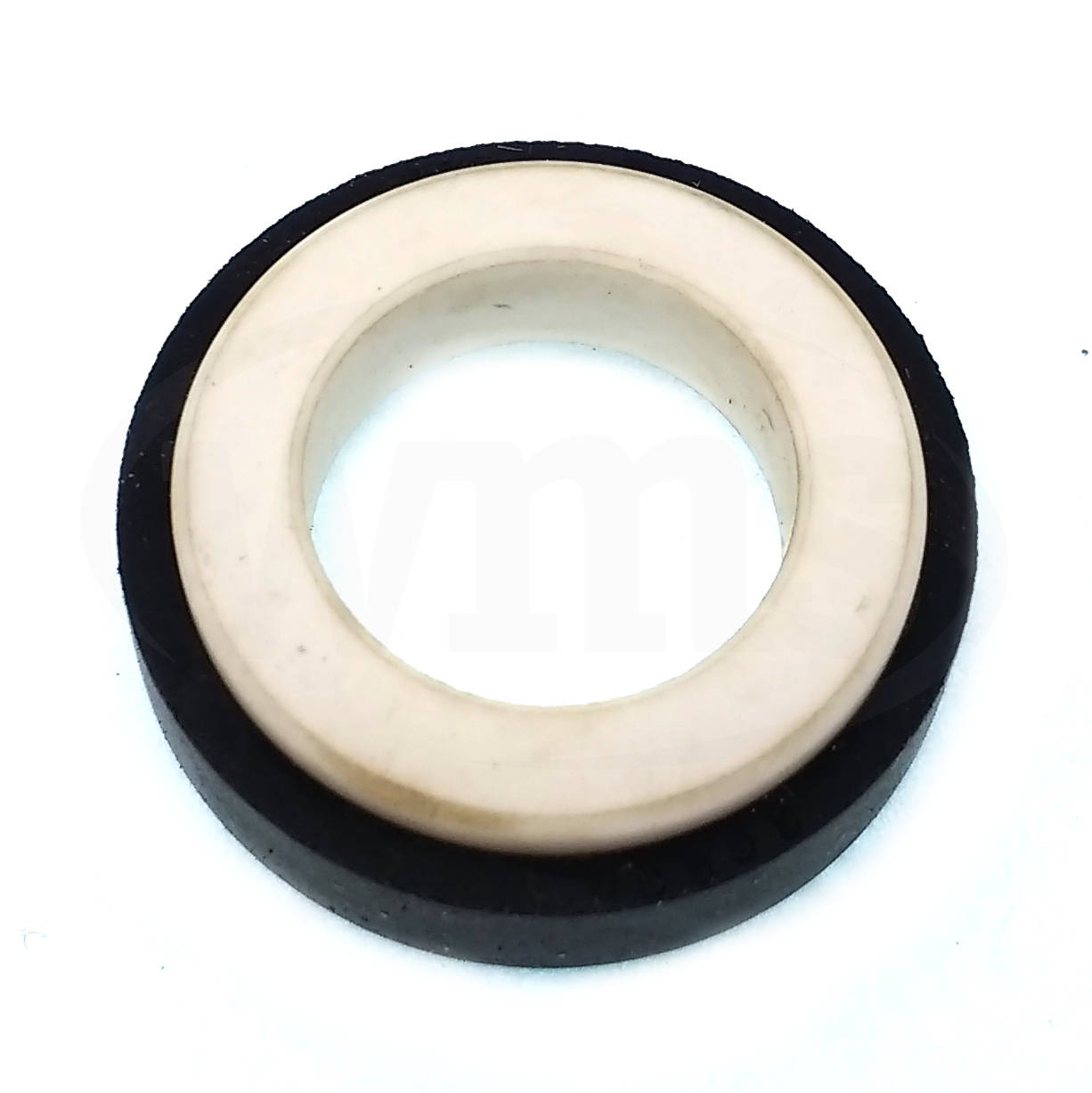

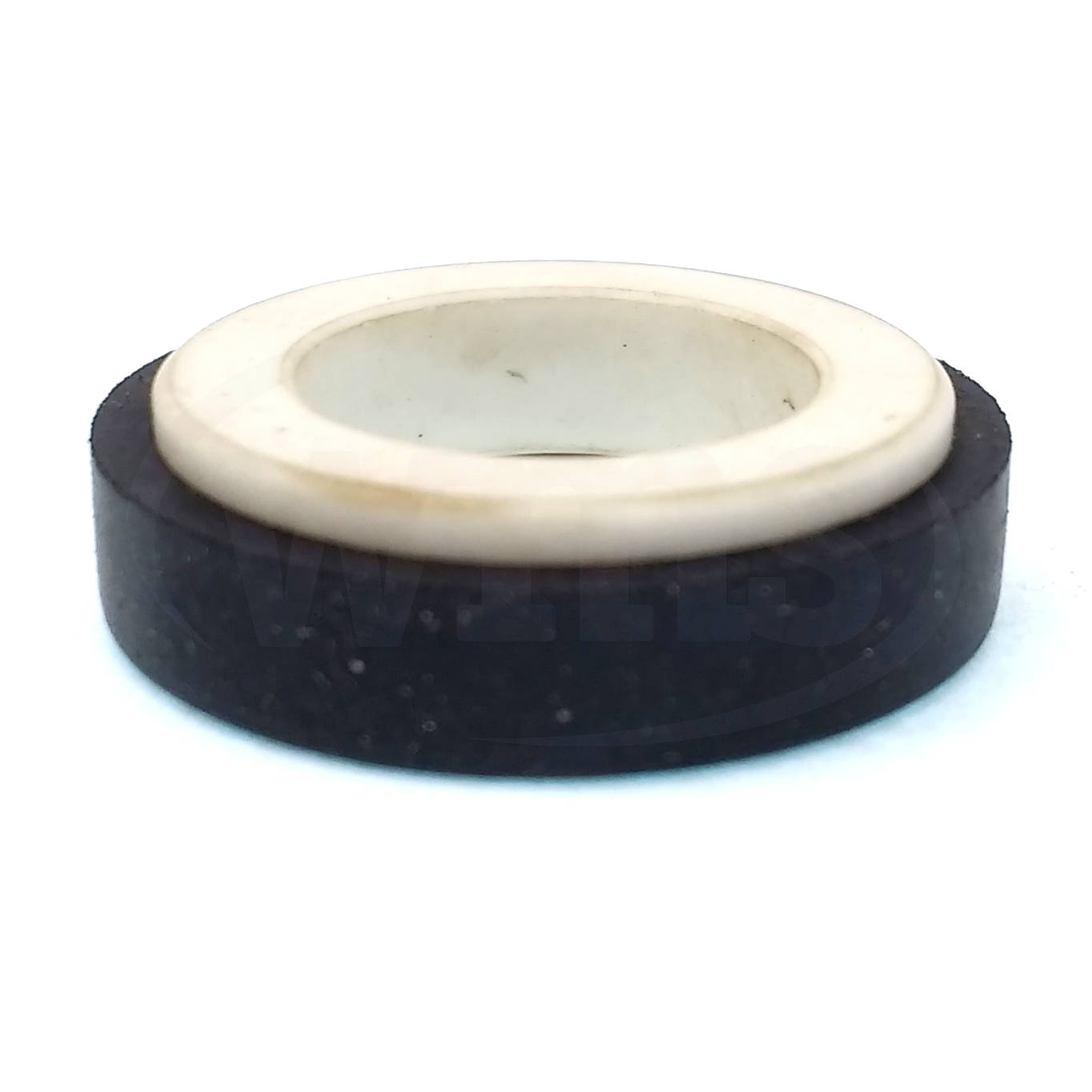

Ceramic Mating Rings

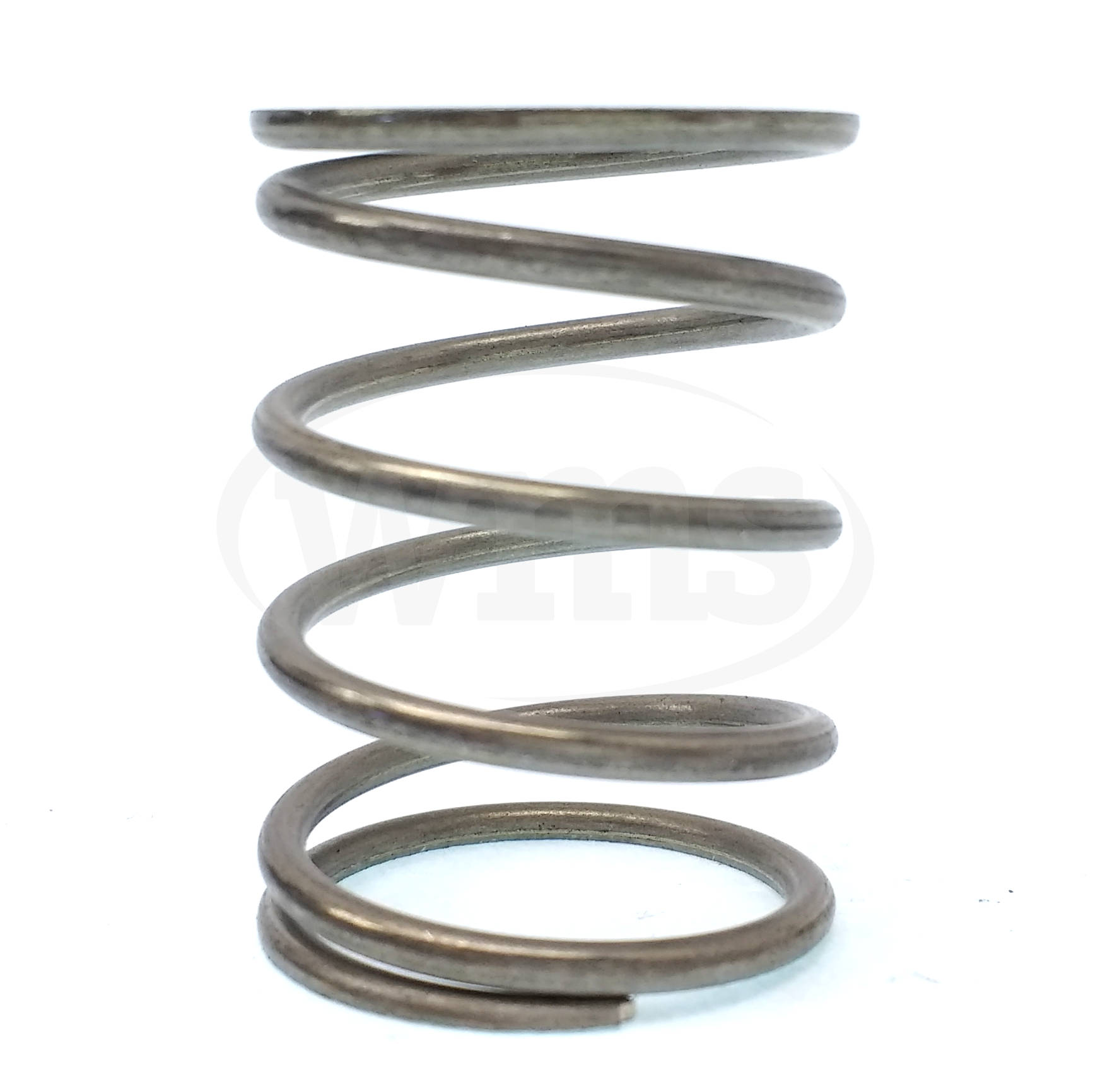

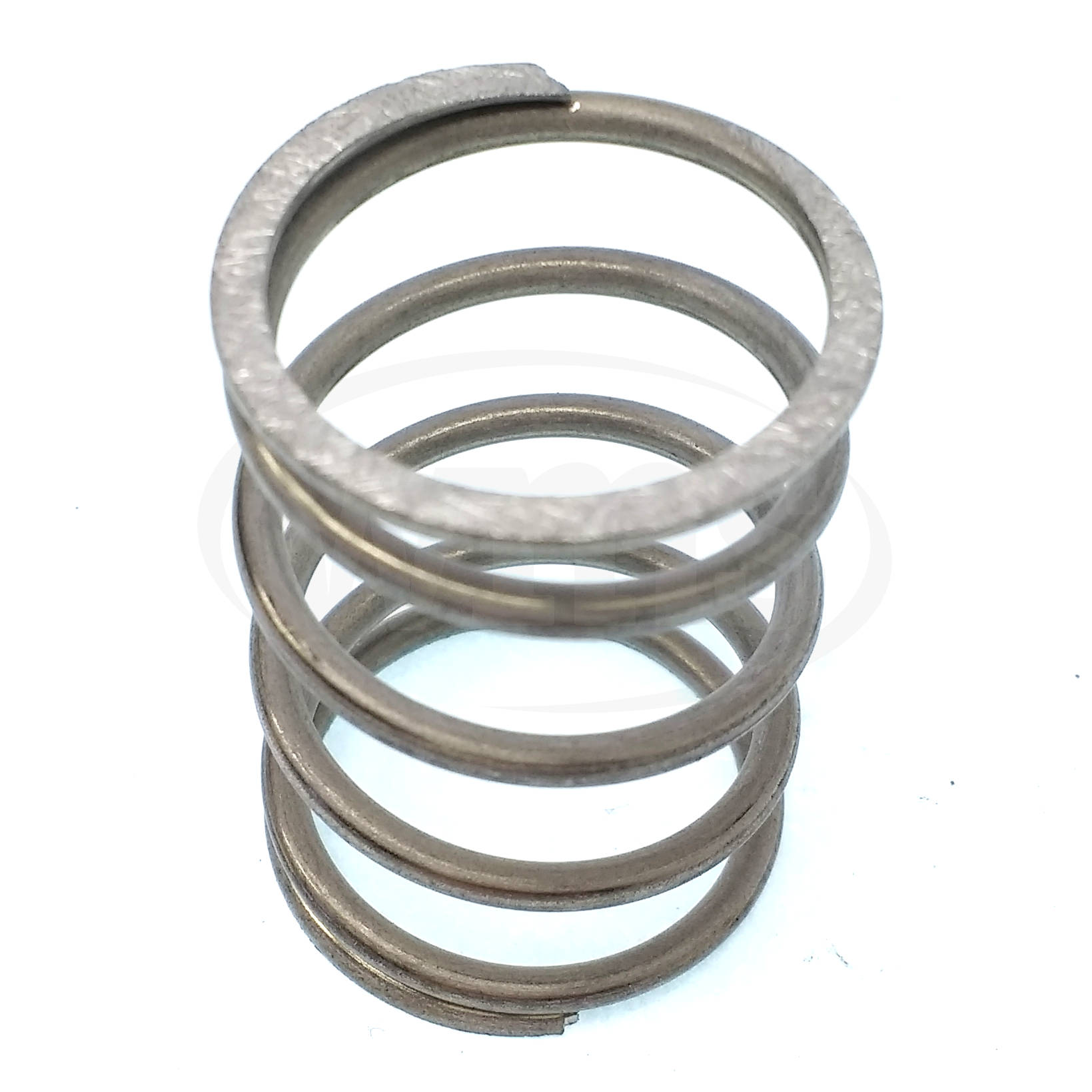

Stainless Steel Springs
Notes Spring Holder Not Included
UPC
Weight 0.15
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Mfg Cross Reference

Cross Reference

Manufacturer Pump Nameplate Data Mfg Part Number
Flint & Walling (Zoeller Company) BPA, C, C6267,CA 131100, 132377
Leland Faraday LFP-333-615, 14107-14120
Teel Pump 1P-849-850-879, 3P547-550, 571-599-648 1P979-984, 2P019-280, PC-18-2PC56 1R307, 5P387, 5P421
