/Products/Pumps/Seals/PS-309 U.S. Seal Mfg 7/8" Pump Seal
Click Image to Expand

Product ID: PS-309

PS-309 U.S. Seal Mfg 7/8" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-309

Available Stock: 4
Selected accessories will also be added to cart
$36.59 / Each
Quantity:
Carbon Upgrade

Description

General Pool Applications
Carbon Upgrade
  • Materials of Construction: Buna Elastomers, Carbon Primary Ring, Ceramic Seat, Stainless Steel Hardware
  • Better Chemical Resistance

Specifications

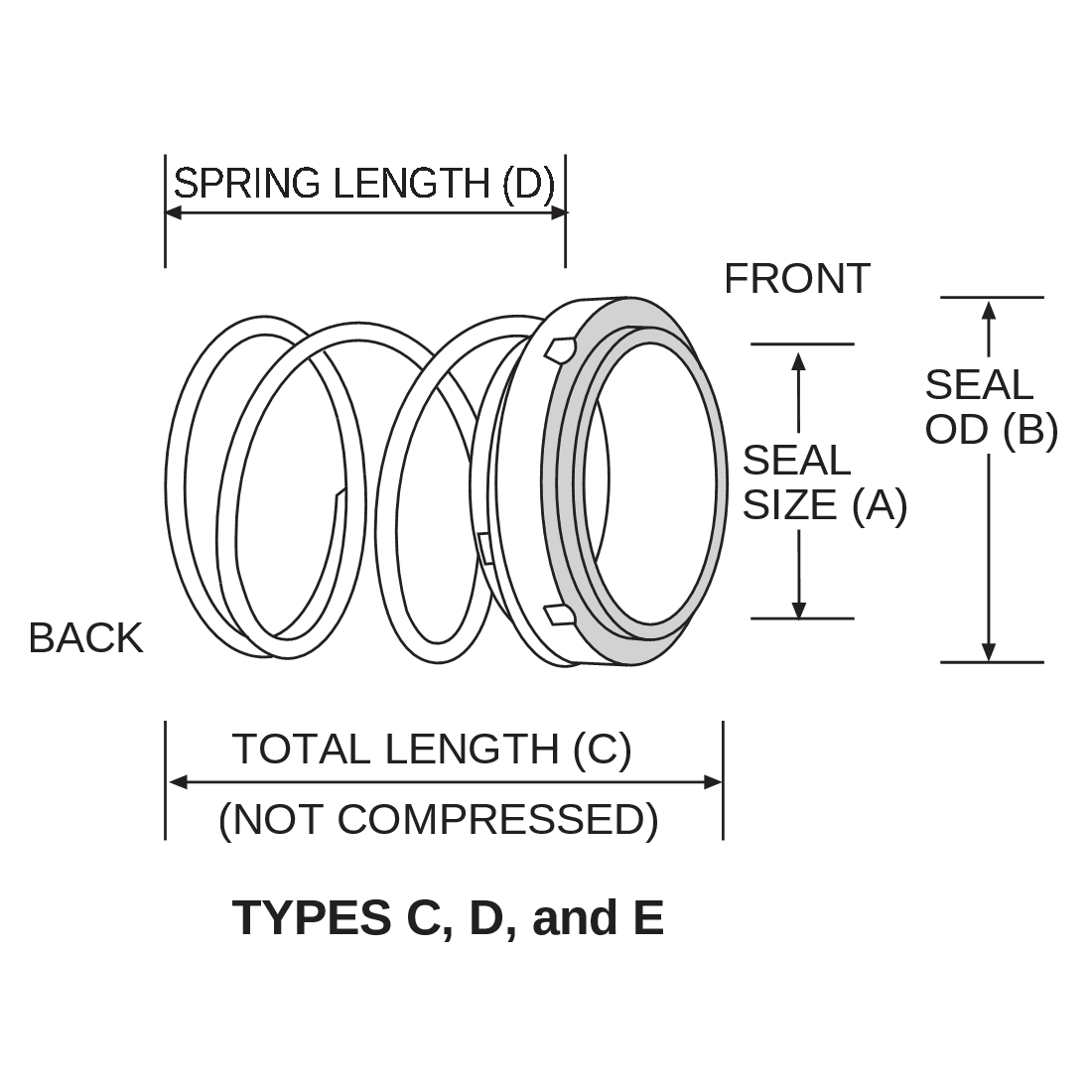

Seal Size 7/8"
Head Figure C
Head Outside Diameter 1.312"
Head Operating Height 0.937"
Mating Ring Figure 1
Mating Ring Bore 1.500"
Mating Ring Thickness 0.406"
Material Code BCFJF
Buna Secondary Seals
Carbon rimary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC 852661157124
Weight lbs
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Manufacturer Part Number(s) PS-309 (Carbon Upgrade
PS-309V-CMS (Ozone / Salt Service)
PS-3941 (SCS Series)
VG-309 (Value Guard)
Pump Nameplate Data Cross Reference CRANE-DEMING Fig. 4001, Dwg. 116-386
GECKO ALLIANCE, INC. AC Series
Cross Reference BELL & GOSSETT DP0294
CRANE-DEMING 0030876
CRANE PUMPS & SYSTEMS M-3824-B, 0030876
DEMPSTER INDUSTRIES, LLC 907-06033
GECKO ALLIANCE, INC. 92500000
GUSHER PUMPS 84079-2
MEGATOR CORP. 5679
MYERS, F.E. 21576A000
PAUL MUELLER CO. 9842885
SERFILCO® 55-488
SKIDMORE PUMP 142-54055, 50625-2
SOMAT® 54302
WEINMAN® Q26-394-Y2
XYLEM INC. DP0294
